Buna-N (Nitrile/NBR) Rubber Properties: The Engineer’s Guide to Oil Resistance & ACN Optimization
Not All Nitrile is Created Equal: Unlocking the Power of ACN
Buna-N (Nitrile/NBR) is the workhorse of the sealing industry, powering everything from automotive fuel lines to aerospace hydraulics. But specifying “Buna-N” on a drawing is not enough.
The performance of Nitrile rubber hinges on one critical chemical variable: Acrylonitrile (ACN) Content.
Unlike off-the-shelf suppliers who offer a single “standard” compound, we formulate Buna-N across the full ACN spectrum (18% to 50%). This allows us to tune the material’s properties to your exact failure points:
• Need to seal jet fuel? You need High ACN for maximum oil resistance.
• Operating in the Arctic? You need Low ACN for flexibility down to -54°c.
• Facing extreme heat or abrasion? We offer HNBR and XNBR upgrades.
Don’t settle for a generic “black rubber” that compromises your system’s integrity. Design with precision.

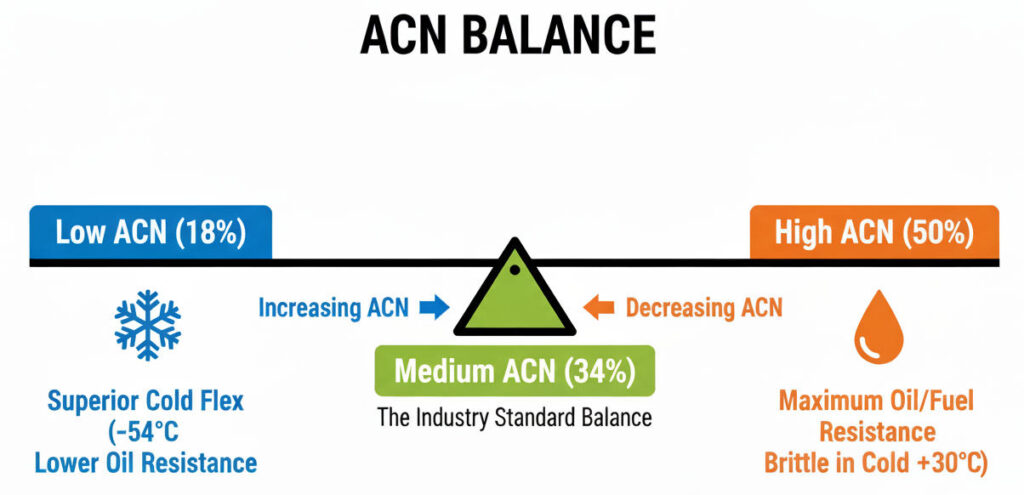

The Chemistry of Performance: The ACN Trade-Off
The “secret ingredient” in Nitrile rubber is Acrylonitrile (ACN). The percentage of ACN in the polymer chain (ranging from 18% to 50%) dictates the material’s personality. It acts like a sliding scale: you cannot have maximum oil resistance AND maximum cold flexibility simultaneously.
You must choose the right balance for your application:
1. Low ACN (18% – 24%)
• The Arctic Specialist: Designed for flexibility in extreme cold.
• Performance: Remains flexible down to -65°F (-54°C).
• Trade-off: Moderate volume swell in oils. Best for pneumatic seals or applications with low-grade lubricants in freezing environments.
2. Medium ACN (34%) – The Standard
• The All-Rounder: This is the standard “Buna-N” you get from most catalog suppliers.
• Performance: Good balance. Operates from -34°C to 121°C.
• Application: General purpose O-rings, hydraulic seals, and water pumps.
3. High ACN (45% – 50%)
• The Fuel Master: Engineered for direct contact with aromatic fuels and aggressive oils.
• Performance: Minimal swelling and permeation.
• Trade-off: Becomes brittle at temperatures below +20°F to +30°F. Ideal for engine compartments or submerged fuel tank gaskets where heat is constant4
When Standard NBR Isn't Enough: The Upgrade Path
Standard Nitrile Buna N properties is excellent, but it has limits—specifically regarding high heat and abrasion. If your application pushes the boundaries of standard Buna-N, we offer two high-performance variants engineered for extreme duty.
1. HNBR (Hydrogenated Nitrile) – The Heat Shield
• The Science: By saturating the polymer backbone with hydrogen, we significantly increase the material’s thermal stability and oxidation resistance.
• The Upgrade:
• Temperature: Operates up to 300°F – 325°F (150°C – 165°C), compared to standard NBR’s 250°F limit.
• Strength: Superior tensile strength and tear resistance.
• Best For: Automotive timing belts, power steering seals, and oil field packers requiring resistance to sour gas (H2S) and corrosion inhibitors.
2. XNBR (Carboxylated Nitrile) – The Armor
• The Science: We add Carboxyl groups (R-COO-) to the polymer structure, creating extra chemical cross-links that act like internal reinforcement.
• The Upgrade:
• Abrasion Resistance: Offers the highest abrasion resistance of any oil-resistant rubber—outlasting standard NBR by 2x to 3x in gritty environments.
• Hardness: Typically formulated in harder durometers (80-90 Shore A).
• Best For: Drilling mud pump seals, wiper seals, solid tires, and footwear soles where friction is constant.
Material Comparison Matrix
| Material | Temp Limit | Oil Resistance | Abrasion Resistance | Cost Factor |
| Standard NBR | 250°F (120°C) | Good | Good | $ |
| HNBR | 325°F (165°C) | Excellent | Very Good | $$$ |
| XNBR | 225°F (107°C) | Good | Superior | $$ |
Certified Performance: Engineered for Industry Standards
We don’t just supply rubber; we supply compliance. Our Nitrile compounds are rigorously tested to meet the specific regulatory demands of the Automotive, Energy, and Food Processing sectors.
1. Oil & Gas: Anti-Explosive Decompression (AED)
• The Challenge: In high-pressure downhole environments, gas permeates the rubber. When pressure drops rapidly, the gas expands, causing the seal to blister or explode (Rapid Gas Decompression – RGD).
• Our Solution: We formulate High-ACN and HNBR compounds specifically to resist RGD.
• Standards: Compounds available meeting NACE TM0187 and NORSOK M-710 criteria for sour gas (H2S) environments.
2. Automotive & Transportation: ASTM D2000 Precision
• The Challenge: Modern engines run hotter, and fuels are changing. Standard buna rubber properties degrades quickly in Ethanol and Biodiesel blends.
• Our Solution: Specialized formulations for fuel rails, carburetor diaphragms, and transmission fluid cooling lines.
• Standards: We certify to ASTM D2000 and SAE J200 line call-outs.
3. Food & Dairy Processing: Fat Resistance
• The Challenge: While EPDM is great for steam, it fails when touching animal fats (butter, milk fat, grease), causing swelling and contamination.
• Our Solution: White Nitrile rubber is the industry standard for fatty food contact. It resists oils that destroy EPDM.
• Standards: FDA 21 CFR 177.2600 (Class 1 & 2) compliant compounds for dry and fatty foods. 3-A Sanitary Standards available for dairy equipment.
Compliance Reference Chart
| Industry | Critical Requirement | Recommended Material | Applicable Standard |
| Energy | Rapid Gas Decompression | HNBR / High-ACN NBR | NORSOK M-710 |
| Automotive | Bio-Diesel / Heat | HNBR | SAE J200 |
| Food | Animal Fat Resistance | White Nitrile (Buna-N) | FDA 21 CFR 177.2600 |
| Military | Fuel & Oil Resistance | Medium-High ACN | MIL-R-6855 |
Failure Prevention: The Achilles' Heel of Nitrile
Buna N rubber properties is the king of oil resistance, it has a fatal weakness: Ozone and UV Radiation.
The same chemical structure (double bonds) that provides its flexibility makes it highly susceptible to attack by sunlight and ozone gas found in the atmosphere. Using standard NBR for outdoor sealing is the #1 cause of premature field failure.
Need Weather Resistance? NBR fails in sunlight. For outdoor seals, switch to [EPDM Rubber Products].
1. The Threat: Ozone Cracking
• The Mechanism: Ozone (O₃) attacks the unsaturated double bonds in the Nitrile polymer backbone. This causes the polymer chains to snap.
• The Result: Under stress (stretch or compression), the rubber develops deep cracks perpendicular to the stress line, leading to catastrophic seal failure within weeks of outdoor exposure.
2. The Solution: How to Weather-Proof Nitrile If your application requires both oil resistance and weather resistance, standard properties of buna n rubber is not enough. We offer three engineering solutions:
• Option A: NBR/PVC Blends (The “Jacket” Solution)
• What is it? We blend Nitrile with Polyvinyl Chloride (PVC).
• Benefit: The PVC acts as a shield, significantly improving ozone and abrasion resistance while maintaining oil resistance.
• Best For: Fuel hoses, cable jackets, and outdoor machinery covers.
• Option B: Upgrade to HNBR
• Benefit: The hydrogenation process removes the vulnerable double bonds, making HNBR 5x more resistant to ozone/weathering than standard NBR.
• Option C: Switch Materials
• Advice: If there is no oil contact and the application is purely outdoor (like a window seal), do not use Nitrile. Switch to EPDM or Silicone immediately.

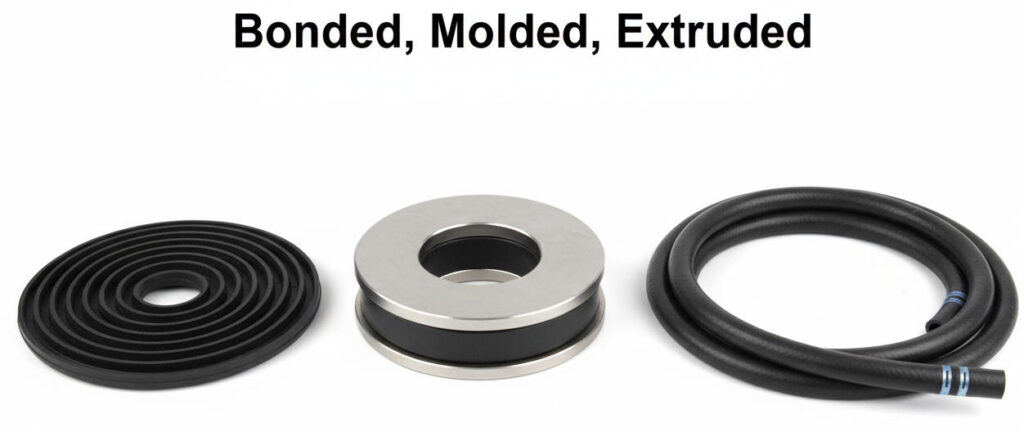

From Compound to Component:Nitrile Rubber Manufacturers
We don’t just sell rubber sheets; we engineer finished components. Because Nitrile (Buna-N) is highly versatile, we utilize three distinct manufacturing processes to match your geometry and volume requirements.
1. Rubber-to-Metal Bonding (The NBR Advantage)
• Why NBR? Nitrile is one of the best polymers for chemical bonding to substrates like steel, aluminum, and brass.
• Our Process: We apply proprietary bonding agents to the metal insert before molding. During vulcanization, the rubber fuses with the metal at a molecular level.
• Applications: Vibration isolators, valve stems, rubber-coated rollers, and oil seal casings where the bond strength must exceed the tear strength of the rubber itself.
2. Precision Compression & Injection Molding
• Capabilities: From tiny O-rings (0.050″) to massive 30-inch gaskets.
• Complex Geometries: We specialize in molding NBR diaphragms with fabric reinforcement (nylon/polyester) for fuel pumps and regulators, ensuring high burst strength.
3. Extrusion & Curing
• Products: Fuel lines, U-channels, and D-strips.
• Technology: We use Microwave and Salt Bath Curing lines to ensure continuous, uniform vulcanization of long profiles, preventing the “porosity” often seen in cheaper hot-air cured NBR extrusions.
Manufacturing Capability Quick View
| Process | Typical NBR Products | Key Advantage |
| Rubber-to-Metal | Rollers, Mounts, Seals | Molecular bond stronger than the rubber itself. |
| Injection Molding | High-volume O-rings, Caps | Lowest cost per unit for quantities >10k. |
| Compression Molding | Large Gaskets, Diaphragms | Best for large parts and expensive materials (HNBR). |
| Extrusion | Hoses, Tubing, Profiles | Continuous lengths, custom cross-sections. |
Technical FAQ
Q: Is “Buna-N” the same thing as “Nitrile”? A: Yes. They are chemically identical. Nitrile(or NBR) is the generic chemical name for the polymer (Acrylonitrile-Butadiene). Buna-Nis the original trade name derived from Butadiene and Natrium (Sodium, the catalyst used), plus N for Nitrile.
• Q: What is the shelf life of Nitrile rubber? A: According to SAE ARP 5316 standards, NBR has a shelf life of 15 years if stored properly (cool, dry, away from UV light). HNBR generally has a longer shelf life due to its improved oxidation resistance.
• Q: Can I use Buna-N for brake fluid applications? A: ABSOLUTELY NOT. Glycol-based brake fluids will cause Nitrile to swell and disintegrate rapidly. For brake systems, you must use EPDM.
• Q: How do I know which ACN content I need? A: If you don’t specify, most suppliers provide Medium ACN (34%). If you are seeing low-temperature leaks, switch to Low ACN. If you are seeing excessive swelling in fuel, switch to High ACN. Our engineers can analyze your fluid to recommend the exact percentage.
Stop Guessing. Start Engineering.
Your seal is the smallest part of your machine, but it carries the biggest risk. Don’t let a generic rubber compound compromise your equipment’s reliability. Whether you need a low-temp Arctic seal or an abrasion-resistant XNBR packer, we have the formula.
