Custom Rubber Gaskets: Precision Engineered, Factory Direct
Stop paying exorbitant die-cutting fees and distributor markups to local conversion shops. Whether you need 50 rapid prototypes of a complex silicone enclosure seal, or 500,000 standard EPDM flange gaskets for a municipal water project, RiseUp is your ultimate custom rubber gasket manufacturer. From zero-tooling waterjet cutting to high-speed automated die-cutting and 3D compression molding, we deliver absolute precision directly from our China facility at true wholesale economics.By choosing us as your direct rubber gasket supplier, you get factory-direct pricing. Most rubber gasket manufacturers outsource their cutting; we do it all in-house to control quality and lead time.
Sealing Partner for Global OEMs
For heavy machinery engineers, pipeline contractors, and industrial procurement directors, sourcing the right rubber gasket goes beyond just picking a material; it requires the exact intersection of manufacturing technology and cost-efficiency. Unlike local suppliers who merely cut pre-bought rubber sheets, RiseUp custom-compounds the raw polymers and owns the entire fabrication process. We guarantee zero material degradation, absolute dimensional accuracy, and a supply chain built for massive global scale.

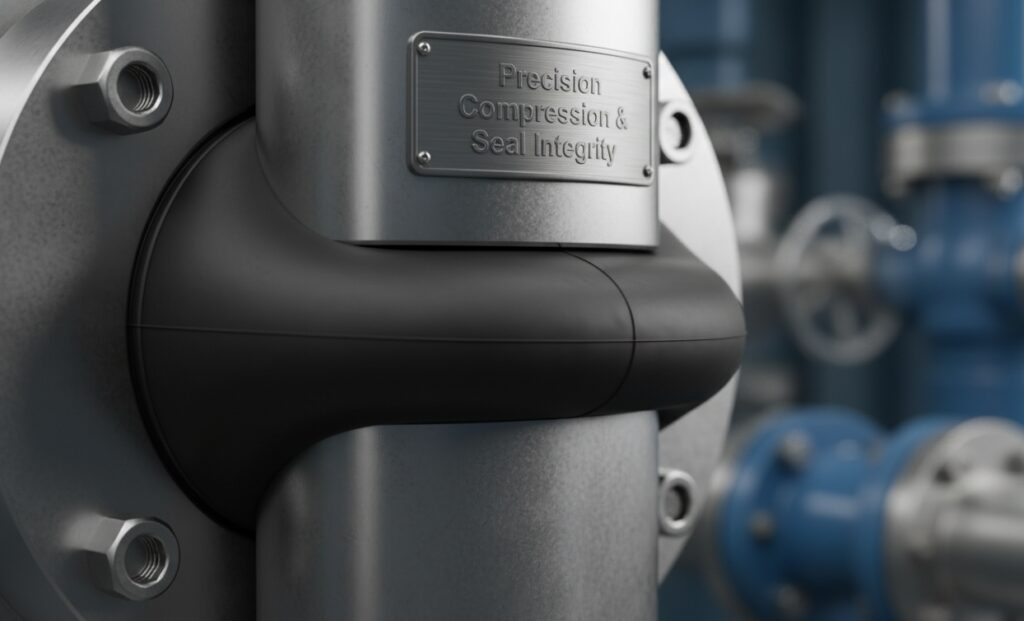

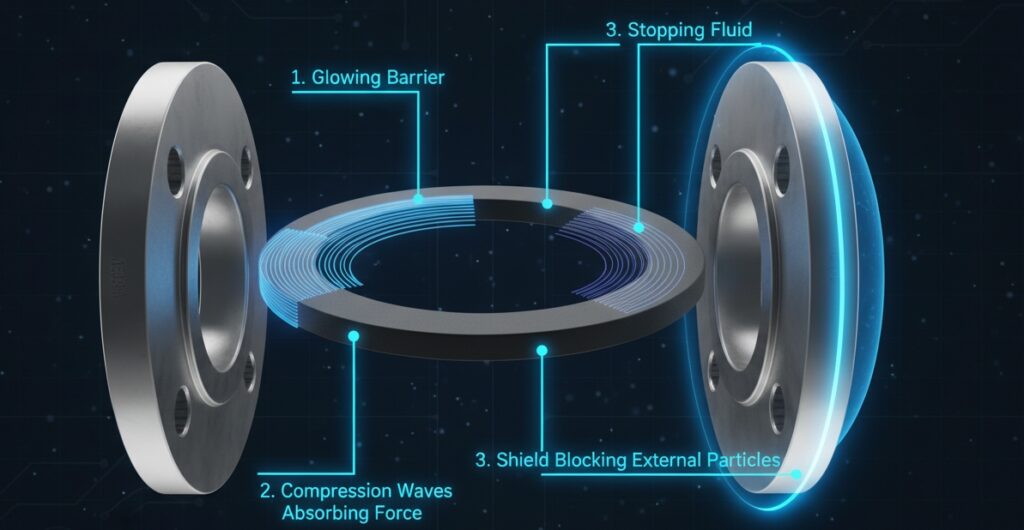

What is a Custom Rubber Gasket? The Ultimate Industrial Interface
A rubber gasket is a highly engineered elastomeric seal placed between two static mating surfaces. When compressed by bolts or fasteners, the rubber yields to fill the microscopic imperfections of the rigid hardware, creating a reliable, continuous seal. Far beyond a simple piece of cut rubber, a precision-engineered gasket serves three critical mechanical functions in any high-performance assembly:
1. Absolute Leak Prevention (Containment): It creates an impenetrable dynamic barrier that completely stops the leakage of pressurized gases, aggressive liquids, or volatile powders from escaping the joint, even under extreme temperature and pressure fluctuations.
2. Shock Absorption & Cushioning (Mechanical Protection): The elastomeric nature of the gasket acts as a dampening interface. It absorbs mechanical vibrations and impact forces, preventing the transfer of stress that could crack, warp, or prematurely wear down expensive metal or plastic connection points.
3. Environmental Isolation (Contamination Shield): It acts as a fail-safe physical shield against the outside world. It strictly blocks external impurities such as dust, moisture, UV rays, and corrosive salt sprays from penetrating the system and damaging sensitive internal components.
Global Industries Seal: Application Scenarios
A custom rubber gasket is not a one-size-fits-all product. It must be precisely engineered to survive the unique stresses of its operating environment. From the depths of the ocean to high-altitude flight, here is how RiseUp gaskets perform critical functions across 12 major industries:
1. Auto Industry: Seals engine blocks, oil pans, and transmissions. Prevents the leakage of high-temperature motor oil while withstanding extreme engine vibration and thermal cycling.
2. Chemical Industry: Acts as the ultimate defender in pipelines and reactors. Prevents catastrophic blowouts and toxic leaks of aggressive acids, alkalis, and industrial solvents.
3. Aero Hydraulic Industry: Secures flight control actuators and landing gear systems. Maintains absolute hydraulic fluid pressure under extreme temperature fluctuations and high-impact stress.
4. Aviation & Aerospace: Seals cabin doors, windows, and fuel systems. Crucial for maintaining life-saving cabin pressurization and resisting high-altitude ozone and UV degradation.
5. Medical Apparatus & Instruments: Provides sterile, non-toxic sealing for surgical equipment and ventilators. Formulated to withstand repeated autoclave sterilization (FDA compliant).
6. Machine Equipment: Deployed in CNC machines and gearboxes. Acts as a heavy-duty vibration dampener, prevents lubricating oils from leaking, and keeps metal-destroying dust out.
7. Electric & Power Industry: Delivers IP67/IP68 weatherproofing. Seals outdoor transformers, switchgears, and control panels against rainwater, dust, and electrical arcing.
8. Robotic Industry: Ensures precision sealing for robotic arm joints and servos. Prevents internal grease leakage and shields sensitive optical sensors from manufacturing dust.
9. Dock Fender Industry: Absorbs massive kinetic impact energy between cargo ships and concrete docks. Highly engineered to resist saltwater corrosion, marine growth, and constant UV exposure.
10. Submarine Cable Industry: Delivers absolute watertight integrity under extreme deep-sea pressure. Protects critical optical fibers from the corrosive intrusion of seawater.
11. Building Material Industry: Seals glass curtain walls and expansion joints. Provides vital structural cushioning, thermal insulation, soundproofing, and all-weather resistance.
12. Bathroom & Plumbing Industry: Creates permanent, watertight seals for faucets, shower enclosures, and sanitary piping. Prevents water damage and inhibits mildew growth.
For applications requiring extreme heat resistance up to 250°C, we recommend using Silicone or FKM. Learn more about our high temp gasket solutions.
Explore Custom Gaskets by Material
Every industrial application demands a specific elastomer. Dive deeper into our specialized material categories to find the exact chemical resistance and temperature tolerances your project requires:

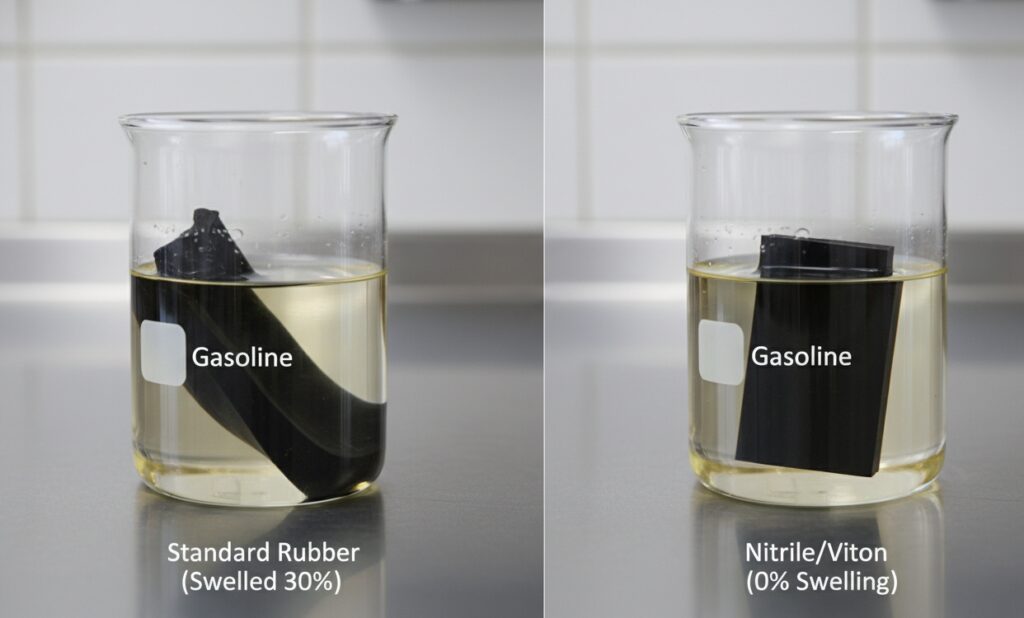

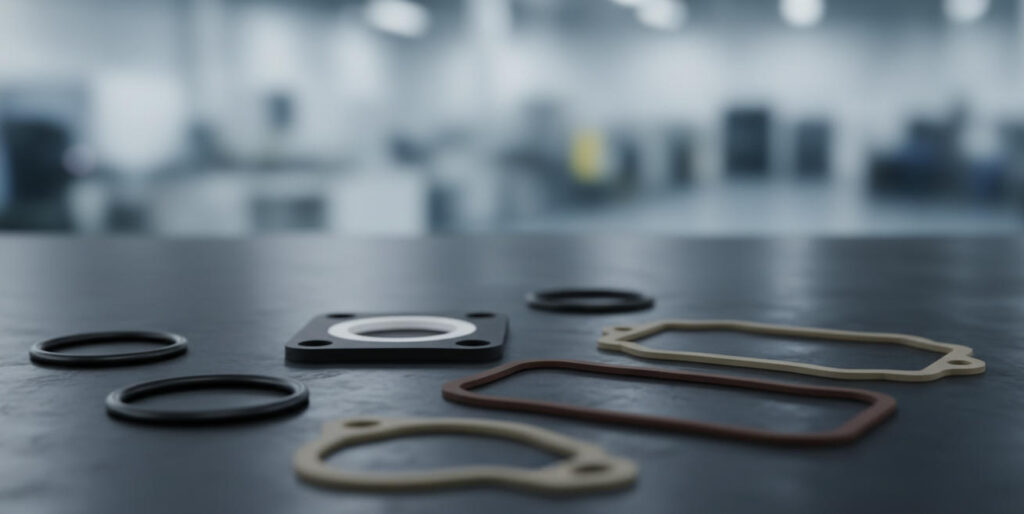

NBR Gasket
The industry standard for aggressive oil, fuel, and petroleum-based fluid resistance. Mandatory for automotive and hydraulic sealing.

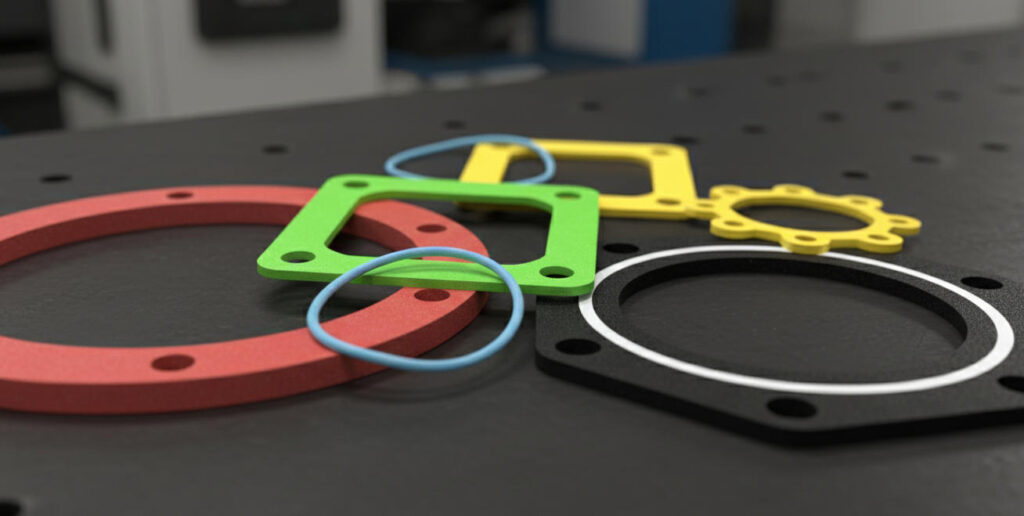

Epdm Rubber Gasket
The ultimate choice for outdoor weathering, UV/ozone exposure, and water/steam systems. Unbeatable for HVAC and municipal pipelines.

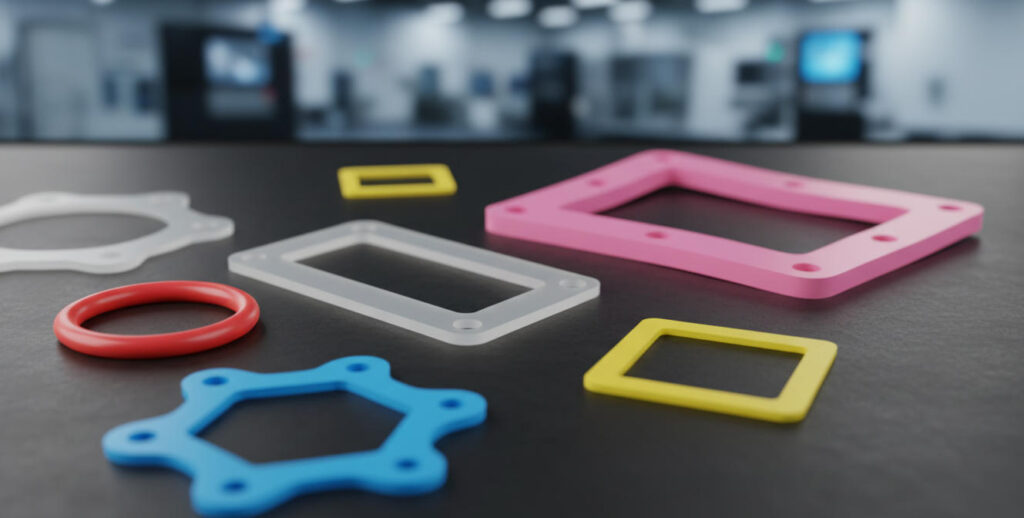

Silicone Rubber Gasket
Engineered for extreme temperatures (-60°C to +230°C) and stringent FDA/medical cleanroom compliance.

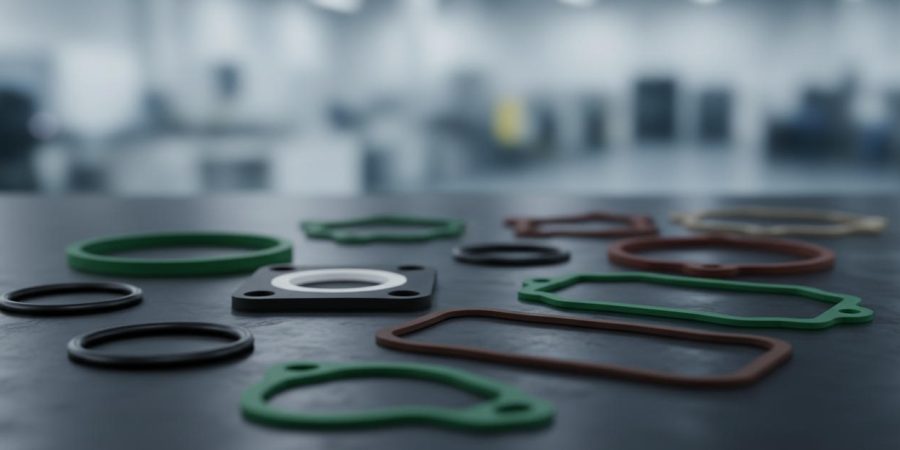

Fkm Gasket
The apex predator of elastomers. Defends against the harshest chemicals, acids, and extreme heat up to 250°C.

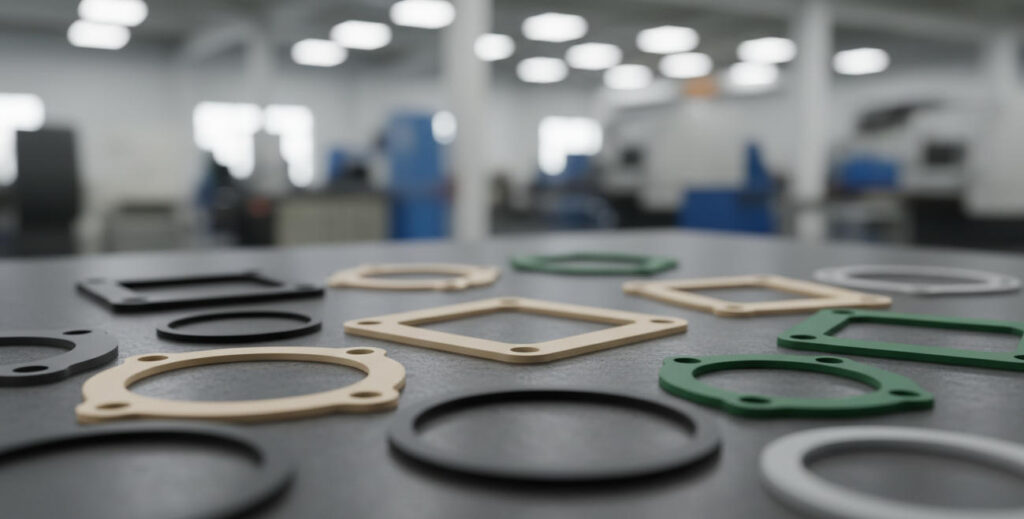

Neoprene Gasket
The versatile all-rounder. Offers an excellent balance of physical toughness, moderate oil resistance, and weatherability. Ideal for marine environments and Freon refrigeration.

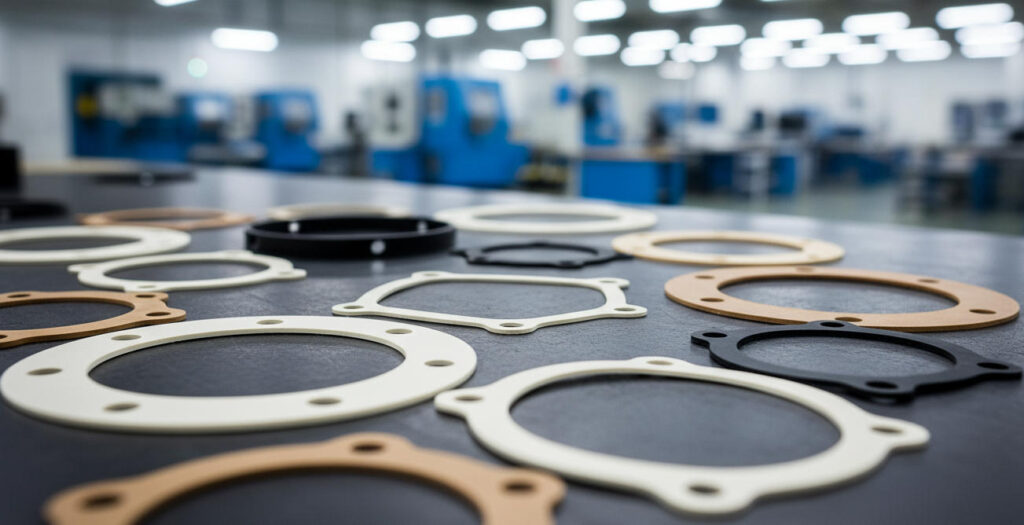

Natural Rubber Gasket
Unmatched dynamic flexibility and tear strength. The premier choice for heavy-duty shock absorption, vibration dampening, and extreme mechanical abrasion resistance.

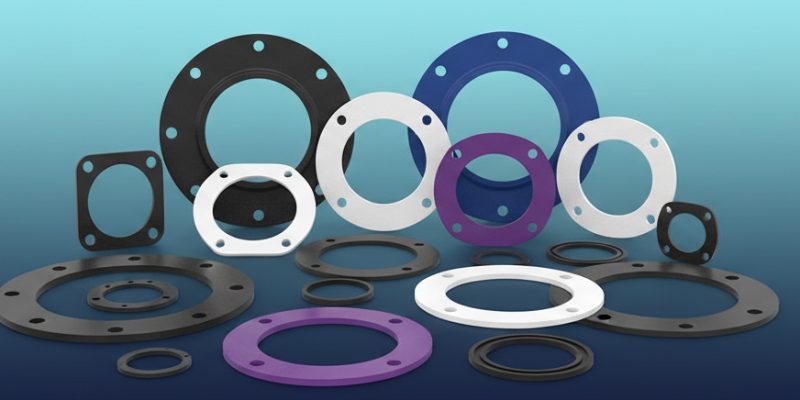

FFKM Gasket
The ultimate seal for catastrophic environments. Offers near-universal chemical compatibility and withstands extreme temperatures exceeding 300°C. Vital for semiconductor and aerospace

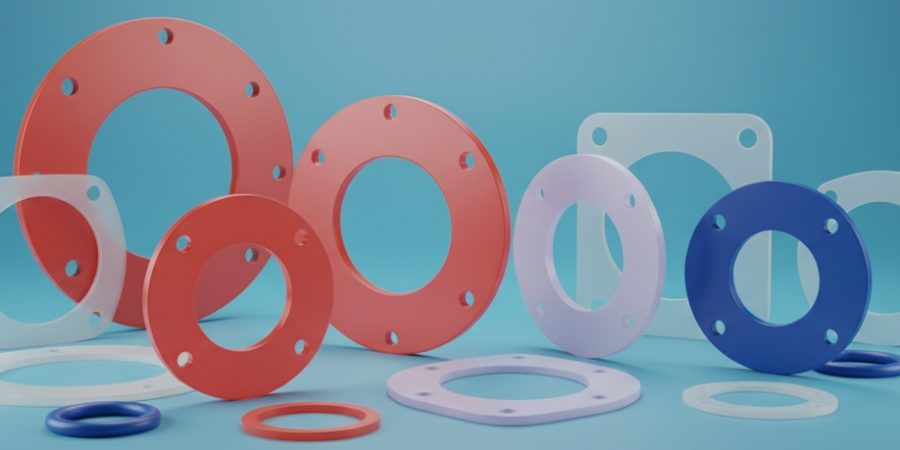

Fluorosilicone Gasket
Merges the extreme temperature flexibility of silicone with the aggressive fuel resistance of fluorocarbons. The absolute standard for aerospace fuel line sealing.

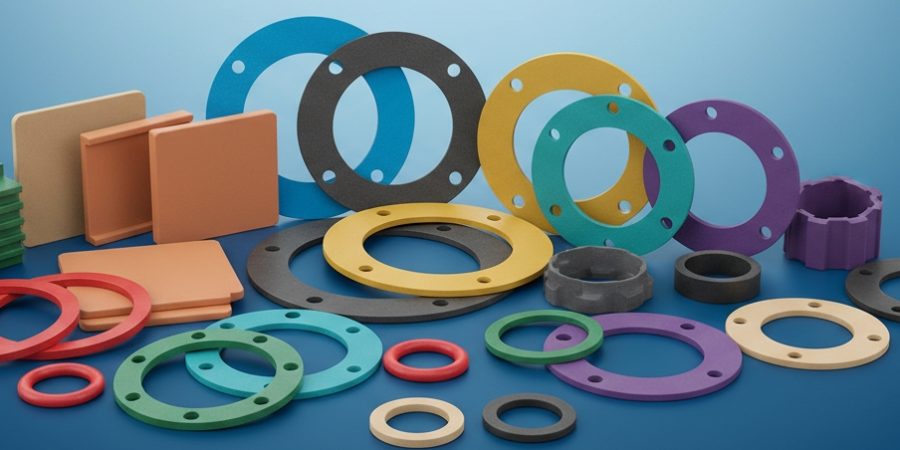

HNBR Gasket
A fortified upgrade over standard NBR. Delivers superior mechanical strength and extended survival in sour gas and high-heat oil systems. A staple in heavy-duty automotive.

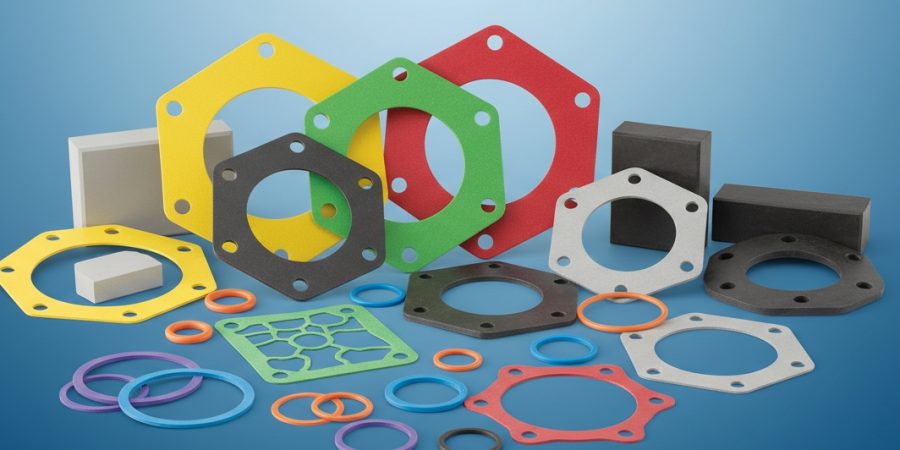

SBR Gasket
A highly cost-effective, abrasion-resistant alternative to natural rubber. Widely specified in general plumbing, HVAC, and non-critical industrial water systems.

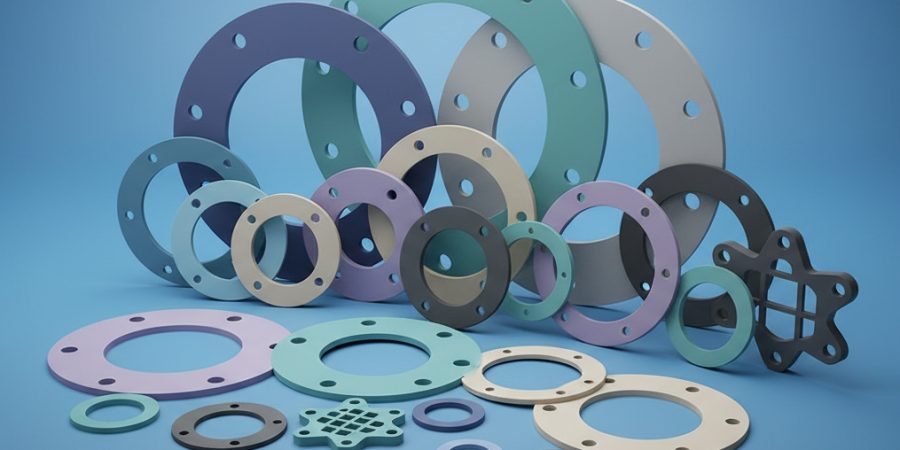

Butyl Gasket
The industry leader in gas impermeability. Mandatory for high-vacuum equipment, medical stoppers, and pressurized gas containment systems.

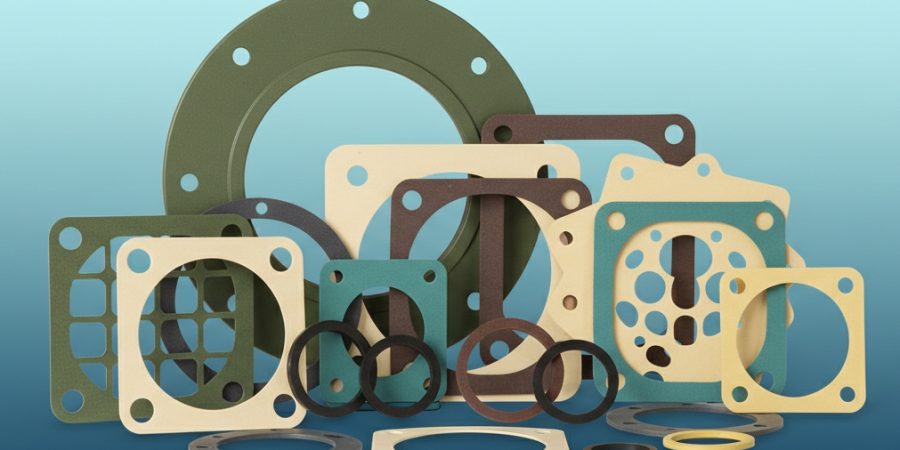

ECO Gasket
Exhibits excellent resistance to fuels, oils, and ozone with exceptionally low gas permeability. Widely specified in modern automotive fuel handling systems.
ACM Gasket
Engineered specifically to conquer hot petroleum oils and oxidation. The go-to elastomer for automotive transmissions and high-temperature engine sealing.

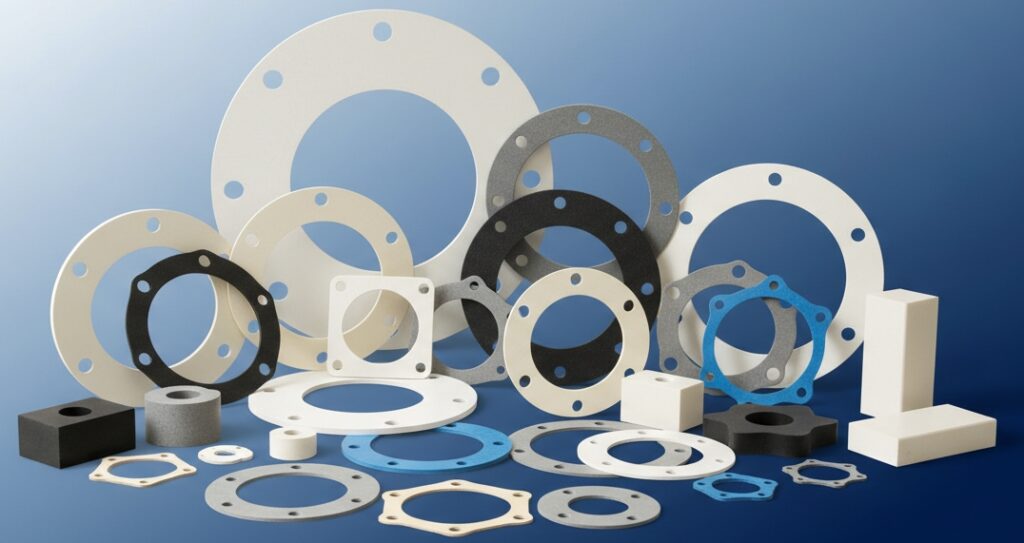

PTFE Rubber Gasket
Essential for absolute chemical inertness and zero-friction sealing. Impervious to almost all industrial solvents and widely used in pharmaceutical and corrosive fluid lines.

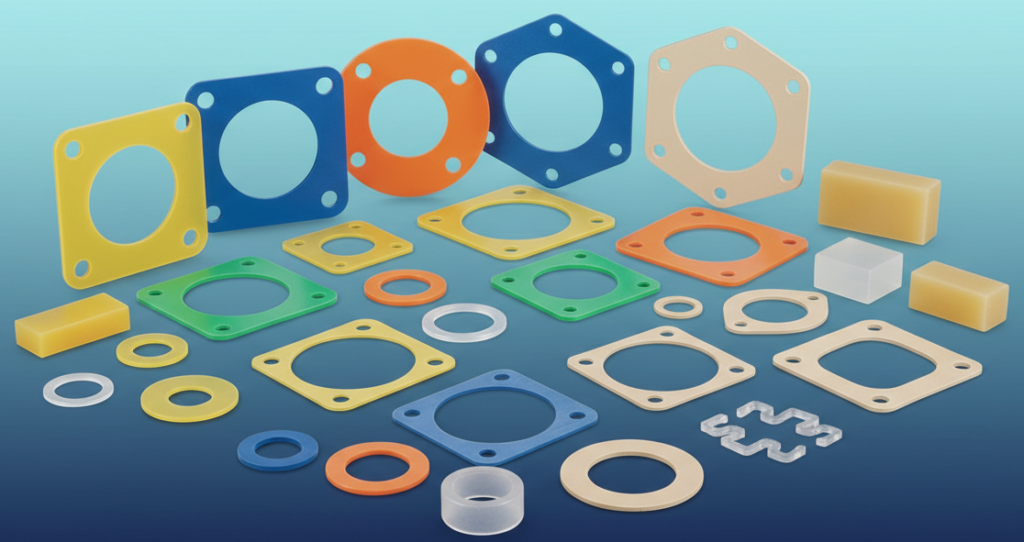

PU Gasket
Delivers indestructible tear strength and extreme load-bearing capacity. Built for severe mechanical abrasion and high-pressure hydraulic operations.

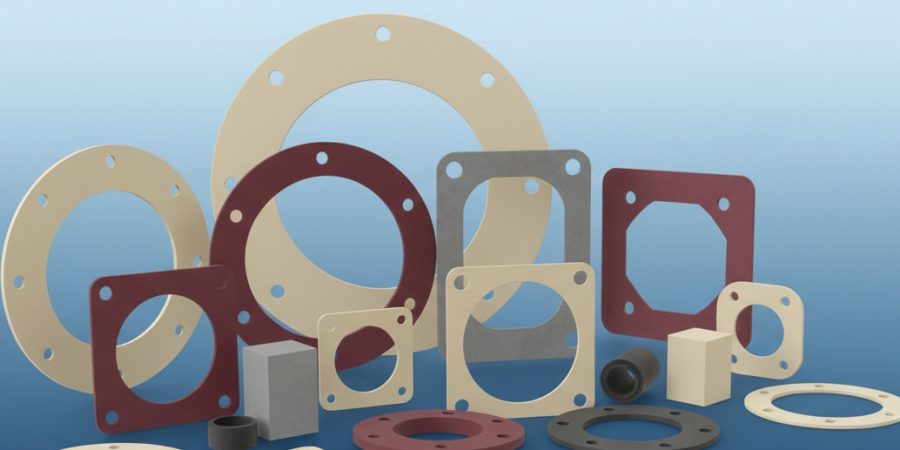

AFLAS Gasket
Features a unique chemical architecture designed to survive high-pressure steam, strong bases, amines, and sour gas. The backbone of deep-well oil and gas drilling.

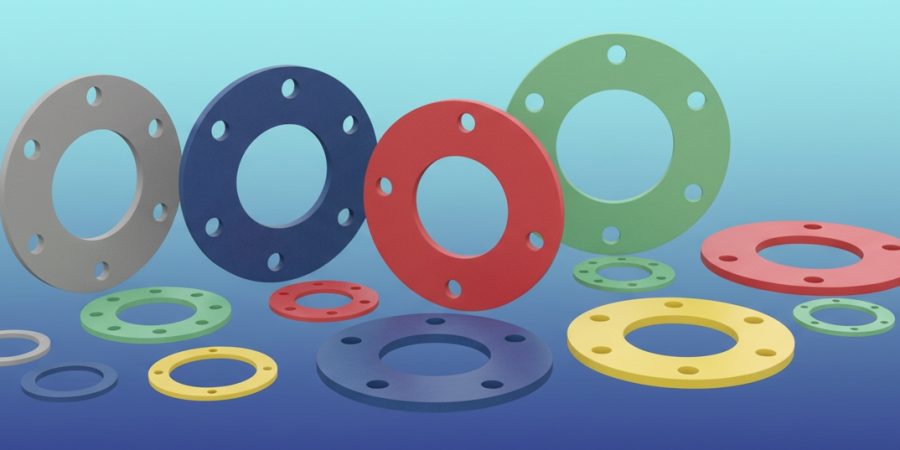

PVC Ruber Gasket
Combines the excellent fire and ozone resistance of PVC with the oil defense of NBR. Perfect for demanding, weather-exposed industrial seals and thermal insulation.

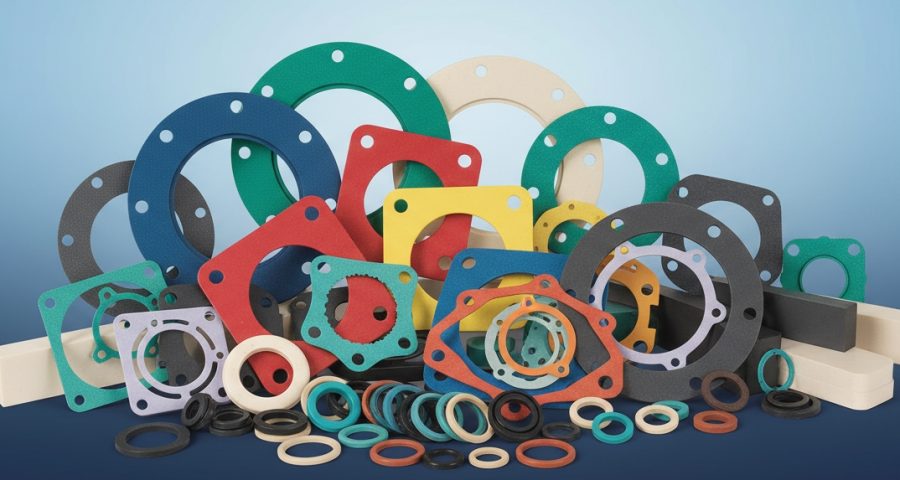

Synthetic Rubber Gasket
The ultimate engineered upgrade over natural rubber. This broad category features custom-compounded elastomers designed to deliver enhanced, tailored resistance to oils, aging, chemicals, and extreme temperatures across diverse industries.
“If your application requires circular high-pressure sealing instead of flat joints, explore our [precision rubber o-rings] for dynamic environments.”
If you need to route electrical wires through a metal chassis rather than sealing a flange, please explore our precision [sheet metal rubber grommets] to prevent wire chafing.”

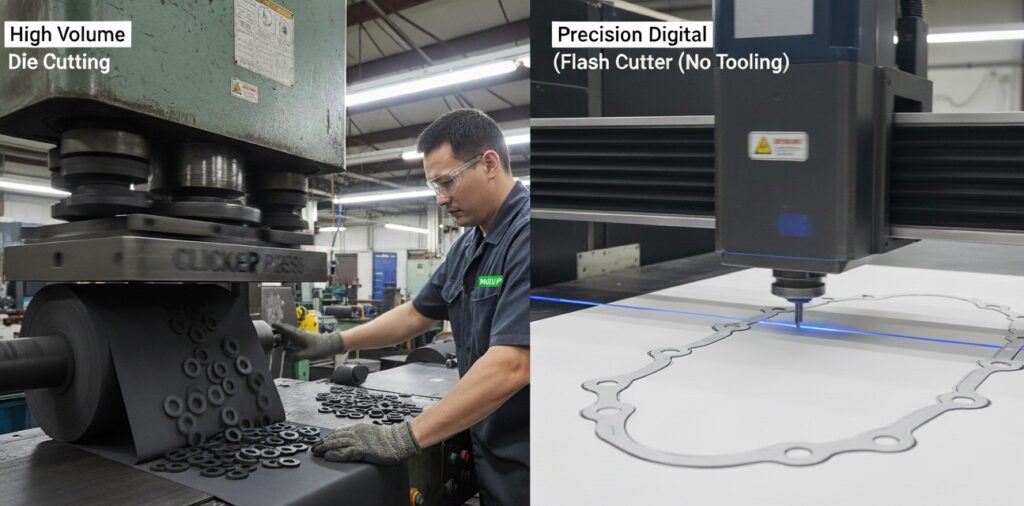

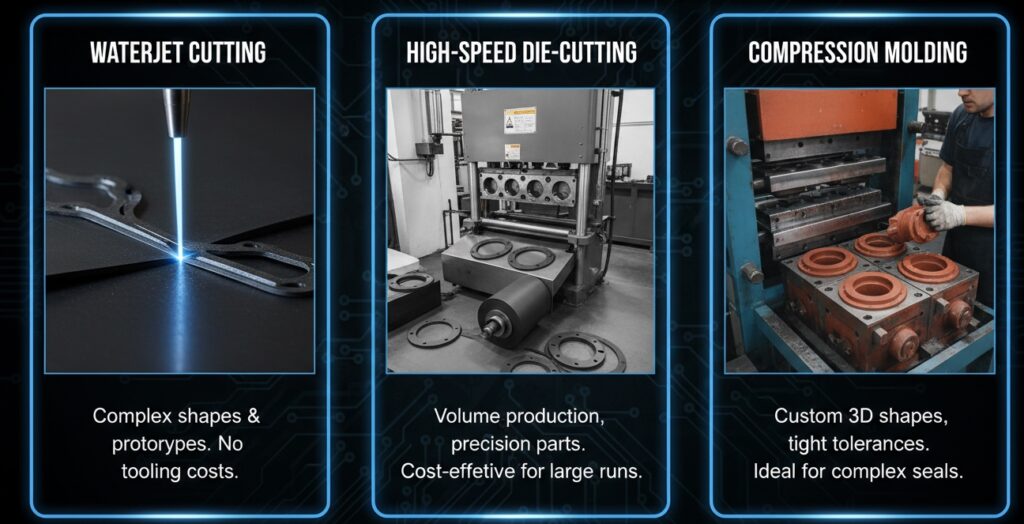

The "Right-Fit" Manufacturing Matrix: Precision at Every Scale
When engineering custom rubber gaskets, applying the wrong manufacturing method destroys your budget. Paying for a steel rule die just to test 50 prototypes is a waste of capital, while waterjetting 50,000 pieces for mass production is far too slow. RiseUp engineers your cost-efficiency by matching your exact volume, material thickness, and geometric complexity to our in-house flexible manufacturing matrix.
1. High-Speed Die Cutting (The Volume King)
• Best For: Orders > 1,000 parts.
• The Process: We build a custom steel rule die (like a cookie cutter) and punch gaskets instantly.
2. Digital Flash / Waterjet Cutting (The Precision Artist)
• Best For: Prototyping, complex geometries, and large gaskets.
• The Process: CAD files are sent directly to the machine. An oscillating knife or waterjet beam cuts the rubber with 0.1mm accuracy.
3. Compression Molding
• Best For:Small and Medium Gasket
The Process: 3D file, such as STP,STEP,STR Format
We offer precision die cutting services for custom gaskets using steel rule dies. This process is cost-effective for high-volume parts like [Rubber Washers & Bonded Seals], as well as standard flat gaskets
Seamless Scale-Up: From Prototype to Mass Production
| Manufacturing Process | Best Fit For (Application) | Tooling Cost | Speed & Lead Time | Core Engineering Advantage |
| Waterjet Cutting | Prototypes, low-volume runs, and ultra-thick rubber sheets. | $0 (Zero) | 1-3 Days | Instant revisions from CAD files. No thermal distortion or concavity on cut edges. |
| High-Speed Die-Cutting | High-volume mass production of standard flat gaskets. | Low | 1-2 Weeks | The absolute lowest cost per unit at scale. Extreme consistency for millions of parts. |
| Compression Molding | Complex 3D profiles, variable thicknesses, and irregular cross-sections. | Moderate | 2-3 Weeks | Superior material density and geometries impossible to cut from a flat sheet. |
The RiseUp Scale-Up Advantage: You can order 50 waterjet-cut Viton™ gaskets on Monday for field testing, validate the design, and instantly trigger a 100,000-piece automated die-cut production run the following week—all under one roof.
The Engineer's Material Selector: Conquering Extreme Environments
Selecting the correct compound is a high-stakes engineering decision. At RiseUp, our polymer chemists don’t just supply rubber; we engineer your seal based on crucial metrics like Compression Set Resistance, bolt torque requirements, and chemical compatibility.
The Ultimate Elastomer Compatibility Matrix
| Elastomer (Material) | Temperature Range | Core Defenses (Resistance) | Ultimate Engineering Applications |
| Nitrile (NBR) | -40°C to +120°C | Oils, Fuels, Greases, Hydraulic Fluids. | Absolute industry standard for oil resistance. Automotive and hydraulic sealing. |
| EPDM | -50°C to +150°C | UV, Ozone, Weather, Water, Steam. | Outdoor and water champion. Essential for HVAC systems and municipal pipes. |
| Silicone (VMQ) | -60°C to +230°C | Extreme Temperatures, FDA compliance. | Perfect for food processing, medical cleanrooms, and electronics enclosures. |
| Viton™ (FKM) | -20°C to +250°C | Aggressive Chemicals, Acids, Extreme Heat. | Ultimate defender. Designed for aerospace, refineries, and chemical processing. |
| Neoprene (CR) | -40°C to +120°C | Multi-purpose, Freon, Ammonia. | The versatile all-rounder. Ideal for refrigeration systems and marine environments. |
Preventing “Compression Set” Failure: A common mistake in gasket design is ignoring compression set. RiseUp custom-compounds our raw materials to ensure an exceptionally low compression set. This means our gaskets maintain their elastic “push-back” memory against the hardware, ensuring a watertight and airtight seal for decades.
Specialized Frontiers: Medical, Food & Submersible
When "Clean" and "Dry" are Non-Negotiable.
Smart procurement means knowing who to call.
• The Local Route: If you have a line down and need one standard gasket immediately, a local distributor (like Fort Worth Gasket and Supply or others in your region) is your best bet for emergency pickup.
• The Direct Route (RiseUp): If you are an OEM requiring 500+ parts, custom tooling, or specific gasket rubber compounds, going direct to the manufacturer is the only way to secure the best margin and quality control.
Why Global Brands Choose RiseUp:
1. Cost Efficiency: We eliminate the middleman markup.
2. Custom Formulation: Unlike distributors who only sell what’s on the shelf, we mix our own rubber.
3. Global Logistics: We ship DDP (Delivered Duty Paid) to your door, handling all customs paperwork.

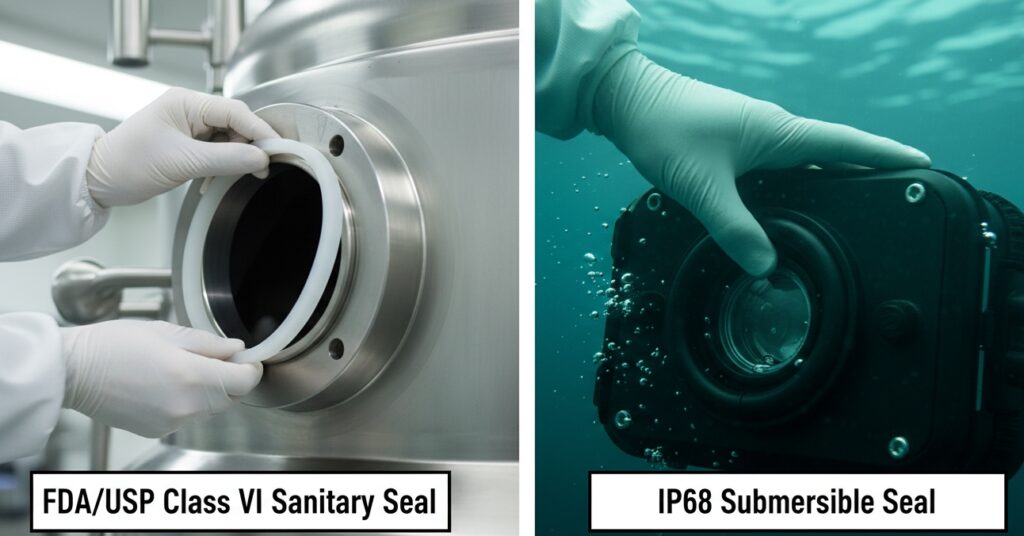

Specialized Frontiers: Medical, Food & Submersible
When "Clean" and "Dry" are Non-Negotiable.
Some environments demand more than just a seal; they demand purity and absolute ingress protection. We engineer specific compounds to meet FDA hygiene standards and IP68 waterproof ratings.
1. High Purity Gaskets (Sanitary & Pharma)
• The Challenge: Leaching and contamination. Standard black rubber contains carbon black, which is unacceptable in food or medical lines.
• The Solution: We manufacture high purity gaskets using Platinum-Cured Silicone and PTFE. These white or translucent materials are odorless, tasteless, and meet FDA 21 CFR 177.2600 standards. They ensure your product remains 100% pure.
2. Watertight Gasket Material (Enclosures & Marine)
• The Challenge: Keeping water out of electronics or machinery, even under pressure.
• The Solution: For uneven surfaces (like plastic enclosure boxes), you need a soft, compliant material. We recommend closed-cell EPDM sponge or low-durometer (40 Shore A) Neoprene as the ideal watertight gasket material. It compresses easily to fill gaps, guaranteeing an IP67/IP68 seal against rain, spray, and submersion.
3. Application Focus:
• Medical: Ventilator seals, IV pump gaskets.
• Marine: Hatch seals, underwater lighting gaskets.
• Outdoor: 5G tower enclosure seals.
The Engineer's Arsenal: Custom Gasket & Sourcing FAQs
Engineering, Design & Reverse Engineering
For die-cut rubber gaskets, we strictly adhere to the RMA Class A (High Precision) standard. For waterjet cutting and molding, we achieve even tighter micro-tolerances.
A: To prevent the concave edges common with steel rule dies on thick materials, we automatically switch the process to Waterjet Cutting for gaskets over 6mm, ensuring perfectly vertical 90-degree cut edges.
Yes. Send us your physical part. Our QA team uses High-Precision Optical Comparators and 3D laser scanners to recreate the CAD file and waterjet a prototype within 48 hours.
Yes. We run continuous high-volume production of standard Ring Type and Full Face flange gaskets complying with ASME/ANSI B16.21, DIN, and JIS standards.
Absolutely. We cut through the rubber gasket layer but leave the PSA backing liner intact for rapid robotic peeling.
Materials & Certifications
Yes. We laminate high-performance PSA from top brands like 3M, Nitto, or Avery Dennison to one or both sides.
Every wholesale batch is fully traceable. We provide CoCs, batch-traceable MTRs, and PPAP Level 3 documentation.
Yes. We custom-compound EPDM for drinking water (NSF-61) and utilize cleanroom molding for FDA-compliant Translucent Silicone.
Our custom compounds range from highly compressible 20 Shore A up to rock-hard 90 Shore A.
Wholesale Tooling & Global Logistics (China Direct)
Our industrial waterjet beds cut massive seamless gaskets up to 1.5 meters by 3 meters (approx. 60″ x 118″). For larger sizes, we use hot-vulcanized splicing.
Custom tooling fees typically range from $50 to $150 USD, and we often waive the tooling fee entirely for wholesale orders. Waterjet prototypes require $0 tooling.
We support R&D with prototyping runs as low as 50 to 100 pieces, and scale to support blanket orders of 1,000,000+ pieces.
Waterjet prototypes ship in 1 to 3 days. High-volume die-cutting runs take 1 to 2 weeks.
Soft/oversized gaskets are packed flat on rigid cardboard or vacuum-formed trays, sealed with desiccants in heavy-duty cartons on fumigation-free pallets.
Yes. We can manufacture your annual volume to lock in pricing, hold inventory, and release scheduled JIT shipments.
Always. Our engineers use advanced CAD nesting software to pack shapes onto the raw sheet, minimizing scrap and delivering the lowest Cost Per Part (CPP).
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Seal the Deal. Test Our Quality.

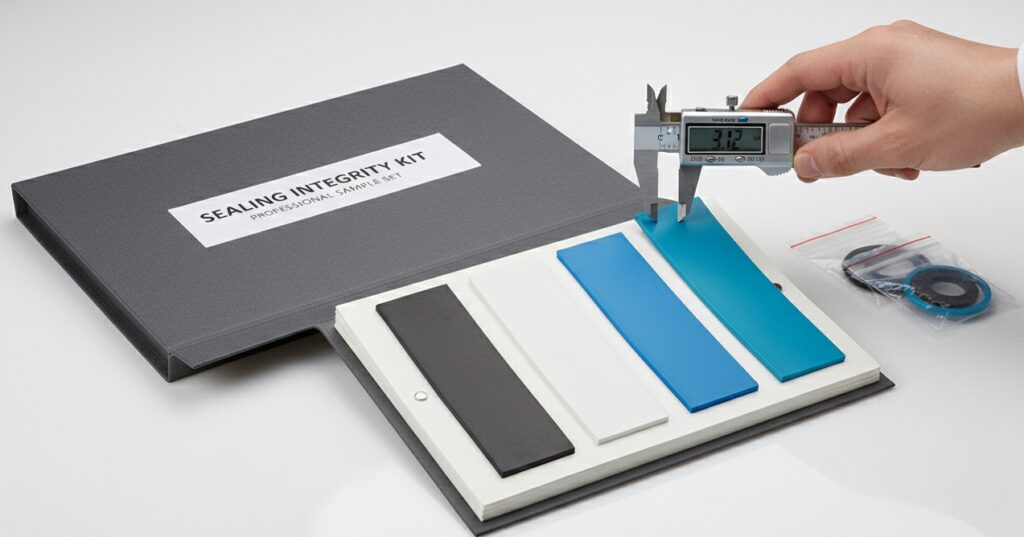

Don’t settle for generic parts. Verify the compression and finish yourself. Request our “Sealing Integrity Sample Kit”. It includes a variety of materials (Neoprene, Nitrile, Silicone) cut via both Waterjet and Die Cutting, so you can compare the edge quality.
