Custom Compression Molding & In-House Tooling: The Speed & Precision Advantage
Your Molds, Your Parts, Under One Roof. No Middlemen.
Most rubber manufacturers have a dirty secret: They don’t make their own molds, they don’t provide the compression molding services in shortly,they outsource tooling to third-party shops, adding weeks to your lead time and markups to your cost.
We are different. We are a fully integrated manufacturing partner with a dedicated In-House Tool & Die Division, we can custom the compression molding, injection molding,extrusion molding.
Whether you need a complex rubber compression mold for a heavy-duty diaphragm, an intricate injection mold, or a precision extrusion die, we design and build it right here. This vertical integration allows us to:
• Slash Lead Times: We cut tooling lead times by 30-50% compared to competitors who rely on outsourcing.
• Rapid Modifications: Need a design change? We take the mold off the press and walk it to the tool room. Modifications happen in hours, not weeks.
• Cost Control: Direct pricing with no “outsourcing management fees.”
From the first cut of steel to the final cure of rubber, we control every step of the process to ensure your parts are perfect.
The Heart of Precision: Our Tool Room Capabilities

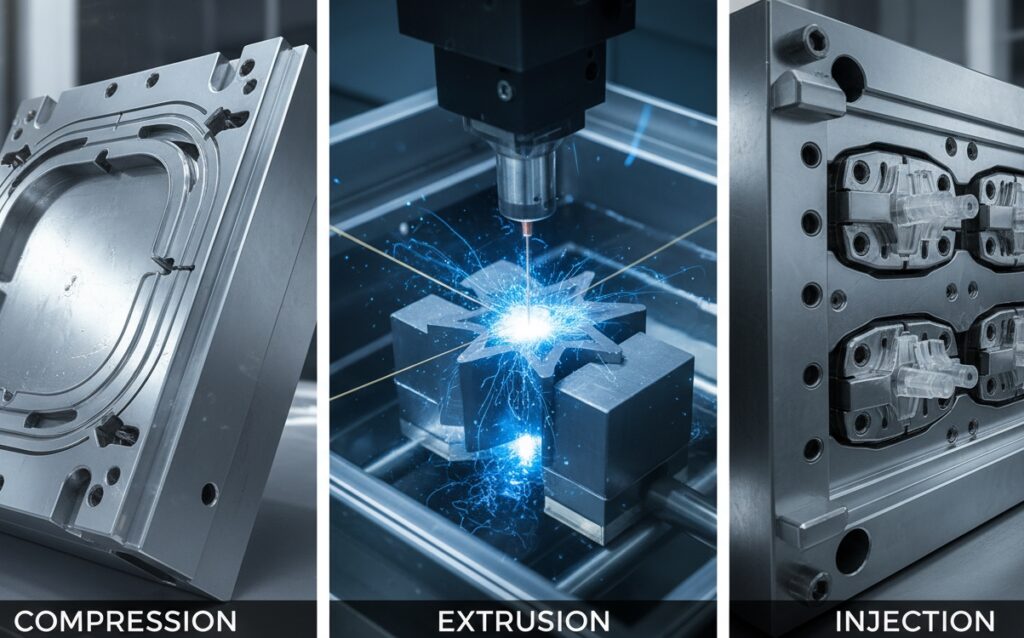

Mastering the Trinity: Compression, Injection, and Extrusion Tooling
Quality rubber parts start with precision steel. Our state-of-the-art tool room is equipped with advanced CNC Machining Centers, Wire EDM, and Sinker EDM technologies. Unlike job shops that just follow a print, we design tools with the final rubber production process in mind.
1. Precision Compression Molds (Flash Control)
• The Challenge: Poorly made compression molds result in excessive “flash” (waste rubber), requiring expensive manual trimming.
• Our Advantage: We engineer our molds with precise “tear-trim” grooves and tight parting lines. This minimizes flash, reduces material waste, and lowers your unit cost. We work with high-grade steels (4140, P20) to ensure longevity.
2. Injection & Transfer Tooling (Complex Geometry)
• The Capability: For high-volume or complex parts, we design intricate multi-cavity injection molds.
• The Tech: Utilizing Sinker EDM, we can create deep ribs, undercuts, and texturing that standard machining cannot achieve. We optimize gate locations to prevent air traps and knit lines.
3. Extrusion Dies (Wire EDM Precision)
• The Capability: We produce dies for custom profiles and tubing in-house using Wire EDM technology.
• The Benefit: This allows for extremely complex cross-sections with tolerances as tight as +/- 0.001″. If the first trial isn’t perfect, we modify the die immediately to dial in the dimensions.
4. Design for Manufacturability (DFM)
• The Value: Because we are both the toolmaker and the molder, we catch design errors before cutting steel. We review your CAD to optimize draft angles and wall thickness, ensuring your part is moldable and cost-effective.

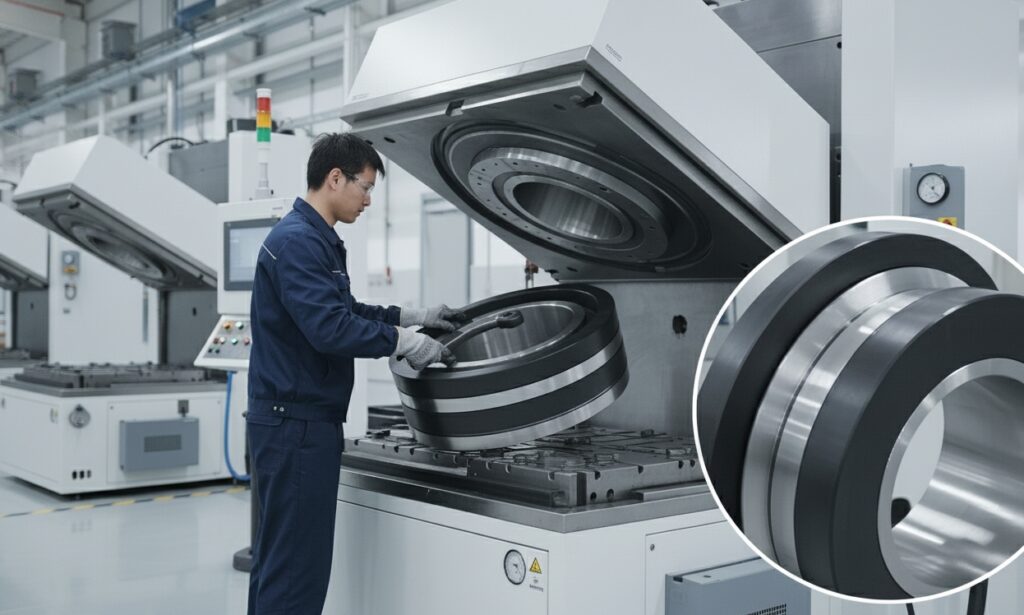

Precision Compression Molding: The "Muscle" Behind the Mold
Vacuum Technology & Heavy Tonnage Capabilities
Having a great mold is only half the battle. You need the right machinery to execute. We utilize advanced Vacuum Compression Molding presses ranging from 50 to 1,000 tons. This technology allows us to produce defect-free parts with superior physical properties.
1. The Vacuum Advantage (Defect-Free Parts)
• The Problem: Standard compression molding often traps air pockets inside the rubber, causing blisters, porosity, and structural weakness.
• Our Solution: Our presses pull a vacuum on the mold cavity before the rubber cures.
• The Result: Air is completely evacuated, ensuring solid, dense parts with zero porosity. This is critical for high-pressure seals and electrical insulators.
2. Rubber-to-Metal Bonding (Insert Molding)
• The Capability: Compression molding is the superior choice for bonding rubber to metal inserts.
• The Process: Because we make the molds in-house, we machine precise locating pins that hold your metal inserts (brass, steel, aluminum) in perfect position during the high-pressure cure.
• Applications: Valve stems, heavy-duty rollers, vibration mounts, and shock absorbers.
Need tighter tolerances or metal bonding? While compression molding is cost-effective for simple parts, it may result in larger flash lines. For complex geometries, intricate inserts, or tear-trim requirements, we recommend upgrading to our [Rubber Transfer Molding Services]. It bridges the gap between compression and injection with superior dimensional control.
3. Flash Control & Finishing
• The “In-House” Synergy: Because our tooling is precision-cut via CNC/EDM, our mold parting lines are tight.
• The Benefit: We achieve “Near-Net Shape” molding with minimal flash (waste). This reduces the need for aggressive cryogenic deflashing or manual trimming, keeping your unit costs lower and edge quality higher.
4. Large Part Capability
• Capacity: Our large platen presses (up to 48″ x 48″) allow us to mold massive gaskets, heavy equipment pads, and large-diameter seals that injection molding cannot handle.
Rapid Prototyping & Bridge Tooling: Test Real Rubber in Days
Don't wait 8 weeks to validate your design.
3D printing is great for checking fit, but it cannot simulate the chemical resistance, compression set, or elasticity of cured rubber. Because we have an in-house tool shop, we can cut Rapid Prototype Molds from aluminum or soft steel in a fraction of the time required for production tooling.
1. Aluminum Prototype Molds (The “Soft Tool” Option)
• The Concept: For low-volume runs (10-500 parts) or design validation, we machine molds from Aircraft-Grade Aluminum (7075).
• The Advantage: Aluminum cuts 3x faster than steel.
• Cost & Speed: typical tooling costs are 50-70% lower than production steel molds, with first samples delivered in as little as 5-10 days.
2. Bridge Tooling (Scale Up Fast)
• The Strategy: Need 5,000 parts immediately while waiting for your massive multi-cavity production mold? We build a single-cavity “Bridge Tool” to get your production line running immediately.
• Flexibility: Since we control the CNC machines, we can modify the bridge tool on the fly to refine the design before cutting the expensive hard steel production mold.
3. Real Material Validation
• Why it beats 3D Printing: Polyjet or SLA “rubber-like” resins degrade quickly and don’t seal properly. Our prototype molds use the exact same compound (e.g., Viton, EPDM, Silicone) as your final product. This allows you to perform valid leak testing, heat aging, and chemical immersion tests during the prototype phase.

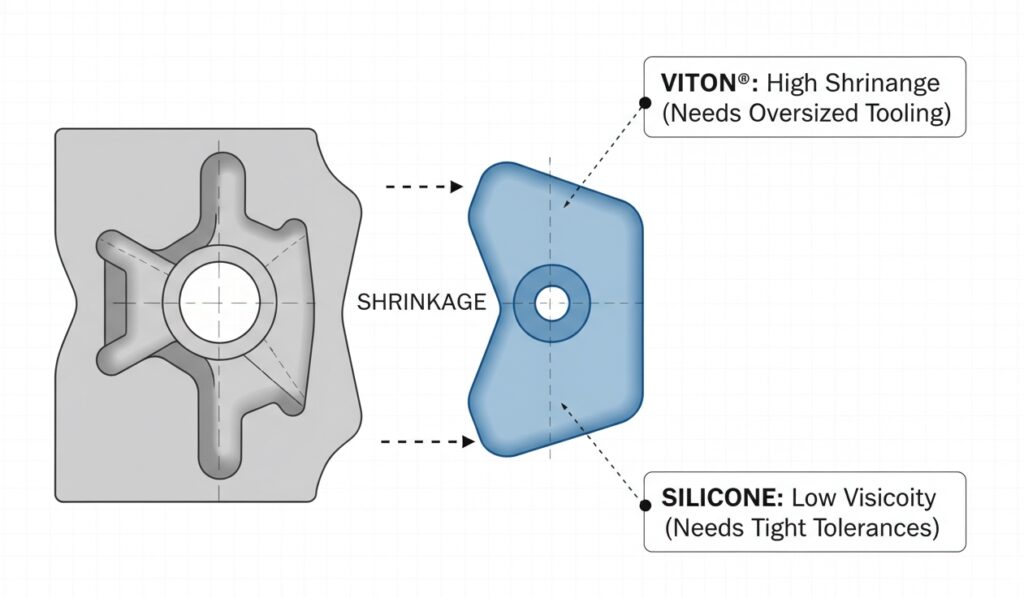

Material & Mold Synergy: The Art of Shrinkage
Why "Standard" Tooling Fails with Advanced Materials
Rubber is not a static material; it is a living chemical compound. When cured at , rubber expands, and when it cools, it shrinks. This Shrinkage Rate varies wildly depending on the polymer family—from 1.5% to over 4.0%.
Because we formulate the rubber and build the mold, we don’t guess. We cut the steel to the exact shrinkage specification of your compound.
1. The Shrinkage Science
• The Risk: If you send a drawing to a generic machine shop, they might apply a “standard” 2.5% shrinkage rate. If you are using Viton (which often shrinks 3-4%), your final parts will be undersized and out of tolerance.
• Our Solution: We calculate the tooling dimensions based on the specific Rheology of the material we intend to mold, ensuring the cooled part hits the critical dimension every time.
2. Material-Specific Tooling Strategies
• For FKM (Viton®): FKM is sticky and corrosive. We apply Chrome Plating or Nickel-Teflon coatings to the mold cavity to ensure smooth demolding and prevent mold fouling.
• For Liquid Silicone (LSR) & Gum Silicone: Silicone flows like water under pressure. Standard mold gaps will cause massive flashing. We grind our silicone molds to ultra-precision tolerances (+/- 0.0002″) to create a vacuum-tight seal that prevents flash. If your project demands “flash-less” quality, micro-tolerances (±0.01mm), or complex undercuts without manual finishing, please explore our [LSR Liquid Silicone Injection]
• For EPDM & Nitrile: We design optimized Tear-Trim Grooves specifically for the tear strength of these materials, allowing for easy, hand-removable flash.
Reverse Engineering & Lifetime Maintenance: We Protect Your Assets
Lost the prints? Broken mold? No problem.
We understand that in the real world, drawings get lost and original suppliers go out of business. Because we have comprehensive in-house engineering and tooling capabilities, we offer solutions for legacy parts that catalog suppliers simply cannot provide.
1. Reverse Engineering (From Part to Print)
• The Scenario: You have a critical machine down, a failed rubber seal, and zero CAD files.
• Our Solution: Send us the worn-out sample. We use 3D Laser Scanning and CMM (Coordinate Measuring Machines) to digitize the part geometry.
• The Value: We don’t just copy the worn part; our engineers restore the original design intent (correcting for wear and compression set) and create a brand-new CAD drawing and mold for you.
2. Lifetime Mold Maintenance
• The Guarantee: When you pay for a mold at Minor Rubber, it is guaranteed for the life of the program.
• Our Process: After every production run, your mold is disassembled, ultrasonically cleaned, inspected for wear, and coated with rust inhibitors before being stored in our climate-controlled vault.
• Competitor Contrast: Unlike outsource shops where molds rust outside or get “lost,” we treat your tooling as a precious asset. If it breaks while we are running it, we fix it at our expense.
3. Takeover Tooling (Mold Transfer)
• The Service: Unhappy with your current molder?
• Our Offer: Send your existing molds to us. Our tool room will inspect them, repair any damage, and adapt them to our presses. We can often get a transferred mold up and running in days, not weeks.
Technical FAQ: Breaking Down Tooling Barriers
Q: If I pay for the mold, who owns it? A: You do. Unlike some competitors who hold molds hostage, at Minor Rubber, once you pay for the tooling, it is your property. We are simply the custodians who maintain it for you. You can remove it at any time (though we doubt you’ll want to!).
• Q: How fast can you modify a mold if my design changes? A: Because our CNC machines are 50 feet away from the molding presses, we can often implement design changes (like opening up a dimension) in 24-48 hours. Competitors outsourcing to China or off-site shops often take 3-4 weeks for simple modifications.
• Q: Do you offer tooling amortization? A: Yes. For high-volume OEM partners with long-term contracts, we can amortize the tooling cost into the piece price, eliminating your upfront capital expenditure (CapEx)
• Q: What file formats do you accept for quoting? A: We prefer 3D STEP (.stp) or IGES (.igs) files for mold design, accompanied by a 2D PDF drawing for tolerances and material specifications.
Stop Waiting for Molds. Start Making Parts.
Don’t let long tooling lead times kill your product launch. Leverage our In-House Tool Room to cut your development cycle in half. From rapid aluminum prototypes to hardened steel production molds, we deliver speed without sacrificing precision.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
