Extruded Rubber D-Strips & Bumper Strips: Maximum Impact Protection
The Shape of Safety: Why "D" Profiles Absorb Energy Better
Whether you are outfitting a fleet of delivery trucks, protecting warehouse walls, or sealing a heavy industrial door, the impact is inevitable. A simple scratch can lead to rust; a heavy hit can compromise structural integrity.
Rubber D-Strips (also known as D-Bumpers or D-Fenders) are the industry standard for impact protection for one reason: Geometry.

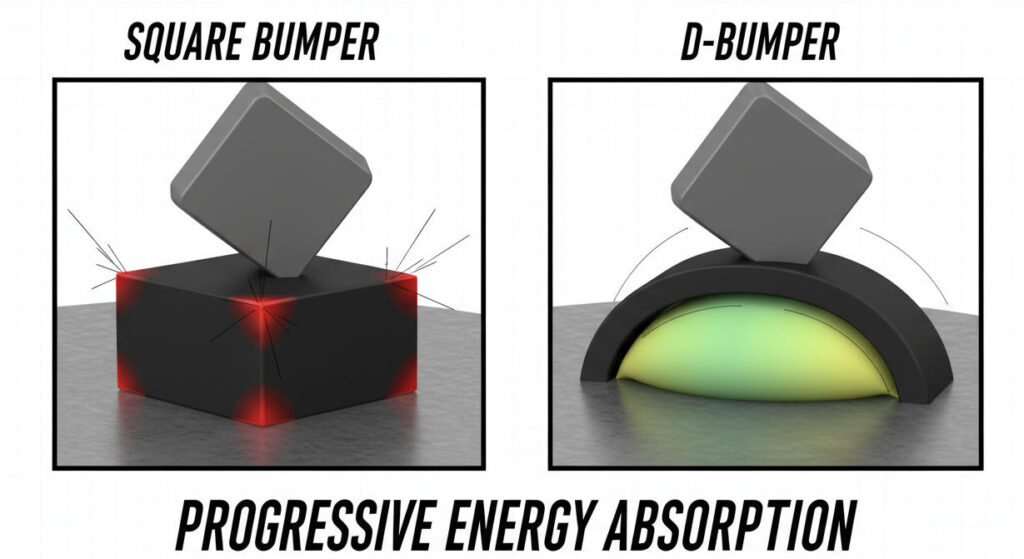

Unlike square strips which transfer impact force directly to the mounting surface, the rounded “D” profile offers Progressive Compression:
1.Initial Contact: The curved surface minimizes friction and deflects glancing blows (reducing tear).
2. Compression Phase: As the “D” bulb compresses, the contact area increases, spreading the load evenly across the bumper.
3. Energy Dissipation: The rubber deforms to absorb the kinetic energy, protecting both the vehicle and the dock/wall.
From Light Duty to Heavy Industry: We stock a massive inventory of Rubber Strip Bumpersranging from small 0.5″ seals for electronics to massive 6″ wide heavy-duty bumpers for loading docks and marine fenders.

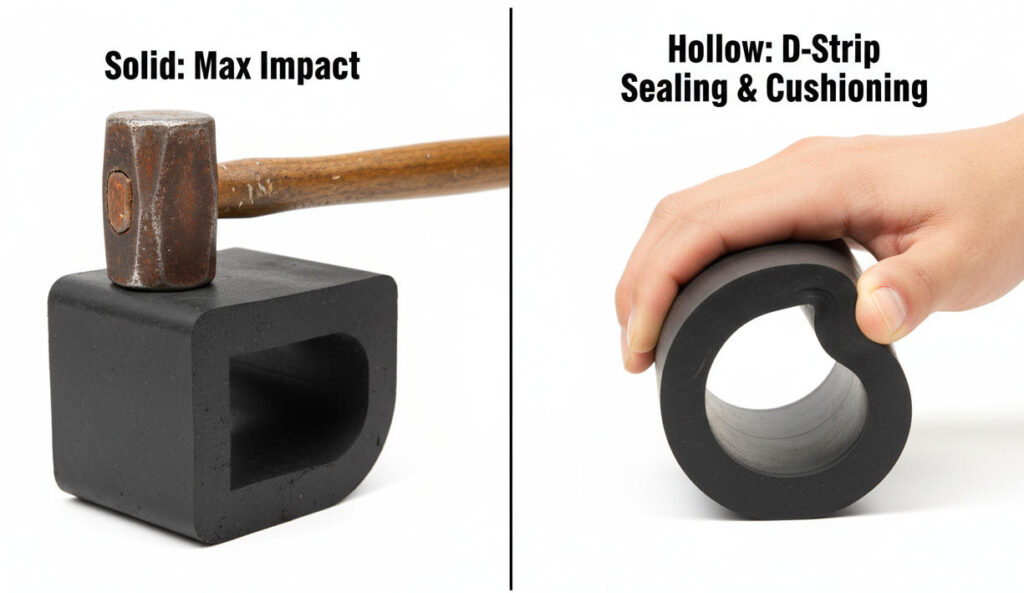

Visual Selector: Solid vs. Hollow Core Profiles
The most critical decision in specifying a rubber bumper strip is choosing the core structure. This determines how the bumper reacts to force.
1. Solid D-Bumpers (The “Shield”)
• Structure: 100% solid rubber throughout the cross-section.
• Physics: High load-bearing capacity. It does not “squish” easily; instead, it blocks and deflects energy.
• Best For: Heavy Impact Protection.
• Truck and trailer bumpers.
• Loading dock fenders.
• Forklift and warehouse wall protection.
2. Hollow D-Strips (The “Cushion”)
• Structure: Features a center bore (D-Bore or O-Bore) running through the length.
• Physics: The internal air gap allows the rubber to displace inward under pressure. This provides a softer “cushioning” effect and allows the strip to act as a seal.
• Best For: Sealing & Vibration Dampening.
• Industrial door seals (watertight).
• Hatch covers on marine vessels.
• Light-duty cart bumpers (where a solid bumper would be too hard).
Quick Comparison Chart
| Feature | Solid D-Bumper | Hollow D-Strip |
| Compressibility | Low (Rigid) | High (Flexible) |
| Impact Resistance | Excellent | Good |
| Sealing Capability | Poor | Excellent |
| Weight | Heavy | Light |
| Primary Use | Blocking Damage | Sealing & Softening Blows |

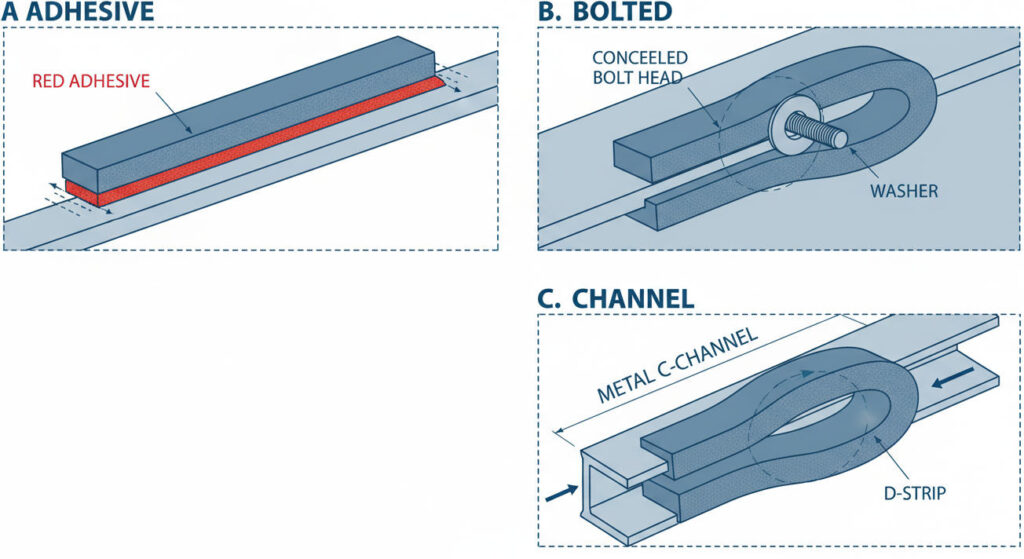

Installation Mastery: 3 Ways to Mount Your Bumper Strip
A rubber bumper strips is only as strong as its attachment. Choosing the wrong mounting method for your load can cause the bumper to shear off upon the first impact.
Method 1: Pressure Sensitive Adhesive (PSA) – For Light Duty
• Best For: Indoor carts, wall corners, and light sealing.
• The Process: We apply a high-strength acrylic foam tape (like 3M™ VHB™) to the flat back of the D-strip.
•
Critical Step: You must clean the mating surface with a 50/50 Isopropyl Alcohol mixture. Adhesive bonds to the surface, so dirt or oil will cause immediate failure.
Method 2: Bolt-On with Washers – For Heavy Duty
• Best For: Trucks, docks, and heavy machinery.
• The “Countersink” Technique: Never let the bolt head protrude above the rubber surface—it will damage whatever hits the bumper.
• For Hollow D-Strips: Drill access holes through the front face. Insert the bolt and a flat washer inside the bore. The washer sits against the internal back wall of the D-strip.
• For Solid D-Strips: You must “counterbore” the rubber (drill a larger shallow hole for the head, and a smaller hole for the shank) to hide the bolt head deep inside the rubber.
Method 3: Metal C-Channel – For Modular Replacement
• Best For: High-wear areas where bumpers are replaced frequently.
• The Process: An aluminum or steel “C-Channel” is bolted to the wall or truck. The D-Strip is then slid into the channel.
• Advantage: No drilling into the rubber is required. When the rubber wears out, simply slide it out and slide a new one in.
Installation Reference Table
| Application | Recommended Mounting | Why? |
| Warehouse Wall Guard | Adhesive (PSA) | Quick install, low impact force. |
| Delivery Truck Bumper | Bolt-On (with Washers) | Vibration and heavy impact would peel off adhesive. |
| Loading Dock Fender | Metal Channel | Allows for easy replacement when the rubber gets shredded. |
Material Selection: Don't Let Your Bumper Crack or Fade

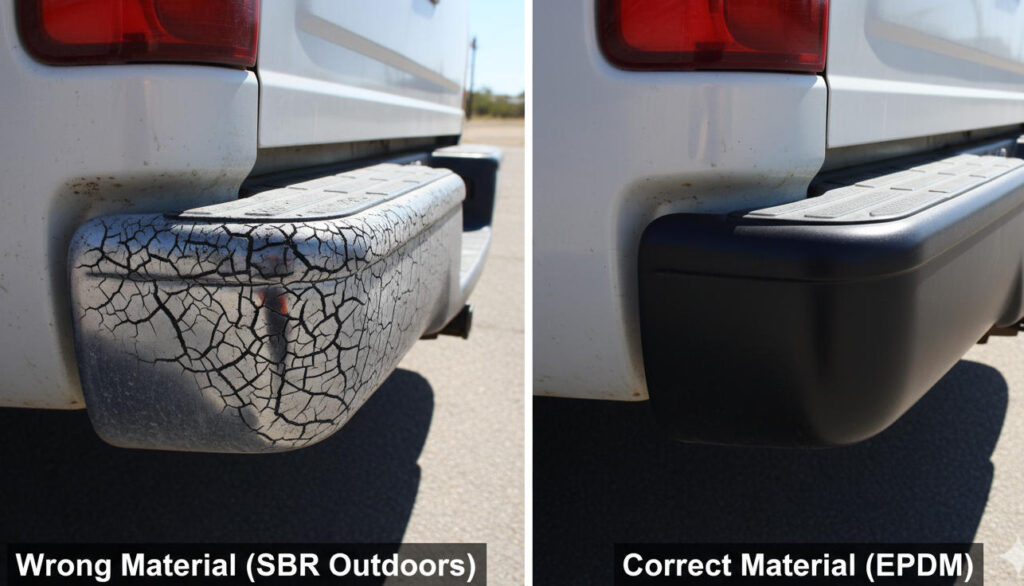

Black rubber strip bumper all looks the same on day one. But after six months of exposure to sunlight, oil, or ozone, the difference becomes obvious. Choosing the wrong compound for your D-Strip leads to premature failure (cracking, crumbling, or melting).
Use this matrix to match the rubber compound to your operating environment.
D-Bumper Material Performance Chart。
| Material | Outdoor / UV | Abrasion Resistance | Non-Marking? | Best Application |
| EPDM | Excellent | Good | No (Black) | Trucks, Docks, Marine. The standard for outdoor use. Resists sunlight and ozone for 20+ years. |
| SBR | Poor | Good | No (Black) | Indoor Warehouse. The economical choice for carts, conveyor belts, and indoor wall protection. |
| Neoprene | Good | Excellent | No (Black) | General Industrial. Good resistance to moderate oil, chemicals, and abrasion. |
| Grey/White (Non-Marking) | Varies | Good | Yes | Hospitals, Clean Rooms. Essential for carts to prevent leaving black scuff marks on floors and walls. |
Expert Advice: The “Non-Marking” Factor Standard black rubber contains Carbon Black, which adds strength but leaves ugly black streaks on floors and walls upon impact.
• For Logistics & Medical Carts: If you are protecting carts in a hospital, school, or retail store, do not use standard black rubber. Ask for our Grey Non-Marking D-Strips to protect your facility’s appearance.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Custom Fabrication: Handling Corners & Installation Prep
Buying a spool of rubber is easy; installing it neatly is hard. Drilling rubber on-site can be dangerous (drill bits grab the rubber), and handling 90-degree corners is notoriously difficult.
RISEUP Rubber offers value-added fabrication services to deliver parts that are ready to install right out of the box.
1. The Corner Solution: Bend, Miter, or Vulcanize? How you handle corners affects both durability and aesthetics.
• Radius Bending:
• Feasible for: Hollow D-Strips.
• Issue: Solid D-Bumpers are too rigid. Bending them creates high stress and a bulky “bulge” at the corner that looks unprofessional and pulls on the anchors.
• Miter Cutting (DIY):
• Cutting two strips at 45° angles. While better than bending, glued joints often fail outdoors due to expansion/contraction.

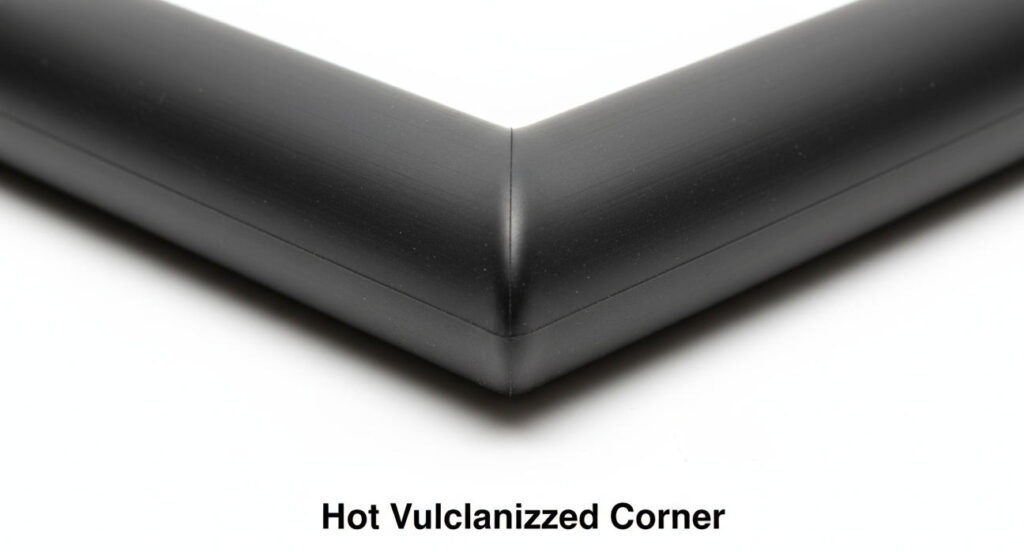

• Vulcanized Corners (The Professional Choice):
• We fuse two D-strips together in a heated mold using raw rubber compound.
• Result: A seamless, indestructible 90-degree corner that is as strong as the strip itself. Perfect for continuous bumper protection around truck beds or loading docks.
2.Custom Cutting & Drilling Stop measuring and cutting on the dock.
• Cut-to-Length: We chop D-strips to your exact dimension (+/- tolerance).
• Pre-Drilled Holes: We can CNC machine countersunk holes at specified intervals (e.g., every 12 inches). This ensures your bolts sit flush and saves hours of manual labor.
Fabrication Services Checklist
| Service | Benefit | Best For |
| Cut-to-Length | No waste, faster install. | Production lines, OEM equipment. |
| Pre-Drilled Holes | Consistent spacing, clean countersinking. | Solid D-Bumpers requiring bolt-on install. |
| Vulcanized Corners | Waterproof, seamless, high strength. | 360-degree protection (e.g., cart perimeters). |
| PSA Application | Peel-and-stick readiness. | Light-duty indoor bumpers. |
Frequently Asked Questions (FAQ)
Q: Can I cut D-Strips myself on-site?
A: Yes. Solid rubber D-Strips can be cut with a standard hack saw or a sharp utility knife (for smaller sizes).
• Pro Tip: Lubricate the blade with a little soapy water to reduce friction for a cleaner, smoother cut.
• Q: How much impact force can a D-Bumper take?
A: It depends on the size and core.
• Solid Bumpers: Designed to withstand low-speed collisions from forklifts (approx. 10,000 lbs) and trucks. They deflect energy.
• Hollow Strips: Designed to cushion lighter impacts (carts, doors). If hit by a heavy truck, a hollow strip will fully collapse and might tear. Choose Solid for loading docks.
• Q: Will the adhesive (PSA) last outdoors?
A: We use industrial-grade acrylic foam tapes (like VHB), which are weather-resistant. However, for heavy-duty outdoor applications(like truck bumpers), we always recommend mechanical fastening (bolts/channels). Rain, mud, and road salt combined with vibration will eventually weaken any adhesive bond.
• Q: What is the minimum order quantity (MOQ)?
A:• Standard Black: We stock popular sizes on 50ft and 100ft spools. Low MOQ (1 spool).
• Custom Color/Non-Marking: Requires a production run, typically starting at 100ft depending on the profile size.
Ready to Armor Your Equipment?
Don’t wait for the first dent or scratch. From lightweight sealing strips to heavy-duty dock bumpers, RISEUP Rubber has the inventory to protect your assets today
