Custom Extruded Rubber Profiles & Tubing: Precision Sealing for Robotics, Aerospace, & OEM Systems
Beyond Standard Shapes: Engineering for Complex Geometries & Dynamic Motion
In the era of Automation and Advanced Manufacturing, a simple rubber strip is no longer enough. Modern equipment—from collaborative robots (cobots) to aerospace avionics bays—requires sealing solutions that can withstand dynamic motion, tight tolerances, and harsh environments.
We are rubber extrusion manufacturers,we don’t just sell extruded rubber seals; we engineer Linear Sealing Systems.

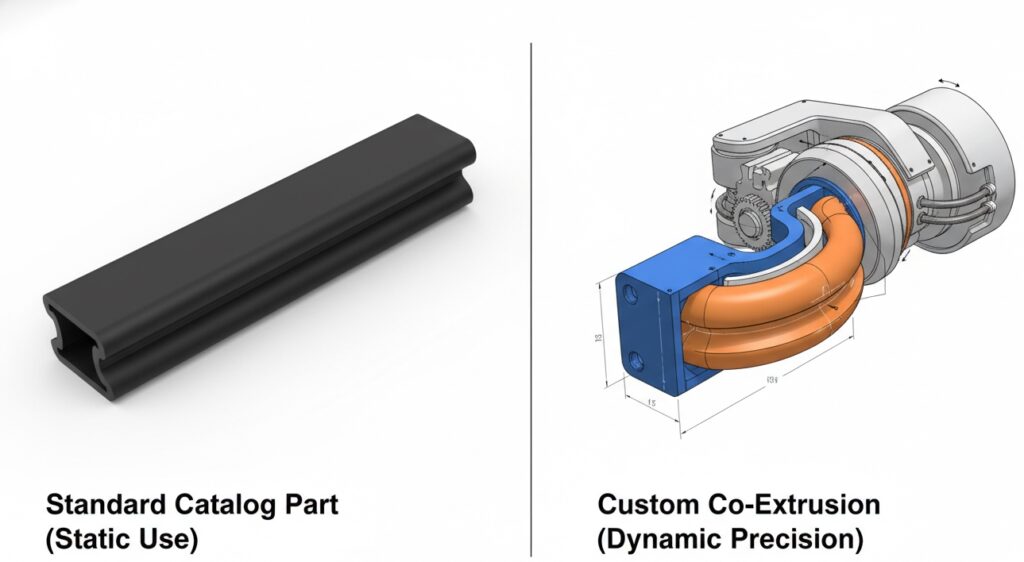

While catalog extruded rubber manufacturers limit you to stock shapes, we specialize in Custom Rubber Extrusions. Our engineering team works with your CAD files to produce complex cross- extruded rubber sections that solve specific design challenges:
• Complex Geometries: Thin walls, internal hollows, and multi-leg designs that standard molding cannot achieve.
• Dynamic Sealing: Low-friction profiles designed for moving parts in robotics and automation, reducing drag and wear.
• Material Innovation: From FDA-grade Silicone for medical devices to conductive EMI-shielding rubber for defense electronics.
Whether you need 100 meters for a prototype or 100,000 meters for mass production, we deliver the precision your system demands.
Robotics & Dynamic Applications: Extruded Rubber Sealing in Motion
In robotics and automation, a extruded seals does more than just stop dust; it must facilitate movement. Standard rubber creates drag and friction, which burns out servo motors and drains battery life in AGVs. as rubber extrusions suppliers,we engineer Dynamic Extrusions specifically for motion control.
1. Low-Friction Coatings & Slip-Treatments
• The Problem: “Stiction” (stick-slip phenomenon). High-friction rubber causes jerky movements in precision robotic joints and medical gantries.
• Our Solution: We apply Parylene or PTFE-based slip coatings directly onto the extruded profile.
• Benefit: Reduces the coefficient of friction by up to 60%, ensuring smooth, fluid motion and extending the lifespan of motor drives.

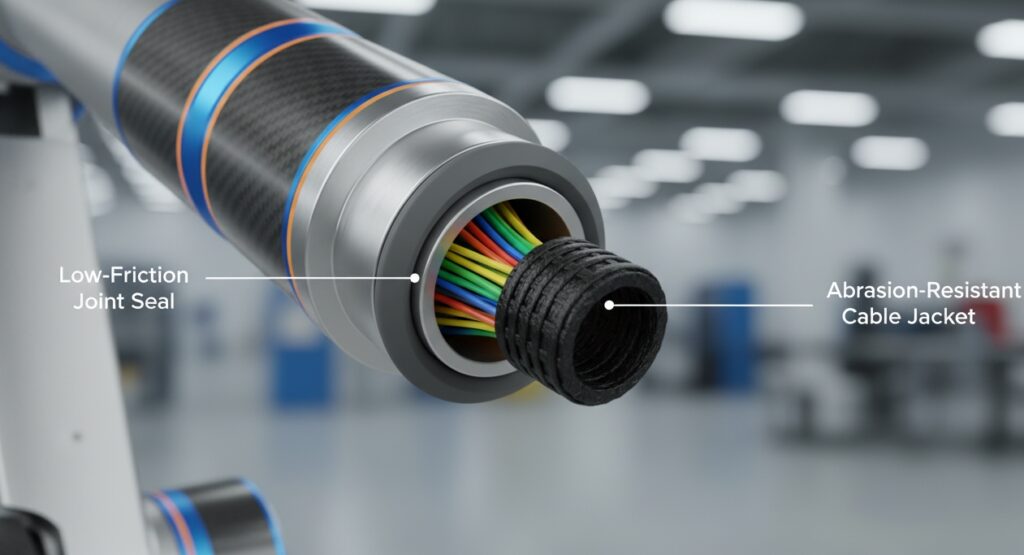

2. Cable Management & Protective Jacketing
• The Problem: As robotic arms twist and bend millions of times, internal wiring harnesses rub against metal housings, leading to short circuits.
• Our Solution: Custom extruded Cable Jackets and split-tubing made from high-fatigue thermoplastic elastomers (TPE/TPV).
• Benefit: Superior abrasion resistance and flexibility that survives millions of flex cycles without cracking.
3. AGV & Cobot Safety Bumpers
• Application: Automated Guided Vehicles (AGVs) and Collaborative Robots require soft, hollow bumpers for collision detection.
• Technology: We extrude hollow profiles capable of housing internal tactile sensors or conductive rubber strips that trigger an “E-Stop” upon impact.
Advanced Co-Extrusion Rubber Products: The Power of Two (or Three)
Sometimes, a single material property isn’t enough. You need the structural strength to grip a metal flange, but the flexibility to seal against a moving door. Instead of gluing two parts together, different from other rubber extrusion companies,we bond them molecularly during the extrusion process,we can control better

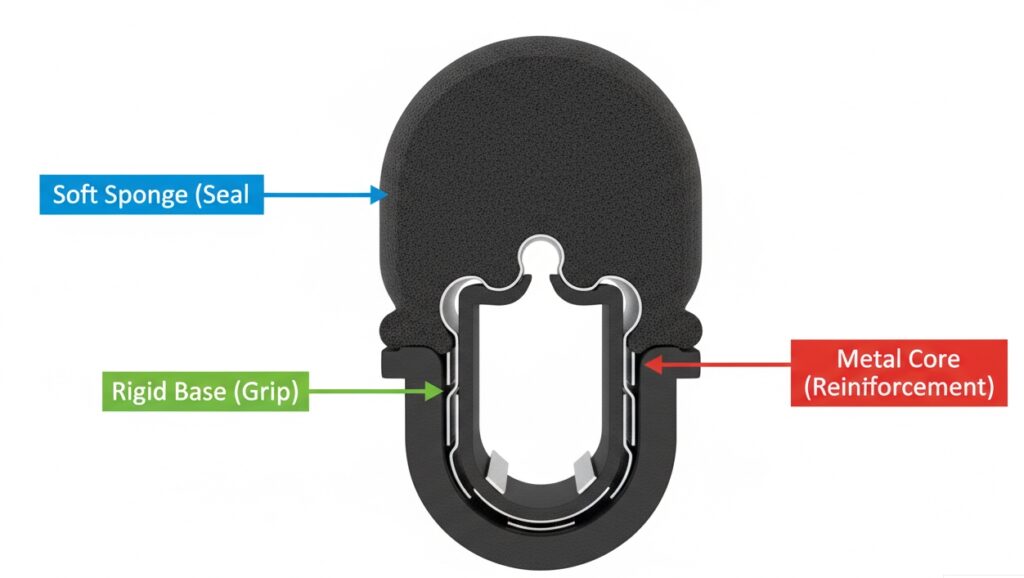

1. Dual Durometer (Hard + Soft)
• The Concept: We extrude rigid rubber (e.g., 70-80 Shore A) and soft sponge/foam rubber into a single continuous profile.
• The Benefit: The rigid base creates a mechanical lock for snap-fit installation (no adhesives needed), while the soft bulb provides a forgiving, airtight seal against uneven surfaces.
• Best For: Equipment enclosure doors, automotive trunks, and watertight hatches.
2. Metal Core Reinforcement (The “Clip-On” Seal)
• The Concept: A flexible steel carrier (wire loop or stamped steel) is embedded directly into the rubber extrusion.
• The Benefit: Provides extreme grip strength on sheet metal edges (0.5mm to 5mm range) without using glue or screws. Just push it on, and it stays.
• Best For: Edge protection on sheet metal, electrical cabinets, and vehicle bodies.
3. Multi-Functional Co-Extrusion
• Specialty Engineering: We can co-extrude Conductive Rubber (for EMI Shielding) alongside Insulating Rubber in a single strip.
• Best For: Defense electronics enclosures and medical device housings where electromagnetic interference is a concern.
Custom Rubber Extrusion Precision: The Science of Curing
Pushing rubber through a die is easy. Keeping it dimensionally stable while it cures is the challenge. Unlike other rubber extrusion suppplier relying on outdated hot-air tunnels which create porous, rough surfaces, we utilize advanced Continuous Vulcanization (CV) lines.
1. Microwave & Salt Bath Curing (LCM)
• The Technology: We cure the rubber profile instantly using UHF Microwave energy or Liquid Salt Baths (Liquid Curing Media).
• The “Me Better” Advantage:
• Glass-Like Finish: Produces an incredibly smooth, non-porous skin. Essential for Medical/Food applications (easy to clean) and Robotics (low friction).
• No Deformation: The profile is supported by the salt bath, preventing the “flattening” common in hot-air cured parts.
2. Precision Tolerances (Beyond RMA A3)
• The Standard: Most commercial rubber is sold to RMA A3 (Commercial) tolerances.
• Our Capability: We hold RMA E1 (High Precision) tolerances.
• Why it Matters: In Aerospace and Electronics, a gap of 0.5mm is unacceptable. We ensure your seal fits the groove perfectly every time, eliminating rework on your assembly line.

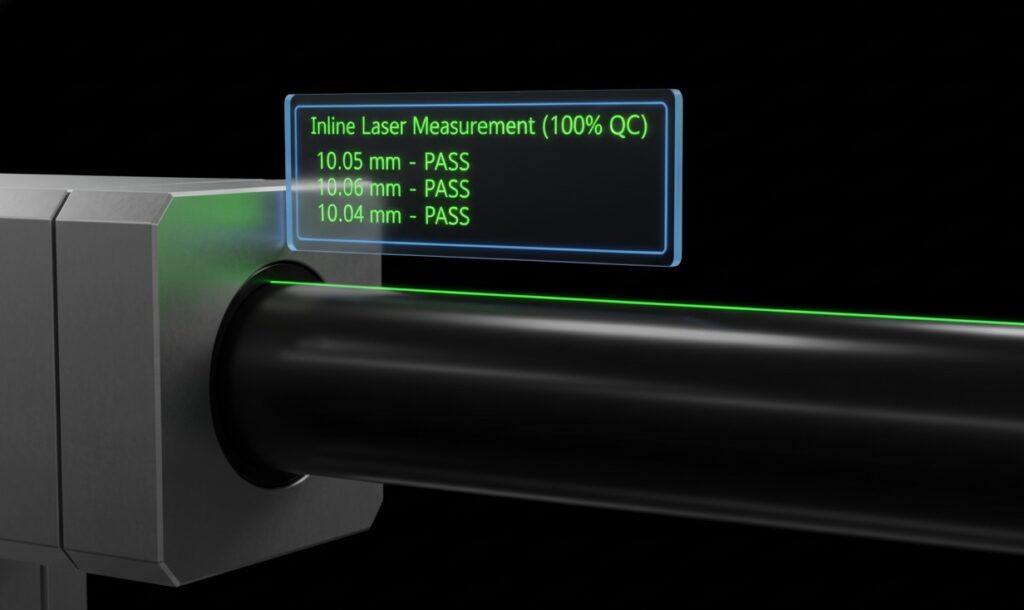

3. Inline Laser Measurement
• 100% Quality Control: We don’t just measure the first and last piece. Our Zumbach laser micrometers scan the profile continuously during production. If a dimension drifts by 0.05mm, the extruder automatically adjusts to correct it (Closed-Loop Control).
Fabrication & Finishing: From "Roll" to "Ready-to-Install"
For high-volume OEMs, some rubber extrusion manufacturer buying bulk coils that is inefficient. Cutting, gluing, and taping on the assembly line creates inconsistencies and slows down production. We are professional rubber extrusions manufacturer,we deliver finished components that drop straight into your manufacturing process.

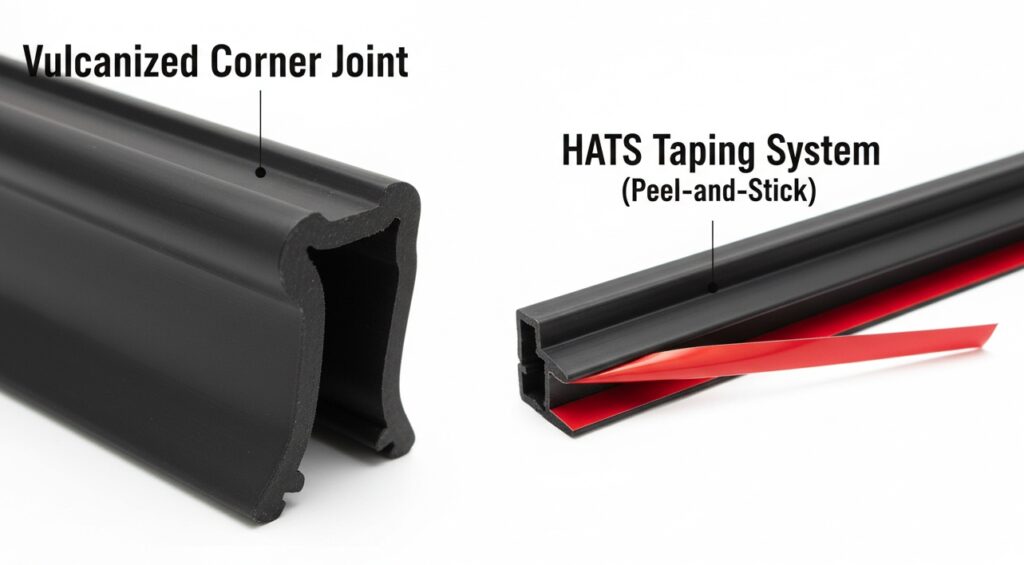

1. Vulcanized Corner Splicing (The “Endless” Seal)
• The Problem: Glued joints (CA glue) are brittle and fail under tension or outdoor exposure.
• Our Solution: We use Hot Vulcanization Splicing. We take the extruded rubber profiles, cut it, and mold the corners using uncured rubber in a secondary heating process.
• The Result: A continuous, leak-proof ring or frame (like a window gasket or hatch seal) where the joint is as strong as the extrusion itself.
2. HATS (Heat Activated Taping System)
• The Problem: Standard “pressure-sensitive” tapes often delaminate from rubber due to plasticizer migration.
• Our Solution: We utilize Heat Activated Taping Systems (HATS). We laminate 3M or Tesa acrylic foam tapes onto the rubber using high heat and pressure bonders.
• The Benefit: A permanent bond that won’t peel off, even in high-heat automotive or outdoor environments. Just “Peel-and-Stick” for rapid assembly.
3. Precision Cut-to-Length
• Capability: We use high-speed “fly-cutting” guillotine machines to chop profiles to your exact specification (e.g., 150mm +/- 0.5mm).
• Value: Eliminates scrap waste at your facility and removes the need for manual measuring tools on your line.

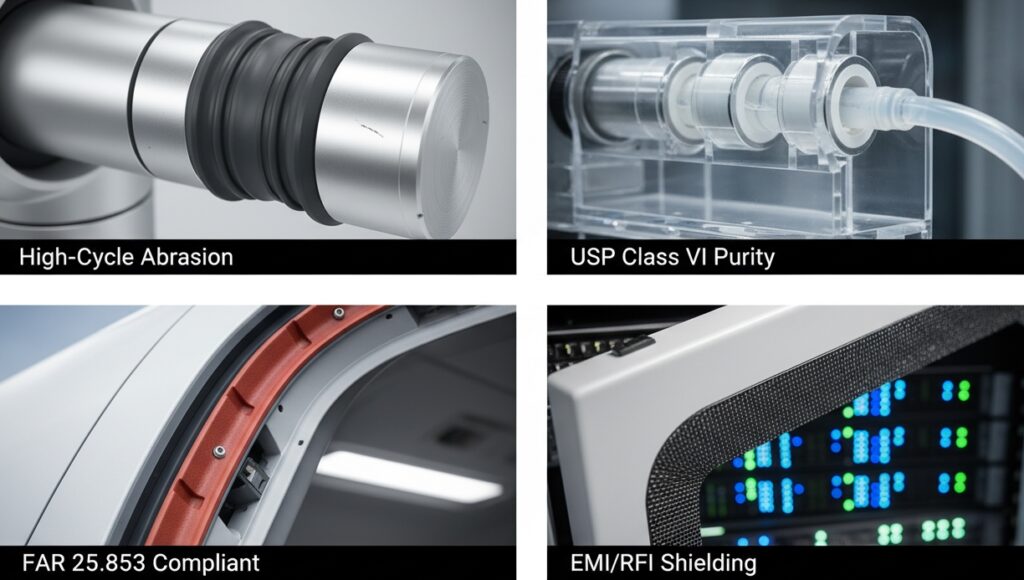

Engineered for Your Industry's Toughest Standards
A rubber extrusion profiles used in a surgical robot requires a completely different chemistry than one used on a fighter jet. We custom extruded rubber compounds to meet the specific regulatory and environmental demands of your sector.
1. Robotics & Automation (Dynamic Durability)
• The Challenge: Constant motion creates friction and heat, leading to seal failure and “dusting” (particle generation).
• Our Solution: Self-Lubricating EPDM and TPV profiles designed for millions of flex cycles.
• Application: Joint seals, AGV bumpers, and cable management tracks.
2. Aerospace & Defense (Mission Critical)
• The Challenge: Extreme temperature swings and strict fire/smoke/toxicity (FST) regulations.
• Our Solution: Flame-Retardant Silicone and Fluorosilicone profiles that self-extinguish.
• Compliance: Compounds available meeting FAR 25.853, ABD 0031, and MIL-STDspecifications.
3. Healthcare & Food Processing (Purity)
• The Challenge: Leaching plasticizers and bacterial growth in crevices.
• Our Solution: Platinum-Cured Silicone rubber extrusions tube and profiles. Unlike peroxide-cured rubber, platinum curing leaves no by-products and offers superior clarity.
• Compliance: FDA 21 CFR 177.2600, USP Class VI, and NSF-51 certified materials.
4. Electronics & Enclosures (Protection)
• The Challenge: Electromagnetic Interference (EMI) disrupting sensitive circuits.
• Our Solution: Conductive Rubber Extrusion Seal. We load the rubber with silver, nickel, or carbon particles to create a Faraday cage effect around the enclosure.
• Application: Server rack extruded gaskets, outdoor LED displayrubber extrusion and seals (IP67 rated).
Industry Material Selection Guide
| Industry | Critical Requirement | Recommended Material | Standard |
| Robotics | Low Friction / High Fatigue | Slip-Coated EPDM / TPV | – |
| Aerospace | Flame Retardancy | FR Silicone | FAR 25.853 |
| Medical | Biocompatibility | Platinum Silicone | USP Class VI |
| Food | Fat/Oil Resistance | White Nitrile / Silicone | FDA 21 CFR |
| Defense | EMI Shielding | Conductive Silicone | MIL-DTL-83528 |
| Construction | UV/Weather Resistance | Dense EPDM | ASTM C864 |
Technical FAQ: Customization Without the Headache
Q: Is custom tooling expensive? A: No. Unlike injection molding (where molds cost thousands), extrusion dies are very affordable. A typical custom die costs between $200 and $600, with a lead time of just 1-2 weeks. This makes custom rubber profile viable even for mid-sized production runs.
• Q: How do you handle rubber shrinkage? A: Rubber shrinks as it cools. We use Vacuum Sizing Tanks immediately after the extruder to freeze the dimensions of the profile, ensuring the final part matches your CAD drawing within strict tolerances (RMA E1).
• Q: Can you match an existing extruded rubber gaskets if I don’t have a drawing? A: Yes. Send us a 6-inch sample of your old rubber extruders seal. Our engineering team will Reverse Engineer the profile, optimize it for modern materials, and generate a new CAD file for your approval before production.
• Q: What is the minimum bend radius for a hollow extrusion rubber profile? A: This depends on the wall thickness and hardness. Generally, a hollow profile can bend to a radius of 3x its heightwithout kinking. For tighter bends (e.g., in robotics), we recommend pre-formed molded corners.
From Sketch to Sealing System in 2 Weeks
Don’t force a standard catalog part to fit your innovative design. Whether you are building the next generation of cobots or a medical device, we deliver precision extrusions that fit perfectly.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Ready to Armor Your Equipment?
