L-Shaped Rubber Seals & Edge Trims: The Ultimate Corner Protection

Sealing the 90-Degree Gap Where Flat Strips Fail.

The world isn’t flat—it’s full of corners. When you need to seal the gap between two perpendicular surfaces, or protect a sharp metal edge from causing injury, a standard flat gasket won’t suffice. It will buckle, leak, or peel away.
At RISEUP, we design high-performance l shaped rubber seal profiles match to hug the corner. Whether you need heavy-duty l shaped weather stripping to seal a garage door against rain, or a precise silicone profile for high-temperature ovens, our L-profiles provide dual-surface contact for a superior seal.

Why Choose an L-Profile?

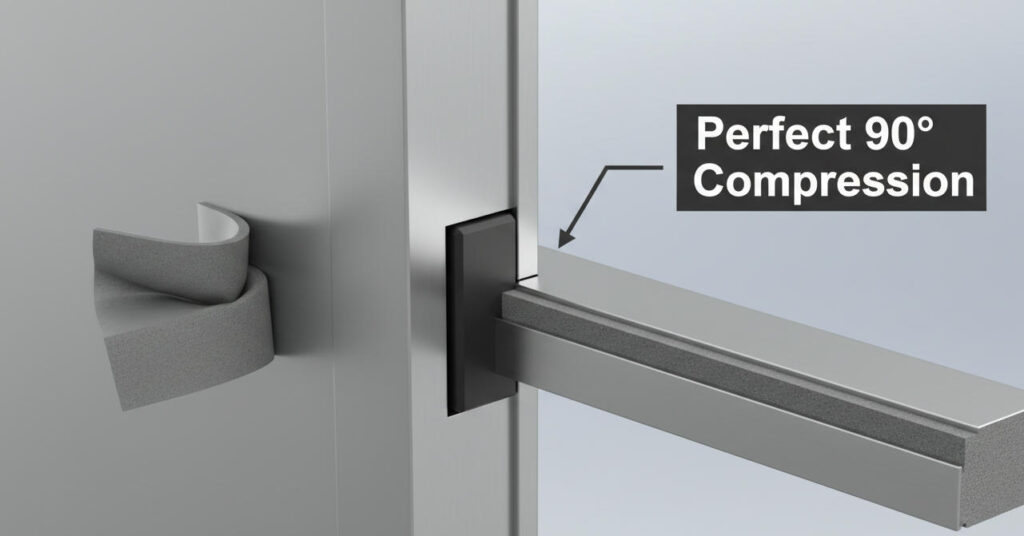

• Dual-Axis Sealing: Seals against both the face and the edge of the jam simultaneously.
• Edge Safety: Wraps around sharp sheet metal to prevent cuts and abrasion.
• Stability: The 90-degree leg acts as an anchor, preventing the seal from rolling out of position under pressure.

Two Ways to Mount: Adhesive Sealing vs. Mechanical Grip

Choose the Right Profile for Your Assembly Method.

Not all L-profiles are created equal. Depending on whether you are blocking rain or protecting a user’s hands from sharp metal, you need a different mounting strategy.we categorize our l shaped rubber trim into two distinct series.

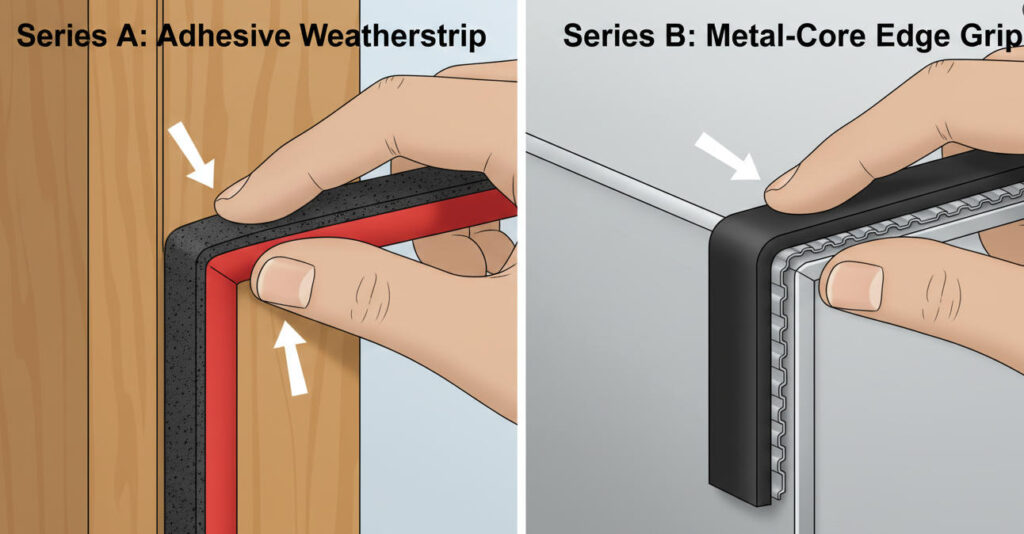

1. Series A: The Adhesive Weatherstrip (Peel-and-Stick)
• Best For: Compression sealing against water, air, and dust.
• Material: Typically Sponge EPDM or Silicone (Soft and Compressible).
• Installation: Features a high-strength PSA (Pressure Sensitive Adhesive) backing. Simply peel the liner and stick the L-profile to the surface.
• Application: HVAC doors, toolbox lids, and enclosure gaskets.

2. Series B: The Metal-Core Edge Trim (Push-On)
• Best For: Rubber l shaped edging to cover sharp sheet metal edges (0.5mm to 6mm thickness).
• Material: Solid EPDM or PVC with an integrated steel or aluminum wire carrier.
• Installation: No glue required. The internal metal clips bite into the flange for a permanent mechanical grip.
• Application: This l shaped rubber edge trim is ideal for wheel well flares, machinery guards, and panel cutouts where safety is paramount.

Adhesive Science: The HATS Advantage

Why Standard Tape Fails and Ours Doesn't.

The biggest failure mode for a self-adhesive l shaped rubber seal isn’t the rubber—it’s the tape delaminating from the rubber profile. This happens when plasticizers in the rubber migrate to the surface, dissolving the glue bond. We solve this with Heat Activated Taping System (HATS).

1. The “Cold Bond” Problem (Competitors)
• Most suppliers simply stick a roll of double-sided tape onto cold cured rubber. Over time, surface oils push the tape away, leading to failure, especially in outdoor l shaped weather stripping applications.

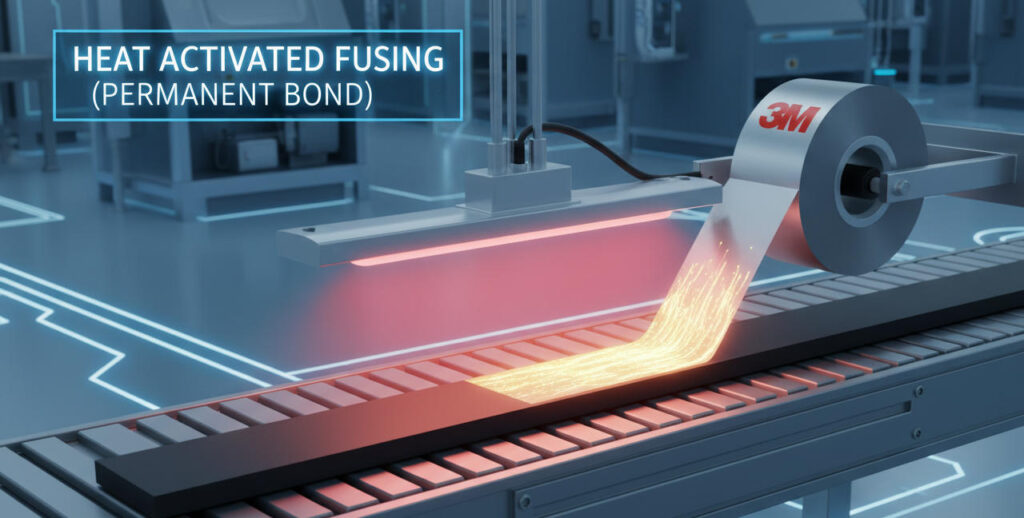

2. The HATS Solution (Our Process)
• Heat Fusion: We apply the adhesive system while the rubber is hot or re-heated. This heat creates a molecular bond between the tape’s acrylic adhesive and the rubber substrate.
• The Result: The tape becomes part of the rubber. You will destroy the rubber before you can peel the tape off.

3. Trusted Partners
• We utilize only premium adhesive systems from 3M™ and Avery Dennison™, including the 3M 9485PC (High Temp) and 3M VHB (Very High Bond) series for critical mounting.

Material Selection: Sponge vs. Solid

Soft Compression or Rigid Protection?

Selecting the right material density is just as important as the shape. A rock-hard seal won’t stop water if it doesn’t compress, and a soft foam won’t last if it gets abused.

1. Closed Cell Sponge EPDM (The Weatherstrip)
• The Structure: Contains millions of nitrogen gas bubbles trapped inside the rubber. It is soft, lightweight, and highly compressible.
• Best Application: l shaped weather stripping for doors and windows. It conforms to uneven gaps and requires very little force to close the door.
• Key Feature: Excellent UV and Ozone resistance for outdoor use.

2. Solid Silicone / Neoprene (The Heavy Duty)
• The Structure: Dense, non-porous rubber. It offers high tensile strength and tear resistance.
• Best Application: High-temperature ovens (Silicone), abrasion protection pads, or rubber l shaped edging where the profile might be kicked, scraped, or washed with harsh chemicals.
• Key Feature: FDA compliance (Silicone) and Oil resistance (Neoprene).

3. Material Cheat Sheet:
• Rain/Drafts? Choose Sponge EPDM.
• Heat > 200°C? Choose Solid Silicone.
• Oil/Grease? Choose Solid Neoprene/Nitrile.

Custom Fabrication: Vulcanized Corners & Endless Gaskets

Turning Strips into Seamless Loops.

Cutting strips by hand and gluing the corners creates a weak point where water will eventually enter. For critical enclosures, you need a continuous loop. We utilize hot-vulcanization technology to fuse L-profiles into custom-sized gaskets.

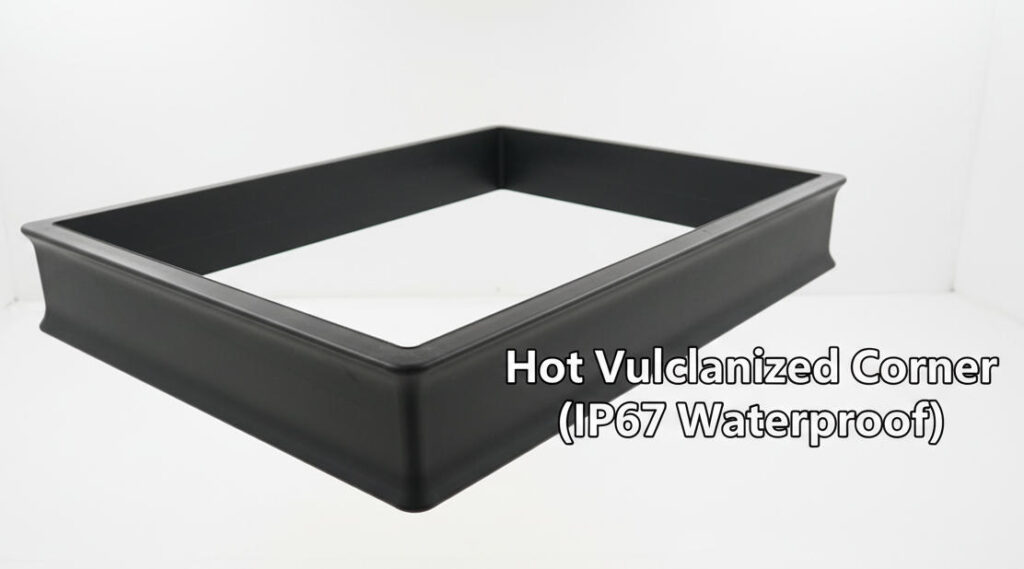

1. The “L-Shaped Rubber O-Ring” Solution
• While standard O-rings are round, many engineers search for an l shaped rubber o ringwhen they actually need a rectangular bezel seal.
• Our Process: We take our extruded L-profiles, cut them to your exact length, and use a heated mold to fuse the corners at 90 degrees.
• The Result: A custom “L-Ring” that fits your rectangular groove perfectly without stretching or buckling at the corners.

2. IP67 Waterproofing
• Why Vulcanize? Cold-glued joints (Superglue) are brittle and leak under pressure. Hot vulcanization creates a chemical bond as strong as the rubber itself, ensuring a NEMA / IP67 rated seal for outdoor electronics.

3. Ready-to-Install
• Stop wasting time measuring and cutting on the assembly line. Receive a finished gasket that drops straight into your housing.

MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.

Fit Guide: How to Measure Your L-Profile

A and B are Not Always Equal.

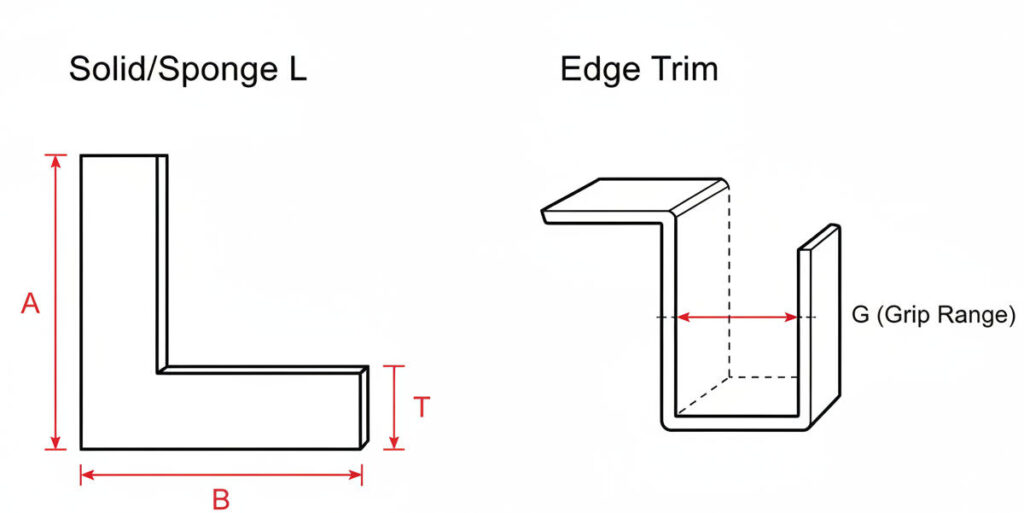

To ensure a perfect fit, we need three critical dimensions. Please reference the diagram below when requesting a quote.

1. Measuring Standard L-Seals (Series A)
• Leg A (Height): The length of the vertical sealing face.
• Leg B (Width): The length of the horizontal mounting face (usually where the tape is applied).
• Thickness (T): The wall thickness of the rubber.
• Note: Standard sizes range from up to .

2. Measuring Edge Trims (Series B)
• If you are ordering l shaped rubber edge trim with a metal core, the most important dimension is the Grip Range (G).
• Measure Your Metal: Use a caliper to measure the thickness of the sheet metal or flange you are covering (e.g., 1.5mm or 16 gauge). We will match the internal clip width to your metal thickness to ensure a tight grip.

3. Standard Tooling Library
• We have over 800 existing dies for L-profiles. Send us your dimensions, and we likely have a “close enough” match to save you the custom tooling fee.

Technical FAQ: Expert Answers on L-Profiles

Q: How long will an EPDM l shaped weather stripping last outdoors? A: EPDM is engineered for extreme weather. It resists UV and Ozone cracking for over 20 years, making it the standard for outdoor door and window seals.

• Q: Can you make a rectangular frame instead of a straight strip? A: Yes. If you are searching for an l shaped rubber o ring, you likely need our Vulcanized Gasket service. We fuse the corners to create a continuous, waterproof loop.

• Q: Is rubber l shaped edging tough enough for industrial carts? A: Absolutely. For impact protection, we recommend our Series B (Metal-Core) trim. It protects the metal edge from carts, forklifts, and heavy abuse.

• Q: Do you offer colors other than black? A: Yes. Our Silicone l shaped rubber trim can be color-matched to any RAL color (e.g., Safety Yellow or Medical White) to match your branding.

Stop Cutting Corners. Start Sealing Them.

Don’t guess the fit. Request our Universal Corner Protection Kit. It includes samples of our most popular l shaped rubber seal and l shaped rubber edge trim profiles—both adhesive-backed sponge and metal-core solid options.

Ready to Armor Your Equipment?

Don’t wait for the first dent or scratch. From lightweight sealing strips to heavy-duty dock bumpers, RISEUP Rubber has the inventory to protect your assets today
