FKM / FPM / Viton® Material Guide: High-Performance Fluoroelastomers
The Industry’s Most Common Question
When engineers specify high-temperature seals, confusion often arises regarding terminology. What is FKM, what is FPM, and how do they differ from Viton®?
The Short Answer: Technically, FKM is Viton, and Viton is FKM. They refer to the exact same base polymer family. The difference lies only in the naming standard and brand ownership.

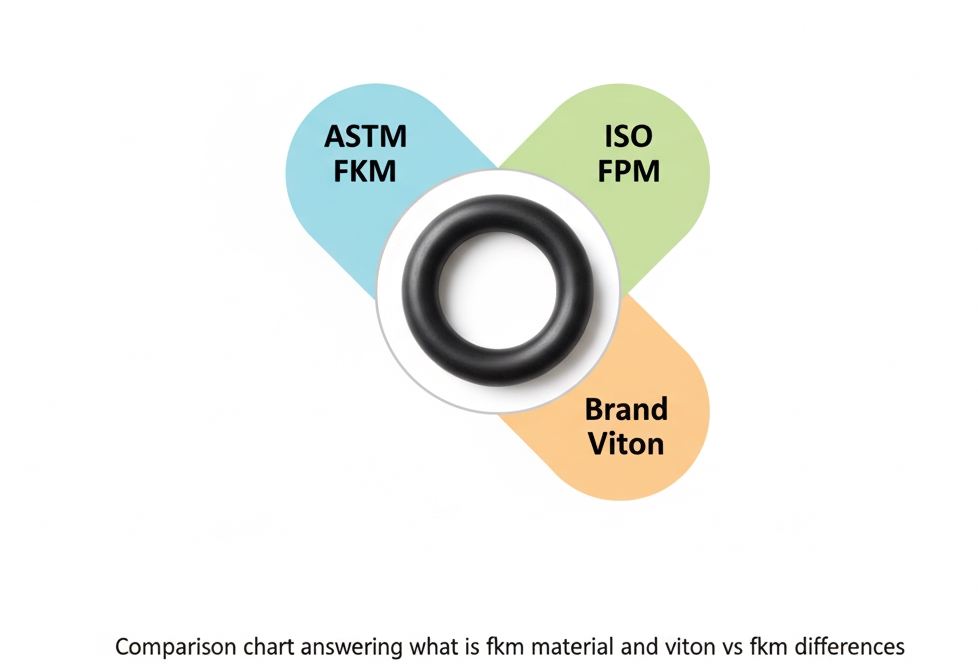

Decoding the Acronyms: FKM vs. Viton vs. FPM To help you navigate the specifications, we break down the FKM meaning and origins below. Whether your drawing calls for FPM material(European standard) or FKM rubber (American standard), you are requesting the same high-performance fluorocarbon elastomer.
| Name / Acronym | Standard / Origin | Full Description |
| FKM | ASTM D1418 (USA) | The technical designation for Fluoroelastomer according to American standards. This is the most common term used in the global rubber industry. |
| FPM | DIN / ISO 1629 (Europe) | The abbreviation for Fluoro-Propylene-Monomer. If you see FPM material on a German or ISO blueprint, it is identical to FKM. |
| Viton® | Brand Name (The Chemours Co.) | Originally developed by DuPont (now Chemours), Viton® is the premium trade name for this polymer. Asking is FKM Viton is like asking “Is Kleenex a tissue?”—one is the brand, the other is the generic product. |
So, What is FKM Material Used For? Regardless of the name, this FKM and Viton family is engineered for one purpose: survival in extreme environments where standard synthetic rubber (like NBR or EPDM) would fail. As a custom manufacturer, RiseUp Rubber compounds raw fluoroelastomer vs viton grades to meet your specific ASTM or ISO requirements.
Analyzing Viton Material Properties: Heat & Chemical Resistance
When selecting materials for critical sealing applications, understanding the specific viton material properties is essential. The secret to its superior performance lies in the chemical backbone: fluorocarbon rubber possesses extremely strong Carbon-Fluorine (C-F) bonds, which are incredibly difficult to break down thermally or chemically.
1. Extreme Temperature Capabilities Standard NBR (Nitrile) hardens and cracks at 120°C. In contrast, the standard viton temperature range allows for continuous service from -20°C to +250°C (-4°F to +482°F).
• Continuous Service: Up to 230°C.
• Intermittent Peaks: Up to 250°C.
• Low-Temp Variants: Special grades (GLT) can reach -40°C.
Engineer’s Note: For precise viton gasket temperature rating in dynamic applications, always consult our technical team, as pressure and friction can affect the operational limit. Need Weather Resistance without the High Cost? FKM is excellent for extreme heat and fuel, but it is overkill for general outdoor sealing. If your project is for HVAC, Marine, or Construction (under +120°C), our [Neoprene (CR) Rubber]offers superior ozone resistance at a much lower cost.
2. Chemical Resistance Profile Fluoroelastomers (FKM) are the industry standard for resistance to:
• Mineral oils and hydraulic fluids.
• Fuels (Petrol, Diesel, Biodiesel, Ethanol blends).
• Strong acids and aliphatic hydrocarbons.
Limitation Warning: FKM is not recommended for Ketones (Acetone), Amines, or low-molecular-weight esters. For these chemicals, we recommend EPDM or FFKM.
3. A Note on Terminology & Spelling Due to the complex chemical name, fluoro rubber is often misspelled in procurement searches. Whether you type it as fluroelastomer, flouroelastomer, or the correct “fluoroelastomer,” our engineering team understands your requirements and will supply the correct ASTM D1418 specified material.

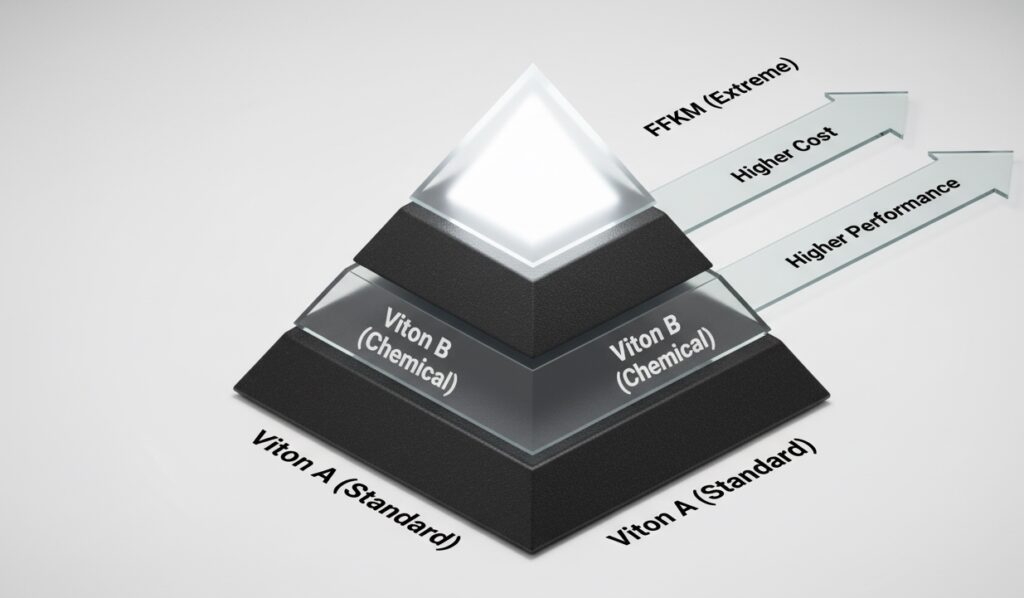

Beyond Standard: Viton A vs. Viton B vs. Specialty Grades
One common mistake in procurement is assuming “Viton is Viton.” In reality, FKM is a family of polymers with varying fluorine content. Choosing the wrong grade can lead to premature seal failure.
As a custom compounder, RiseUp Rubber helps you navigate the technical differences, specifically regarding Viton A vs Viton B and advanced perfluoro-polymers.
1. Viton A (The Industry Standard)
• Fluorine Content: ~66%
• Best For: General-purpose sealing, automotive fuels, and lubricants.
• Performance: This is the most common FKM material used in standard O-rings. It offers excellent compression set resistance but has limited resistance to oxygenated fuel blends compared to higher grades.
2. Viton B (Enhanced Chemical Resistance)
• Fluorine Content: ~68%
• Best For: Chemical processing plants and utility seals.
• Performance: Viton B offers superior resistance to aggressive acids (like Hydrochloric acid) and sulfur dioxide compared to A-type. It retains flexibility after heat aging better than standard grades.
3. FEPM (Aflas®) – Base Resistant
• Best For: Oil & Gas, Steam, and Strong Bases.
• Performance: Standard FKM fails when exposed to steam or strong bases (high pH). FEPM (Tetrafluoroethylene Propylene) is the solution for these environments where traditional Viton turns brittle.
4. FFKM (Perfluoroelastomer) – The Ultimate Seal
• Best For: Semiconductor manufacturing and extreme aerospace applications.
• Performance: When standard FKM reaches its limit, perfluoro elastomer (often known as Kalrez® or Chemraz®) takes over. With a thermal stability up to 320°C and near-universal chemical inertness, perfluoroelastomer bridges the gap between rubber elasticity and Teflon chemical resistance.
Custom FKM Manufacturing: Molding, Bonding & Sealing
Processing FKM elastomer requires distinct expertise compared to standard rubber. Due to its high viscosity and cure chemistry, precise control over the viton molding process is critical to preventing defects like back-grinding or flow marks. At RiseUp Rubber, we transform raw material fpm into high-tolerance finished components.
1. Precision Molded Seals (O-Rings & Gaskets) We utilize both compression and injection molding to produce fkm seals with minimal flash.
• O-Rings: From micro-miniature to large-diameter spliced rings. If you need a standard fluoroelastomer o ring or a metric fpm o ring, we follow ISO 3601 tolerances strictly.
• Gaskets: We manufacture custom rubber gaskets fkm for flange sealing. Whether you call it an fpm gasket or an fkm gasket, our tooling ensures a perfect fit for your housing.

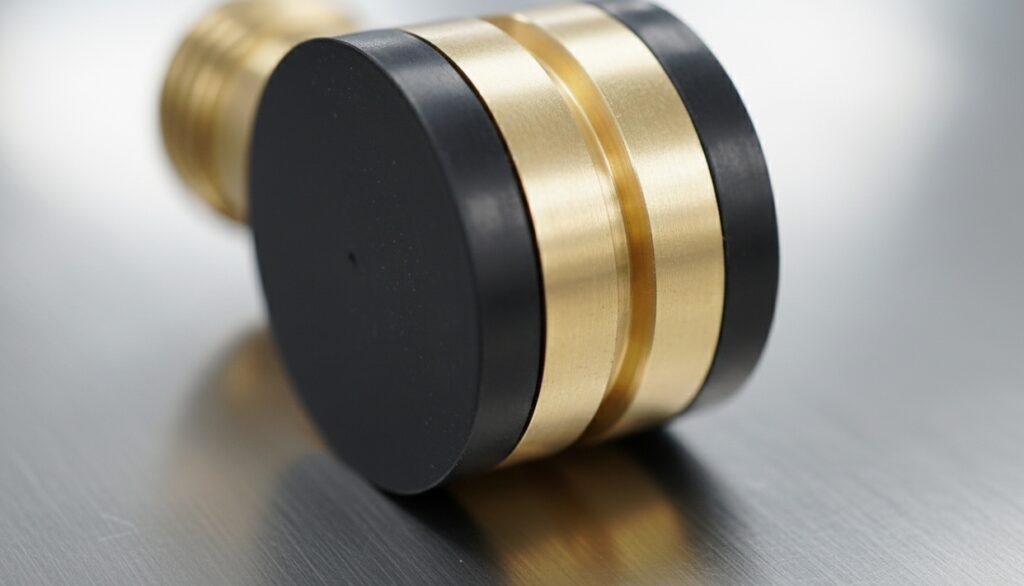

2. The Bonding Challenge: Glue vs. Vulcanization One of the biggest challenges engineers face is adhesion. Standard viton glue often fails under high heat or chemical attack.
• Our Solution: Instead of relying on weak viton adhesive for assembly, we specialize in Metal-to-Rubber Vulcanization. We chemically bond the fkm seal directly to steel or brass substrates during the molding process. This creates a bond stronger than the rubber itself, eliminating the need for messy post-process gluing.
3. Extrusion Capabilities Beyond molded parts, we extrude continuous profiles using high-grade fpm elastomer.
• Viton Cords & Tubing: Ideal for on-site splicing of large seals.
• Custom Profiles: For complex door or oven seals requiring the heat resistance of a fluoroelastomer seal.
Looking for Standard Sizes? Visit our O-Ring & Gasket Product Catalog
Frequently Asked Questions about FKM/FPM
Q: What does FPM stand for? A: In the international rubber industry, what does FPM stand for is a common query. It is the abbreviation for Fluoro-Propylene-Monomer according to DIN/ISO 1629 standards. While Americans use “FKM” (ASTM), Europeans designate the exact same material as FPM.
Q: Is Viton a rubber or a plastic? A: It is a synthetic elastomer. Specifically, it is classified as a viton fluoroelastomer rubber. Unlike rigid plastics, viton fluoroelastomer maintains high flexibility and sealing force even after long-term exposure to heat and oils.
Q: Do you export FKM products to Europe? A: Yes. We are a global supplier familiar with international standards. We frequently manufacture seals for German and Swiss markets, often referred to technically as fkm dichtung (FKM seals). Whether you call it viton rubber or Fluoroelastomer, our quality meets stringent REACH and RoHS requirements.
Ready to Source High-Grade FKM Parts?
Don’t settle for generic “black rubber” that fails under pressure. Whether you need the chemical resistance of Viton B or the extreme heat stability of Viton A, RiseUp Rubber engineers the perfect compound for your application.
