Gasket vs. O-Ring: Engineering the Perfect Seal for Static & Dynamic Joints
The Mechanics: What Are They and How Do They Work?
Before deciding between gaskets and o rings, it is crucial to understand their mechanical differences. While both components serve to prevent leaks in fluid handling systems, they operate on distinct sealing principles.
1. What is an O-Ring? (The Groove Specialist) You might ask, “what is an o-ring?” or see it technically described as a toroidal seal.
• O Ring Definition: An O-ring is a loop of elastomer with a round (circular) cross-section. It is the most common seal type in machine design due to its simplicity.
• How O Rings Work: An O-ring seal is designed to sit in a groove (gland) and be compressed between two or more parts. How do o rings work under pressure? They are “self-energizing.” As system pressure increases, the O-ring is forced against the groove wall, creating a tighter seal than the initial compression alone could achieve.
• Common Applications: What is an o ring on a car? You will find them sealing fuel injectors, AC connections, and brake cylinders where high pressure and precise tolerances are required. What are o rings used for in general? They handle both static (non-moving) and dynamic (moving parts like pistons) applications.
2. What is a Gasket? (The Surface Filler) Unlike an O-ring, a gasket is typically cut from a flat sheet of material (rubber, paper, cork, or metal).
• The Function: A gasket is designed to fill the space between two flat mating surfaces, known as flanges. It relies entirely on external compression (bolt load) to flow into surface imperfections and create a seal. It is a surface-to-surface sealer.
Summary: O Ring Description vs. Gasket
| Feature | O-Ring | Gasket |
| Shape | Round Torus (Donut) | Flat Sheet / Custom Profile |
| Sealing Principle | Groove Compression + System Pressure | Surface Compression (Bolt Load) |
| Common Terms | O’ring, Oring a, An O ring | Gasket Ring, Flat Seal |
The Showdown: Gasket vs. O-Ring Selection Guide
Pressure, Cost, and Surface Finish
When engineers debate gasket vs o ring suitability, the decision rarely comes down to the cost of the rubber itself. It comes down to the cost of the metal machining and the operating pressure. Here is how o rings and gaskets compare in critical areas.
1. Pressure Capabilities (O-Ring Wins)
• High Pressure: In the battle of o ring vs gasket for high-pressure hydraulic systems (up to 5000+ PSI), the O-ring is the clear winner. Its circular cross-section allows it to withstand massive stress without blowing out, provided the gap clearance is tight.
• Low Pressure: For low-pressure water pipes or oil pans, rubber gaskets and o ringsboth work well, but gaskets are often preferred for larger surface areas where machining a huge groove is impractical.

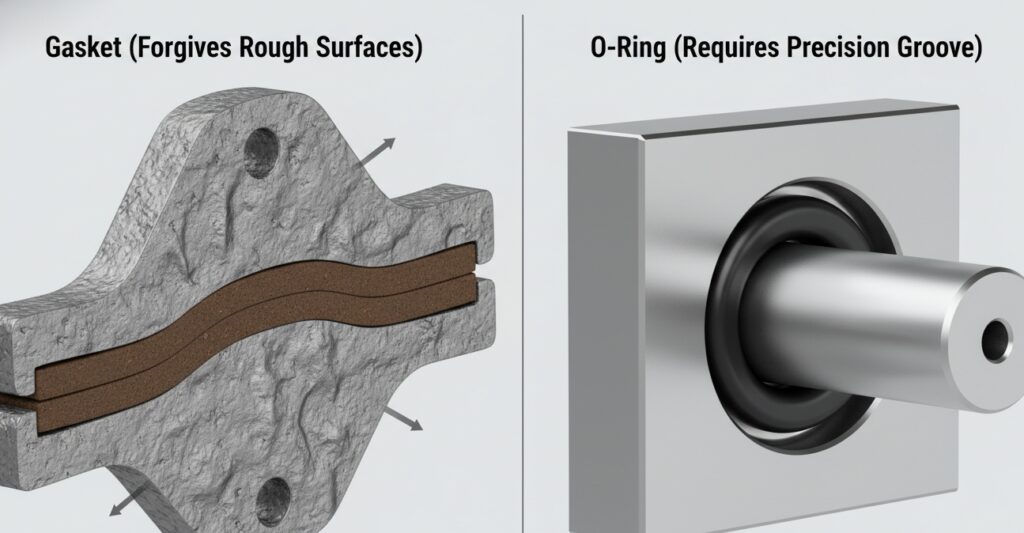

2. Hardware & Machining Costs (Gasket Wins)
• The Hidden Cost: While an o ring gasket (the part itself) is often cheaper than a large flat gasket, the metal housing is not. O-rings and gaskets differ significantly here: O-rings require precise, smooth grooves (surface finish usually 32 RMS or better).
• The Gasket Advantage: A standard flat gasket allows for “sloppier” machining specifications. It can seal rougher flange faces (63-125 RMS), saving significant money on metal fabrication.
3. Comparison Summary: O’Ring vs Gasket
| Feature | O-Ring | Flat Gasket |
| Machining Cost | High (Requires Groove) | Low (Flat Face) |
| Pressure Rating | Excellent (Extreme High Pressure) | Good (Low to Medium) |
| Space Required | Minimal Footprint | Requires Full Flange Face |
| Reusability | Can be reused (if not damaged) | Single-use (Usually) |
| Dynamic Sealing | Yes (Pistons/Rods) | No (Static Only) |
Conclusion:
• Choose an O-Ring if: You have high pressure, limited space, or a dynamic application (moving parts).
• Choose a Gasket if: You have large, flat flanges, lower pressure, or rougher metal surfaces that need to be sealed cheaply.
The Hybrid Solution: Flat O-Rings & Square Cuts
When a Round Profile Isn't Enough.
Sometimes, a standard round o ring isn’t the right fit. You might need a hybrid component that sits between a traditional oring gasket and a washer. This is where flat o rings (also known as Square Cut rings or Lathe Cut washers) come into play.

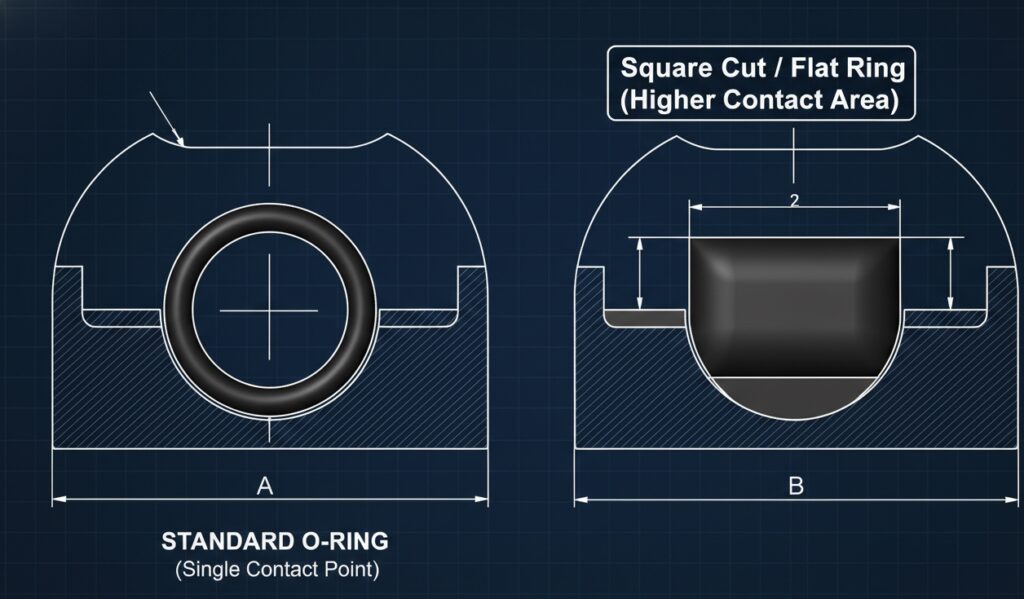

1. What is a Flat O-Ring? Technically, an O-ring is a torus (round). However, many engineers search for flat rubber o rings or flat o-rings when they need a seal with a rectangular cross-section.
• The Design: Instead of a round profile, the o ring flat face provides a larger sealing surface area against the mating part.
• The Benefit: A flat o ring seal will not roll or spiral in the groove during reciprocating motion, solving a common failure mode of standard round rings.
2. Flat Gasket vs. Flat Ring Gasket It is easy to confuse terms like gasket ring, ring seals, or flat gasket.
• Flat Gasket: Usually refers to a large sheet cut to cover a full flange (with bolt holes).
• Ring Gasket / Gasket Rubber Ring: Typically refers to a smaller, donut-shaped flat ring without bolt holes (like a garden hose washer).
• Performance: A flat ring gasket offers high compression load resistance, making it ideal for static crush seals where an O-ring might be squeezed out of position.
3. Terminology Check Whether you call it a seal o ring, an oring gasket, or even perform a typo search like flat orings or flat o’ring, we manufacture them all.
• Custom Fabrication: We can slice rubber tubes to create precision rubber flat o rings(Lathe Cutting) or die-cut them from flat gasket sheets to your exact dimensions. This serves as a cost-effective alternative to molded gasket rings or ring gaskets.
Sealing Types & Flange Design: Matching the Seal to the Hardware
Full Face vs. Ring Gaskets & O-Ring Mounting
The geometry of your hardware dictates the type of seal you need. Choosing between gasket rings (Ring Type) and Full Face gaskets is critical for preventing flange damage.

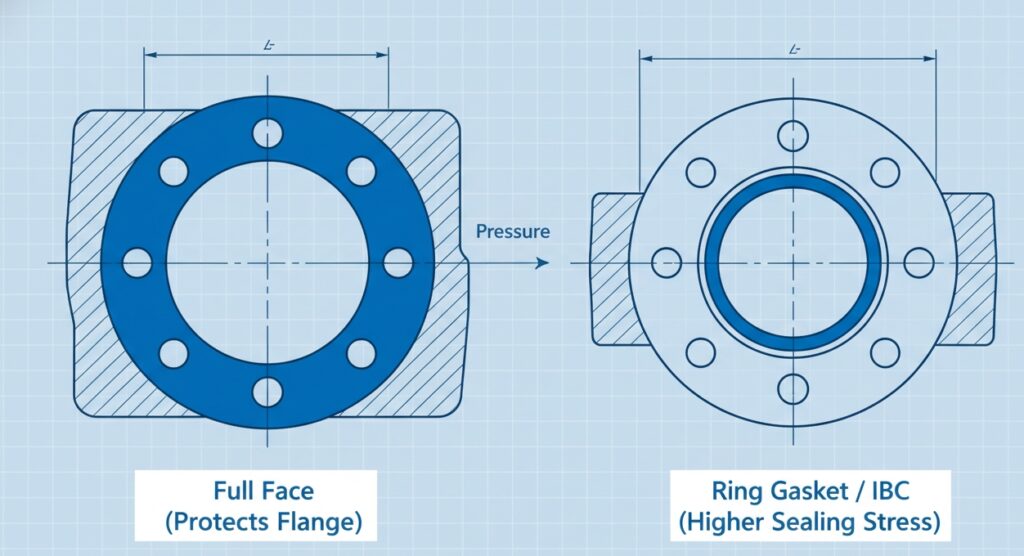

1. Full Face Gasket vs Ring Gasket In the world of types of o ring seals and gaskets, flange design is king.
• Full Face Gasket: Covers the entire face and includes bolt holes. It is used on Flat Face (FF) flanges to prevent the flange from bending when bolts are torqued.
• Ring Gasket (IBC): A seal ring gasket (or IBC – Inside Bolt Circle) sits strictly inside the bolts. It concentrates the clamping force on a smaller area, creating a tighter seal with less torque. However, using ring gaskets on fragile flat-face flanges can crack the flange corners.
2. O-Ring Seal Types & Mounting Understanding o ring type seals involves knowing how they are compressed.
• Axial Seal: The O-ring is compressed top-to-bottom (like in a flange face). This is common for static ring seals.
• Radial Seal: The O-ring is compressed from the inside diameter (ID) or outside diameter (OD), typical in piston or rod applications.
3. Material & terminology Whether you need a simple gasket rubber ring for a garden hose or high-precision o-ring seal types for aerospace, we categorize them clearly.
• Static vs. Dynamic: Types of o ring seals are often categorized by motion. Static gasket rings do not move, while dynamic seals (like on a hydraulic ram) must handle friction and wear. We engineer our ring seals to withstand these specific forces.
Custom Solutions & Sales: Sourcing the Right Seal
From Micro-Seals to Giant Gaskets.
Whether you need a standard replacement or a bespoke solution, we bridge the gap between o rings and seals. As a premier supplier, we handle o ring sales for every industry, from automotive to aerospace.
1. Standard Sizes & Inventory

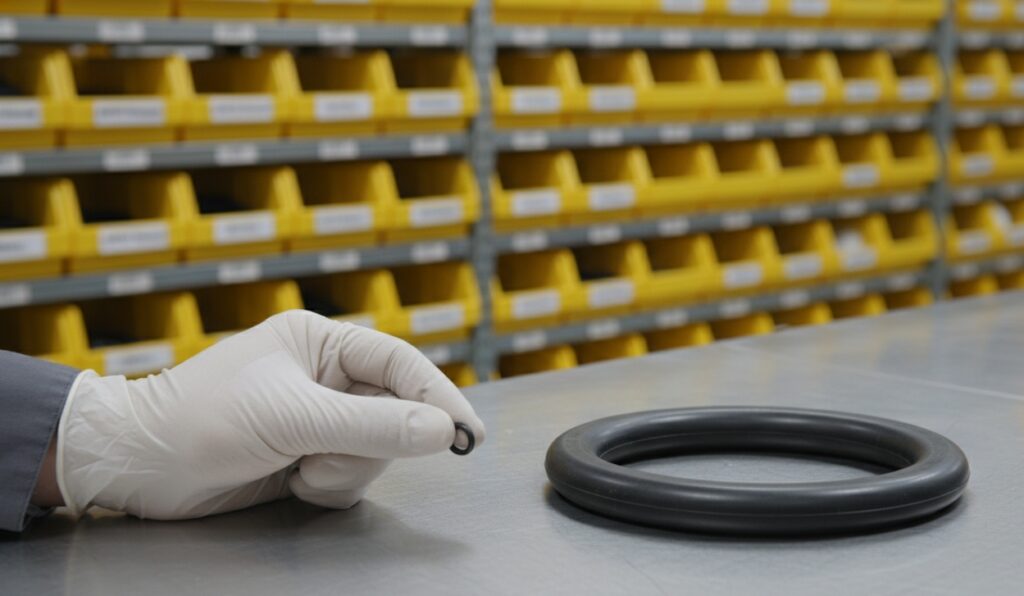

• The Range: We stock millions of o rings seals in AS568 (Imperial) and Metric sizes. Whether you are looking for o rings small enough for a watch (1mm) or a standard 2 inch o ring gasket for plumbing, we ship same-day.
• Materials: Our rubber ring seals are available in Nitrile (Buna-N), Viton (FKM), Silicone, and EPDM.
2. Custom O Rings & Alternatives
• Customization: Sometimes, an off-the-shelf part won’t seal. We manufacture custom o rings with specific durometers (hardness) or chemical resistance.
• Problem Solving: If a standard O-ring keeps failing, we can engineer o ring alternatives, such as X-Rings (Quad Rings) or Square Cut seal o rings, to provide better stability in the groove.
3. We Speak Your Language (Typos Included) Finding the right part can be frustrating when terminology varies. Whether you type your search as “an o ring”, “or o ring”, or even “oring a”, we know exactly what you need.
• Synonyms: From oring seal and o-ring seal to oring gasket, we supply them all.
• The Complete Package: We are your one-stop shop for seals and o rings. Need a rubber o ring seal kit or a specific seal o ring for a prototype? Contact our engineering team today.
