Custom Vulcanized O-Rings & Spliced Seals
No Tooling Costs. Unlimited Diameters. Fast Delivery. We engineer high-strength spliced and vulcanized O-rings designed specifically for your critical static sealing applications.
Why Choose Our Vulcanized Seals?
When standard molded O-rings fall short or become too expensive for large-scale applications, our
vulcanized rubber rings provide the ultimate solution. We use advanced hot-vulcanization technology to bond extruded cord stock into continuous loops, achieving joint strengths that rival molded parts.
• Cost-Effective: Skip the expensive mold investments.
• Rapid Prototyping: Get your custom seals in days, not weeks.
• Perfect Fit: Custom cut lengths to match your exact Inner Diameter (ID) requirements.
Why Choose Vulcanized O-Rings? The Smart Choice for Large & Custom Sizes
When designing sealing solutions for large flanges, tank lids, or custom enclosures, engineers often face a frustrating dilemma: pay thousands of dollars for a massive custom mold, or compromise on the equipment design to fit a standard seal. Our custom vulcanized o rings completely eliminate this problem.
Instead of injecting rubber into an expensive steel cavity, our vulcanized rubber rings are manufactured by cutting precision-extruded rubber cord to your exact required length. The ends are then bonded together using a specialized heat and pressure vulcanization process. The result is a high-performance static seal tailored to your exact specifications, without the financial burden of tooling.。
| Feature | Spliced & Vulcanized O-Rings | Traditional Molded O-Rings |
| Tooling Cost | $0 (Free) | High ($500 – $5,000+) |
| Lead Time | 2 – 5 Days | 3 – 6 Weeks |
| Inner Diameter (ID) | Unlimited (No maximum size) | Strictly limited by press/mold size |
| Cross Section (CS) | Standard extruded cord sizes | Any custom profile |
| Ideal Application | Large static seals, low-volume custom runs | High-volume micro seals, dynamic applications |
Precision Spliced O-Rings: Engineered for Maximum Joint Strength
The most common question engineers ask about a spliced o ring is: “Will the joint hold under pressure?” Unlike cheap cold-glued seals that easily snap, our spliced and vulcanized o rings undergo a specialized thermo-chemical bonding process. We apply an uncured rubber mixture to the ends and cure them under high heat and pressure in a specialized mold. This chemically cross-links the polymers, creating a continuous bond that typically retains 70% to 90% of the cord’s original tensile strength.
To meet different application demands and mechanical stress levels, we offer three precision cutting techniques for our spliced o rings:
1. Standard Butt Cut (90°)
• The Process: The rubber cord is cut straight across at a 90-degree angle.
• Best For: General-purpose static sealing where the O-ring will not be subjected to significant stretching during installation or operation. It is the most cost-effective and common splicing method.
2. Bevel Cut / Skive Cut (45°)
• The Process: The cord is cut at an angle (usually 45 degrees), creating a larger surface area for the vulcanization agent to bond.
• Best For: Applications requiring higher tensile strength or larger cross-sections. The angled joint distributes stress more evenly, making it more robust if the seal needs to be stretched slightly over a flange.
3. Step Cut (Interlocking)
• The Process: The ends are machined with a stepped profile, allowing them to overlap and interlock physically before vulcanization.
• Best For: Critical applications demanding maximum joint integrity. This cut provides the largest bonding surface area and superior resistance to multi-directional mechanical stress.
Premium Cord Stock Materials for Every Environment
The integrity of a vulcanized seal depends just as much on the raw material as it does on the splice. To ensure your seals perform flawlessly under pressure, temperature, and chemical exposure, we maintain a massive inventory of extruded rubber cord in various cross-sections (CS) and standard durometers (typically 70 or 90 Shore A).
We can manufacture your custom rings from the following premium elastomers:
• Nitrile (NBR / Buna-N): The industry standard for excellent resistance to petroleum-based oils, fuels, and hydraulic fluids. Ideal for general industrial applications.
• Viton® (FKM): The ultimate choice for harsh environments. Offers exceptional resistance to extreme heat (up to 200°C) and aggressive chemicals.
• EPDM: Outstanding weather, ozone, and UV resistance. The go-to material for outdoor enclosures, automotive weatherstripping, and water/steam systems.
• Silicone (VMQ): Features the widest operating temperature range (-60°C to +230°C) and excellent flexibility. FDA-compliant grades are available for food and medical applications.
“Learn more about chemical compatibility in our [Rubber Material Guide]
Our vulcanized rings are manufactured from our premium [Extruded Rubber Cords]

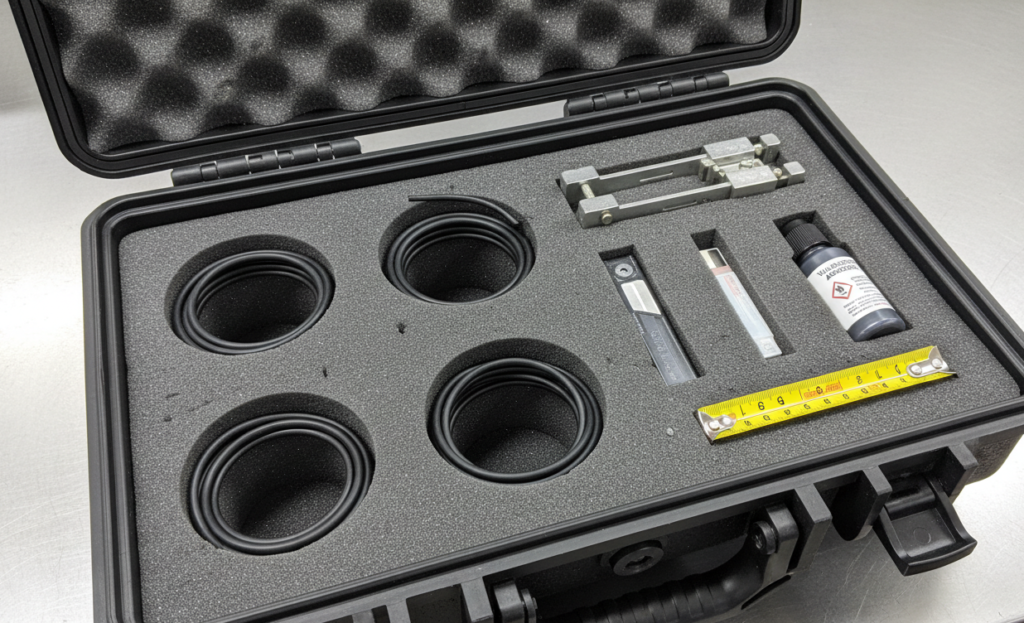

Emergency Repair Solutions: The Vulcanized O Ring Kit
Equipment downtime is expensive. For maintenance, repair, and operations (MRO) professionals who cannot afford to wait for a custom factory order, we offer the comprehensive vulcanized o ring kit.
This all-in-one splicing kit empowers your on-site maintenance team to create reliable, custom-sized vulcanized rubber rings right on the factory floor in a matter of minutes. Perfect for emergency pump repairs, flange sealing, or prototyping.
What’s Included in the Kit:
• Premium Cord Stock: Multiple spools of high-quality rubber cord (e.g., Nitrile or Viton) in the most common cross-section sizes.
• Precision Splicing Jig & Blade: Ensures perfectly clean 90° or 45° cuts every time, which is critical for a strong bond.
• Industrial-Grade Vulcanizing Adhesive: Specially formulated rapid-cure adhesive designed to chemically bond the elastomer ends with maximum tensile strength.
• Measuring Tape & Instructions: Step-by-step guidance to ensure a perfect fit for any large-diameter sealing groove.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Vulcanizing O Rings: The Science Behind the Seal
Many customers wonder how we achieve such high joint integrity. The secret lies in the fact that vulcanizing o rings is a chemical process, not just a mechanical gluing one.
When you use standard cyanoacrylate (superglue) on a rubber cord, it simply rests on the surface and becomes brittle, cracking under pressure. Our hot-vulcanization process is completely different:
1. Preparation: The ends of the extruded cord are precision-cut and thoroughly cleaned.
2. Application: We apply a proprietary, uncured rubber compound (matching the exact polymer of the cord, such as Nitrile or Viton) to the joint.
3. Curing: The joint is placed into a specialized, heated metal die under extreme pressure. As the temperature rises, the polymer chains in the uncured mixture cross-link with the solid cord ends.
4. Result: The two ends fuse into a single, continuous vulcanized seal. The joint becomes flexible, resilient, and virtually indistinguishable from the rest of the ring.
Frequently Asked Questions (FAQ)
• Q: What is the minimum Inner Diameter (ID) you can vulcanize?
• A: We typically recommend vulcanization for O-rings with an ID of 50mm (2 inches) or larger. For extremely small diameters, traditional molding is usually more practical.
• Q: Will the spliced joint leak under pressure?
• A: No. When properly seated and compressed within a static gland or groove, a vulcanized seal acts exactly like a continuous molded ring, providing a 100% leak-proof barrier.
• Q: Can I use vulcanized O-rings in dynamic applications?
• A: We strongly recommend our spliced and vulcanized o rings for static applications only (e.g., pipe flanges, tank lids, enclosure covers). The constant friction and stretching in dynamic applications (like moving pistons) can prematurely stress the spliced joint.
• Q: What are your dimensional tolerances?
• A: We adhere to the Rubber Manufacturers Association (RMA) Class 3 standard tolerances for extruded cross-sections and precision-cut lengths to ensure an accurate fit.
Ready to Eliminate Tooling Costs on Your Next Large Seal?
Don’t let high mold investments or weeks of waiting delay your production schedule. Whether you need a single prototype vulcanized o ring or a bulk order of thousand spliced seals, the engineering team at RiseUp is ready to deliver.
Simply provide us with your required Cross-Section (CS), Inner Diameter (ID), and Material, and we will return a comprehensive quote within 24 hours.
“Looking for standard, high-volume molded seals or micro-O-rings for dynamic applications? Visit our primary [O-Ring Gaskets] page for our full range of standard sizing and AS568 catalog.”
