Extruded Rubber P-Strips & P-Seals: The Engineer’s Guide to Selection and Customization

Don’t Let a Poor Seal Compromise Your Enclosure

Sealing a door, hatch, or cover involves a delicate balance: you need enough compression to stop water and dust, but not so much that the door won’t close. Standard flat strips often fail because the mounting pressure interferes with the sealing capability.

Enter the P-Strip (P-Profile).

The genius of the P-Strip lies in its geometry. By separating the “Bulb” (the sealing area) from the “Stem” (the mounting area), it allows you to securely fasten the seal—using staples, screws, or adhesive—without compromising its flexibility.

Whether you are sealing a high-temperature industrial oven, weatherproofing a marine hatch, or damping vibration in a generator enclosure, our P-Strips provide the reliable “compression-and-recovery” cycle you need.

Why Engineers Choose Our P-Seals:

Separated Function: Mount firmly via the stem; seal softly via the bulb.
Dynamic Range: Hollow bulbs accommodate variable gap sizes better than solid strips.
Material Versatility: Available in EPDM (Weather), Silicone (Heat), and Neoprene (General Purpose).

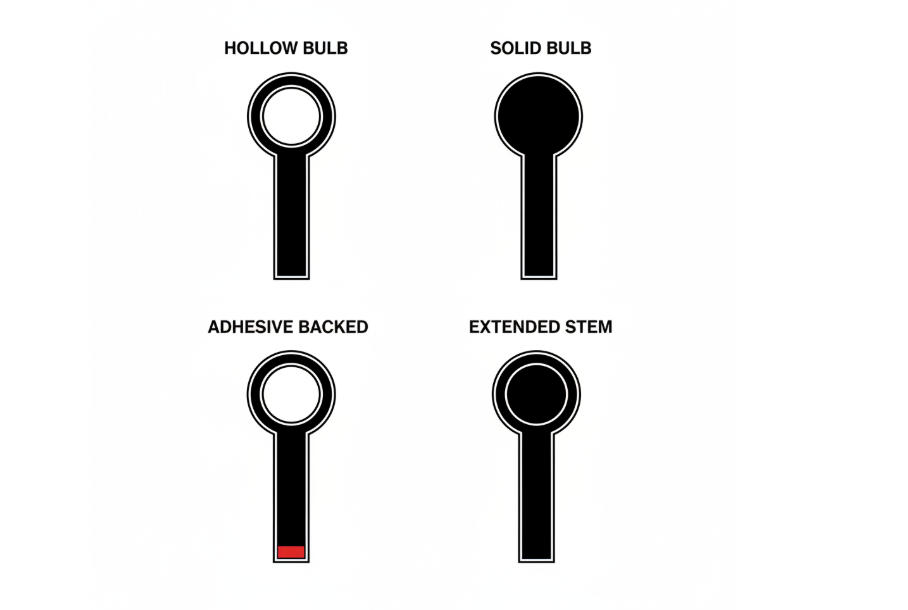

1. Hollow Bulb P-Strips (The Sealing Standard)

• Structure: The bulb section is hollow (air-filled).

• Best For: Weather stripping, water sealing, and applications where you want the door to close easily.

• Why: The hollow bulb compresses with minimal force, creating a tight seal against uneven surfaces without warping the door frame.

2. Solid Bulb P-Strips (Bumpers & Wipers)
• Structure: The entire profile is solid rubber.
• Best For: Heavy-duty bumpers, loading dock protection, or “wiping” applications (e.g., cleaning debris off a sliding track).
• Why: They provide high impact resistance and do not collapse under heavy loads.

3. Adhesive-Backed P-Strips (PSA)
• Structure: Features a high-strength Pressure Sensitive Adhesive (PSA) tape applied to the flat stem face.
• Best For: Rapid assembly lines, smooth surfaces (metal/plastic), and applications where drilling holes for screws is not possible.
• Note: We use high-bond acrylic tapes (like 3M™ VHB™) for permanent adhesion.

4. High-Temperature P-Seals
• Structure: Manufactured from Silicone or FKM (Viton®).
• Best For: Ovens, autoclaves, and engine compartments.
• Why: Standard rubber will melt or crack above 250°F. These profiles withstand temperatures up to 450°F+ (230°C+).

How to Choose Correctly Size a P-Strip

Choosing the right size P-strip isn’t just about measuring the gap; it’s about calculating the Compression Percentage.

If the bulb is too small, it is difficult to have the sealing function. If it’s too big, your door won’t latch, or the rubber p shape will suffer from “compression set” (permanent deformation) and lose its springiness over time.

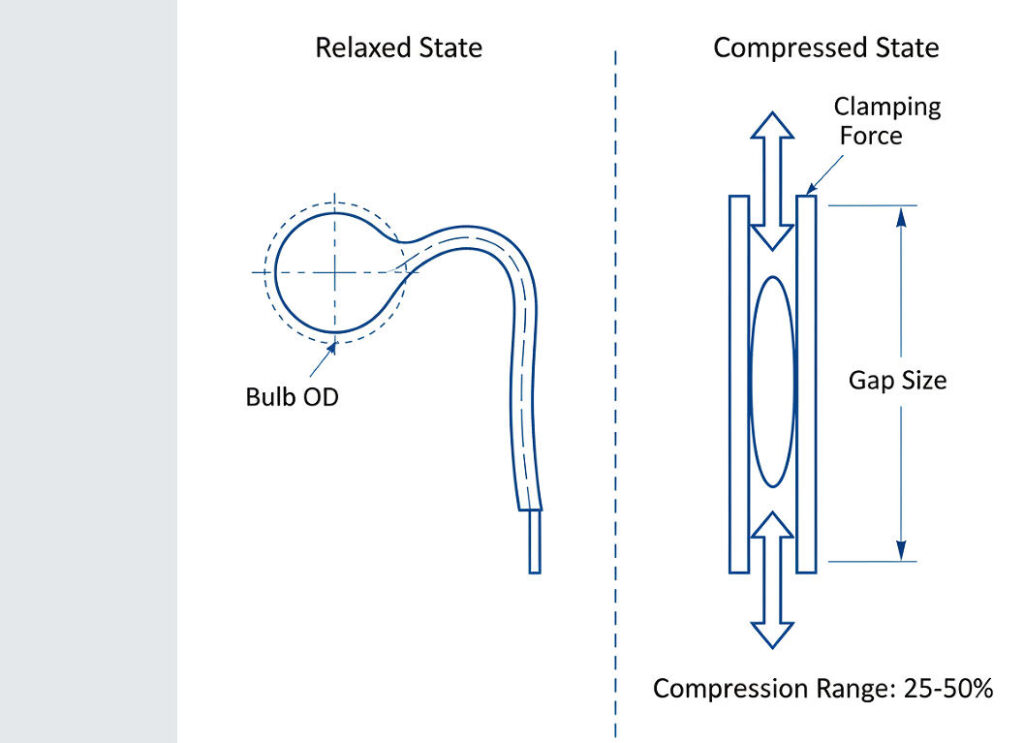

The Golden Rule: Target 25% – 50% Compression

For a standard Hollow Bulb P-Strip, you want to compress the bulb by about 25% to 50% of its height.

How to Calculate:

Measure Your Gap: The distance between the door and the frame when closed. (e.g., 10mm).
Select Bulb Diameter: Choose a bulb with an Outer Diameter (OD) larger than the gap.
Check the Math:
- Ideal Bulb OD = Gap Size ÷ 0.75 (for ~25% compression)
- Example: If your gap is 10mm, you need a bulb OD of approximately 13.3mm (or closest standard size, like 1/2″ or 14m

MOQ 300 pcs, Accept Customization for Small Order. Design Products as Your Idea.

Selection Reference Chart

Gap Size (The space you need to seal)	Recommended Bulb OD (Hollow)	Why?
1/8″ (3.2mm)	3/16″ (4.8mm)	Provides ~33% compression. Good seal.
1/4″ (6.4mm)	3/8″ (9.5mm)	Provides ~33% compression. Standard fit.
1/2″ (12.7mm)	5/8″ (15.9mm) to 3/4″ (19mm)	Larger bulbs allow for more variance in the gap.
3/4″ (19mm)	1″ (25.4mm)	Heavy-duty sealing.

Pro Tip: The Role of the Stem The “Stem” (or tail) is strictly for mounting. It should never be part of the sealing compression.

Ensure the stem width is wide enough to accommodate your fastener (screw/rivet) or adhesive tape width.
Ensure the stem thickness does not interfere with the door closing.

Material Selection: Matching the Compound to the Environment

A p-strip is only as good as the material it’s made of. Using the wrong rubber in a harsh environment that can lead to cracking, swelling, or melting within weeks.

Use this guide to match the suitable p shaped rubber compound to application conditions.

Material Performance Comparison Chart

Material	Common Name	Temp Range	Weather / UV	Oil / Fuel	Best For
EPDM	Ethylene Propylene	-50°c to 150°c	Excellent	Poor	Outdoor Enclosures, Windows, Marine, Solar.
Silicone	–	-50°c to 230°c	Excellent	Poor	High-Heat Ovens, Medical, Food Processing.
Nitrile	Buna-N	-40°c to 120°c	Poor	Excellent	Machinery, Automotive, Hydraulic areas.
Neoprene	Chloroprene	-60°c to 90°c	Good	Good	General Purpose, HVAC, mild exposure environments.

Deep Dive: Which One Should You Choose?

Choose EPDM (The “Outdoor King”) If your p-strip will see sunlight, rain, or ozone, EPDM is the industry standard. It resists UV degradation for 20+ years.
- Warning: Do not use EPDM if it will be exposed to oil or gasoline; it will swell and fail.
Choose Silicone (The “Heat Specialist”) For industrial ovens, autoclaves, or lighting fixtures where temperatures exceed 300°F (150°C). Silicone maintains its flexibility and compression recovery even in extreme heat. It is also available in FDA.LFGB compliant grades.
Choose Nitrile / Buna-N (The “Oil Resistor”) Essential for machine guards, engine compartments, or garage doors where contact with grease, oil, or fuel is likely.
Choose Neoprene (The “All-Rounder”) If you need a balance. It offers moderate resistance to oils and moderate resistance to weathering. It is often used for HVAC access doors and general industrial vibration dampingp

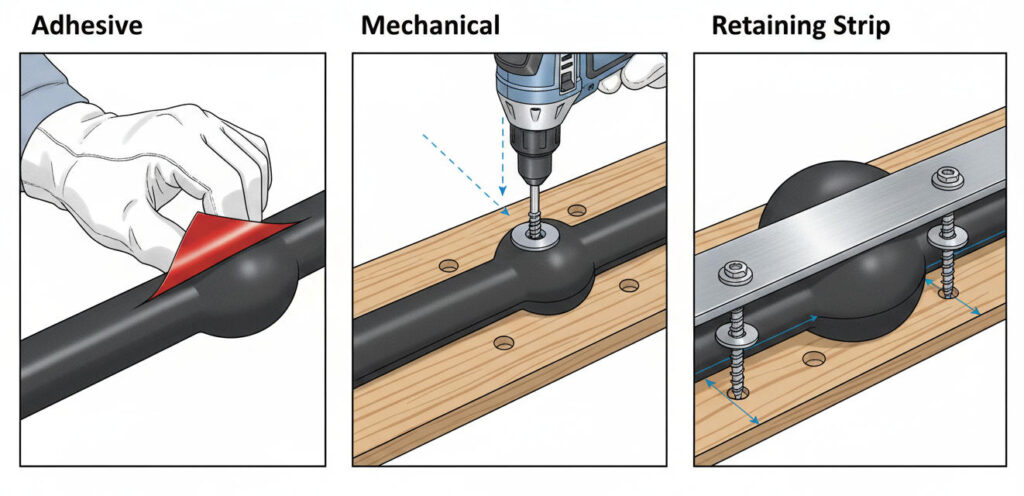

3 Ways to Install P-Strips Securely

The highest quality p-seal will fail when it falls off the door frame. The unique “Stem” of the P-profile offers versatile mounting options that other shapes (like D-strips) cannot match.

Method 1: Pressure Sensitive Adhesive (PSA) – “Peel-and-Stick”
• Best For: Metal or plastic surfaces; rapid assembly lines.
• Our Technology: We can laminate high-strength acrylic foam tapes (like 3M™ VHB™) or Heat Activated Taping Systems (HATS) directly onto the stem.
• Critical Tip: 90% of adhesive failures are due to dirty surfaces. You must clean the mounting surface with a 50/50 Isopropyl Alcohol and water mixture before applying.

Method 2: Mechanical Fastening (Screws, Rivets, Staples)
• Best For: Wood frames, heavy machinery, or rough/dirty surfaces where tape won’t stick.
• Technique: Drive the fastener (screw or staple) through the center of the flat Stem.
• Critical Tip: Always use a washer or a metal backing strip with your screws. This distributes the pressure and prevents the screw head from tearing through the rubber over time.

Method 3: Metal Retaining Strips
• Best For: Heavy-duty industrial doors and high-vibration environments.
• Technique: Place the p seal stem against the frame. Place a flat metal bar (aluminum or steel) over the stem. Screw through the metal bar and the rubber into the frame.
• Result: This creates an armored, tear-proof mounting point that can withstand extreme abuse.

Custom Extrusion: When Standard Sizes Don’t Fit

Yichang is not just a catalog supplier; we are an extrusion manufacturer. If our standard profiles don’t match your gap or flange requirements, our engineer give below as solution:

1. Rapid Custom Tooling

We design and cut our own dies (tools) in-house. This means we can go from a CAD drawing to a physical sample in as little as 7 working days.

• Benefit: You get the exact Bulb OD and Stem Width your design requires, without compromise.

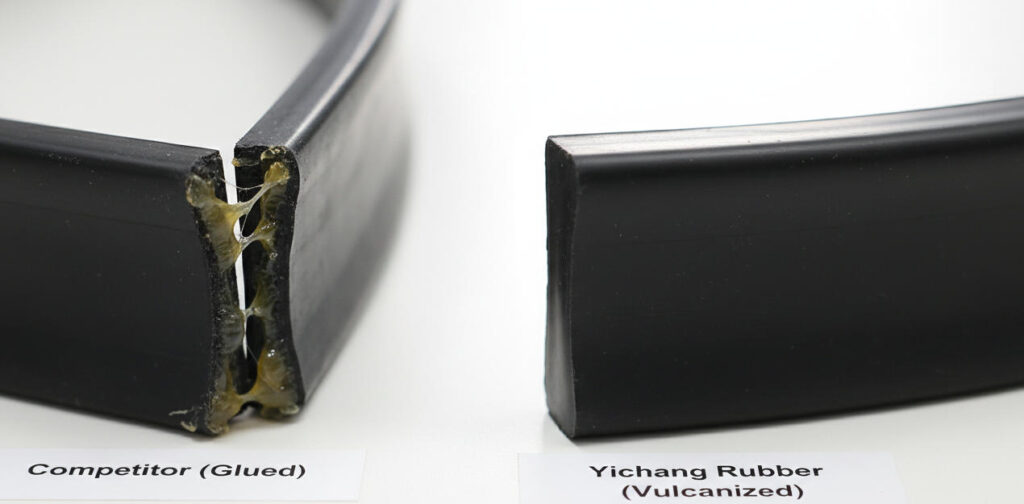

2. Vulcanized Frames (The Leak-Proof Solution) Cutting P-strips at a 45° angle and gluing them together often leads to failure at the corners—the weakest point of any seal.
• Our Solution: We use Hot Vulcanized Jointing. We place the cut ends into a mold and inject uncured rubber, heat-fusing them into a single, continuous loop or frame.
• Result: A corner that is as strong as the extrusion itself, completely waterproof, and impossible to pull apart.

3. Color Matching & Printing Black is standard, but not mandatory.
• Safety: We can extrude Safety Yellow or Orange P-strips for hazard areas (e.g., low overhead doors).
• Branding: Custom colors to match your OEM equipment.
• Part Marking: We can inkjet print part numbers or batch codes directly onto the stem for traceability.

Frequently Asked Questions (FAQ)

• Q: What is the difference between Solid and Hollow P-Strips?

A: Hollow bulbs are designed for sealing against fluids and air. They compress easily (low closure force). Solid bulbs are designed for impact protection (bumpers) and heavy loads. If you need a water-tight seal, choose Hollow.

• Q: How tight can I bend a P-Strip around a corner?

A: This depends on the bulb size. Forcing a P-strip into a radius that is too tight will cause the bulb to kink (collapse), breaking the seal. Use this general guide:

Bulb Diameter	Minimum Bend Radius (Approx.)
1/4″ (6.4mm)	1.0″ (25mm)
1/2″ (12.7mm)	2.5″ (64mm)
3/4″ (19mm)	4.0″ (100mm)
1″ (25.4mm)	6.0″ (150mm)

Q: Will the adhesive (PSA) stick to wood or concrete?

A: Generally, no. Pressure Sensitive Adhesives require a smooth, non-porous surface like metal, glass, or painted plastic. For wood or concrete, we recommend using the Mechanical Fastening method (screws and backing strips) described above.

• Q: Can I get samples before I buy?

A: Yes. We understand that fitment is critical. Contact our sales team to request a sample pack of our most common P-profiles to test in your specific channel or gap.
