Commercial Refrigerator Rubber Seal & Thermal Breaks: High-Performance Solutions for OEM & Distributors
Engineering the Perfect Cold Barrier: Efficiency, Compliance, and Longevity
For manufacturers of commercial refrigeration equipment (Walk-ins, Reach-ins, and Display Cases), the commerical cooler door gasket is not just a component—it is the critical line of defense against energy loss and compressor failure.
In an era of stricter DOE energy regulations and rising operational costs, a standard rubber strip isn’t enough. You need an engineered system designed to eliminate thermal bridging, prevent frame condensation (sweating), and ensure a hermetic seal every time the door closes.
We provide integrated commerical refrigeration door gaskets solutions for OEMs and Aftermarket Distributors:
• Thermal Efficiency: Advanced rigid thermal breaks (breaker strips) to isolate conductive metal frames.
• Sanitary Compliance: FDA-grade materials designed to resist mold, grease, and cleaning chemicals.
• Dual-Durometer Co-Extrusion: Combining rigid bases for fast assembly with soft sealing fins for optimal compression.
Whether you are designing a new refrigeration line or stocking replacement parts for legacy equipment, we deliver the precision and consistency your supply chain demands.

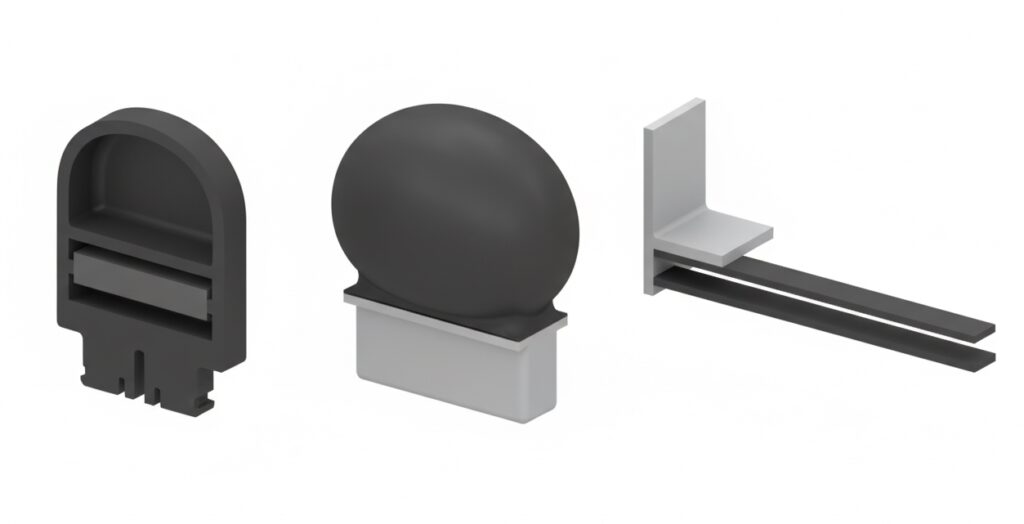

Commerical Refrigeration Door Seals for Walk-Ins, Reach-Ins, and Display Cases
Selecting the right profile is a balance between closure force, gap tolerance, and mounting method. We manufacture a comprehensive range of extruded profiles specifically engineered for the refrigeration industry.
1. Magnetic Gaskets (The Industry Standard)
• Mechanism: Encapsulated magnetic strips provide a continuous, positive commerical refrigerator gasket around the door perimeter, eliminating the need for mechanical latches on many reach-in units.
• Design: Features high-compression bellows (air pockets) to accommodate door misalignment.
• Mounting: Available in Push-In (Dart), Snap-In, and Screw-In bases to match your specific door channel.
2. Compression & Snap-In Gaskets
• Application: Ideal for heavy-duty walk-in commerical cooler gaskets doors or drawer units where mechanical latches provide the closing force.
• Performance: Designed with robust balloon structures to withstand high compression loads and frequent slamming without permanent deformation.
3. Dual-Durometer Co-Extrusion (OEM Advantage)
• The Technology: We extrude two different hardnesses of material into a single profile.
• Rigid Base: Harder material (e.g., rigid PVC) ensures the gasket snaps into the door channel securely and stays in place during assembly.
• Soft Seal: Softer material (e.g., flexible PVC or TPV) creates a perfect, airtight seal against the cabinet face.
• Benefit: Reduces assembly time on the production line and eliminates sagging.
4. Wiper & Sweep Gaskets
• Application: Bottom-of- commerical cooler seals for walk-in coolers to prevent cold air from “spilling” out across the floor.
• Design: Flexible fins that glide over uneven floor surfaces while maintaining a seal.commerical refrigerator gasket

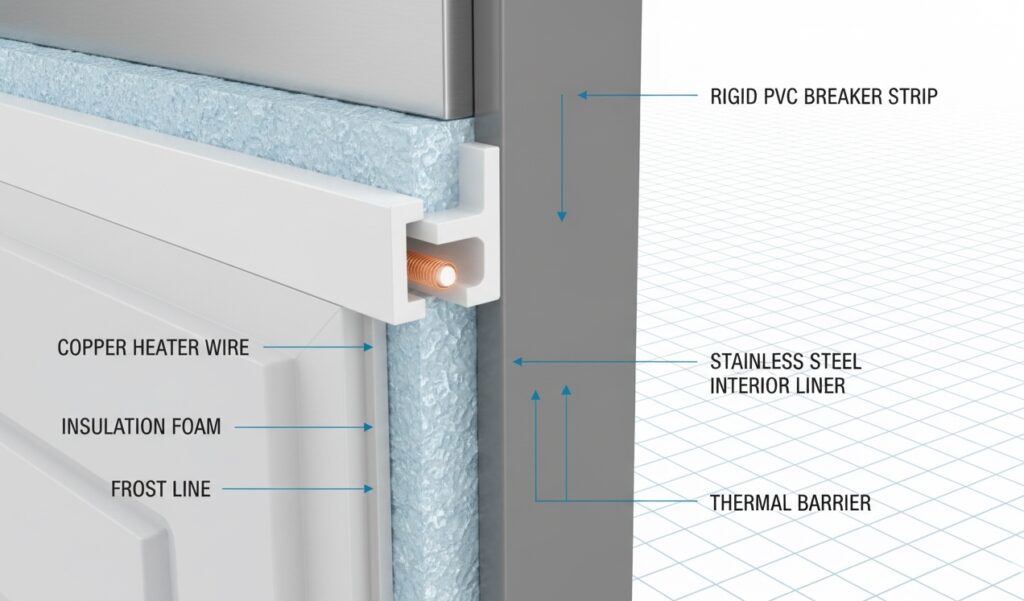

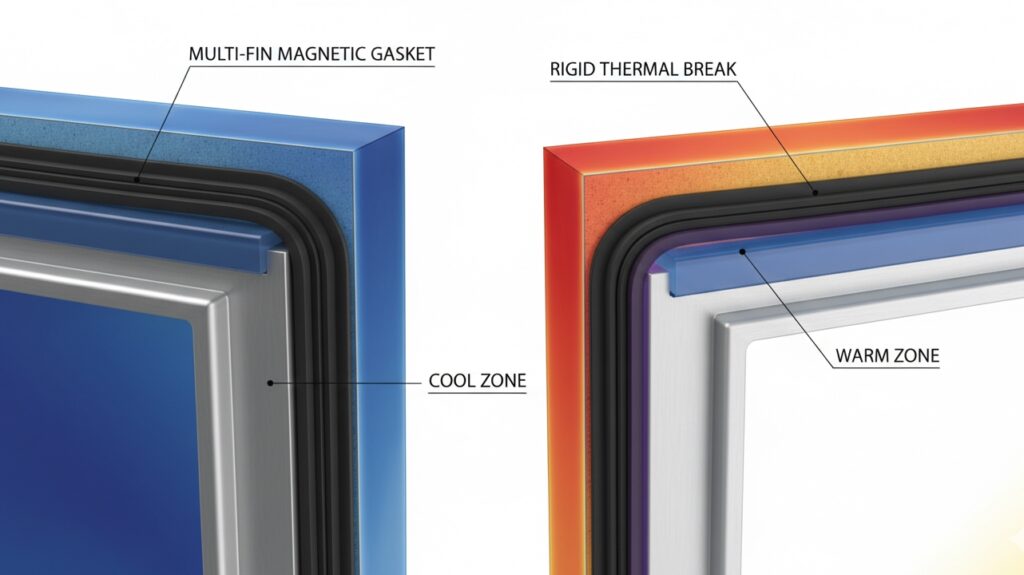

Rigid Thermal Breaks & Breaker Strips: Controlling Condensation
In commercial refrigeration, the enemy isn’t just heat—it’s conductivity. If the cold inner liner touches the warm outer shell, a “thermal bridge” is created. This leads to energy loss and, more visibly, external frame condensation (“sweating”), such as commerical fridge gasket.
We manufacture high-precision rigid thermal breaks designed to physically isolate conductive metal components.
1. The Function of a Breaker Strip
• Thermal Isolation: Made from low-conductivity Rigid PVC or ABS, these strips connect the inner and outer metal panels without transferring heat.
• Condensation Control: By stopping the cold transfer, the exterior frame remains above the dew point, preventing water from dripping onto merchandise or floors.
2. Engineered Features for OEMs
• Integrated Heater Wire Channels: For freezer applications (sub-zero), our commerical freezer gaskets can be extruded with internal channels to house resistance heater wires, preventing door gaskets from freezing shut.
• Snap-In Assembly: Designed with precision locking barbs to snap securely into metal returns without fasteners, speeding up assembly line production.
• Aesthetic Finish: Available in glossy white, grey, or black to match the cabinet interior, acting as a clean trim piece that hides metal edges.
Material Science: Formulated for Food Safety & Longevity
In a commercial kitchen, a refrigerator rubber gasket faces a brutal environment: extreme temperature swings, aggressive cleaning chemicals, and animal fats.
Using the wrong compound leads to “gasket swelling,” cracking, and health code violations.
We extrude exclusively with LFGB and FDA-compliant materials tailored for the cold chain.
1. Flexible PVC (The Cold-Chain Standard)
• Performance: Our proprietary PVC compounds are engineered with non-migrating plasticizers. This means they remain flexible down to -40°F (-40°C) without becoming brittle or cracking (“Cold-Crack Resistance”).
• Application: Ideal for standard reach-in coolers, walk-in freezers, and display cases where grease exposure is minimal.

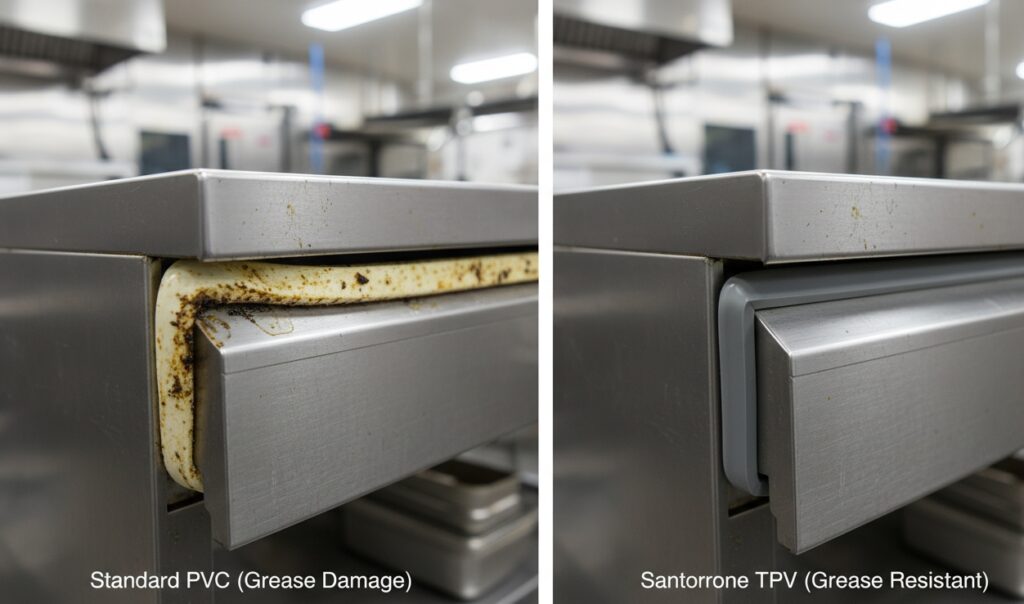

2. Santoprene® TPV (The Grease Killer)
• The Problem with PVC: When standard PVC touches animal fats (from fryers, grills, or meat prep), the plasticizers leach out. The gasket swells, gets sticky, and falls apart.
• The TPV Solution: Thermoplastic Vulcanizate (TPV) is chemically immune to grease, oils, and harsh sanitizers. It lasts 3x longer than PVC in commercial kitchen environments.
• Application: Essential for prep tables, under-counter fridges, and units near deep fryers.
3. Antimicrobial Protection (Health Code Compliance)
• Hygiene: We offer materials infused with antimicrobial additives during the extrusion process. This inhibits the growth of mold, mildew, and bacteria in the accordion folds of the gasket, ensuring your equipment passes health inspections.
Material Selection Guide
| Environment | Recommended Material | Why? |
| General Cold Storage | Low-Temp PVC | Cost-effective, excellent cold flexibility. |
| Commercial Kitchen / Prep Line | Santoprene® (TPV) | Resists animal fats, oils, and constant cleaning. |
| Medical / Ultra-Low Temp | Silicone | Remains flexible at -100°F; supreme hygiene. |
For OEMs, the cost of a gasket isn’t just the purchase price—it’s the cost of installation and potential warranty claims. We provide value-added services designed to reduce your assembly time and eliminate seal failures in the field.

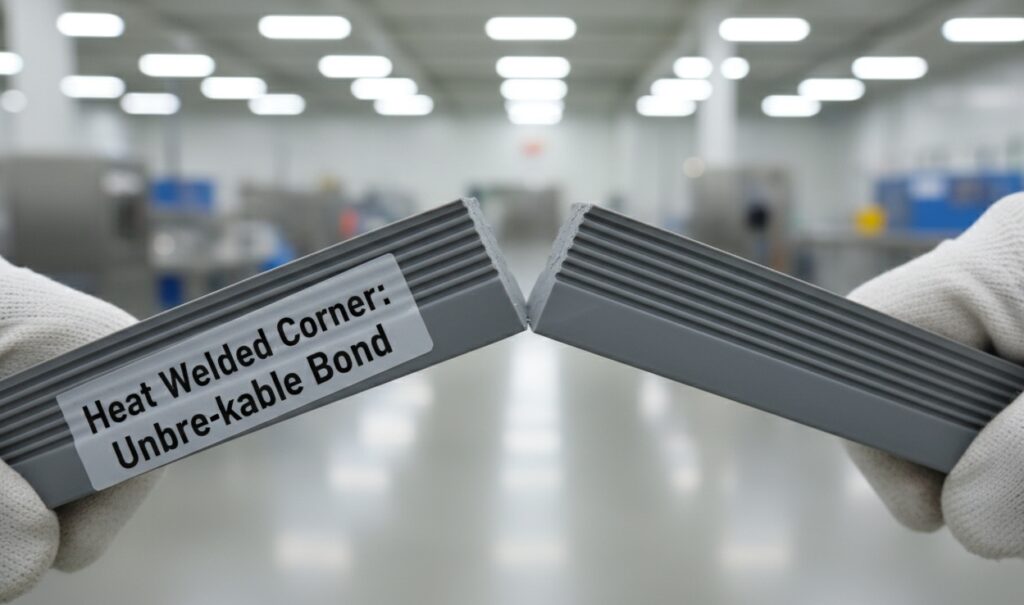

1. Factory Welded Corners (The OEM Standard)
• The Problem: Mitered and glued corners often separate after repeated door slamming, creating air leaks and hygiene risks.
• Our Solution: We use automated heat-welding machinery to fuse the PVC or TPV material at the corners.
• The Result: A Hermetic Seal with a molecular bond stronger than the extrusion itself. No glue, no leaks, and a clean, professional finish that defines high-quality refrigeration units.
2. Custom Kitting & Packaging (Speed Up Assembly)
• For OEMs: We deliver gaskets pre-cut, welded, and individually bagged as “Door Sets” labeled with your part numbers. Your assembly team simply opens the bag and snaps it in—zero measuring or cutting on the line.
• For Distributors: We offer retail-ready packaging with branding options for your aftermarket sales channels.
3. Bulk Spools (Inventory Flexibility)
• For Service Technicians: We supply continuous gaskets on high-capacity spools (e.g., 500ft). This allows service techs to cut-to-size on-site for custom walk-in coolers, minimizing scrap waste.

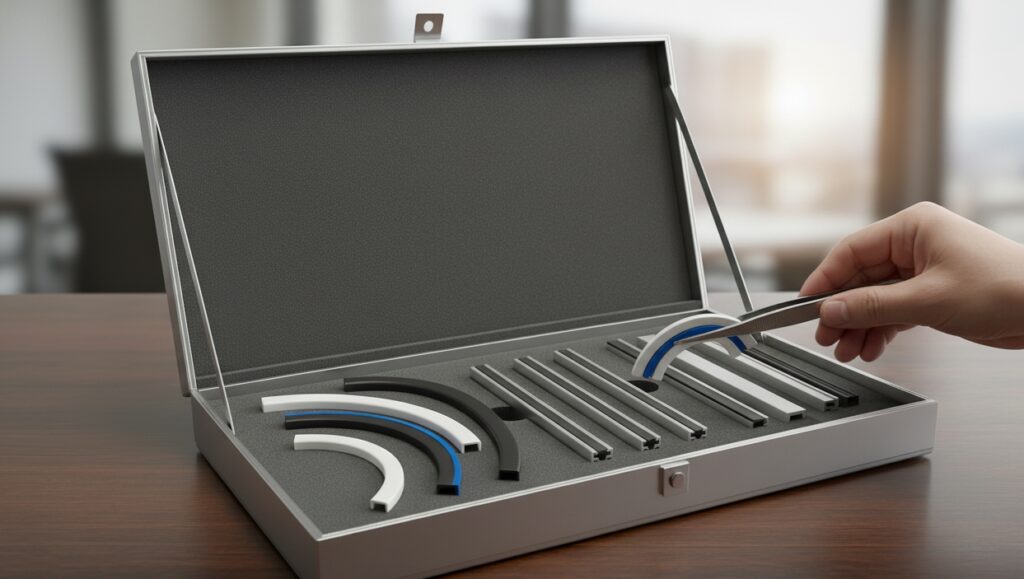

4. Rapid Prototyping
• Launching a new fridge model? We can produce 3D-printed prototype corners or short-run extrusion samples in as little as 2 weeks to validate fit and function before mass production.
Custom Die Design & Reverse Engineering: Solving the "Obsolete" Problem
Finding a replacement commerical freezer door gasket for a 15-year-old walk-in cooler can be impossible. Designing a new commercial fridge seal without expert guidance can lead to costly tooling errors. We bridge the gap between concept and production.
1. For Aftermarket & Service: The “Sample-to-Part” Workflow
• The Challenge: Manufacturers often discontinue parts for older refrigeration units, leaving service techs stranded.
• Our Solution: Send us a 6-inch sample of the old, worn-out gasket. Our engineering team will analyze the geometry, account for shrinkage/wear, and create a new CAD drawing.
• The Result: We can reproduce “obsolete” profiles with a low tooling cost and short lead time, keeping your fleet operational.
2. For OEMs: Co-Design & Optimization
• Early Involvement: We work with your engineers during the design phase to optimize the door jamb geometry for the seal.
• Performance Tuning: We simulate compression loads to ensure the door closes easily but seals tightly. We can adjust the wall thickness or magnet strength of a custom die to perfect the “feel” of the door.
3. Low-Cost Tooling
• Unlike injection molding, extrusion tooling is vital and cost-effective. This makes custom runs viable even for smaller production batches or niche equipment.
Technical FAQ
Q: How do you control dimensional tolerances given material shrinkage? A: We use advanced vacuum calibration sizing tanks during extrusion. For Rigid PVC, we hold tight tolerances (+/- 0.010″). For Flexible PVC/TPV, tolerances are slightly wider due to the nature of the material, but we design the profile geometry (e.g., bellows) to absorb these variances without compromising the seal.
• Q: What is the main advantage of Dual-Durometer (Co-Extrusion)? A: It combines the best of both worlds. The Rigid Base provides structural integrity and prevents the gasket from sagging or pulling out of the track. The Soft Fin/Bulb provides maximum flexibility for sealing. It reduces installation time by up to 30% compared to standard flexible gaskets.
• Q: Can you match a specific color for my brand? A: Yes. While Standard Grey and Black are most common, we can color-match PVC and TPV to your specific Pantone or RAL code to align with your equipment’s branding (MOQs apply).
• Q: Do your gaskets meet DOE energy compliance standards? A: Our gaskets are components that contribute to compliance. By using our high-performance magnetic seals and rigid thermal breaks, OEMs can significantly reduce air infiltration and thermal conductivity, helping your final unit pass Department of Energy (DOE) testing.
Ready to Upgrade Your Gasket For Commerical Fridge Door ?
Don’t let a failing seal compromise your equipment’s efficiency. Whether you are an OEM engineer designing the next generation of freezers or a distributor looking for a reliable aftermarket partner, we have the profile you need.
MOQ 100 pcs, Accept Customization for Small Order. Design Products as Your Idea.
