Custom & Standard Rubber Bellows: Engineered Protection for Critical Environments
More Than Just a Dust Cover – It's the Lifeline of Your Actuator
In industries like Aerospace, Defense, and Healthcare, a compromised seal isn’t just a maintenance issue—it’s a mission failure. Dust ingress, chemical splashes, and UV exposure can destroy precision actuators, ball screws, and linear guides in days.
Industrial Bellows (also known as Expansion Joints or Dust Boots) are the dynamic armor for your motion control systems.
Unlike generic off-the-shelf parts, our bellows are engineered for specific stroke-to-compressed ratios and environmental extremes. Whether you are designing a surgical robot or retrofitting a military transport vehicle, we provide the protection you need.
As Bellows Manufacturers,we Specialize in Advanced Geometries:
• Tapered Bellows: Designed for maximum stroke with minimum closed height. The coils nest inside each other, saving critical space in compact electronic or aerospace assemblies.
• Double Cuff Ends: Engineered for extreme vibration environments (Transportation/Defense). The dual-layer cuff provides superior gripping power onto the flange or shaft, preventing “pop-off” failures without damaging the rubber.
Why Design Matters: The Double Cuff & Tapered Advantage
Standard straight bellows often fail in two ways: they consume too much space when compressed, or they tear at the clamp point under vibration. We solve these engineering challenges with specific geometries.

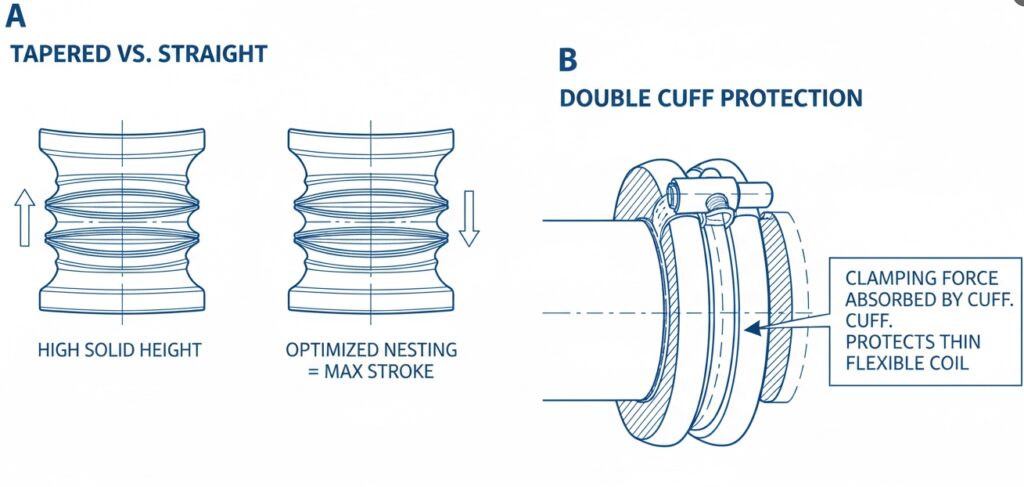

1. Tapered Bellows: Mastering the Stroke-to-Solid Ratio
• The Engineering Challenge: In aerospace and medical robotics, space is premium. You need a large extension stroke, but the bellow must virtually disappear when the device retracts.
• Our Solution: By gradually increasing the diameter of each coil, our Tapered Bellows allow the folds to “nest” inside one another upon compression.
• The Result: A significantly lower Solid Height (compressed length) compared to straight bellows, allowing for a greater range of motion in tight spaces.
2. Double Cuff Ends: Vibration-Proof Connection
• The Engineering Challenge: In Defense and Transportation, heavy vibration causes standard hose clamps to cut into the soft rubber of the bellow, leading to premature tearing at the neck.
• Our Solution: The Double Cuff design features an extended, reinforced mounting neck that isolates the clamping area from the active flexible coils.
• The Result:
• Higher Grip Strength: Resists “pull-off” even under high hydraulic pressure or mechanical shock.
• Durability: You can tighten clamps securely without cutting into the functional part of the boot.
3. Custom Shapes
• Beyond round profiles, we manufacture Square, Rectangular, and Way Cover bellows for machine tool guideways and bus articulations.
Engineered for Your Industry's Toughest Standards
A bellow used in a surgical robot has entirely different requirements than one used on a tank turret. We formulate and design specifically for the unique stressors of your sector.
1. Aerospace & Defense (Mission Critical)
• The Challenge: Extreme temperature fluctuations, exposure to jet fuel/hydraulic fluids, and high-altitude ozone/UV radiation.
• Our Solution:
• Materials: Mil-Spec Neoprene and Fluorosilicone blends resistant to CARC (Chemical Agent Resistant Coating) paint and de-icing fluids.
• Compliance: Fully traceable supply chain meeting MIL-STD and FAA flammability requirements.
2. Healthcare & Electronics (Contamination Control)
• The Challenge: Particulate generation, electrostatic discharge (ESD), and sterilization compatibility.
• Our Solution:
• Materials: USP Class VI Silicone (Platinum Cured) for biocompatibility and resistance to Autoclave/Gamma sterilization. ESD-safe EPDM for sensitive electronic component protection.
• Design: Tapered designs to fit inside compact medical device housings.
3. Transportation & Construction (Heavy Duty)
• The Challenge: Constant vibration, road salt, mud, and stone impingement.
• Our Solution:
• Materials: High-abrasion-resistant Nitrile (Buna-N) and EPDM to withstand road grime and grease.
• Design: Double Cuff Ends are standard here to prevent the boot from vibrating off the shaft during operation.
Bellows Manufacturing Excellence: Matching the Process to Your Volume
Choosing the right manufacturing method is a trade-off between tooling cost, unit price, and geometric complexity. We are rubber bellows suppliers in Dongguan city,we offer a full spectrum of production capabilities to guide you from prototype to mass production.
1. Compression & Injection Molding (For Precision & Volume)
• Best For: OEM Mass Production and complex geometries like Double Cuff Ends (where variable wall thickness is required).
• The Benefit: Tightest tolerances (+/- 0.005″). Injection molding offers the lowest price-per-part for high-volume runs (10,000+ units).
• Material Capabilities: Compatible with high-consistency rubbers like Silicone, EPDM, and Nitrile.
2. Dip Molding (For Prototyping & Thin Walls)
• Best For: Small Batches, prototypes, or simple dust covers requiring thin, flexible walls.
• The Benefit: Extremely Low Tooling Costs (aluminum or porcelain mandrels are cheaper than steel molds). Fast turnaround for testing new designs.
• Limitations: Uniform wall thickness only; cannot produce reinforced cuffs.
3. Rubber-to-Metal Bonding (Integrated Solutions)
• The Value Add: Instead of using hose clamps, we can chemically bond the rubber bellow directly to a metal flange or insert during the molding process.
• Result: A single, leak-proof component that simplifies your assembly line and eliminates the risk of clamp failure.
Process Selection Matrix
Process Selection Matrix
| Feature | Compression/Injection | Dip Molding |
| Tooling Cost | High | Low |
| Unit Cost | Low (at volume) | Medium |
| Wall Thickness | Variable (Thick Cuffs/Thin Body) | Uniform (Constant thickness) |
| Precision | High Precision | Standard |
Built for the Supply Chain: OEM & Distributor Support
We understand that a rubber bellow is just one part of your larger system. Our job is to make procurement, engineering, and assembly as seamless as possible. We offer tailored programs for high-volume manufacturers and industrial distributors.
1. For OEMs: Engineering Validation (FEA)
• The Risk: A bellow failing during a field test can delay a product launch by months.
• Our Value: We use Finite Element Analysis (FEA) to simulate stress, fatigue, and buckling before we cut steel for the mold. We optimize the convolution shape to ensure the bellow meets your cycle-life requirements (e.g., 1 million cycles).
2. For Distributors: Vendor Managed Inventory (VMI)
• The Challenge: fluctuating demand and warehousing costs.
• Our Solution: We offer VMI programs where we hold stock based on your forecast and ship on-demand.
• Private Labeling: We can package bellows with your branded labels, barcodes, and part numbers, ready for immediate resale or shipment to your end-user.
3. Value-Added Kitting (The “One SKU” Solution)
• Simplify Assembly: Stop sourcing bellows from one vendor and clamps from another.
• The Kit: We deliver “Ready-to-Install” Kits: One rubber bellow + two pre-sized stainless steel hose clamps (or zip ties), sealed in a single bag. This reduces BOM complexity and speeds up the assembly line.
Advanced Compounding: Rubber That Survives Where Others Fail
A bellow is only as good as its chemistry. In aerospace or defense applications, a generic rubber compound can crack under UV exposure or swell when in contact with hydraulic fluids. As a rich experiene of industrial bellows manufacturer,we customize the elastomer recipe to match your specific environmental threats.
1. Material Selection Matrix
| Material | Common Name | Temp Range | Key Resistance | Best Application |
| Silicone | – | -60°c to 240°c | Extreme Temps, Biocompatible | Medical Devices, Cleanroom Robotics, Autoclaves. |
| Viton® | FKM | -10°c to 320°c | Acids, Fuels, Jet Oil | Aerospace Engines, Chemical Processing. |
| EPDM | Ethylene Propylene | -50°c to 150°c | UV, Ozone, Steam, Water | Outdoor Equipment, Solar Trackers, Marine. |
| Nitrile | Buna-N (NBR) | -40°c to 120°c | Petroleum Oils, Hydraulic Fluids | Industrial Machinery, Hydraulic Rams, Automotive. |
| Butyl | IIR | -50°c to 120°c | Gases, Vacuum, Chemicals | Defense (Gas Masks), Vacuum Systems (Low Permeability). |
2. The Hidden Variable: Durometer (Stiffness)
• The Physics: The hardness of the rubber (Shore A) dictates the force required to compress the bellow.
• Customization:
• Softer (30-40 Shore A): For delicate electronics or medical arms requiring low resistance.
• Harder (60-70 Shore A): For heavy-duty defense applications requiring armor-like abrasion resistance.
• We can tune the durometer of any material to balance flexibility vs. durability.
Technical FAQ: From Design to Installation
Q: How do I correctly specify a tapered bellow?
A: We need four critical dimensions:
1. Extended Length: The maximum stroke required.
2. Retracted (Solid) Length: The minimum space available when the device is fully closed. Tapered designs offer the best ratio here.
3. Cuff IDs: The diameter of the shaft and the flange.
4. OD Constraint: The maximum allowable outer diameter.
• Q: Do Double Cuff ends require special clamps?
A: No. In fact, they make standard clamps safer. You can use standard worm-drive or ear clamps. The reinforced Double Cuff acts as a buffer, allowing you to tighten the clamp securely for a high-pressure grip without the risk of cutting into the bellow’s flexible body.
• Q: What is the typical tooling lead time for a custom shape?
A:• Dip Molding: 2-3 weeks (Fastest).
• Compression/Injection: 4-6 weeks (For high-precision steel molds).
• Rapid Prototyping: We can provide 3D-printed fit-check samples in as little as 5 days.
• Q: Can you laser etch part numbers onto the rubber?
A: Yes. For Defense and Aerospace traceability, we offer laser etching or molded-in part numbers and batch codes directly on the cuff.
