Engineered Recess Rubber Bumpers & Rubber Feet: Superior Protection, Grip, and Vibration Isolation
Don’t Let a $0.50 Part Ruin Your $5,000 Equipment.
A rubber bumber is the only thing standing between your heavy equipment and the floor. If it fails, surfaces get scratched, machines slide, and vibration noise becomes unbearable.
While catalog suppliers offer generic “furniture feet,” we engineer Industrial-Grade Recess Bumpers designed for the rigors of OEMs.

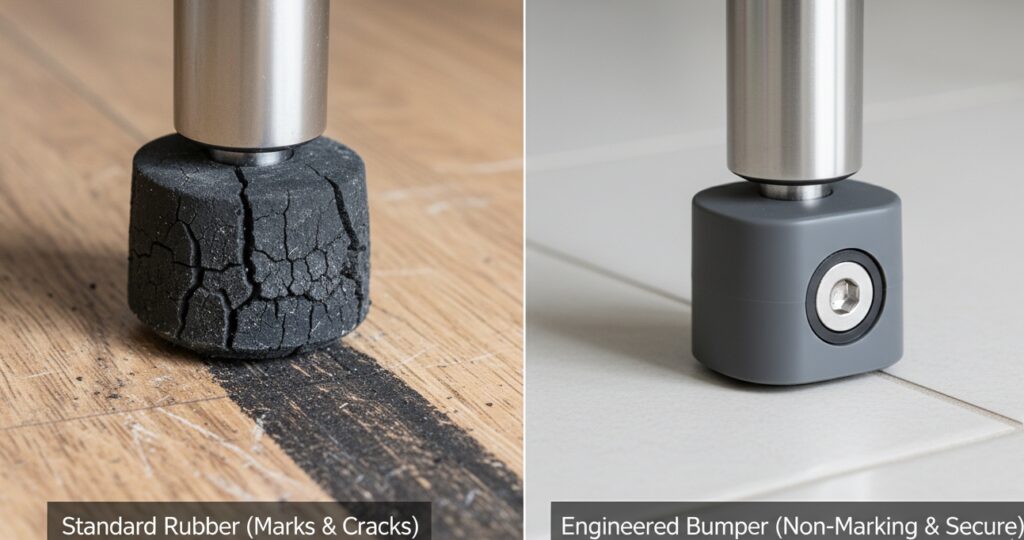

Why Upgrade to Our Recess Bumpers?
• Recessed Protection: The deep mounting hole ensures the screw head is buried deep within the rubber, preventing metal-to-floor contact even under heavy compression.
• Shear Resistance: Reinforced geometry prevents the bumper from shearing off when equipment is dragged or pushed.
• Surface Safety: Available in Non-Marking compounds that protect expensive hospital flooring and hardwood from black carbon stains.
Whether for medical carts, electronic enclosures, or heavy appliances, we provide the stability your product deserves.
。
The Anatomy of a Recess Bumper: Engineered for Load
A threaded stud bumper is only as strong as its mounting point. Without proper reinforcement, the torque of a screw can slice through the rubber, causing the bumper to fall off within months. We reinforce our recess bumpers to withstand high torque and shear forces.
1. The Integrated Washer (The Anchor)
• The Failure Point: In cheap generic bumpers, the screw head presses directly against the soft rubber. Overtightening cuts the rubber (“cookie-cutting”), leading to immediate failure.
• Our Solution: We incorporate Steel or Brass Washers into the design. The washer distributes the clamping force across a wider area, preventing the screw from tearing through the rubber.
• Assembly Option: We can supply bumpers with washers pre-inserted or chemically bonded, saving your assembly line the hassle of handling tiny metal parts.
2. The Protective Recess (The Shield)
• Design Function: The “Recess” is a precisely molded cavity designed to swallow the screw head completely.
• The Benefit: Even under maximum compression (heavy load), the metal hardware never touches the floor or table surface. This guarantees Scratch-Free Protection for delicate hardwood floors, glass tabletops, and painted metal racks.
3. Load-Bearing Geometry
• Stability: Our bumpers feature a broad base-to-height ratio. This low center of gravity prevents “buckling” or “rolling over” when the equipment is pushed sideways (shear force), keeping your device stable and secure.
Material Innovation: Beyond Basic Black Rubber

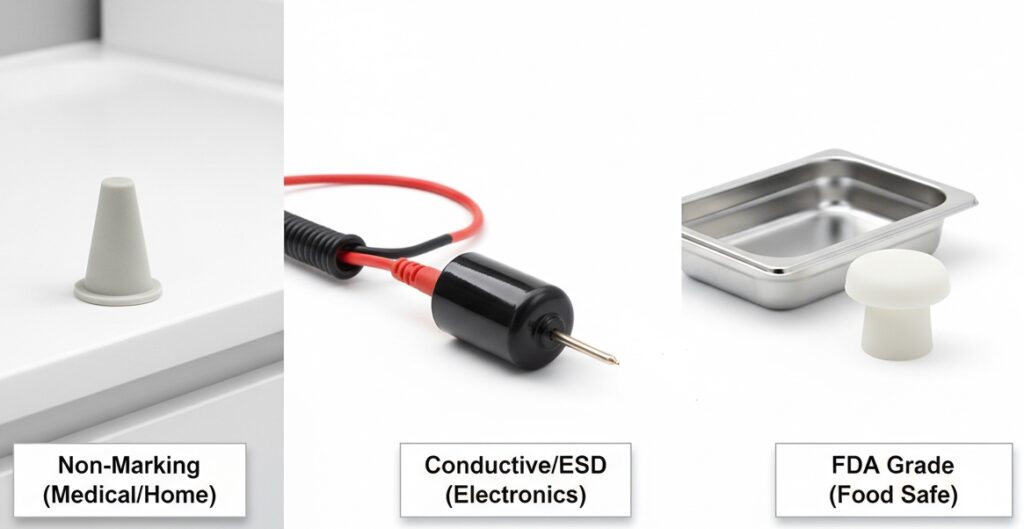

Soles for Your Equipment: Non-Marking, Conductive, & Food-Safe
Most bumpers are made from cheap SBR rubber loaded with Carbon Black—the primary cause of scuff marks on floors. We offer specialized compound upgrades tailored to your operating environment.
1. Non-Marking Technology (Leave No Trace)
• The Problem: Standard black rubber acts like a crayon, leaving permanent streaks on vinyl tile, linoleum, and hardwood.
• Our Solution: We replace Carbon Black with Silica or Clay fillers in EPDM and NBRformulations.
• Colors: Available in Grey, White, or Custom Colors to match your device housing.
• Best For: Medical carts, home appliances, and office furniture.
2. ESD & Conductive Rubber (Static Control)
• The Problem: Static electricity build-up can fry sensitive electronics in server racks or instrumentation.
• Our Solution: Conductive Recess Bumpers that provide a grounding path to discharge static safely.
• Best For: Computer enclosures, hard drive chassis, and semiconductor manufacturing equipment.
3. High-Damping Compounds (Silence the Noise)
• The Problem: Hard rubber transmits vibration, turning your equipment into a loudspeaker.
• Our Solution: We use High-Hysteresis materials (similar to Sorbothane® properties) that absorb impact energy and convert it into low-grade heat, deadening sound and vibration.
• Best For: Audio amplifiers, industrial compressors, and lab centrifuges.
4. FDA White Nitrile (Clean & Safe)
• The Capability: For commercial kitchen equipment (blenders, slicers), we offer FDA 21 CFR 177.2600 compliant White Nitrile bumpers that resist animal fats and cleaners without harboring bacteria.

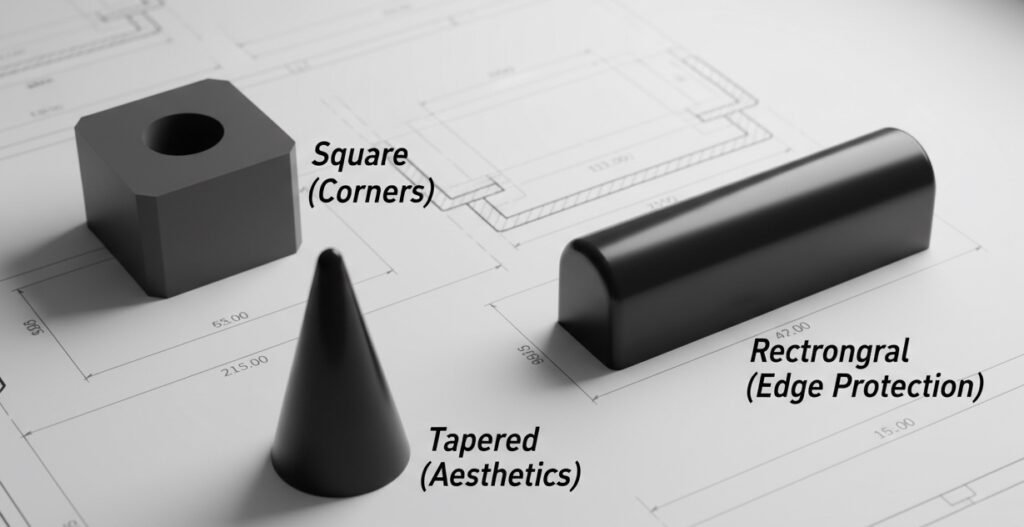

Shape & Design: Breaking the Mold (Beyond Round)
Aesthetics Meet Functionality.
Your equipment isn’t generic; why should your feet be? While round bumpers are the industry standard, they often clash with the sharp lines of modern electronic enclosures. We offer geometric variety to ensure the bumper looks like an integrated part of your design, not an afterthought.
1. Square & Rectangular Bumpers (The Corner Guard)
• Design Fit: Designed to align perfectly with the corners of sheet metal chassis and server cases.
• Benefit: Provides a flush, “built-in” look that round bumpers cannot achieve. Also acts as an edge guard during shipping.
2. High-Profile Tapered Bumpers (The Stance)
• Design Fit: Tall, cone-shaped profiles raise the equipment higher off the surface.
• Benefit: Increases airflow underneath devices (crucial for cooling amps and computers) and minimizes the contact patch for a sleek, modern appearance.
3. Stem & Push-In Styles (Hardware-Free)
• The Upgrade: Want to eliminate screws entirely?
• Our Solution: We mold Push-In Stem Bumpers with interference-fit ribs.
• Benefit: Press-fit directly into a hole in your chassis. No screws, no washers, no tools required. Saves 50% on assembly time.
4. Custom Geometries
• Capability: Need a bumper with a specific locating pin to prevent rotation? Or a “U-shaped” saddle foot?
• In-House Tooling: Our internal mold shop can turn your custom sketch into a prototype mold in just 10 days.

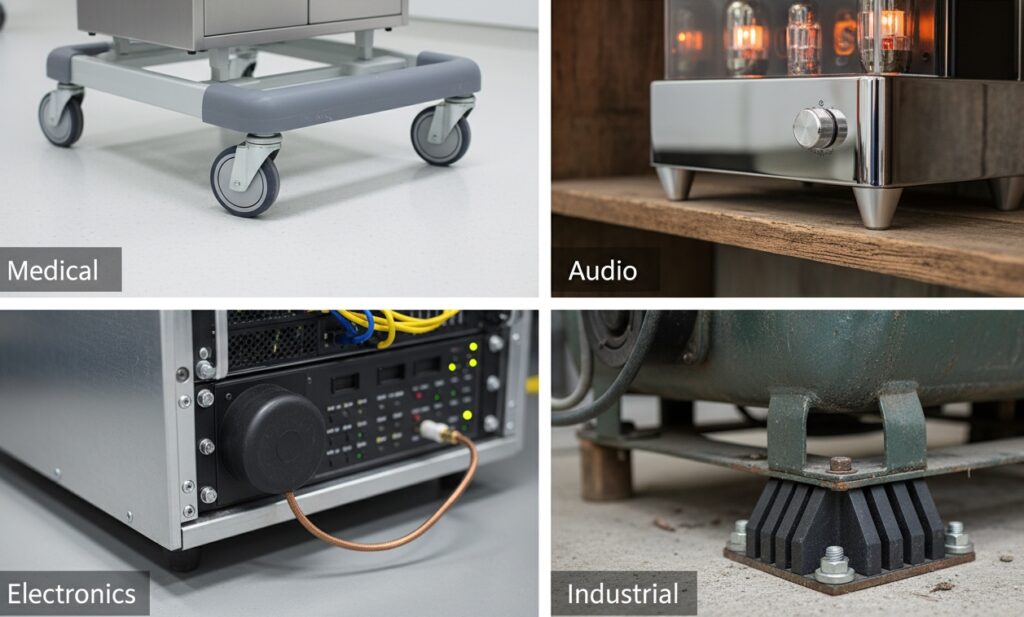

Industry-Specific Solutions: Where Performance Meets the Floor
Different industries have different definitions of “protection.” We customize our Recess Bumpers to meet the exact demands of your sector, from the operating room to the factory floor.
1. Medical & Healthcare (Hygiene & Safety)
• The Requirement: Equipment must not leave black carbon marks on hospital floors and must withstand harsh sterilization cleaners.
• Our Solution: Non-Marking Grey EPDM or White Nitrile bumpers.
• Application: Ventilators, IV stands, mobile workstations, and diagnostic carts.
2. Electronics & Enclosures (Airflow & ESD)
• The Requirement: High-performance computers and power supplies generate heat and are sensitive to static.
• Our Solution: Extra-Tall Tapered Bumpers create a critical air gap for bottom ventilation intake, while Conductive ESD materials prevent static buildup.
• Application: Server racks, desktop PC cases, and network switches.
3. High-End Audio (Vibration Isolation)
• The Requirement: Vibration from speakers or the environment introduces noise/distortion into sensitive audio components.
• Our Solution: Soft Durometer (40-50 Shore A) bumpers with high-damping properties to decouple the device from the shelf.
• Application: Turntables, amplifiers, and subwoofers
.
4. Heavy Industrial (Shear Strength)
• The Requirement: Heavy machinery is often dragged across concrete floors, creating massive shear forces that rip standard feet apart.
• Our Solution: Steel-Washer Reinforced bumpers with a low profile and broad base to resist tearing and tipping.
• Application: Benchtop grinders, compressors, and hydraulic power units.
Manufacturing Excellence & Kitting: Ready for Assembly
No Flash. No Missing Hardware. No Headaches.
For high-end consumer electronics or medical devices, a ragged rubber edge (flash) ruins the user experience. We utilize precision molding and cryogenic deflashing to ensure every bumper is aesthetically perfect. Plus, we save your assembly line time by organizing the hardware for you.
1. Flash-Free Molding (Aesthetic Perfection)
• The Difference: Standard bumpers often arrive with unsightly “parting line flash” (excess rubber) that needs to be picked off.
• Our Process: We use Cryogenic Deflashing (freezing and tumbling) to remove 100% of excess rubber.
• The Result: A smooth, clean finish that looks premium on audio equipment, laptops, and home appliances.
2. Kitting & Packaging (The “Bag & Tag” Service)
• The Problem: Sourcing bumpers from Vendor A and screws from Vendor B creates inventory nightmares and assembly delays.
• Our Solution: We offer full Kitting Services. We package the exact number of bumpers, matching screws, and nuts into a single heat-sealed bag with your barcode.
• Benefit: Your assembly worker opens one bag and has everything they need. Zero counting errors, zero missing parts.
3. Pre-Assembled Washers
• Labor Saver: Handling tiny metal washers slows down production.
• Our Solution: We can deliver the bumpers with the metal washers already inserted or chemically bonded into the recess.
• Benefit: Increases assembly speed by 30% and prevents washers from being dropped or forgotten inside sensitive machine enclosures.
Technical FAQ: Selecting the Right Bumper
Q: What Durometer (Hardness) should I choose? A: For general appliance feet, 60-70 Shore A is the standard; it offers stability and wear resistance. For vibration isolation (e.g., audio equipment), choose a softer 40-50 Shore A to better absorb shock.
• Q: Do I really need a metal washer? A: Yes. Without a washer, the screw head acts like a wedge, expanding the rubber and causing it to crack over time. The washer distributes the load evenly, increasing the bumper’s lifespan by 300%.
• Q: Can I use these bumpers outdoors? A: Standard SBR rubber will crack in sunlight (UV). For outdoor applications, you must specify EPDM (Weather Resistant) or Black Silicone. We stock both.
• Q: Do you offer custom sizes? A: Absolutely. While we have hundreds of standard molds, we can cut a custom mold for a specific height or diameter for as little as $200, with samples in 10 days.
Try Before You Buy. Get the OEM Sample Kit.
Don’t guess the fit. Experience the quality of our Non-Marking, ESD, and Reinforced Recess Bumpers firsthand. Request a free engineering sample kit to test on your prototype today.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
