Industrial Rubber Hose & Fluid Transfer Systems: Engineered to Flow
The Arteries of Your Machinery. Built to Handle the Pressure.
A hose is never “just a hose.” It is the lifeline that delivers power, fuel, and coolant to your critical assets. When a rubber hose fails, production stops, and safety is compromised.
At RISEUP, we move beyond off-the-shelf catalog parts. We manufacture high-performance industrial rubber hose solutions designed to withstand extreme pressures, aggressive chemicals, and constant flexing. Whether you need a flexible rubber pipe hose for water transfer or a specialized hydraulic line, our systems ensure your fluids keep flowing.
Why Our Hoses Perform Better:
• Precision Extrusion: Uniform wall thickness eliminates weak points.
• Chemical Compatibility: Engineered compounds matched to your specific fluid (Oil, Acid, Water, Air).
• Safety Factor: All hoses are tested to exceed their rated burst pressure.

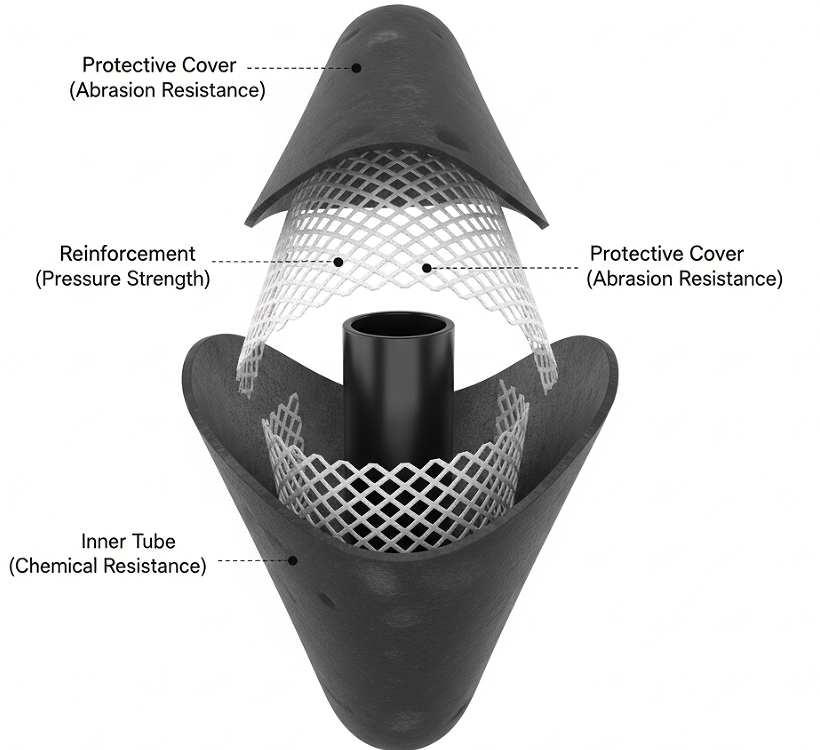

The Anatomy of Durability: Three Layers of Strength
Engineered from the Inside Out.
To the naked eye, it looks like a simple black tube. But slice it open, and you see a complex composite structure. We strictly control the quality of all three critical layers to manufacture a superior reinforced rubber hose.
1. The Inner Tube: The Chemical Barrier
• Function: This layer touches the fluid.
• The Science: Selecting the right rubber for hose lining is critical. We use high-purity Nitrile for oil, EPDM for water/steam, and Silicone for heat. If the inner tube fails, the hose leaks from the inside.
2. The Reinforcement: The Muscle
• Function: Handles the pressure.
• The Structure: We braid high-tensile synthetic fibers (polyester/aramid) or steel wire around the inner tube. This creates a reinforced rubber hose that maintains its shape under high pressure surges (psi) without bursting.
3. The Cover: The Shield
• Function: Protects against the outside world.
• The Design: We apply a heavy-duty, thick rubber hose cover to shield the reinforcement from dragging, scraping, UV rays, and ozone. A thick cover means longer service life in rough factory environments.
The Science of Flexibility: Why Our Hoses Stay Soft
Solving the "Plasticizer Migration" Problem.
One of the most common complaints in the industry is hoses turning brittle and cracking after just a few months. Customers frequently ask us: “How can the rubber remain soft and do not harder over time?”
The answer lies in the chemistry. Cheap hoses rely on heavy oils (plasticizers) to fake flexibility. Over time, heat causes these oils to evaporate, leaving the rubber hard as rock.
1. Premium Synthetic Compounds
• As one of the leading synthetic rubber hoses and suppliers, we do not use cheap fillers. We utilize stable polymers like EPDM (for heat/weather) and NBR (for oil) that naturally maintain their elasticity.
• The Result: Our hoses retain 95% of their flexibility even after years of exposure to UV rays or hot oil.
2. The Critical Role of Sealing
• A hose that hardens is a hose that leaks. When rubber loses its “memory,” it pulls away from the metal fitting or clamp. Our proprietary anti-aging formula ensures the seal rubber hose connection remains tight, preventing fluid loss and pressure drops.
3. Temperature Resilience
• Ordinary rubber freezes and cracks in winter. Our “Low-Temp” compounds are designed to remain flexible down to -40°C (-40°F), ensuring your equipment starts up smoothly in any climate.
Size Matters: The STAMPED Selection Method
Don't Guess. Specify Like an Engineer.
Selecting the right hose involves more than just picking a diameter. To ensure safety and performance, we recommend using the industry-standard STAMPED process before requesting a quote.
1. S – Size (The Critical Dimensions)
• ID (Inner Diameter): Determines the flow rate. If the ID is too small, pressure drops; if too big, fluid velocity drops.
• OD (Outer Diameter): Critical for fitting clamps and routing through tight spaces.
• We stock standard rubber hose sizes from 1/4″ (6mm) micro-lines up to 12″ (300mm) large-bore dredging hoses.
2. P – Pressure (Working vs. Burst)
• Never confuse the two. Your system’s operating pressure should never exceed the hose’s rated Working Pressure. All our rubber hose dimensions are engineered with a 4:1 safety factor (Burst Pressure is 4x Working Pressure).
3. A – Application (Media & Environment)
• What is flowing inside? A pipe rubber hose designed for water will dissolve if used for gasoline. Tell us the fluid, and we will match the inner tube compound.
4. Standard Tolerance Table
• We adhere to strict ISO and SAE tolerances. Whether you need metric or imperial rubber hose dimensions, we ensure the fit is precise for your couplings.

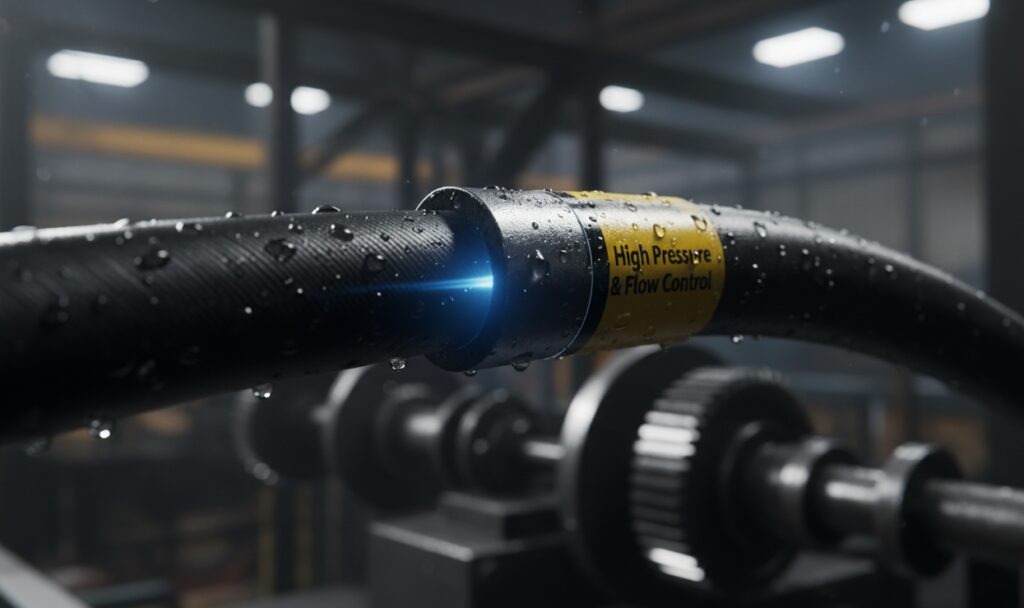

Custom Manufacturing: Beyond the Catalog
Shaped, Armored, and Ready to Install.
Standard straight hoses limit your design. If you force a straight hose into a tight 90-degree turn, it kinks and blocks flow. We manufacture custom rubber hose solutions that fit your machinery perfectly, saving you assembly time and eliminating failure points.
1. Pre-Formed Bends (Molded Hoses)
• Instead of bending a straight hose, we mold the rubber into specific shapes (L-shape, S-shape, or multi-axis bends). This creates a stress-free custom rubber hose that fits into compact engine compartments or hydraulic systems without kinking.
2. Heavy-Duty Armoring
• For environments with flying rocks or heavy abrasion (e.g., mining), we can extrude an extra thick rubber hose cover or add an external textile/spring guard. This “Sacrificial Layer” takes the abuse so the reinforcement inside stays safe.
3. Color Coding & Branding
• Safety matters. We can manufacture industrial rubber hose lines in different colors (Red for steam, Blue for water, Yellow for air) or print your company logo and part number directly on the layline for easy identification.
Technical FAQ: Expert Answers on Fluid Transfer
Q: Can I use a general rubber pipe hose for hydraulic oil? A: Absolutely not. A standard water hose uses EPDM, which dissolves in oil. For hydraulic fluids, you need an industrial rubber hose lined with NBR (Nitrile) to prevent swelling and failure.
• Q: What is the difference between textile and steel reinforced rubber hose? A: It comes down to pressure. Textile braid is for low-to-medium pressure (up to 300 psi). For high-pressure hydraulics (3000+ psi), we use spiraled steel wire reinforcement.
• Q: Do you sell bulk reels or finished assemblies? A: Both. We supply continuous reels for OEMs, or we can cut, crimp, and pressure-test finished rubber pipe hose assemblies with NPT/BSP fittings attached.
• Q: How do I measure the bend radius? A: The bend radius is the smallest loop the hose can make without kinking. We provide a full spec sheet for every rubber hose size to ensure your routing is safe.
Don't Risk a Burst. Verify the Build.

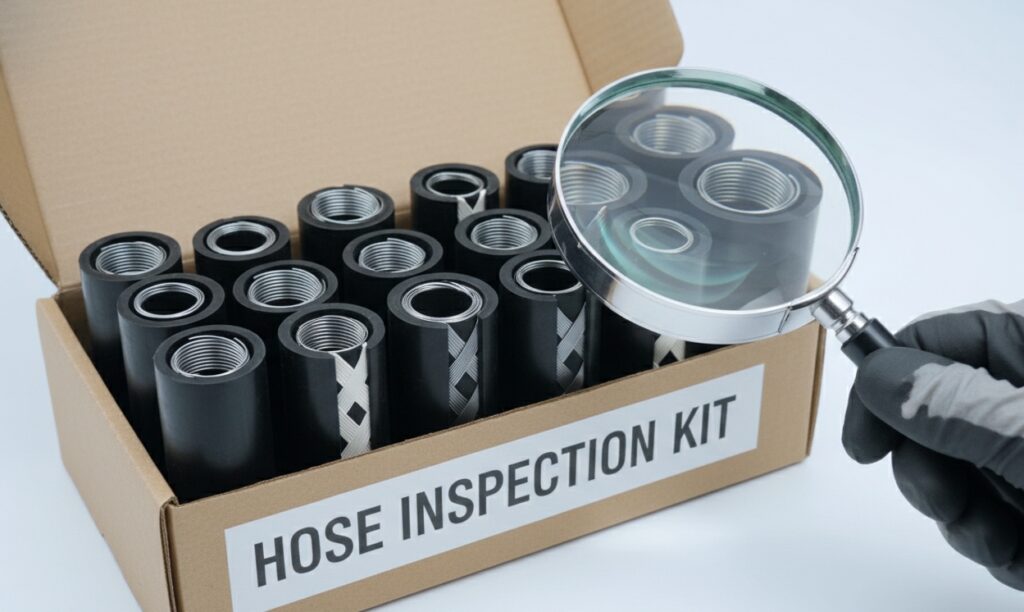

You can’t judge a hose by its cover. Request our Cross-Section Inspection Kit. It contains 5-inch samples of our most popular hoses, pre-cut to reveal the inner tube quality and the density of the reinforcement layers. See the difference before you connect.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
