Custom Rubber Sleeves & Protective Sheaths: The Flexible Shield
More Than Just Tubing. It’s Industrial Armor.
Many suppliers confuse tubing with sleeving. At RISEUP, we know the difference. Tubing transports fluids; Rubber Sleeves transport protection.
Whether you are insulating a high-voltage cable, connecting two misaligned pipes, or shielding a delicate shaft from dust, you need a purpose-built solution. We engineer our sleeve rubbercompounds to act as a rubber sheath—a flexible skin that absorbs vibration, resists abrasion, and seals out contaminants.
What is a Rubber Sleeve? Unlike a standard hose, a sleeve is designed to fit over another component. From a simple flexible rubber sleeve for dust protection to complex molded boots (sometimes misspelt in RFQs as a rubber sleve), we manufacture “Flexible Armor” for your machinery.

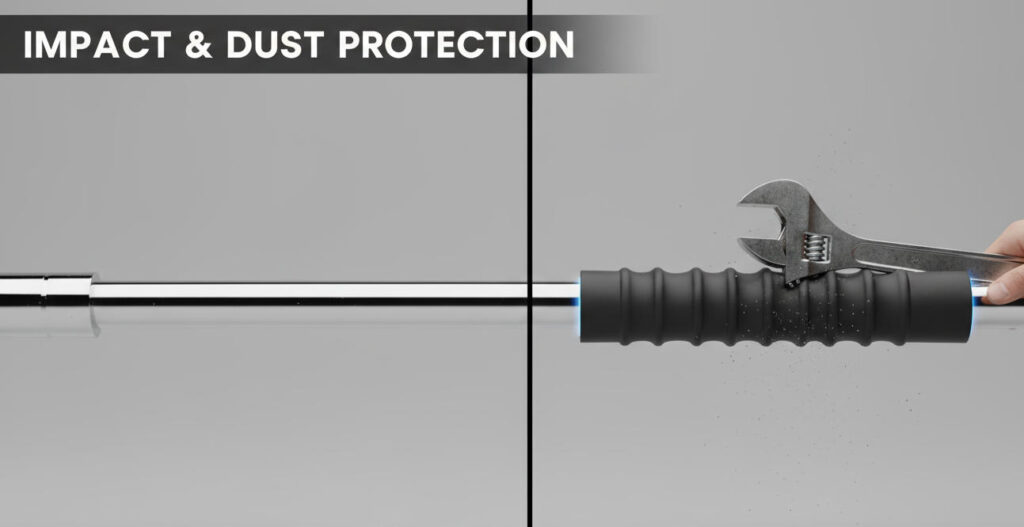

• Protection: Shields against UV, ozone, oils, and physical impact.
• Connection: Joins dissimilar pipes (e.g., PVC to Cast Iron) with a leak-proof seal.
• Insulation: Provides dielectric strength for electrical components.
“Looking for [Custom Silicone Sleeves for Glass Bottles]? Visit our specialized Bottle Sleeve manufacturing page.”

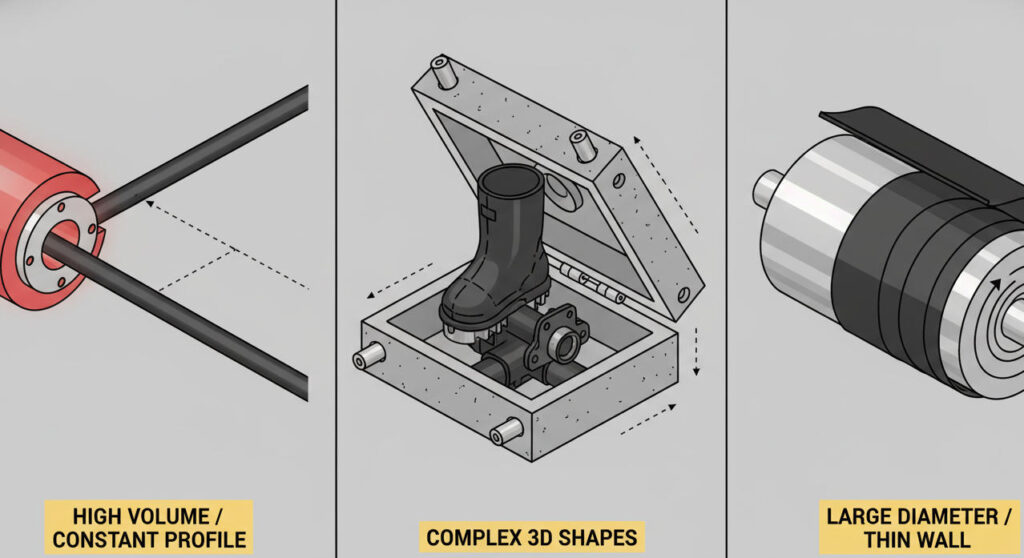

Three Ways to Manufacture: Finding Your Cost-Effective Solution
Extrusion, Molding, and Mandrel Wrapping.
How we make your sleeve depends on its shape and size. Unlike catalog suppliers who force you into standard sizes, we utilize three distinct production methods to create the perfect rubber tube sleeve for your application.
1. Extrusion (Continuous Run)
• Best For: Long lengths, cut-to-size sleeves, and standard wire insulation.
• The Process: Raw rubber is pushed through a die to create a continuous profile. This is the most economical way to produce a standard rubber tube sleeve in bulk (e.g., 500ft spools).
2. Compression / Injection Molding (3D Shapes)
• Best For: Sleeves with flanges, tapered ends, or varying wall thicknesses.
• The Process: Rubber is forced into a cavity and cured under heat and pressure. Ideal for dust boots and connector sleeves that require precise dimensions.
3. Mandrel Wrapping (The “Thin Wall” Specialist)
• Best For: Large diameters (up to 500mm+) and ultra-thin rubber sleeve requirements.
• The Process: We wrap calendered rubber sheets around a precise metal core (mandrel) and tape-wrap it for curing.
• The Advantage: This allows us to make sleeves with very thin walls (e.g., 1mm) but large diameters, which is impossible with extrusion (it would collapse) or molding (tooling would be too expensive).

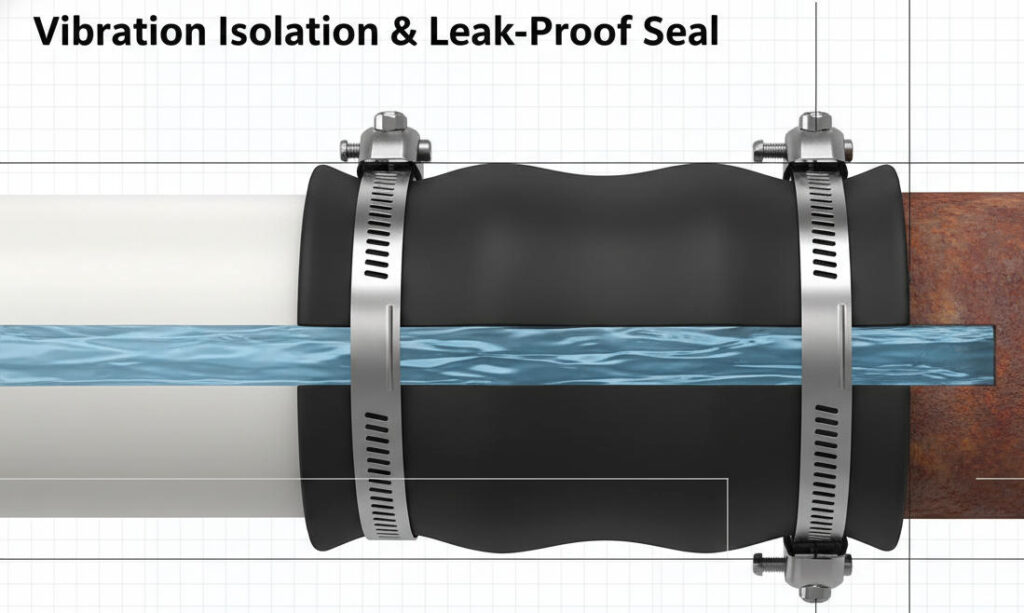

Pipe Couplings & Connectors: The Flexible Joint
Absorb Vibration and Connect Dissimilar Materials.
Rigid piping systems have a weakness: they crack under vibration or thermal expansion. By installing a rubber sleeve for pipe connections, you introduce a flexible “break” in the line that absorbs stress and prevents system failure.
1. The Vibration Isolator
• Pumps and compressors generate noise and vibration that travel through rigid pipes. A heavy-duty rubber pipe sleeve acts as a damper, isolating the equipment from the piping network and reducing noise by up to 50%.
2. The “Problem Solver” for PVC
• PVC is brittle. When connecting it to metal pipes, slight misalignment can cause the PVC to crack. Our engineered rubber sleeve for pvc pipe accommodates angular misalignment and thermal expansion, ensuring a stress-free connection.
3. Custom Cuff Ends
• We can manufacture rubber sleeves for pipes with different diameters on each end (e.g., 4-inch to 3-inch reducer sleeves) to connect mismatched plumbing seamlessly.
Material Matters: Silicone, Neoprene & EPDM
Matching the Compound to the Environment.
A sleeve is only as good as the rubber it’s made of. Using the wrong material can lead to melting, cracking, or contamination. We engineer specific compounds for specific threats.
1. Silicone: The High-Temp & Purity Specialist
• Why Choose it: When temperatures exceed 100°C or hygiene is critical, standard black rubber fails. Our silicone rubber sleeve withstands continuous heat up to 230°C .
• Applications: Ideal for protecting sensors in engines, or as a silicone sleeve for pipeconnections in food and beverage processing (FDA Grade). We also offer dielectric silicone rubber sleeving for high-voltage insulation.
2. Neoprene & EPDM: The Outdoor Defenders
• Why Choose it: For rugged outdoor use. EPDM resists sunlight (UV) and ozone, while Neoprene resists oils and abrasion.
• Applications: Used as a heavy-duty rubber sheath for mining cables, hydraulic hoses, and outdoor machinery that sits in the sun and rain for years.
3. Quick Selection Guide:
• Need FDA Food Grade? Go with Silicone.
• Need Oil Resistance? Go with Nitrile (NBR).
• Need Weather/Sun Resistance? Go with EPDM.
Surface Engineering: Solving the Friction Problem
How to Install Rubber Sleeves Without the Struggle.
Rubber has a naturally high coefficient of friction, which can make sliding a tight-fitting rubber sleeve over a long pipe frustratingly difficult. We treat the surface to transform “grippy” rubber into a smooth-gliding component.
1. Internal Lubrication Options
• Powder Coating: We apply a dusting of Talc or Mica powder to the inside of the sleeve during production. This prevents the rubber walls from sticking together and aids installation.
• Parylene Coating: For a permanent low-friction surface, we spray a micron-thin layer of silicone resin inside the sleeve. This reduces friction by up to 70%, allowing automated assembly lines to install sleeves instantly.
2. External Texturing
• For rubber sleeves for pipes that need to be handled manually, we can apply a “Textured Finish” (like fine sandpaper) to the outside. This gives operators a better grip, even when wearing oily gloves.
3. Pro Tip: The Air Expansion Method
• Struggling with a large diameter sleeve? Don’t force it. Use compressed air. By blowing air between the sleeve and the shaft while pushing, the sleeve floats on a cushion of air, expanding slightly to slide on effortlessly.
Fit Guide: Measuring for the Perfect Grip
The Golden Rule: Measure the Part, Not the Sleeve.
To ensure your flexible rubber sleeve stays in place without adhesives, it relies on tension. This is called an “Interference Fit.” If you order a sleeve with the exact same ID as your pipe’s OD, it will slide off.

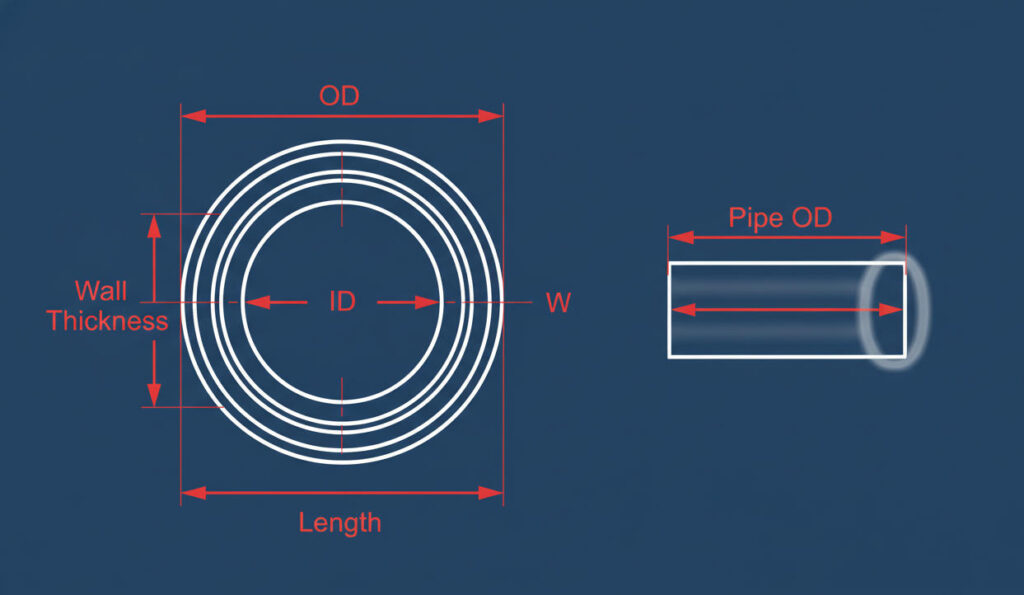

1. Critical Dimensions
• ID (Inner Diameter): The inside hole. Crucial: Do not measure a crushed or oval-shaped sleeve; measure the object it will cover.
• Wall Thickness: Determines the impact resistance. A standard rubber tube sleeve might have a 2mm wall, while a heavy-duty sheath might be 5mm+.
• Length: We can cut sleeves to precise tolerances ( 0.5mm) or supply them in continuous coils.
2. The 5% Stretch Rule (Engineering Tip)
• To get a secure grip that won’t slip:
• Target Sleeve ID = Object OD 0.95
• Example: If your pipe is 100mm wide, order a 95mm ID sleeve. This provides a 5% stretch, ensuring a tight, waterproof seal.
3. Standard Tooling
• We stock mandrels in 1mm increments from 10mm up to 500mm. This means we can likely match your required ID without charging for new tooling.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Technical FAQ: Expert Answers on Sleeving
Q: Can you cut sleeves to specific lengths? A: Yes. While we sell bulk rubber tube sleeve coils (50ft/100ft), we also offer high-speed automatic cutting. We can chop millions of flexible rubber sleeve pieces to tight tolerances (0.2mm) for your assembly line.
• Q: How do I connect a PVC pipe to a Cast Iron pipe? A: You need our stepped rubber sleeve for pvc pipe. It features a dual-diameter design to grip both pipe sizes securely, creating a watertight, vibration-resistant seal.
• Q: Will the sleeve crack in the sun? A: It depends on the material. For outdoor wires, specify EPDM as your rubber sheath. It resists UV radiation for 20+ years without cracking.
• Q: Do you make square or rectangular sleeves? A: Yes. While most requests are for round rubber sleeves, we can mold or extrude square profiles, often used as handle grips or rectangular tube protectors.
Don't Guess the Grip. Test the Fit.

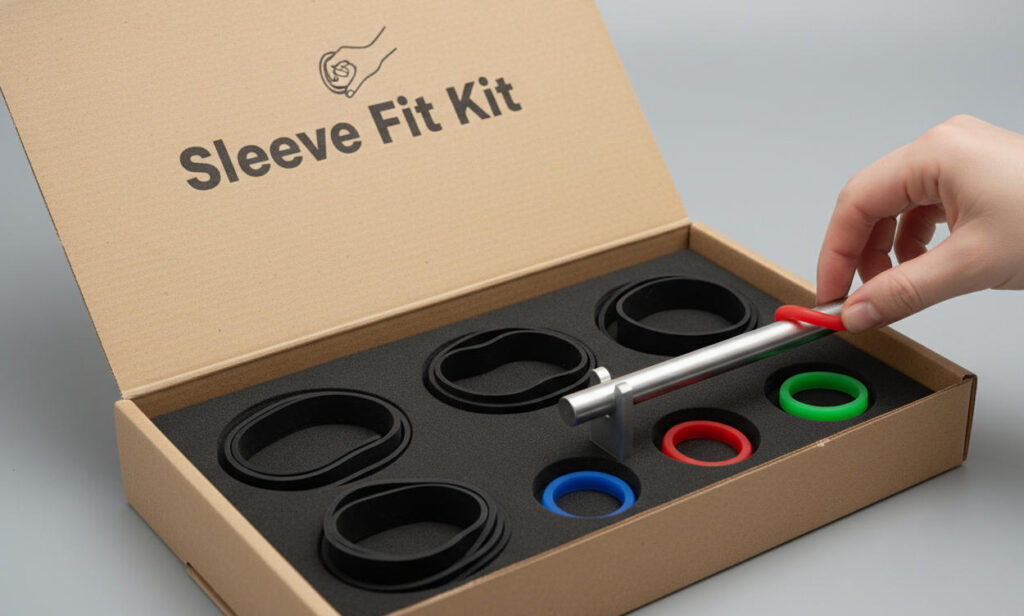

Sizing a sleeve on paper is easy; installing it in reality is harder. Request our Universal Sleeve Fit Kit. It contains 10 samples of our most popular materials (Silicone, EPDM, NBR) and wall thicknesses (Thin vs. Thick). Find the perfect “slide-on” feel before you order a full production run.
Ready to Armor Your Equipment?
