Extruded Rubber Sealing Strip: The Engineer’s Guide to Leak-Proof Performance
More Than Just a Gap Filler – The "Immune System" of Your Equipment

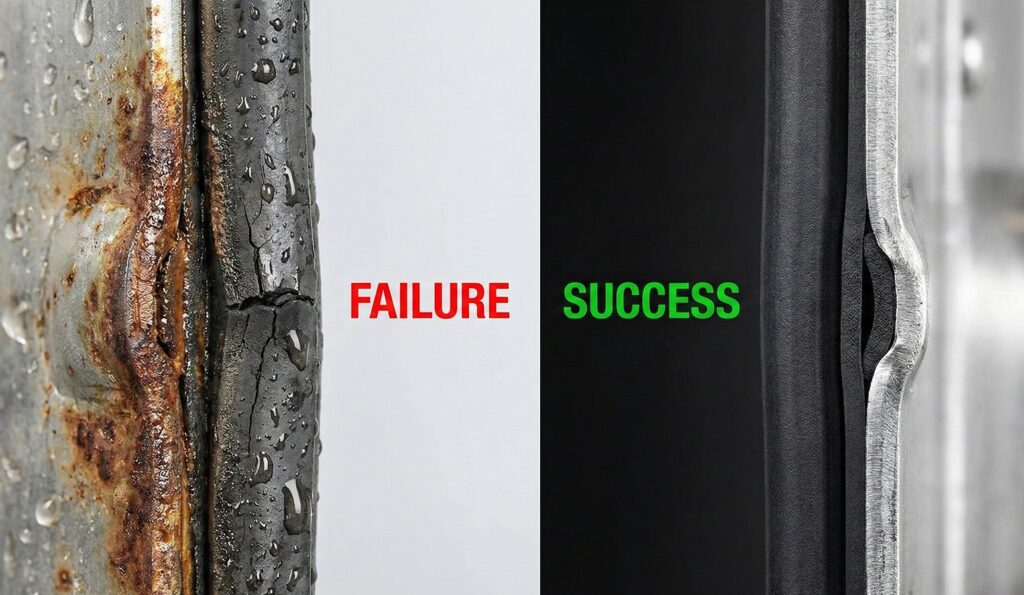

A sealing strip is often the last component designed, but the first to cause a system failure. Whether it’s rain entering an electrical cabinet, wind noise in a vehicle, or dust contaminating a cleanroom, the wrong seal compromises the integrity of your entire product.
Why “Off-the-Shelf” Isn’t Always Enough
While generic strips exist, true sealing performance depends on three critical factors matching perfectly:
1. Geometry (Profile): Does the shape (D, P, E) match the closure force and gap variability?
2. Material (Compound): Will it survive UV exposure, oil splashes, or extreme heat?
3. Structure (Density): Should it be Solid for durability or Sponge for compressibility?
RISEUP Rubber as rubber seal manufacturers that doesn’t just extrude rubber; we engineer sealing strip solutions. From simple D-strips to complex multi-durometer profiles, we ensure your gap is sealed—permanently.

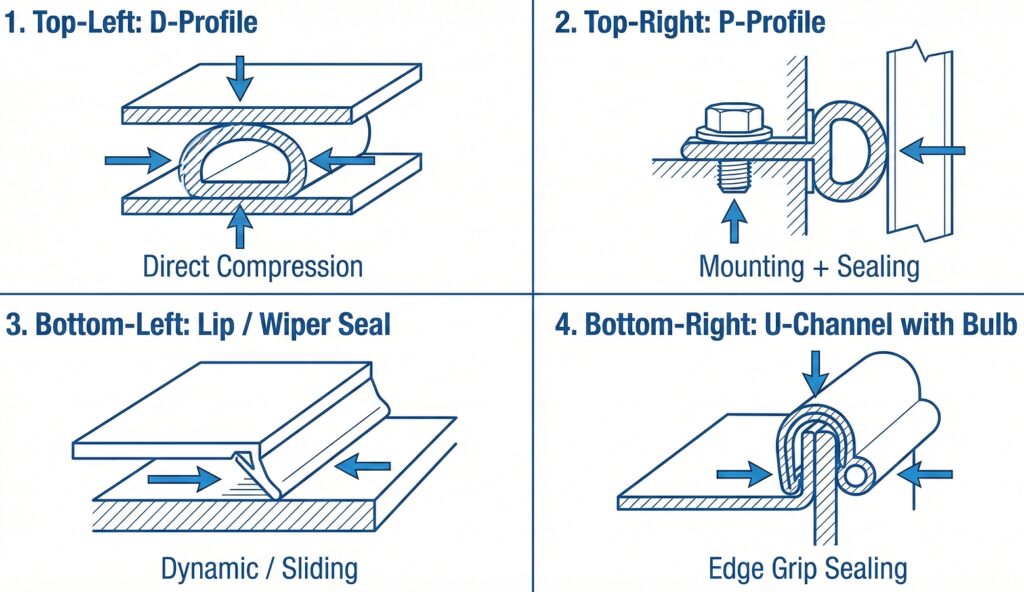

Visual Selector: Matching Profile to Function
The shape of a rubber sealing isn’t arbitrary; it dictates how the seal reacts to pressure and movement. Choosing the wrong profile leads to gaps, high closure forces, or premature wear.
1. D-Profiles (The Compression King)
• Best For: Hatch seals, heavy doors, and enclosures.
• Engineering Logic: The semi-circular shape provides the most efficient load distribution under pure vertical compression. It offers a large contact area without collapsing sideways.
2. P-Profiles (The Mounting Specialist)
• Best For: Hinge-side sealing, flange mounting.
• Engineering Logic: The “Stem” (tail) serves as a dedicated mounting area (for rivets, staples, or adhesive), isolating the “Bulb” to float freely and create a seal without being distorted by the fasteners.
3. Lip / Wiper Seals (The Dynamic Slider)
• Best For: Sliding doors, windows, and conveyor cleaners.
• Engineering Logic: Unlike bulbs that compress, lip seals are designed to flex. They maintain low-friction contact with moving surfaces to wipe away dust or moisture.
4. E-Strips & U-Channels (The Edge Grippers)
• Best For: Glass setting, sheet metal edging, and screen retention.
• Engineering Logic: Designed to grip the substrate (glass/metal) on three sides, providing friction retention while sealing the interface.
Quick Selection Guide
| If your application involves… | Recommended Profile | Why? |
| Heavy Door / High Pressure | D-Profile (Hollow or Solid) | Resists over-compression best. |
| Mechanical Fastening Required | P-Profile | Separates the seal from the screw/bolt. |
| Sliding / Movement | Lip / Wiper Seal | Low friction, prevents binding. |
| Glass / Panel Edges | E-Strip / U-Channel | Protects edges and holds panels. |
Density Guide: Solid Rubber Gasket Sealing Strip vs. Closed-Cell Sponge
One of the most common reasons for sealing failure is incorrect density. If the rubber is harder, the door won't latch (or will warp the frame). If it's too soft, it may not provide enough back-pressure to seal. You must choose between Solid (Dense) and Sponge (Expanded) rubber
1. Solid Rubber (Dense / Hard)
Characteristics: High density, minimal compression.
Physics: It does not compress; it only displaces. You need significant force to squeeze it.
Best For:
Heavy Duty: Bumpers, floor transitions, high-impact areas.
Abrasion Resistance: Areas that see friction or sliding.
Structural: Where the strip needs to hold a load (e.g., glass setting blocks).
2. Closed-Cell Sponge Rubber (Soft / Medium / Hard Density)
Characteristics: Contains nitrogen gas bubbles inside the rubber matrix.
The “Closed-Cell” Advantage: Unlike a kitchen sponge (open-cell), the air pockets in our sponge rubber are sealed shut. It does NOT absorb water. It is air-tight and water-tight.
Physics: It compresses easily (like a spring). It conforms to uneven surfaces (e.g., a warped door) much better than solid rubber.
Best For:
Weather Stripping: Car doors, windows, hatches.
Low Closure Force: Lightweight doors or plastic enclosures that would break if you used solid rubber.
Decision Matrix: Which Density Do You Need?
| Feature | Solid Rubber | Closed-Cell Sponge |
| Compressibility | Low (<5%) | High (25% – 50%) |
| Closure Force | High (Hard to shut) | Low (Easy to shut) |
| Water Absorption | Zero | Zero (Surface only) |
| Uneven Gap Sealing | Poor | Excellent |
| Load Bearing | Excellent | Poor |

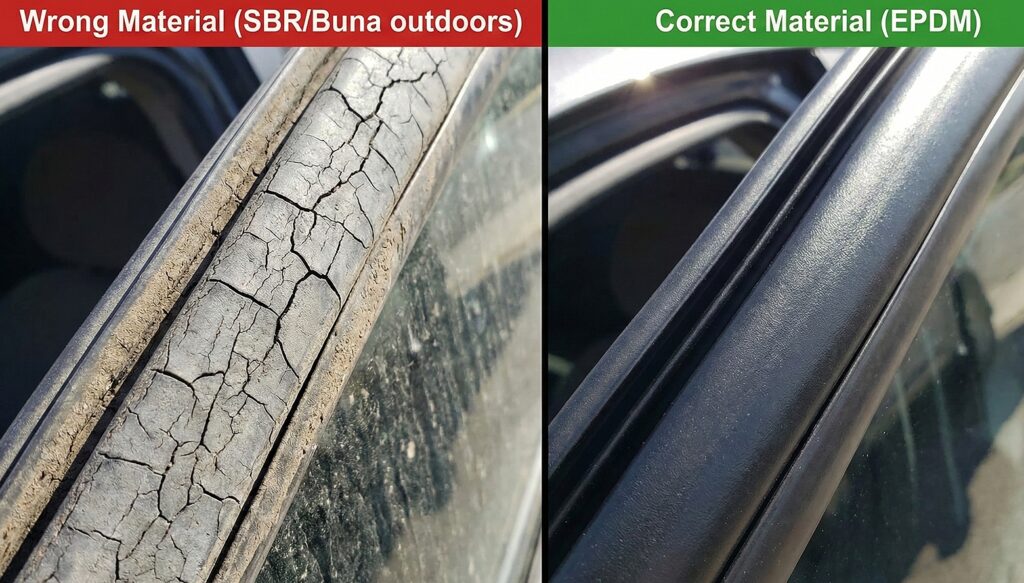

Material Selection: The Chemistry of Longevity
Black rubber seal strip all look identical on the production line. But after six months of exposure to sunlight, engine oil, or freezing temperatures, the difference becomes catastrophic. Choosing the wrong compound is the #1 cause of seal failure (cracking, melting, or shrinking).
Use this matrix to match the rubber compound base on your specific operating environment.
Seal Strip Material Performance Chart
| Material | Common Name | Temp Range | Outdoor / UV | Oil / Fuel | Best Application |
| EPDM | Ethylene Propylene | -50°c to 150°c | Excellent | Poor | Outdoor / Automotive. The gold standard for windows, doors, and solar panels. Immune to sunlight. |
| Neoprene | Chloroprene | -40°c to 120°c | Good | Good | HVAC / General Industry. The “All-Rounder.” Good resistance to moderate oil and weather. |
| Silicone | – | -60°c to 240°c | Excellent | Poor | High Heat / Medical / Food. Essential for ovens, autoclaves, and lighting fixtures. |
| Buna-N | Nitrile (NBR) | -40°c to 120°c | Poor | Excellent | Machinery / Hydraulics. Use only where oil or grease contact is constant. Avoid sunlight. |
| SBR | Styrene-Butadiene | -40°c to 110°c | Poor | Poor | Indoor Economy. Cheap skirting or bumpers inside warehouses. |
Scenario Guide: What should you pick?
• “I need a rubber sealing strip for an outdoor electrical enclosure.”
• Go with EPDM. It resists the ozone generated by electrical components and the UV from the sun.
• “I need a high-temperature sealing rubber strip for a powder coating oven.”
• Go with Silicone. Standard rubber will harden and crack above 60°C. Silicone rubber sealing strip stays flexible up to 240°C.
• “I need a rubber gasket strip for an oil sump or fuel tank access.”
• Go with Buna-N (Nitrile). EPDM will swell like a sponge if it touches gasoline or oil.

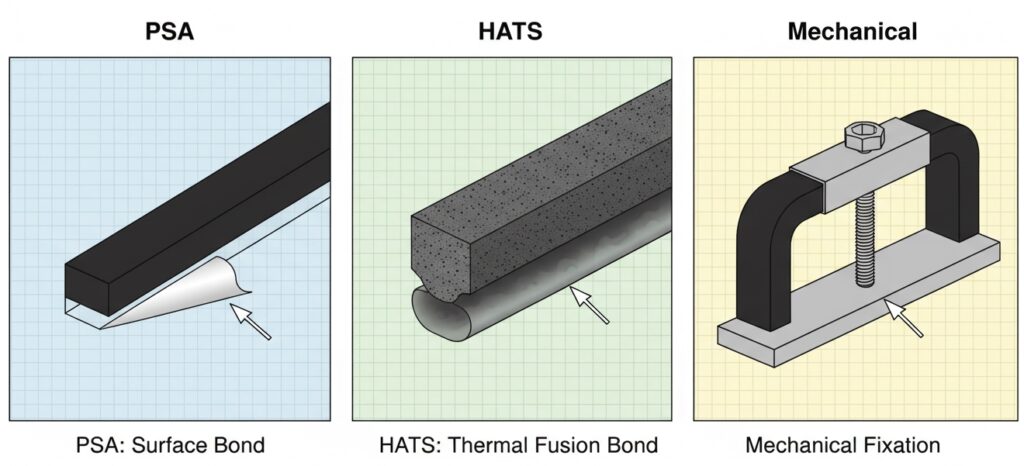

Installation & Adhesives: Ensuring the Bond Holds
Even the best strip sealing profile is useless if it falls off the door frame after a week. The bond between the rubber and your equipment is just as critical as the rubber itself.
We offer two primary adhesive systems, plus mechanical options for extreme conditions.
1. HATS (Heat Activated Taping System)
• The Technology: This is not just a sticker. We use high-heat laminating machines to thermally fuse a high-bond acrylic tape (like 3M™) directly to the rubber extrusion during manufacturing.
• The Advantage: It creates a near-permanent molecular bond between the tape and the rubber. It will not delaminate or peel off the strip, even under stress.
• Best For: EPDM Sponge, Neoprene Sponge, and long-term outdoor sealing.
2. PSA (Pressure Sensitive Adhesive)
• The Technology: A standard “peel-and-stick” adhesive applied to the flat surface of the strip.
• The Advantage: Cost-effective and widely available. Ideal for light-duty applications or assembly aids (holding the strip in place until mechanically fastened).
• Best For: Solid rubber strip gasket, indoor applications, and smooth surfaces.
3. Mechanical Fastening (P-Strips)
• The Strategy: For heavy-duty doors or oily environments where glue will eventually fail, use a P-Profile.
• Installation: The “stem” (tail) of the P-strip is stapled, riveted, or screwed under a metal strip. The sealing bulb floats freely. This is the only fail-safe method for dynamic, high-stress rubber strip seal.
Expert Tip: Surface Preparation is Key 90% of adhesive failures are due to dirty surfaces.
• Clean: Wipe the substrate with 50/50 Isopropyl Alcohol (IPA) and water.
• Dry: Ensure the surface is completely dry.
• Press: Apply firm pressure along the entire length to activate the adhesive wet-out.

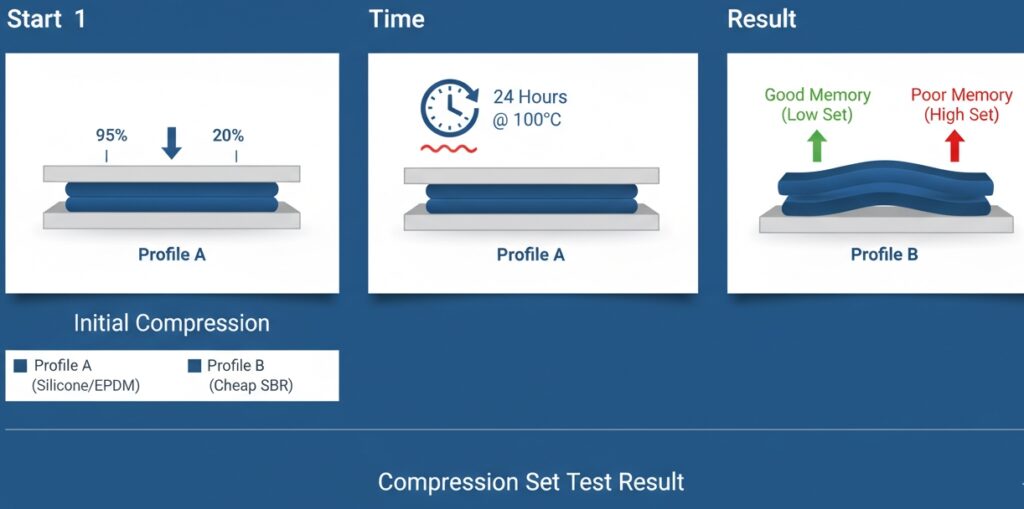

Engineering Performance: Understanding "Compression Set"
The most critical performance metric for a static seal is not tensile strength; it is Compression Set.
What is Compression Set? It measures the rubber’s ability to return to its original thickness after being compressed for a long period.
• Low Compression Set (Good): The rubber acts like a spring with “good memory.” When you open the door, the seal bounces back to its original shape.
• High Compression Set (Bad): The rubber has “amnesia.” After being squeezed, it stays flat. Once the door is opened and closed again, the large rubber sealed strip no longer touches the frame, creating a leak path.
Material Comparison: Recovery Capability
| Material | Compression Set Rating | Long-Term Sealing Ability |
| Silicone | Excellent | The best choice for seals that must last 10+ years without flattening. |
| EPDM (High Grade) | Very Good | Retains “bounce” remarkably well, especially in outdoor temperature swings. |
| Neoprene | Good | Decent recovery, but may take a “set” (flatten) over years of compression. |
| SBR / Vinyl (PVC) | Poor | Will permanently flatten quickly. Not recommended for critical seals. |
Engineer’s Note: Never design a rubber gasket strip to be compressed more than 50% of its height. Over-compression destroys the internal polymer structure, causing immediate permanent deformation (100% compression set), regardless of the material quality.
Frequently Asked Questions (FAQ)
Q: Can I cut these seal rubber strip on-site? A: Yes. Sponge rubber and thin-wall solid strips can be cut easily with wire cutters or sharp shears. For thicker solid profiles, a fine-tooth saw or guillotine cutter is recommended to ensure a square edge.
• Q: How do I handle 90-degree corners? A: You have two options:
1. Miter Cut: Cut the ends at 45° angles and bond them with Cyanoacrylate (Super Glue). This creates a sharp corner.
2. Radius Bend: Curve the strip around the corner. Note: Sponge rubber creates a “wrinkle” on the inside radius, which may affect the seal. Miter cutting is preferred for watertight applications.
• Q: How long does the adhesive (HATS/PSA) last? A: HATS (Heat Activated) is designed to be permanent and will often outlast the rubber itself. PSA (Peel-and-Stick) typically has a lifespan of 5-10 years depending on UV exposure and temperature cycling.
• Q: Do you offer custom shapes that aren’t in the catalog? A: Yes. We are a custom extruder. We can design and cut a new die for your specific geometry in-house. If you need a unique multi-bulb seal or a specific wall thickness, just send us a sketch.
