The Heart of Fluid Control: Precision Rubber Check Valves
At its core, a silicone valve is a critical fluid control component designed to allow liquid or air to flow in one direction while preventing backflow. Unlike mechanical valves that rely on metal springs and moving parts, rubber check valves utilize the material’s inherent elasticity and precise geometry to function.
Whether utilized in a medical pump or an automotive fuel system, the principle remains consistent. A silicone check valve operates on pressure differentials:
• Forward Flow: The valve opens when upstream pressure exceeds the “Cracking Pressure.”
• Backflow Prevention: The valve snaps shut instantly when flow reverses, utilizing the rubber’s elastomeric memory to create a perfect seal.
We engineer these components to replace complex mechanical assemblies, offering a corrosion-resistant, silent, and maintenance-free solution for your fluid handling challenges.

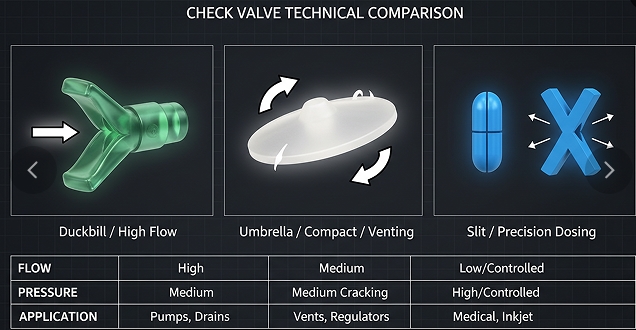

Selecting the Right Geometry: Duckbill vs. Umbrella vs. Slit
Different fluid dynamics demand specific valve shapes. We engineer the silicone valvegeometry to match your flow rate and housing constraints.
1. Duckbill Valves (The High-Flow Specialist)
• Design: Shaped like the beak of a duck, this valve features a large effective flow area.
• Why Choose It: The unique geometry allows for high flow rates and—crucially—permits the passage of particulates or slurries without clogging.
• Best For: Wastewater systems, manual resuscitators, and heavy-duty pumps where a robust duckbill one way valve is required to prevent backflow.
2. Umbrella Valves (The Relief Specialist)
• Design: A diaphragm disk sits over ventilation holes in the valve seat.
• Why Choose It: It offers the lowest profile (space-saving) and creates an immediate seal. As pressure builds under the “umbrella,” it lifts to vent; as pressure drops, it snaps back flat.
• Best For: Automotive fuel tank venting, breather valves, and pump intake/exhaust umbrella check valve applications.
3. Slit Valves (The Precision Doser)
• Design: A precision cut (Linear, Cross, or Star) in a solid silicone dome.
• Why Choose It: It remains a solid seal until a specific pressure forces the “lips” open. This makes it ideal for “No-Drip” applications and precise flow control.
• Best For: Food dispensing caps (ketchup/honey), IV fluid control, and medical silicone slit valve dosing systems.
Critical Care: One Way Valve Medical Solutions
In the medical and food industries, a valve failure isn’t just a leak; it is a safety risk. We specialize in manufacturing high-purity one way valve medical components using advanced LSR (Liquid Silicone Rubber) injection molding technology.
Why Choose Our Medical Silicone Valves?
• Biocompatibility: We utilize platinum-cured silicone materials that meet USP Class VIand ISO 10993 standards. These are non-toxic, odorless, and safe for direct contact with skin or fluids.
• Precision LSR Molding: Unlike compression molding, our LSR process allows for flash-free production and extremely tight tolerances (+/- 0.05mm). This ensures that every silicone one way valve delivers consistent cracking pressure, crucial for anesthesia masks and drug delivery systems.

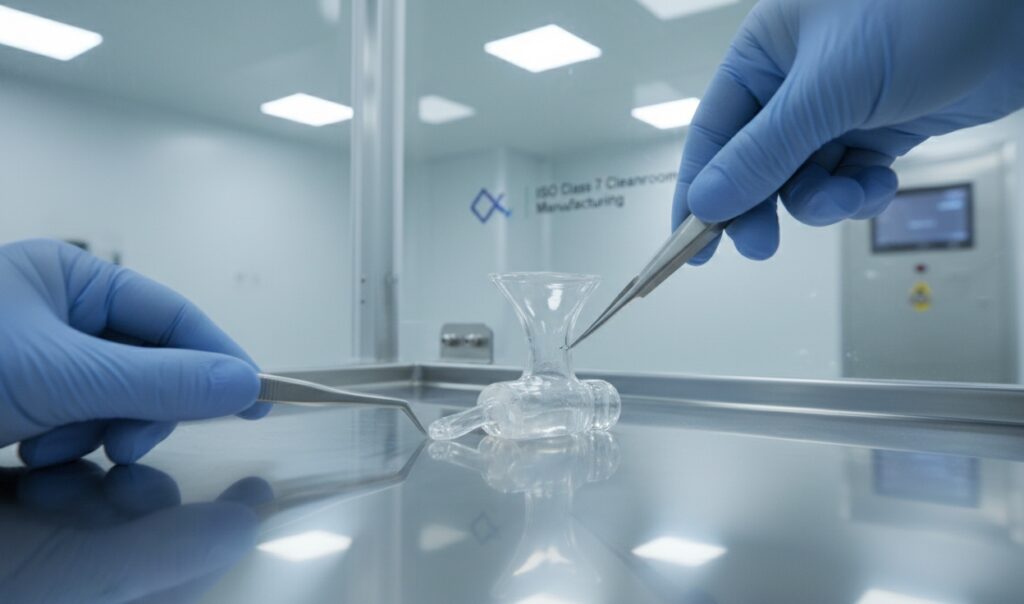

• Cleanroom Production: From molding to packaging, your valves are handled in an ISO Class 7 (Class 10,000) cleanroom environment to eliminate particulate contamination.
Engineering the Perfect Flow: Cracking Pressure & Sealing
Why do some silicone valves leak while others seal perfectly? The secret lies in the precise engineering of the “Cracking Pressure”—the minimum upstream pressure required to open the valve.。
How We Tune Your Valve Performance:
We don’t just rely on material hardness. We adjust three critical variables to customize your silicone one way valve:
1. Material Durometer: We select the precise rubber hardness (Shore A 30-70) to balance flexibility with sealing force.
2. Wall Thickness: By thickening the valve’s membrane or “lips,” we increase the resistance, requiring higher pressure to open.
3. Cutting Length (for Slit Valves): For a silicone slit valve, the length of the cut defines the flow rate. A shorter cut requires more force to open, while a longer cut allows for easier flow.
Simulation & Prototyping Before mass production, we use FEA (Finite Element Analysis) to simulate fluid dynamics, ensuring your custom solution creates a leak-proof seal under back pressure every single time.
FAQ: Specifying Your Custom Rubber Check Valves
Q: How do I choose between a Duckbill and an Umbrella valve? A: It depends on your flow direction and space. Choose a silicone duckbill valve if you need axial flow (straight through) and high volume handling. Choose an umbrella check valve if you need a compact solution for pressure relief or venting where space is limited.
Q: Can you manufacture custom slit designs? A: Yes. Beyond standard linear slits, we engineer tricuspid (3-way) and cross-slit configurations. We can fine-tune the cutting length of any silicone slit valve to achieve your desired flow rate and “drip-free” performance.
Q: What is the temperature range for your silicone valves? A: Our standard silicone check valves perform reliably from -60°C to +230°C (-76°F to 446°F), making them suitable for everything from frozen food dispensing to automotive engine compartments.
Q: Do you offer off-the-shelf standard parts? A: While we specialize in custom molding, we do hold tooling for common sizes of rubber check valves. Please contact our sales team to check our current mold inventory list.
Ready to Control Your Flow? Don’t let a leaking valve compromise your product. [Request a Quote] today for precision silicone valves engineered to your exact specifications.
