Precision Square Section Rings & Square Cut O-Rings
Eliminate spiral failure. Maximize sealing surface. Engineered for perfect groove fill and high-pressure stability with flawless, flash-free lathe cutting.
The Ultimate Upgrade for Demanding Static Seals
We know exactly why you are searching for a
square o ring. Standard circular O-rings are prone to spiral twisting, offer limited line-contact sealing, and leave dangerous gaps in rectangular grooves that lead to extrusion under high pressure.
RiseUp’s precision square section rings (also known as lathe cut seals) are engineered to solve these exact failures:
• Eliminate Spiral Failure: The flat-sided profile sits perfectly secure in the gland, completely preventing the ring from rolling, twisting, or spiraling out of position during installation or pressure cycles.
• Maximum Sealing Surface: Upgrade from point-contact to full face-contact. Our square cut o rings provide a wider, more uniform sealing pressure across the hardware, making them ideal for imperfect or rough mating surfaces.
• Optimized Groove Fill: Don’t let high pressure extrude your circular rings into the groove corners. The rectangular cross-section physically matches your straight-sided grooves, delivering superior extrusion resistance.
• Flawless Cut Precision: Worried about uneven lathe cuts or burrs? Our advanced manufacturing technology ensures a perfectly square, flash-free profile with exact dimensional tolerances—guaranteeing your sealing balance is never compromised.

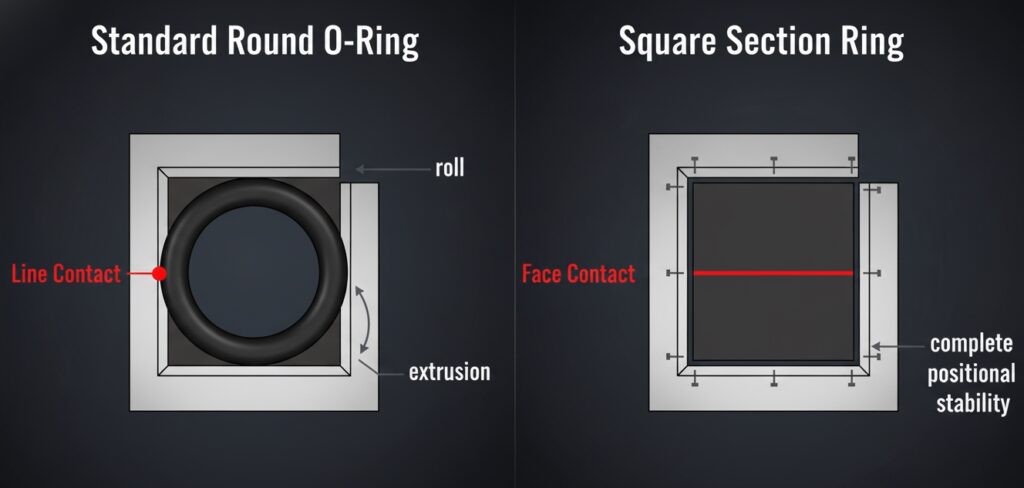

Square Ring vs. Standard O-Ring: Engineering for Maximum Stability
For Mechanical Design Engineers and Fluid Power Technicians, relying on commodity seals for high-stakes applications is a risk. When a standard circular O-ring fails due to pressure spikes, rapid cycling, or imperfect hardware finishes, you don’t need another generic part—you need a geometric upgrade.
The square section ring outperforms the standard O-ring in static applications precisely because of its structural stability and superior force distribution.
The Physics of the Upgrade:
• From Line Contact to Face Contact: A round O-ring seals via a narrow line of contact, which requires flawless hardware surface finishes. A square rubber ring compresses with a broad, flat face. This massive increase in the sealing footprint easily accommodates micro-scratches and rougher machining tolerances.
• Total Positional Lockdown: Circular cross-sections act like wheels—they want to roll when subjected to friction or pressure changes, leading to the dreaded “spiral twist” failure. The flat sides of a square cut o ring lock it firmly against the groove walls, making rolling physically impossible.
• Superior Groove Fill (Extrusion Defense): Look at a round O-ring in a rectangular groove: the four empty corners are extrusion risks. A square ring’s geometry natively matches the rectangular gland, filling those voids and providing a robust, physical barricade against high-pressure extrusion.

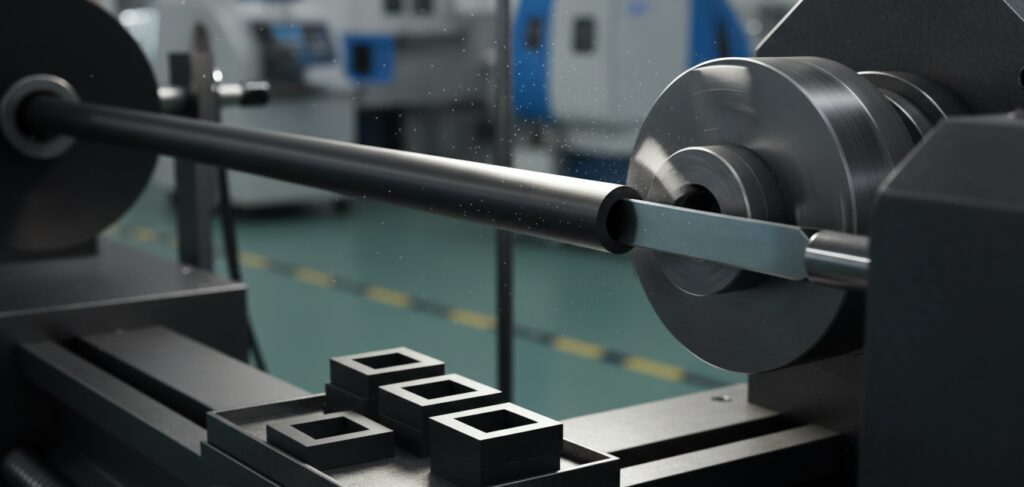

Precision Lathe Cut Rings: Zero Flash, Lower Tooling Costs
Many procurement managers and engineers assume that custom, non-circular seals are expensive to produce. While this is true for traditional compression molding, which requires costly machined steel cavities, our square section rings are manufactured using a highly efficient process. Raw elastomer is extruded and cured into a continuous tube, slipped onto a precision mandrel, and sliced using high-speed, computer-controlled lathes.
This advanced lathe cut technology delivers three massive advantages for your fluid power supply chain:
• Zero Parting Lines (No Flash): Molded O-rings always have a parting line where the two halves of the mold meet. This thin line of “flash” can become a micro-leak path under high pressure. Our lathe cut o rings have perfectly smooth, parallel faces cut directly from solid rubber tubes, eliminating mold flash entirely.
• Exceptional Cut Precision: Addressing concerns about rough cuts or skewed profiles, our state-of-the-art lathe machines hold incredibly tight tolerances. We ensure every lathe cut seal features a perfectly true rectangular profile with no beveling, burrs, or dimensional drift from the first ring to the millionth.
• Eliminate Tooling Fees: Since there are no mold cavities to CNC machine, custom dimensions—no matter the specific Inner Diameter (ID) or Cross Section (CS)—incur zero tooling fees for standard geometric shapes. You bypass the 4-week mold-making delay and only pay for the material you actually need.

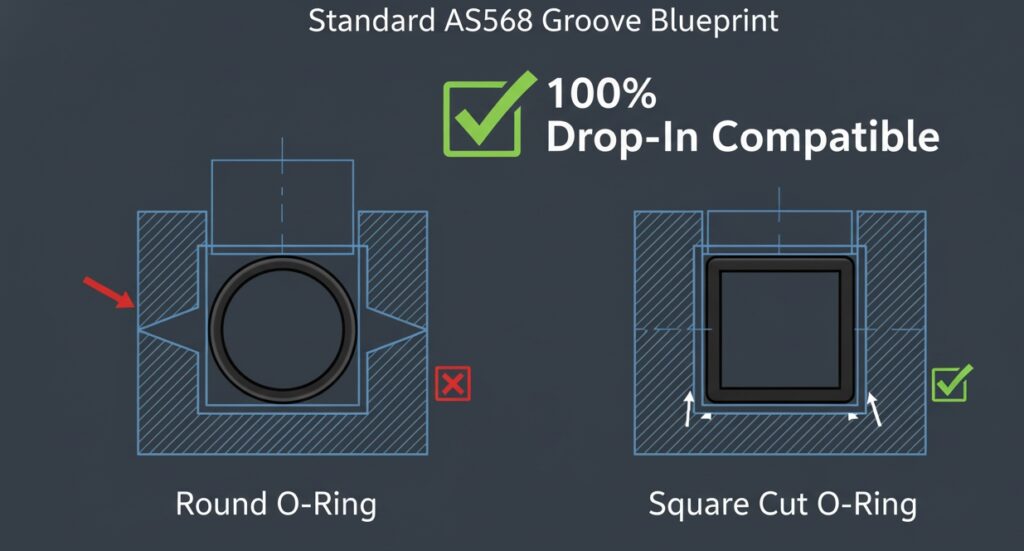

Zero Hardware Redesign: Seamless AS568 Groove Interchangeability
For Industry-Specific Procurement teams and Mechanical Designers, the biggest hurdle to upgrading a sealing solution is the hidden cost of modifying existing metal hardware. The brilliant advantage of an AS568 square ring is that it requires absolutely zero design changes or CNC machining to your current equipment.
Our square section rings are engineered as direct, “drop-in” replacements for standard AS568 O-ring sizes in static applications.
How the Interchange Works:
The sizing system for
square o ring dimensions directly mirrors the standard aerospace AS568 chart. If your current static gland is machined to accept a standard -214 O-ring, you simply order and install a -214 Square Ring.
• Matching Dimensions: The Inner Diameter (ID) and the Cross-Section (CS) thickness perfectly match the nominal dimensions of the standard circular series.
• Optimized Space: Because a square profile naturally occupies more volume than a circle of the same thickness, it utilizes the available rectangular groove space more efficiently.
This means you instantly upgrade your system’s pressure rating, eliminate spiral twist, and increase the sealing footprint—all without spending a single dollar on hardware modification.
Premium Elastomers for Custom Square Ring Seals
Selecting the right geometric profile is only half the battle; the elastomer compound must survive your specific operating environment. Because our square rubber rings are lathe-cut from precision-extruded tubes rather than injection-molded, we offer immense flexibility in material selection, blending, and durometer customization.
We manufacture high-performance square ring seals in a wide range of industry-standard compounds:
• Nitrile (NBR / Buna-N): The workhorse of fluid power systems. Offers excellent resistance to petroleum-based oils, fuels, and hydraulic fluids. Ideal for general-purpose static sealing. see [more details]
• Viton® (FKM): When the heat is on, a viton square ring is your best defense. It delivers unmatched resistance to extreme operating temperatures (up to 200°C) and aggressive chemical exposures. [see more details]
• EPDM: The ultimate choice for outdoor environments. Provides outstanding resistance to weathering, ozone, UV radiation, and hot water/steam applications.
• Silicone (VMQ): Features the widest operating temperature range (-60°C to +230°C) and unparalleled flexibility. Available in FDA-compliant grades for food, beverage, and medical equipment manufacturing.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Engineering Guide: Where to Use (and Avoid) Square O Rings
To build a reliable fluid system, you need the right seal for the exact operating condition. While a square section ring offers massive stability advantages over standard O-rings, it is not a universal fix. Understanding its mechanical limitations is just as important as knowing its strengths.
✅ Best Applications (Highly Recommended):
• Static Sealing: Flanges, valve covers, end caps, and static pipe joints. This is where the wide sealing face truly shines, providing a robust, leak-proof barrier.
• High-Pressure Environments: Excellent extrusion resistance when hardware clearance gaps are a concern.
• Imperfect Machining: The broad surface area of square ring seals can compensate for slight micro-scratches or rougher surface finishes on the mating hardware.
❌ Limitations (Avoid These Scenarios):
• High-Speed Dynamic Applications: The exact feature that makes a square rubber ring so stable—its massive surface contact area—becomes a liability in motion. In high-speed reciprocating or rotary applications, this large contact area generates excessive friction, leading to rapid heat buildup and premature wear. For dynamic sealing, you should stick to standard circular O-rings, X-rings, or specialized lip seals.
“For dynamic sealing, you should stick to standard circular [O-Ring Gaskets]
Ready to Upgrade Your Static Seals with Zero Tooling Costs?
Stop letting spiral twist and extrusion failures compromise your high-pressure fluid systems. Whether you need a standard AS568 drop-in replacement or a custom-dimensioned square cut o ring, the engineering team at RiseUp is ready to deliver flawless, flash-free solutions.
Upgrading is risk-free and requires absolutely no hardware modifications. Simply provide us with your AS568 dash number or your required Inner Diameter (ID), Cross-Section (CS), and material preferences, and our sealing experts will return a comprehensive quote within 24 hours.
• ✔️ Direct AS568 Drop-In Replacements
• ✔️ Zero Tooling Fees for Custom Sizes
• ✔️ Expert Engineering Support & Material Selection
