Extruded U Rubber Channel: The Engineer’s Guide to Edge Protection & Glazing
The Simple Solution to Sharp Edges and Vibration

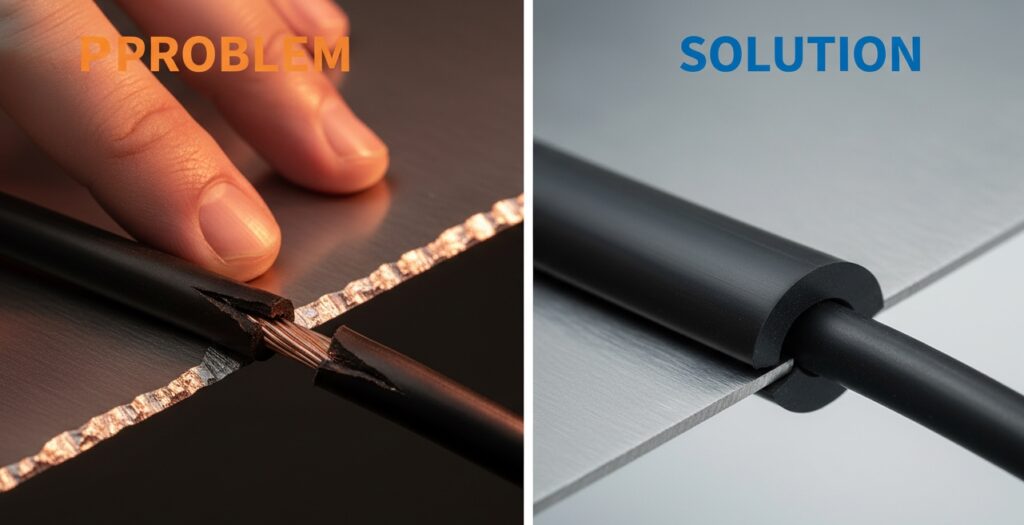

A raw edge on a piece of sheet metal, glass, or plastic is a liability. It creates safety hazards for workers, cuts through wire insulation, and leaves your product looking unfinished.
Rubber Channel (also known as Edge Trims or U-Strips) are the most effective way to cap, trim, and seal these edges.
Unlike complex gaskets, U-Channels are designed for simplicity. They slide over the edge of a panel to provide:
1. Safety: Covering sharp metal burrs to prevent cuts and abrasion.
2. Glazing / Sealing: Holding glass or acrylic panels firmly in a frame while absorbing vibration (preventing cracks).
3. Aesthetics: Providing a clean, finished look to rough manufacturing edges.
Beyond the Catalog: While Minor Rubber offers a vast catalog of sizes, selecting the right one can be tricky. Buying a U-channel with the exact same width as your panel often leads to a loose fit. This guide will teach you how to choose the right Interference Fit, decide between Square vs. Round Back styles, and select the correct Material for your environment.

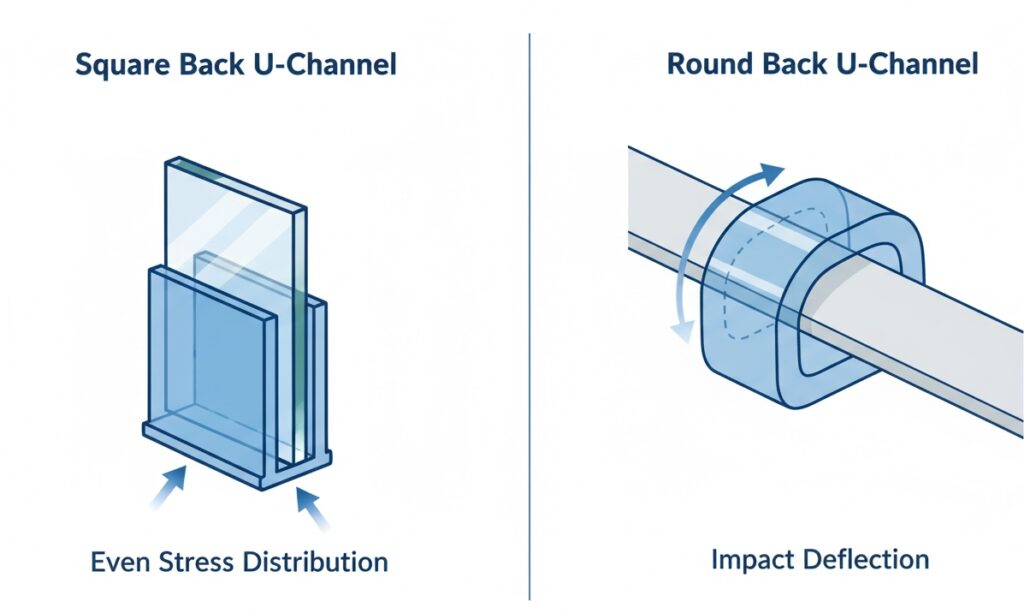

Visual Selector: Square Back vs. Round Back Profiles
The shape of the U Rubber Chanel is not just an aesthetic choice; it defines how the load is distributed on the panel edge. Choosing the wrong profile can lead to glass breakage or a poor fit.
1. Square Back U-Channels (Flat Bottom)
• Profile: The base of the “U” is flat, creating 90-degree corners.
• Best For: Glass & Acrylic Glazing, Thick Panels.
• Engineering Logic: When framing a fragile material like glass, you need the edge to sit flush against the bottom of the rubber. A flat bottom distributes the weight of the panel evenly across the entire width, reducing stress concentration points that could cause cracks.
• Common Use: Windows, inspection ports, display cases.
2. Round Back U-Channels (Round Bottom)
• Profile: The base of the “U” is semi-circular.
• Best For: Sheet Metal Protection, Thin Edges.
• Engineering Logic: Ideal for capping thin metal edges where the panel thickness is minimal. The rounded exterior acts as a bumper, deflecting impacts and providing a streamlined, finished look that prevents clothing snags or cuts.
• Common Use: Metal fabrication, cable pass-throughs, tank edges.
3. Deep vs. Shallow Channels
• Deep Chanel Rubber (Long Legs): Provide better retention (grip) and cover more surface area. Use these if you are relying on friction alone (no adhesive).
• Shallow Channels (Short Legs): Used primarily for aesthetics or when the viewable area of the panel must be maximized.
[Engineering Guide] Sizing for the Perfect “Interference Fit”
The most common mistake when buying U-Channels is matching the Groove Width exactly to the Panel Thickness.

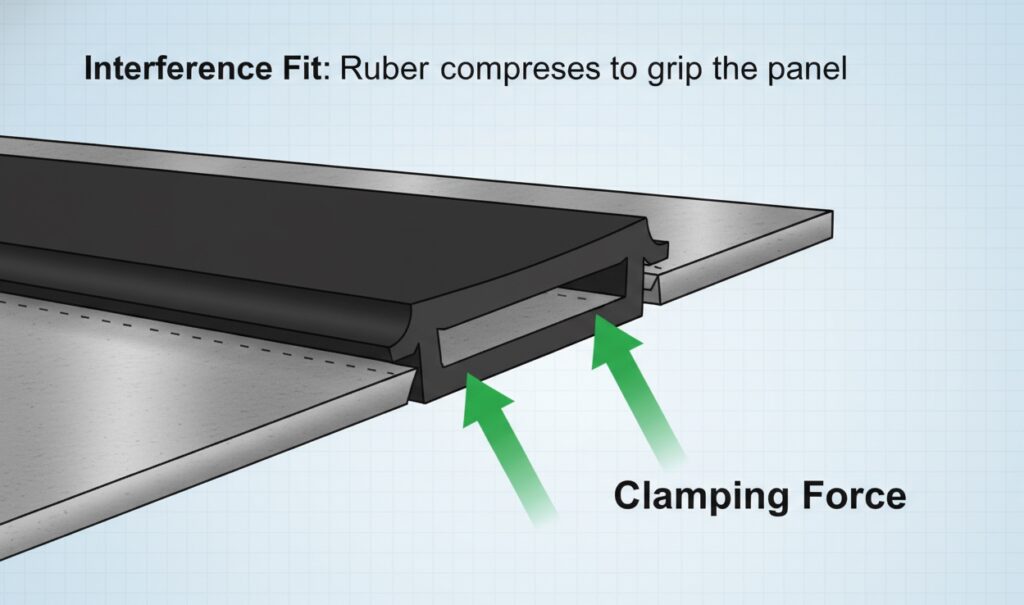

Rubber is a flexible material. To hold its position without adhesive, it must be slightly stretched over the edge. This is called an Interference Fit. If the groove is too wide, the trim will slide off or rattle against the glass.
The Golden Rule of Sizing
For a secure friction fit, always choose a Groove Width that is smaller than your panel thickness.
The Formula:
Quick Selection Chart
| Your Panel Thickness | Recommended Groove Width | Fit Type |
| 1/16″ (0.062″) | 3/64″ (0.047″) | Tight / Friction Fit |
| 1/8″ (0.125″) | 3/32″ (0.093″) | Tight / Friction Fit |
| 1/4″ (0.250″) | 3/16″ (0.188″) | Tight / Friction Fit |
| Any Thickness | Exact Match | Loose Fit (Requires Adhesive) |
When to Use Adhesive?
• If you must use a U-channel that is an exact match (or slightly loose) due to availability, you must use a contact adhesive to bond it to the edge.
• If the application involves high vibration or vertical orientation (where gravity pulls the trim down), adhesive is recommended regardless of the fit.
Material Selection: EPDM, Neoprene, or Silicone?
A U-Channel is only as durable as the material it is molded from. Using a standard indoor rubber (like SBR) for an outdoor window seal will result in cracking and leaks within months due to UV exposure.
Use this matrix to match the compound to your specific operating environment.
U-Channel Material Performance Chart
| Material | Common Name | Temp Range | Outdoor / UV | Oil / Fuel | Best Application |
| EPDM | Ethylene Propylene | -60°F to 300°F | Excellent | Poor | Glazing / Windows. The industry standard for outdoor weather stripping and glass seals. |
| Neoprene | Chloroprene | -40°F to 250°F | Good | Good | General Purpose. A balanced choice for industrial machinery edges and HVAC. |
| SBR | Styrene-Butadiene | -50°F to 225°F | Poor | Poor | Indoor Abrasion. Economical choice for shelving protection and indoor bumpers. |
| Silicone | – | -100°F to 450°F+ | Excellent | Poor | High Heat / Food. Ovens, medical devices, and food processing equipment edges. |
| Buna-N | Nitrile (NBR) | -40°F to 250°F | Poor | Excellent | Oily Environments. Rim protection for fuel tanks or hydraulic machinery. |
Expert Recommendation:
For Windows & Skylights: Always specify EPDM. It is virtually immune to sunlight and ozone.
For High-Traffic Areas: If the edge will be bumped or rubbed frequently (like a countertop edge), SBR or Neoprene offers excellent abrasion resistance.
For Food/Medical: Specify FDA-grade Silicone. It is non-toxic, fungus-resistant, and handles high-temperature washdowns.
Installation Guide: Mastering Corners & Adhesion
Installing a U-Channel on a straight edge is easy. The challenge begins when you reach a corner. Depending on the profile shape and the aesthetics you need, there are two ways to handle a 90-degree turn.

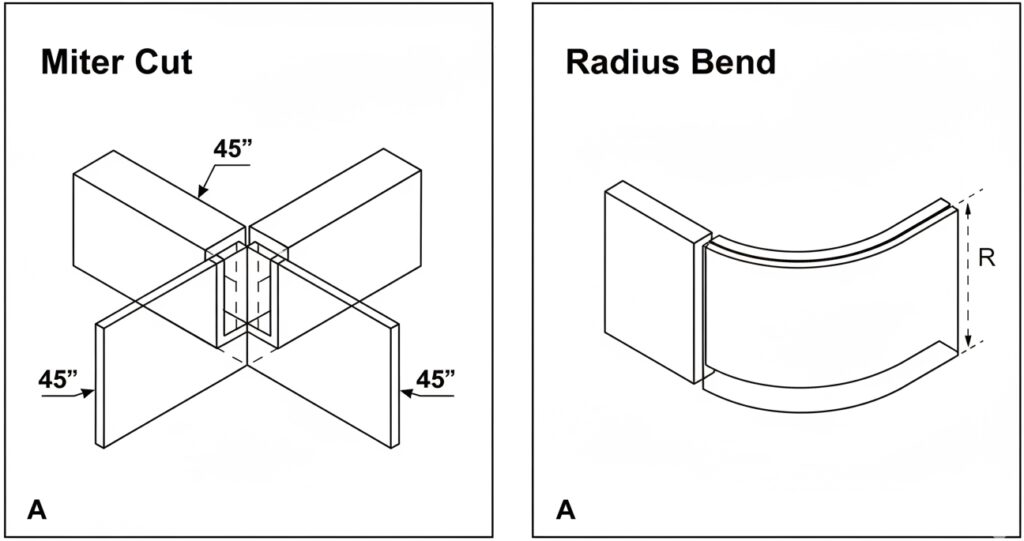

Technique 1: The Miter Cut (For Square Corners)
• Best For: Square Back U-Channels or thicker, rigid profiles.
• How to Do It: Cut the rubber at a precise 45-degree angle (like a picture frame). Apply a drop of Cyanoacrylate (Super Glue) to the cut faces and press them together.
• Result: A sharp, professional 90-degree corner with no bulging.
Technique 2: The Radius Bend (For Rounded Corners)
• Best For: Round Back U-Channels and thinner, flexible walls.
• How to Do It: Simply wrap the continuous strip around the corner.
• Constraint: Watch out for the “Minimum Bend Radius.” If you force a channel around a sharp corner, the side walls will flare out (buckle).
• Rule of Thumb: The bend radius should generally be at least 3x the width of the channel base.
Technique 3: Adhesive Bonding
While an Interference Fit (friction) is preferred, adhesive is sometimes necessary.
• When to Glue:
1. Vertical Edges: Gravity will eventually pull the trim down.
2. High Vibration: Engines or moving machinery.
3. Loose Fit: If the groove is wider than the panel.
• Recommended Adhesive: Use a 3M™ Super Weatherstrip Adhesive (Yellow or Black) or a standard contact cement. Apply a thin bead inside the base of the channel, not the sides, to avoid messy squeeze-out.
Custom Extrusions & Vulcanized Frames: Beyond the Catalog
Stock sizes are convenient, but they aren’t always the perfect solution. As a China-based manufacturer, Yichang Rubber offers advanced fabrication services to create ready-to-install components.

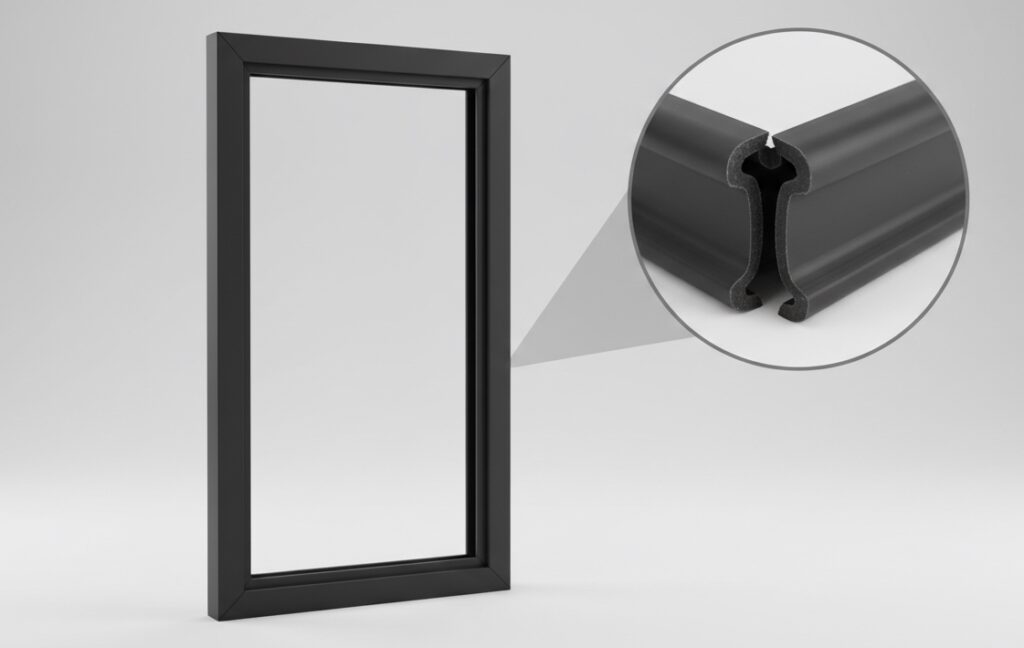

1. Hot Vulcanized Frames (The Leak-Proof Solution) Instead of cutting and gluing strips yourself (which often leads to leaks at the corners), let us manufacture a continuous loop or frame for you.
• The Process: We cut the U-Channel to length and place the ends into a heated corner mold. Uncured rubber is injected to chemically fuse the corners.
• The Result: A seamless, waterproof gasket with corners that are as strong as the extrusion itself. Ideal for rectangular windows, display cases, and watertight doors.
2. Custom Tooling (The Perfect Fit)
If our standard “Interference Fit” sizes don’t match your panel thickness, we can engineer a custom die.
Speed: We design and cut dies in-house, offering rapid turnaround times for prototypes.
• Precision: Control the exact leg length, base thickness, and grip strength.
3. Color Matching & Marketing U-Channels don’t have to be black.
• Safety: “Safety Yellow” or “Orange” channels for low-clearance overhead edges or hazardous machinery guards.
• Aesthetics: White or Grey profiles to blend seamlessly with medical equipment or marine interiors.
Frequently Asked Questions (FAQ)
Q: What is the minimum bend radius for a U-Channel?
A: If you bend a channel too tightly, the side walls will buckle (flare out).• Square Back: Generally designed for straight runs or mitered corners. Hard to bend.
• Round Back: Can be bent. The general rule is the radius should be at least 3x the Base Width.
• Example: If the channel is 0.5″ wide, the minimum bend radius is 1.5″.
• Q: Do these U-Channels have a metal core inside?
A: No. These are solid extruded rubber profiles. They rely on the elasticity of the rubber (Interference Fit) or adhesive to hold onto the edge.
• Need a metal core? If you need a “push-on” trim with a metal gripping core, please visit our [Edge Trim / Trim Seals] page.
• Q: Can I use U-Channels for outdoor windows?
A: Yes, but ONLY if you choose EPDM rubber. EPDM is resistant to UV light and ozone. If you use SBR or Neoprene outdoors, it will crack and fail within a year.
• Q: What lengths are sold?
A: We sell continuous lengths on spools (e.g., 50ft, 100ft, 500ft) to minimize waste. Custom cut lengths are available upon request.
The Similar Design

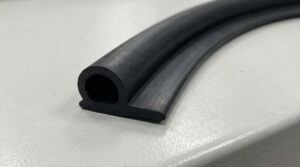

Rubber P Seal
