FKM vs. Viton™: Decoding the Branding Myth
The most common question in the elastomer industry is: “What is the difference between FKM and Viton?” The short answer: There is no difference in the base polymer. While Viton™ is the world’s most recognized brand name, FKM is the actual material science that drives high-performance sealing in extreme environments.
The “Tissue vs. Kleenex” Analogy
Think of it like the relationship between “Tissue” and “Kleenex”. While everyone asks for a Kleenex, they are fundamentally using a tissue. Similarly, while engineers often specify “Viton,” they are essentially requesting FKM (Fluoroelastomer)—a category of synthetic rubber defined by ASTM D1418 and ISO 1629.
FKM: The international shorthand for Fluoroelastomer. It represents a family of fluorinated carbon-based polymers.
Viton™: The pioneer brand originally developed by DuPont in 1957, now a registered trademark of The Chemours Company.
Industry Insight 2026: Leading global OEMs are increasingly specifying “High-Performance FKM” instead of brand-specific “Viton” to bypass the 30-50% brand premium, provided the material carries the same ASTM D2000 line callouts and batch-traceable test reports.
Author
Hi, I’m David Xu , Focus on the rubber gasket industry for 20 years. I design customized rubber products solutions,i brings practical insights into material selection,quality control,and application solutions. I’m here to share industry knowledge and best practices for customers and partners.
- riseuprubber.com
- 29 4 月, 2026
- 5:24 下午

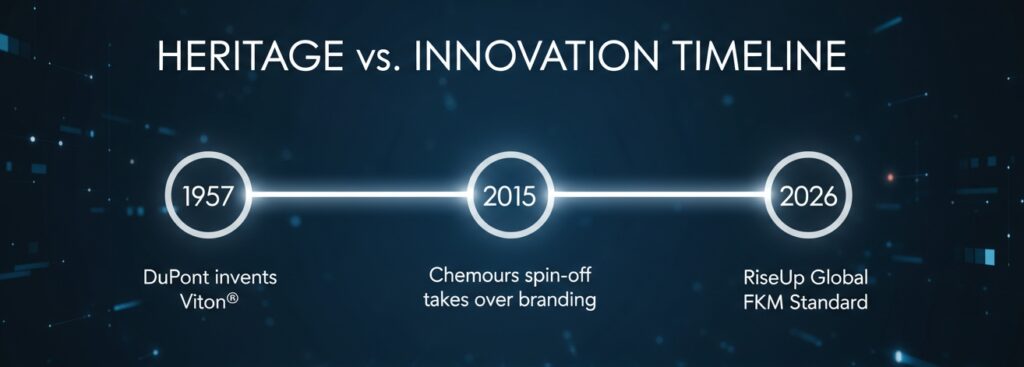

From DuPont to Chemours: The Heritage of Viton™
The term “Viton” has become so synonymous with fluoroelastomers that many engineers use the names interchangeably. However, to source effectively in 2026, understanding the brand’s evolution is essential. Originally developed by DuPont in 1957 to meet the rigorous demands of the aerospace industry, Viton™ was the first high-performance FKM on the market.
In 2015, a major corporate shift occurred: DuPont spun off its performance chemicals business into a new, independent company called The Chemours Company. Today, Viton™ is a registered trademark exclusively owned by Chemours.
While the brand name carries a “legacy premium,” the 21st-century chemical landscape has evolved. High-performance “Generic FKM” compounds, produced in advanced facilities like ours, now utilize identical polymerization science to deliver the same ASTM D2000 performance levels—offering the same reliability without the associated brand-name markup.

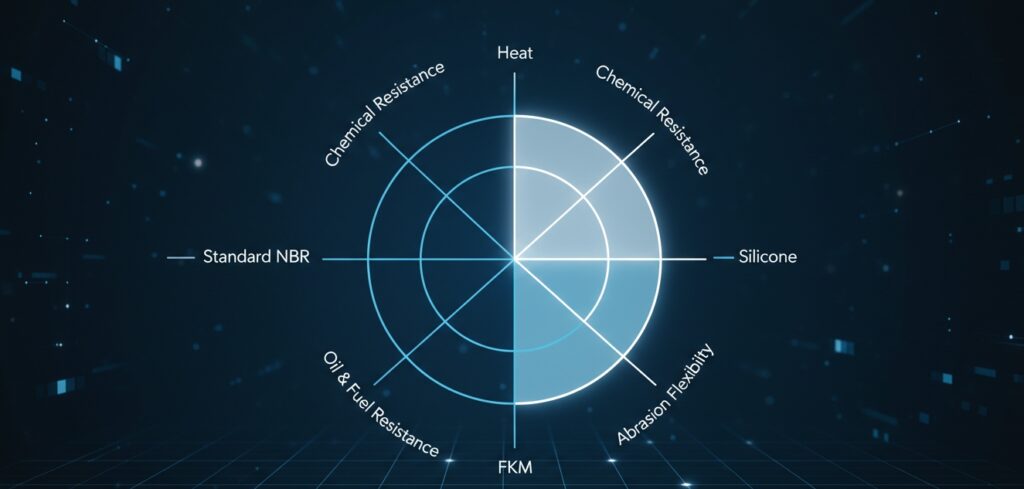

The 6 Pillars of FKM Performance: Engineering the Perfect Seal
Why is FKM (including Viton™) the preferred material for critical aerospace and automotive systems? It all comes down to its chemical “fortress”—the exceptionally strong Carbon-Fluorine (C-F) bonds. These bonds are among the strongest in organic chemistry, allowing FKM to resist degradation where standard rubbers like Nitrile or EPDM disintegrate.
The 6 Core Attributes:
Extreme Thermal Stability: FKM maintains its physical integrity in continuous heat up to 200°C (400°F), withstanding intermittent spikes as high as 230°C.
Broad Chemical Compatibility: It is virtually immune to degradation from mineral oils, fuels, lubricants, and most chlorinated solvents.
Low Compression Set: Even after long periods of heavy pressure, FKM returns to its original shape, ensuring a long-lasting, leak-proof seal.
Weathering & Ozone Immunity: Unlike NBR, FKM is naturally resistant to UV radiation and industrial ozone, preventing surface cracks and “crazing.”
Low Gas Permeability: Its dense molecular structure makes it an ideal candidate for high-vacuum applications and gas-tight storage.
Flame Retardancy: FKM is inherently resistant to burning, offering a higher safety margin in fire-sensitive environments.

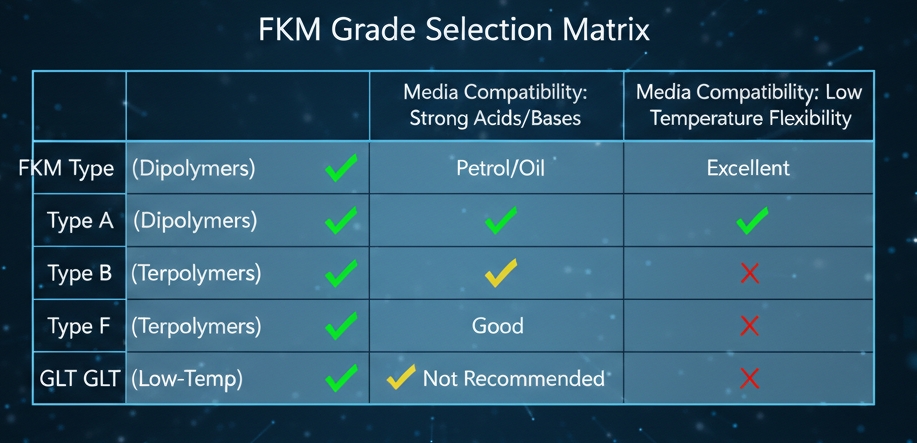

Not All FKM is Created Equal: Understanding the Grades (Type A, B, F, GLT)
In the world of fluoroelastomers, specifying just “FKM” or “Viton” is often insufficient. To achieve peak performance, you must select the correct grade based on fluorine content and monomer structure.
Type A (Standard Dipolymers):
Fluorine Content: ~66%
Best For: General industrial seals, automotive lubricants, and petroleum oils.
Why Choose It: Most cost-effective and common grade for standard sealing needs.
Type B (Terpolymers):
Fluorine Content: ~68%
Best For: Power plant seals, aggressive chemical processing, and acidic environments.
Why Choose It: Offers better fluid resistance than Type A, particularly in high-temperature acids.
Type F / GF (High-Fluorine Terpolymers):
Fluorine Content: ~70%
Best For: Oxygenated fuels (Ethanol blends), highly polar solvents, and aqueous inorganic acids.
Why Choose It: Provides maximum chemical resistance within the FKM family.
Type GLT / GFLT (Low-Temperature Grades):
Fluorine Content: ~64% to 67%
Best For: Aerospace fuel systems in high-altitude environments or oil & gas in arctic climates.
Why Choose It: Extends low-temp limit from $-20°C$ down to $-40°C$ without sacrificing heat resistance.
The Engineering Evidence Chain
1. Molecular Evidence (ASTM D1418): Fluorine content is a direct result of the monomer ratio. Type 1 (Type A) mandates ~66% F, while Type 2 (Type B/F) introduces TFE to elevate content to 68-70%.
2. Physical Verification: Standard 66% FKM has a density of ~1.80 g/cm³, while 70% High-Fluorine FKM has a density of ~1.90-1.93 g/cm³.
Precision Material Selection: Solving High-Stakes Engineering Failures
When an FKM seal fails, it is rarely due to the material “melting”—it is almost always due to Volume Swell, Chemical Scission, or Glass Transition. Here is the data-driven breakdown of how specific FKM grades solve these critical engineering traumas.

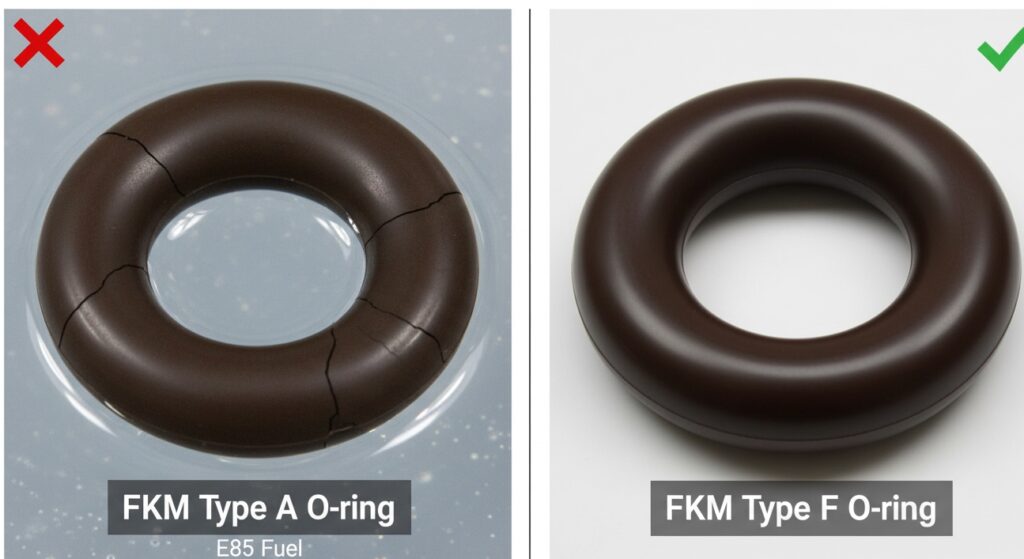

1. The Automotive Fuel Injection Crisis: Type A vs. Type F/GF
The Conflict: Modern Tier-1 Automotive OEMs are moving toward E85 (85% Ethanol).
The Science of Failure: Ethanol is a polar solvent. In a standard Type A (66% Fluorine) O-ring, ethanol molecules penetrate the polymer matrix, breaking secondary intermolecular bonds. This leads to a 30% to 45% volume increase, causing the injector to jam or the seal to extrude into the clearance gap.
The Solution Data: By specifying Type F/GF (70% Fluorine), we increase the cross-link density.
Result: Volume swell is restricted to <4% even at $60^\circ\text{C}$ ($140^\circ\text{F}$) immersion. The high fluorine loading creates a “molecular shield” that repels polar molecules, ensuring consistent fuel rail pressure and preventing fire hazards.
2. The Petrochemical Pump Dilemma: Type B & Acid Resistance
The Conflict: Sealing high-concentration Nitric or Sulfuric acid in chemical processing pumps.
The Science of Failure: Standard FKM Type A is vulnerable to nucleophilic attack on the polymer backbone in acidic media, leading to “Scission” (the breaking of the polymer chain), which results in the seal turning into a gummy residue.
The Solution Data: Type B (Terpolymers) introduce TFE (Tetrafluoroethylene) which possesses a higher Bond Dissociation Energy ($485\text{ kJ/mol}$).
Result: In a $70\%$ Nitric Acid test at $80^\circ\text{C}$, Type B maintains 90% of its Tensile Strength, whereas Type A loses over 60% of its physical properties within 72 hours. This extends the pump maintenance cycle from 3 months to over 18 months.
3. Aerospace & Arctic Exploration: The GLT “Low-Temp” Threshold
The Conflict: Aerospace fuel seals must survive at $-40^\circ\text{C}$ in high-altitude flight, then immediately handle $200^\circ\text{C}$ engine heat upon landing.
The Science of Failure: Standard FKM has a Glass Transition Temperature ($T_g$) of approximately $-18^\circ\text{C}$. Below this point, the rubber becomes as brittle as glass. Any vibration in the fuel line will cause it to shatter, leading to “Cold Leaks.”
The Solution Data: Type GLT utilizes a proprietary Perfluoromethylvinylether (PMVE) monomer.
Result: It pushes the $T_g$ down to $-40^\circ\text{C}$ to $-45^\circ\text{C}$. In a dynamic sealing test, GLT maintained a leak rate of $<0.1\text{ sccm}$ (standard cubic centimeters per minute) at $-40^\circ\text{C}$, while standard FKM failed catastrophically at $-20^\circ\text{C}$.
Breaking the "Big Brand" Bureaucracy
The Challenge: A specialized medium-sized pump manufacturer in North America was using a high-priced Viton™ solution but faced a 12% seal failure rate in a new line of industrial sprayers. Despite the high unit cost, the “Big Brand” supplier provided zero direct technical support.
The client spent weeks trying to reach a technical director, only to be redirected to an automated ticketing system and a local distributor who had no engineering expertise. For this SME, the brand name was a shield that didn’t protect them from downtime.
The RiseUp Transformation: When the client reached out to RiseUp, the experience was fundamentally different. We didn’t just sell them an O-ring; we deployed our “Director-Level Task Force.”
Immediate Access to Experts: Within 24 hours, our Director of Engineering, Director of Quality, and Director of Production held a joint technical session with the client.
Precision Diagnosis: Our Engineering Director identified that the “Standard Viton™” was not actually the correct grade for the specific esters in the client’s fluid.
Bespoke Technical Adjustment: Our Quality and Production teams fast-tracked a custom-formulated Type F FKM compound, adjusting the curing cycle to optimize the compression set for the client’s unique housing pressure.
The Results:
50% Cost Reduction: By sourcing directly from RiseUp, the client eliminated the brand-name royalty and multi-tier distributor markups, slashing their unit cost by exactly 50%.
Total Reliability: The field failure rate dropped from 12% to 0.02% within the first production run.
Unmatched Responsiveness: The client now has a direct line to our Technical Lead. No ticketing systems, no wait times—just immediate engineering solutions.
FKM vs. FFKM: Knowing the Boundary to Avoid Over-Engineering
As an engineer, one of the most critical decisions is knowing when FKM (Fluoroelastomer) has reached its physical limits and when you must upgrade to FFKM (Perfluoroelastomer). While FKM is an industry “workhorse,” FFKM is the “space-shuttle grade” solution. Understanding this boundary can save you thousands of dollars in unnecessary material costs.
1. The Molecular Difference: Partial vs. Full Fluorination
FKM (Type A, B, F, GLT): Contains some hydrogen atoms on the polymer backbone. These “Hydrogen sites” are the primary target for aggressive chemicals like concentrated amines or hot steam.
FFKM (e.g., Kalrez®, Perlast®): The polymer backbone is completely fluorinated. There are no hydrogen atoms to attack. This results in nearly universal chemical resistance and higher thermal stability.
2. The Critical Thresholds: When to Switch?
| Scenario | Stay with RiseUp High-Performance FKM | Upgrade to FFKM |
| Continuous Heat | Up to $200^\circ\text{C}$ ($400^\circ\text{F}$) | Up to $327^\circ\text{C}$ ($620^\circ\text{F}$) |
| Steam Exposure | Moderate (with specialized grades) | Excellent (Mandatory for high-pressure steam) |
| Aggressive Amines | Not Recommended (causes embrittlement) | Excellent (The only reliable option) |
| Budget Impact | $ (Cost-Efficient) | $ (Extreme Premium) |
3. Avoiding the Cost Trap
In our experience, many distributors push FFKM for applications where a Type F or GLT FKM would perform flawlessly. FFKM can cost 10 to 50 times more per O-ring. Unless your environment involves temperatures exceeding $230^\circ\text{C}$ or constant exposure to highly concentrated amines/ethers, RiseUp’s engineered FKM solutions provide the superior ROI.
Compliance Without Compromise: Certified FKM for Every Industry
Sourcing FKM directly from China shouldn’t mean sacrificing regulatory certainty. At RiseUp, we treat compliance as a core engineering specification. Whether you are in medical device manufacturing, food processing, or aerospace, our FKM compounds are batch-tested to meet and exceed global safety and environmental mandates.
1. Food & Pharma Safety (FDA 21 CFR 177.2600)
For our clients in the food processing and pharmaceutical sectors, we provide FDA-compliant White and Black FKM. These compounds are formulated to ensure zero leaching and maintain purity during aggressive CIP (Clean-in-Place) cycles involving steam and caustic chemicals.
2. Potable Water Safety (NSF/ANSI 61 & WRAS)
Sealing drinking water infrastructure requires ultra-low extractables. Our specialized water-grade FKM meets NSF-61 (USA) and WRAS (UK) standards, ensuring that high-performance sealing doesn’t compromise water taste or safety.
3. Environmental Stewardship (REACH & RoHS)
We ensure our FKM is free from restricted substances such as lead, mercury, and cadmium. Our compliance with REACH and RoHS mandates ensures your products have a frictionless entry into the European Union and other regulated markets.
4. The “Trust Deficit” Solution: Batch Traceability
Every order from RiseUp includes:
Full Material Test Reports (MTR): Proving physical properties (Hardness, Tensile, Elongation).
Batch Cure Date Tracking: Ensuring you receive fresh material with maximum shelf life.
Certificate of Conformance (CoC): Guaranteeing the material is 100% genuine FKM as specified.
Final Verdict: Making the Right Choice for Your Sealing Strategy
In the debate of FKM vs. Viton™, the science is clear: they are the same high-performance material. The real choice is between paying for a brand-name legacy or investing in an engineered technical partnership. By choosing RiseUp, you gain direct access to our Engineering and Production Directors, custom-compounded solutions, and a 50% reduction in procurement costs—all backed by global certifications and transparent batch testing.
The FKM Masterclass: 10 Ultimate FAQs for Engineers
No. Skydrol is a phosphate ester fluid that will cause FKM to swell and degrade rapidly. For Skydrol resistance, you must use our [Peroxide-Cured EPDM O-Rings].
Standard FKM (Type A) has poor steam resistance. However, specialized peroxide-cured FKM or Type B grades can handle steam up to $150^\circ\text{C}$ for limited periods. For continuous high-pressure steam, FFKM or EPDM is preferred.
This is likely due to chemical scission caused by high-concentration amines or strong bases. You probably need to upgrade to Type B or a base-resistant FKM grade.
Yes, provided it is FDA-compliant (21 CFR 177.2600). We offer high-purity white and black FDA FKM specifically for food and pharma.
FKM has an outstanding shelf life of up to 15 years (per ISO 2230) if stored in a cool, dark environment away from ozone-generating motors.
Yes. FKM is excellent for high vacuum due to its low outgassing rate, which is significantly better than NBR or Silicone.
Standard FKM is limited to $-20^\circ\text{C}$ ($0^\circ\text{F}$). If your application goes lower, you must specify FKM Type GLT, which performs down to $-40^\circ\text{C}$ ($-40^\circ\text{F}$).
The high cost is due to the complex polymerization process and the high price of fluorine-based raw materials. However, its longevity in aggressive media often makes it cheaper in the long run (lower MTBF).
Check the Specific Gravity. Pure FKM should have a density between 1.80 and 1.95 g/cm³. If the density is lower, it has likely been blended with cheaper fillers.
Absolutely. While black is the standard, we can custom-compound FKM in Brown, Green, Blue, or FDA White for brand identity or visual error-proofing (Poka-Yoke).
