Custom Fluorosilicone Gaskets for Demanding Sealing Applications
We are a fluorosilicone gasket manufacturer supplying custom FVMQ gaskets for aerospace, automotive, fuel-system and industrial applications.
- Custom fluorosilicone gasket manufacturing
- FVMQ material options for fuel and oil exposure
- Solid, sponge, die-cut and conductive gasket designs
- Drawing, sample and application-based development
- Suitable options for aerospace and automotive sealing projec
What Is a Fluorosilicone Gasket?
A fluorosilicone gasket is a sealing component made from fluorosilicone rubber, commonly identified as FVMQ. It combines the flexible silicone backbone of silicone rubber with fluorinated side groups that improve resistance to fuels, oils and selected solvents.
This material is often considered when a sealing part must remain flexible across changing temperatures while also contacting automotive fuels, aerospace fuels, lubricants or hydrocarbon-based fluids. Fluorosilicone gaskets are generally used for static sealing, where dimensional stability and media resistance are more important than high dynamic wear resistance.
The final performance depends on the specific FVMQ compound, hardness, thickness, gasket profile, compression and operating environment. A fluorosilicone gasket should therefore be selected according to the actual fuel or oil type, temperature range, pressure, movement and installation condition
Fluorosilicone Gasket Selection Factors
| Selection Factor | Why It Matters |
|---|---|
| FVMQ compound | Determines resistance to fuel, oil and selected solvents |
| Hardness | Influences flexibility, compression and sealing force |
| Thickness | Must match the available sealing space |
| Profile | Must fit the flange, cover, groove or housing |
| Temperature | Affects flexibility, compression recovery and service life |
| Contact media | Confirms whether the compound is chemically suitable |
| Static or dynamic use | Determines whether fluorosilicone is appropriate for the movement level |
We Provide Different Types Of Products For You
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Solid fluorosilicone gasket
Solid fluorosilicone gaskets provide a dense, stable sealing structure with good resistance to fuels, oils and selected solvents.
Main Function
They maintain a reliable sealing interface between rigid mating surfaces and are suitable for applications requiring controlled compression and low permeability.
Typical Applications
- Aerospace fuel systems
- Automotive fuel systems
- Engine and transmission components
- Static flange and cover sealin
Sponge Fluorosilicone Gaskets
Sponge fluorosilicone gaskets are softer and more compressible than solid grades. They can fill surface irregularities and provide cushioning with lower closing force.
Main Function
They are used where the assembly requires compression, gap filling, vibration cushioning or a lightweight environmental seal.
Typical Applications
- Equipment covers
- Enclosures and access panels
- Lightweight aerospace assemblies
- Low-pressure environmental sealin
Die-Cut Fluorosilicone Gasket
Die-cut fluorosilicone gaskets are cut from fluorosilicone sheet material according to a 2D drawing. They are suitable for flat and repeatable gasket geometries.
Main Function
They provide accurate, repeatable production for flange, cover, panel, ring and full-face gasket designs.
Typical Applications
- Flange gaskets
- Cover gaskets
- Panel gaskets
- Ring and full-face profile
Molded Fluorosilicone Gaskets
Molded fluorosilicone gaskets can include three-dimensional profiles, raised sealing beads, integrated lips and irregular shapes.
Main Function
They are used when a flat sheet gasket cannot provide the required fit, retention or sealing geometry.
Typical Applications
- Complex equipment housings
- Molded covers
- Sealing channels
- Three-dimensional aerospace and automotive part
Electrically Conductive Fluorosilicone Gasket
Electrically conductive fluorosilicone gaskets use a conductive filler system to combine fluorosilicone sealing performance with electrical or EMI shielding requirements.
Main Function
They can help provide environmental sealing and electrical conductivity in the same gasket design, when the compound and specification are correctly selected.
Typical Applications
- EMI shielding
- Aerospace electronics
- Avionics enclosures
- Fuel-system electronics
- Conductive equipment housings
Why Choose Fluorosilicone for Fuel and Oil Sealing?
Fluorosilicone is chosen when a gasket must handle fuel or oil contact while still retaining the temperature flexibility associated with silicone rubber.
Its key advantage comes from its material structure. The silicone backbone helps maintain flexibility over changing temperatures, while the fluorinated groups improve resistance to fuels, oils and selected hydrocarbon-based fluids. This combination is difficult to achieve with standard silicone alone.
Why Standard Silicone May Not Be Enough
Standard silicone performs well across a broad temperature range and remains flexible in demanding thermal conditions. However, continuous contact with fuels, oils or hydrocarbon-based fluids may cause swelling, softening or loss of sealing stability, depending on the specific compound.
Fluorosilicone is considered when the gasket must provide:
- Silicone-like flexibility across temperature changes
- Better resistance to fuel and oil exposure
- Stable static sealing in fuel-system components
- Resistance to selected hydrocarbon fluids
- Lower risk of fuel-related swelling than standard silicone
What Makes Fluorosilicone Different?
| Requirement | Standard Silicone | Fluorosilicone |
|---|---|---|
| Temperature flexibility | Strong | Strong |
| Fuel resistance | Often limited by compound | Improved for selected fuels |
| Oil resistance | Depends strongly on compound | Improved for selected oils |
| Low-temperature flexibility | Generally good | Generally good |
| Static sealing | Suitable | Particularly suitable for fuel and oil systems |
| Cost | Usually lower | Usually higher |
| Best value | General temperature sealing | Fuel/oil plus temperature sealing |
Fluorosilicone vs. FKM and NB
FKM is often selected for broad chemical, fuel and high-temperature resistance. NBR is commonly selected for oil and fuel sealing where cost efficiency is important.
Fluorosilicone becomes valuable when the design also requires silicone-like flexibility across temperature changes, low-temperature performance or a lightweight sponge sealing structure. It is not necessarily the cheapest material, but it may reduce the cost of fuel-related swelling, premature replacement and seal failure when the application requires its specific performance combination
When Is Fluorosilicone Cost-Effective
Fluorosilicone is worth considering when:
- Fuel or oil exposure is unavoidable
- Temperature changes are significant
- A silicone-like flexible seal is required
- The gasket is used in aerospace or automotive fuel systems
- Seal replacement or leakage would be expensive
- The application is primarily static or low movement
For general-purpose sealing without fuel or oil exposure, a lower-cost silicone, EPDM or other elastomer may be more appropriate

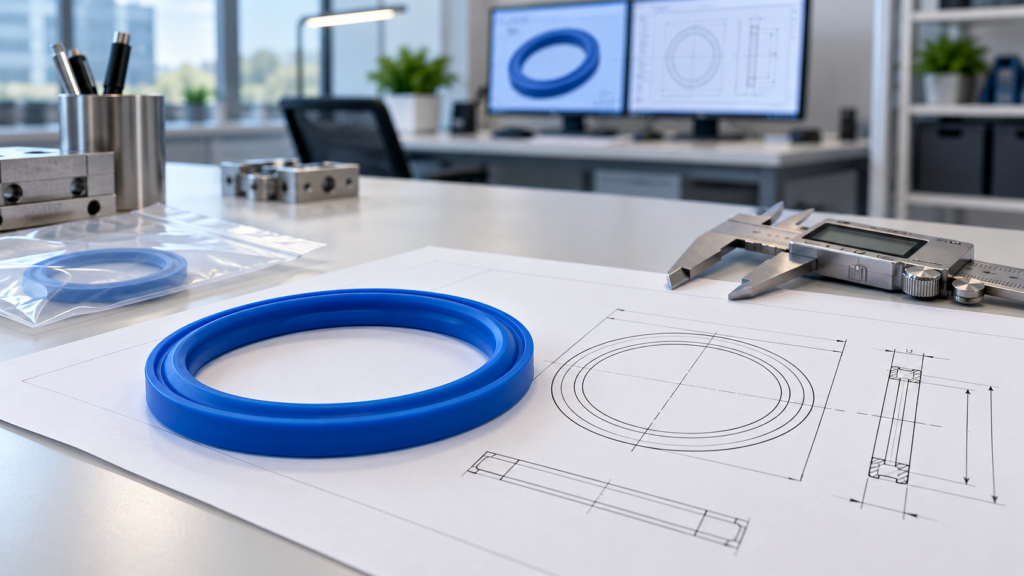

Custom Fluorosilicone Gaskets for Fuel, Oil and Temperature-Cycling Condition
A custom fluorosilicone gasket must be designed around the actual fuel, oil, temperature and sealing conditions. Customization rubber parts is not limited to changing the length or width. The FVMQ compound, hardness, thickness, compression, profile and sealing structure must work together in the customer’s application
Fluorosilicone-Specific Customization Areas
| Customization Area | FVMQ Design Consideration |
|---|---|
| Compound formulation | Matched to fuel, oil, lubricant and selected solvent exposure |
| Hardness | Balanced between sealing force, flexibility and compression recovery |
| Thickness | Selected according to the sealing gap and assembly compression |
| Profile | Designed for covers, flanges, housings, grooves and irregular interfaces |
| Solid or sponge structure | Selected according to pressure, gap filling and weight requirements |
| Conductive option | Considered when fuel resistance and EMI shielding are both required |
| Temperature cycling | Reviewed across the expected heating and cooling range |
| Static or low-movement use | Confirmed before approving the fluorosilicone design |
Fluorosilicone-Specific Design Review
For fluorosilicone gaskets, the most important design information is related to the fluid and temperature environment rather than the drawing format alone.
We focus on:
- Fuel, oil or lubricant type
- Fuel concentration or exposure condition
- High- and low-temperature cycling
- Static sealing or limited movement
- Required low-temperature flexibility
- Swelling and volume-change risk
- Compression recovery after temperature exposure
- EMI shielding requirements for conductive FVMQ designs
This information helps determine whether fluorosilicone is suitable and whether a solid, sponge, die-cut, molded or conductive construction should be considered.
General drawing submission, sample review and tooling procedures are handled through our universal custom gasket development proces
Why Custom Development Matters
A fluorosilicone gasket may look similar to a silicone rubber gasket or FKM gasket, but its performance depends on the specific FVMQ compound and the actual fuel, oil and temperature environment.
Application-based customization helps reduce the risk of:
- Selecting a compound with insufficient fuel resistance
- Excessive swelling after fluid exposure
- Loss of flexibility during temperature cycling
- Incorrect compression and sealing force
- Poor retention in the assembly
- Choosing a conductive structure without verifying EMI requirement
Controlled Manufacturing for Fluorosilicone Gaskets
Fluorosilicone gasket manufacturing requires more than forming a rubber part to a drawing. The FVMQ compound, gasket structure and production method must remain consistent so the finished part provides the intended fuel, oil and temperature performance.
FVMQ-Focused Manufacturing Controls
Compound and Material Preparation
The selected fluorosilicone compound must be prepared according to the required hardness, structure and media-resistance direction. Solid, sponge and conductive grades require different material-control considerations.
Profile and Compression Design
The production profile must match the sealing surface and available compression space. Thin edges, narrow sealing beads and irregular corners require careful control because excessive compression or poor support can affect sealing stability.
Solid and Sponge Processing
Solid fluorosilicone is used for dense static sealing structures, while sponge fluorosilicone is used where compression, gap filling or lower closing force is required. The production method must preserve the intended density and recovery behavior.
Conductive FVMQ Control
For electrically conductive fluorosilicone gaskets, the conductive compound must remain evenly distributed through the sealing section. Electrical performance and fuel-resistance requirements should be confirmed together rather than evaluated separately.
Surface and Edge Finishing
Edges and surfaces are checked for tearing, flash, unevenness and contamination. This is especially important for aerospace, automotive and fuel-system gaskets where small edge defects may affect installation or sealing contact.
Sample-to-Production Consistency
The approved sample is used as the reference for production. The production gasket should maintain the confirmed FVMQ structure, profile, hardness, thickness and compression behavior.
Manufacturing Methods
| Method | Typical Fluorosilicone Gasket Use |
|---|---|
| Die cutting | Flat fuel-system, flange and cover gaskets |
| Compression molding | Three-dimensional and molded FVMQ profiles |
| Sponge fabrication | Compressible and gap-filling gasket structures |
| Conductive molding or cutting | EMI and electrically conductive sealing |
| Prototype processing | New designs requiring fit and compression review |
Where Are Fluorosilicone Gaskets Used?
Fluorosilicone gaskets are selected for applications where fuel or oil resistance must be combined with temperature flexibility, low-temperature performance or controlled static sealing. The most suitable gasket structure depends on the fluid, temperature cycle, pressure, movement and sealing geometr

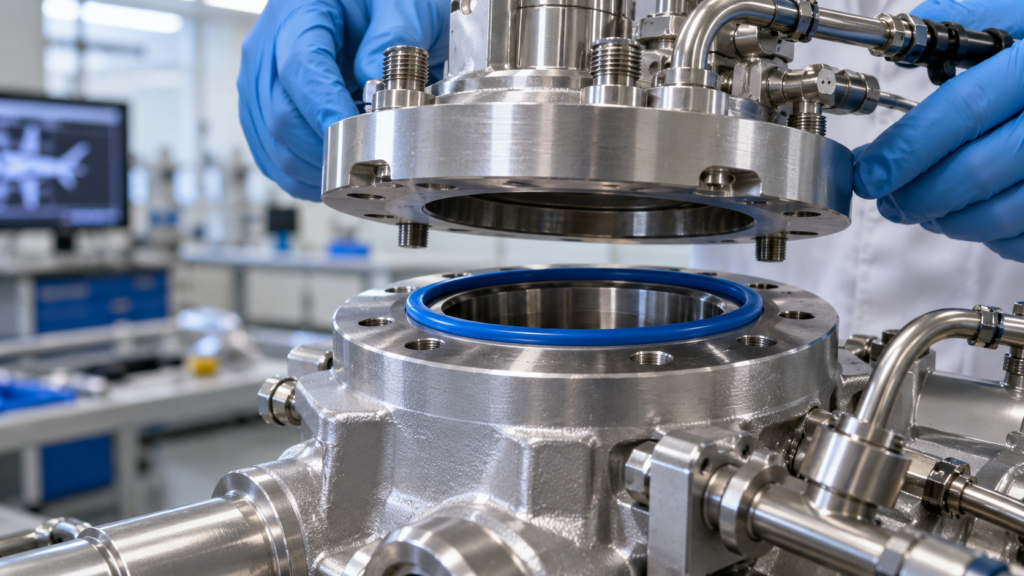

Aerospace Fuel Systems
Aerospace fuel systems may require fluorosilicone gaskets because the material can combine fuel resistance with silicone-like temperature flexibility. The gasket design should be reviewed for fuel type, static sealing, low-temperature exposure and installation condition

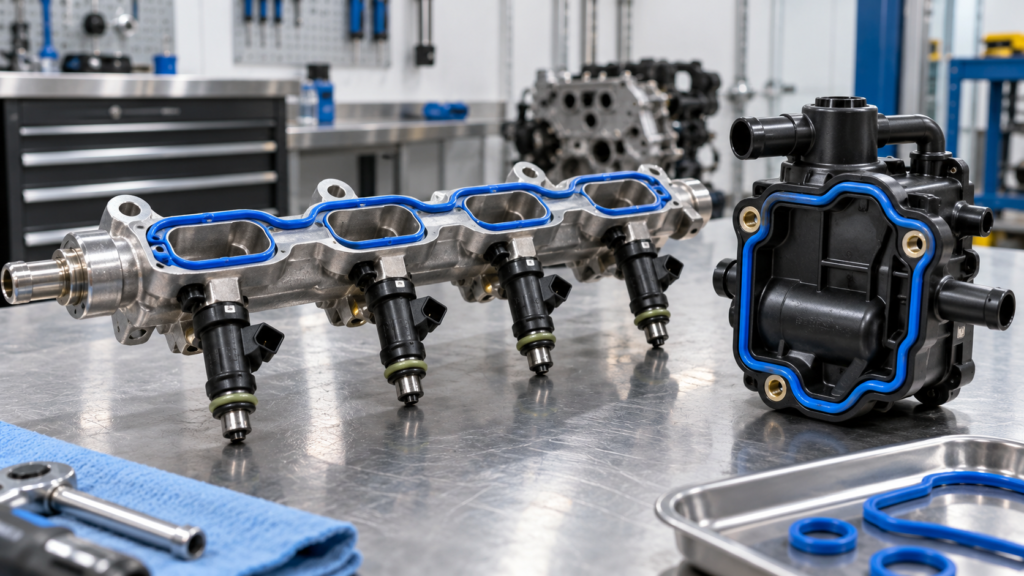

Automotive Fuel and Emission Systems
Fluorosilicone gaskets can be considered for selected automotive fuel, fuel-vapor and emission-control assemblies where contact with hydrocarbon-based fluids occurs together with changing temperature

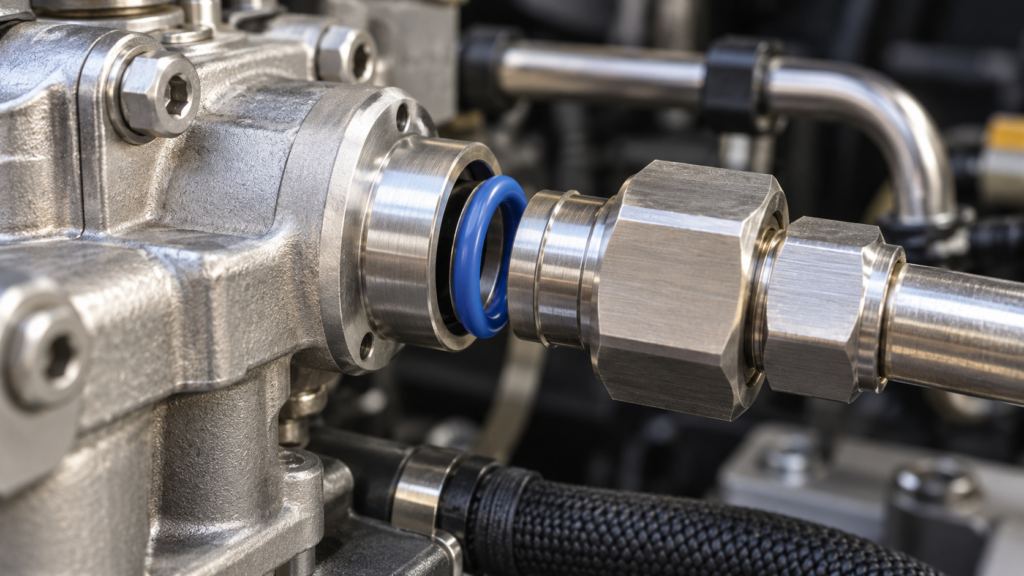

Fuel Pumps, Valves and Fluid Connections
In selected fuel pumps, valves and fluid connections, fluorosilicone gaskets can provide a static sealing interface between covers, ports and housings. Compound compatibility should be confirmed according to the actual fuel or o

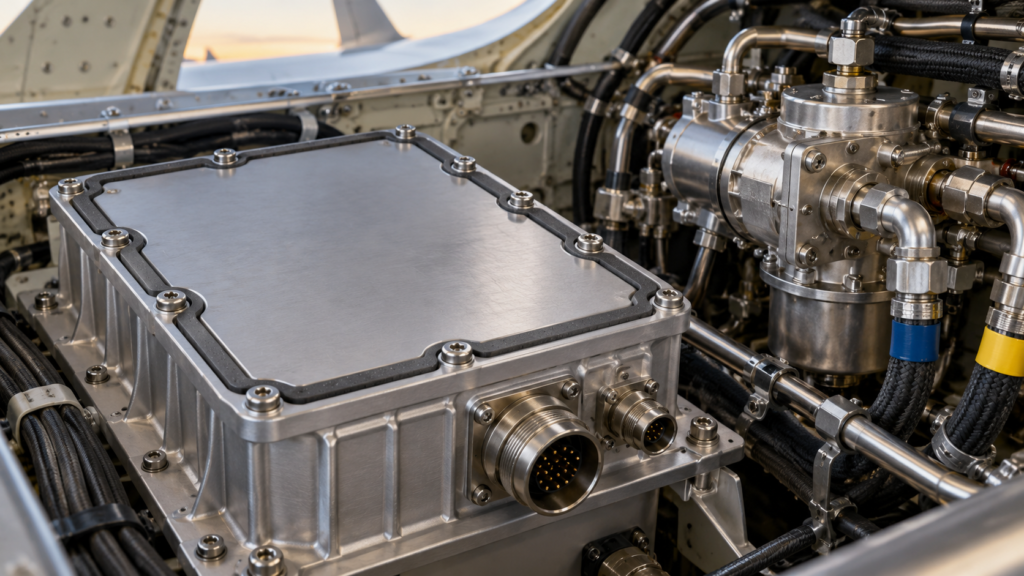

Electrically Conductive and EMI Sealin
Electrically conductive fluorosilicone gaskets can be considered when a component requires both fuel or oil resistance and EMI or electrical shielding. The conductive filler system, compression and electrical performance must be specified togethe

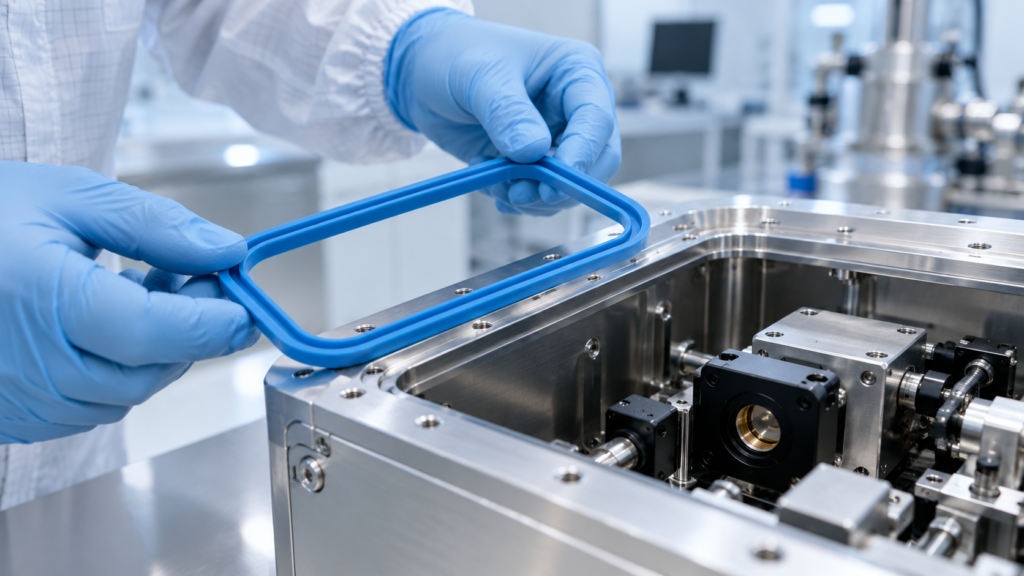

Low-Outgassing and Sensitive Equipmen
Fluorosilicone may be considered in selected low-outgassing static sealing applications where the gasket must remain flexible while resisting specific fuels or oils. The actual compound and documentation requirements should be confirmed before productio
Fluorosilicone vs. Silicone, FKM, NBR and EPDM
Fluorosilicone is not a universal replacement for every rubber material. It is selected when the application combines fuel or oil exposure with temperature flexibility, low-temperature performance or a silicone-like sealing behavior.
The correct material depends on the actual fluid, temperature, pressure, movement and expected service life
| Material | Main Strength | When to Consider |
|---|---|---|
| Fluorosilicone / FVMQ | Fuel and oil resistance with silicone-like temperature flexibility | Fuel systems, aerospace and selected automotive sealing |
| Silicone | Wide temperature flexibility and low-temperature performance | General high- and low-temperature sealing without severe fuel exposure |
| FKM | Broad chemical, fuel and high-temperature resistance | Aggressive fluids, higher-temperature and demanding chemical environments |
| NBR | Oil, grease and fuel resistance with cost efficiency | General oil and hydraulic sealing |
| EPDM | Water, steam, ozone and weather resistance | Outdoor, water and hot-water applications |
Fluorosilicone vs. Silicone
Fluorosilicone is usually considered when standard silicone does not provide enough fuel or oil resistance. Silicone may still be the better choice when fuel exposure is not present and the main requirement is temperature flexibility at a lower material cost.
Fluorosilicone vs. FKM
FKM may provide broader chemical and high-temperature resistance. Fluorosilicone may be preferred when low-temperature flexibility, lower-density sponge construction or silicone-like compliance is more important.
Fluorosilicone vs. NBR
NBR is often a cost-effective choice for oil, grease and hydraulic applications. Fluorosilicone may justify its higher material cost when fuel exposure is combined with large temperature changes or aerospace requirements.
Fluorosilicone vs. EPDM
EPDM is often preferred for water, steam, ozone and outdoor weathering. Fluorosilicone is more relevant when fuel or oil resistance is a primary requirement.

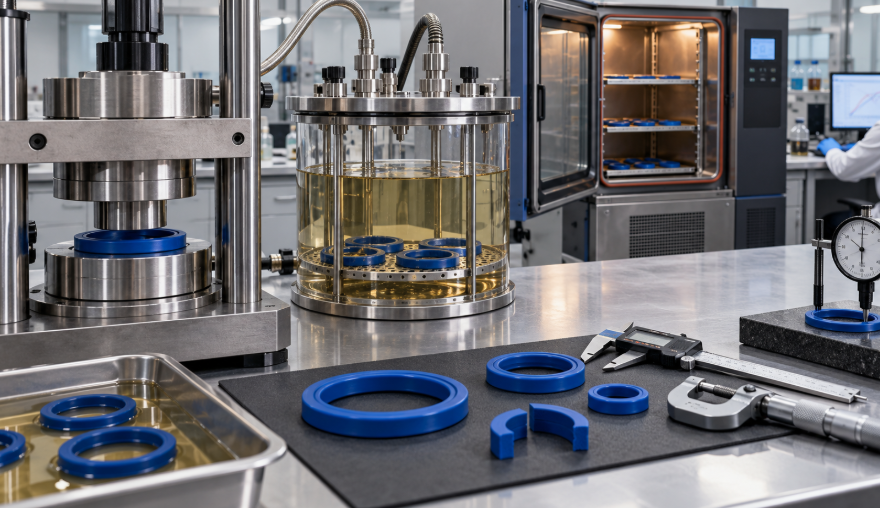

How We Verify FVMQ for Fuel and Temperature-Cycling Applications
Fluorosilicone gasket performance depends on how the FVMQ compound behaves after contact with fuel, oil and changing temperatures. Our application review focuses on the specific conditions that make fluorosilicone different from standard silicone, NBR and other elastomers
Fuel and Oil Exposure
The selected FVMQ compound is reviewed against the actual fuel, oil, lubricant or hydrocarbon fluid. The main concerns are swelling, softening, loss of flexibility and changes in sealing contact.
Swelling and Volume Change
Fuel and oil exposure can affect the volume and shape of an elastomer. The gasket design and compound direction should be reviewed to reduce the risk of excessive swelling, dimensional change or interference with the mating component.
Temperature-Cycle Flexibility
The gasket should remain sufficiently flexible during repeated heating and cooling. The review focuses on whether the FVMQ material can maintain sealing contact after temperature changes rather than only its maximum temperature rating.
Compression Recovery
For static sealing, the gasket must maintain contact pressure after compression. Compression recovery is reviewed together with the sealing gap, assembly force and expected temperature exposure.
Low-Temperature Sealing
Aerospace and automotive fuel systems may experience low-temperature conditions. The FVMQ gasket should remain flexible enough to follow the sealing surface and avoid loss of contact when the system cools.
Conductive FVMQ and EMI Requirements
For electrically conductive fluorosilicone gaskets, fuel resistance, compression and EMI shielding must be considered together. Electrical performance should be confirmed according to the required shielding and grounding design.
Frequently Asked Questions About Fluorosilicone Gaskets
Fluorosilicone is considered when the gasket needs silicone-like temperature flexibility together with improved resistance to fuels, oils and selected hydrocarbon fluids
It can be suitable for selected aerospace fuel-system sealing applications, especially static or low-movement seals. The fuel type, temperature range and compound must be reviewed before production.
Neither material is universally better. FKM may be preferred for broader chemical and high-temperature resistance, while fluorosilicone may be preferred when fuel resistance must be combined with silicone-like low-temperature flexibility
Yes. We manufacture custom fluorosilicone gaskets in solid, sponge, die-cut, molded and conductive constructions according to the application.
Electrically conductive FVMQ may be considered when fuel or oil resistance and EMI shielding are both required. The conductive compound and shielding requirements must be confirmed together
Fluorosilicone is generally more suitable for static or low-movement sealing. Continuous sliding, high abrasion and high-friction applications require a separate material and design review
The most important information concerns the fuel or oil type, temperature cycle, static or dynamic use, swelling risk, compression conditions and EMI requirements where applicable
