Polyacrylate (ACM) O-Rings: The 150°C Hot Oil Solution
Caught in the awkward gap where standard NBR fails and FKM (Viton) is too expensive? Engineered for automotive transmissions and severe lubrication systems, our ACM and Low-Temp (LT-ACM) O-rings defeat heat hardening, resist sulfur-heavy EP lubricants, and keep your BOM costs under contro
Bridging the Gap Between NBR and Viton®
For powertrain designers and industrial fluid engineers, finding the right seal is a constant balancing act. You need high-temperature oil resistance, but you cannot afford to destroy your budget with premium fluoroelastomers.
RiseUp custom-molds polyacrylate o rings specifically to solve the 4 biggest headaches in high-temperature lubrication sealing:
• Defeating NBR “Heat Hardening”: When system temperatures hit 120°C – 150°C, [standard Nitrile (NBR)] bakes, becomes brittle, and cracks. ACM thrives in this exact thermal sweet spot. It delivers the continuous 150°C (300°F) hot oil resilience you need, at a fraction of the cost of [FKM (Viton)].
• Chemical Immunity to EP Lubricants: Modern high-performance engine and gear oils are packed with Extreme Pressure (EP) additives. The sulfur and phosphorus in these fluids will aggressively swell and degrade standard rubber. Our ACM matrix is chemically “allergic-proof” to these aggressive lubricant packages.
• The Low-Temp Balancing Act (LT-ACM): Standard ACM struggles in freezing conditions, causing cold-start leaks in winter environments. We offer specialized Low-Temperature ACM (LT-ACM) formulations that push flexibility down to -35°C, ensuring a perfect seal before the engine warms up.
• Rapid Lead Times & Flexible MOQs: ACM is a specialty compound that leaves many generic suppliers scrambling for raw materials. As a direct manufacturer, we maintain active ACM/LT-ACM raw stock. Whether you need a custom transmission cover profile or a non-standard O-ring size, we deliver rapid prototype tooling and flexible MOQs to keep your production line moving..

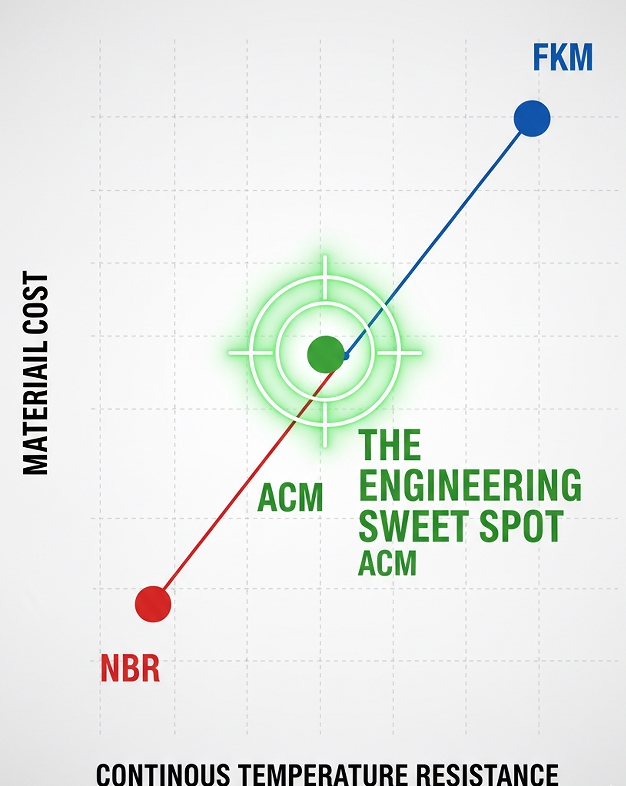

The Engineering “Sweet Spot”: NBR vs. ACM vs. FKM
When a standard Nitrile (NBR) seal fails in a 140°C transmission, many engineers panic and immediately specify Fluorocarbon (FKM / Viton®).
While FKM will certainly survive the heat, this “over-engineering” reflex is a massive waste of your Bill of Materials (BOM) budget. You are paying for 200°C resistance in a system that never exceeds 150°C.
Polyacrylate (ACM) is formulated to hit the exact engineering “sweet spot.” It acts as the ultimate financial and technical bridge between cheap, low-heat rubber and expensive, high-heat fluoroelastomers.
The ROI of Polyacrylate: Stop Paying for Over-Performance
Switching to custom polyacrylate o rings delivers an immediate strategic advantage for your procurement and engineering teams:
• Bridging the 120°C – 150°C Thermal Gap: NBR physically cross-links and hardens above 120°C (248°F). ACM easily handles continuous exposure to 150°C (300°F) oil, neutralizing the heat without breaking a sweat.
• Massive BOM Cost Reduction: FKM raw polymers are incredibly expensive. By specifying ACM for your 150°C hot-oil applications instead of defaulting to FKM, OEMs can often reduce seal procurement costs by 30% to 50%, saving hundreds of thousands of dollars in high-volume automotive production.
• Superior Chemical Stability over NBR: ACM vastly outperforms NBR in long-term oxidative stability and resistance to the sulfur/phosphorus Extreme Pressure (EP) additives found in modern transmission fluids.
Data-Driven Powertrain Dominance: Defeating ATF & EP Additives
Heat is only half the battle. In modern automotive applications, the chemical makeup of the lubricant is the real seal-killer. High-performance Automatic Transmission Fluids (ATF) and GL-5 hypoid gear oils are loaded with Extreme Pressure (EP) additives, specifically active sulfur, phosphorus, and amine-based friction modifiers (like ZDDP).
These chemicals attack the unsaturated double bonds in standard NBR rubber, causing secondary vulcanization (extreme embrittlement) or massive swelling. Our Polyacrylate (ACM) matrix features a fully saturated polymer backbone, rendering it chemically immune to these aggressive additive packages.
The ACM Performance Data in Severe Lubricants:
Automatic & CVT Transmissions (ASTM D471): Tested in modern ATF (e.g., Dexron VI) at 150°C for 168 hours, our ACM O-rings exhibit a highly controlled Volume Swell of < 5%. This guarantees precise hydraulic pressure without the seal binding or extruding.
• Hypoid Gear & Differential Seals (Tensile Retention): Exposed to sulfur-heavy API GL-5 gear oils at 150°C, standard NBR loses 70% of its strength. Our ACM compound retains > 85% of its original Tensile Strength, effortlessly surviving highly corrosive sulfur compounds.
• Engine Oil Pan & Crankcase (ASTM D395 Compression Set): After 70 hours of continuous compression at 150°C, our ACM matrix registers a Compression Set of < 25% (whereas NBR completely fails at >80%). Your engine seals maintain their critical rebound force for the entire life of the vehicle.
Engineering Transparency: The Chemical Achilles’ Heel of ACM
At RiseUp, we don’t just sell seals; we prevent catastrophic field failures. To do that, we must be radically transparent about Polyacrylate’s limitations.
The exact chemical structure that gives ACM its phenomenal hot-oil resistance—the abundant ester groups (-COO-) along its polymer backbone—is also its fatal flaw. These ester linkages are highly susceptible to nucleophilic attack by water molecules. This triggers irreversible hydrolysis (chain cleavage), turning a high-performance elastomer into a swollen, structurally compromised paste.
DO NOT specify standard Polyacrylate (ACM) O-Rings for:
•

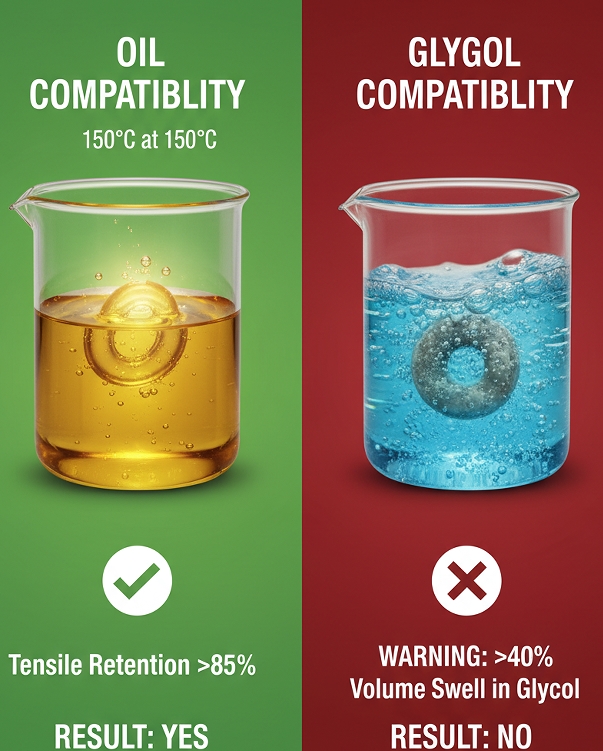

Engine Coolant / Antifreeze (Catastrophic Swell): Tested in a standard 50/50 Water-Ethylene Glycol mixture at 100°C for 70 hours, ACM exhibits a disastrous Volume Swell exceeding 40% and loses >75% of its original tensile strength. For radiator and coolant sealing, you must specify our [Peroxide-Cured EPDM].
• Brake Fluids (Rapid Dissolution): DOT 3, 4, and 5.1 brake fluids are formulated with highly polar polyalkylene glycol ethers. ACM will rapidly dissolve and disintegrate in brake fluid within hours. For master cylinders, EPDM is strictly required.
• Deep Cold “Glassy State” (Tg Failure): Standard ACM has a high Glass Transition Temperature. Its TR10 (Temperature Retraction) value typically bottoms out at -15°C (5°F). Below this threshold, the rubber chains freeze into a rigid “glassy state,” shattering under dynamic vibrations.
• The Solution: If your automotive application faces freezing winter conditions, you must explicitly specify our Low-Temp ACM (LT-ACM). By incorporating specialized low-temperature monomers, we push the TR10 dynamic flexibility down to a safe -35°C (-31°F).
Manufacturer Direct: Custom ACM Seals Without the Wait
Because Polyacrylate is a highly specialized elastomer, many generic catalog distributors struggle with raw material sourcing, leading to massive lead times and exorbitant Minimum Order Quantities (MOQs).
RiseUp is a direct-source elastomer manufacturer. We maintain active stockpiles of premium ACM and specialty LT-ACM raw gums. Whether you need a standard AS568 O-ring size for a pump, or a custom-molded, complex-geometry seal for a proprietary transmission cover, we deliver:
• ✔️ In-House Tooling: Rapid prototype molds completed in days, not months.
• ✔️ Flexible MOQs: Supporting both low-volume OEM testing and high-volume automotive production runs.
• ✔️ LT-ACM Formulations: Custom monomer blending to push your TR10 cold-start safety down to -35°C.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Polyacrylate (ACM) Deep-Dive Engineering FAQs
While both are excellent high-temperature elastomers, their polymer backbones differ.
AEM (Ethylene Acrylic) contains ethylene monomers, giving it superior low-temperature flexibility (down to -40°C) and higher absolute tensile strength. However, the trade-off is higher oil swell (AEM can swell 15-20% in IRM 903 testing oil at 150°C). ACM (Polyacrylate) has poorer extreme-cold flexibility but exhibits vastly superior oil resistance, typically maintaining < 5% to 10% volume swell under the exact same conditions.
No, not with our modern formulations. Historically, older ACM compounds utilized chlorine-based or soap/sulfur cure systems which could release free chlorides and cause severe pitting corrosion. RiseUp utilizes modern carboxylated monomer cure sites with chlorine-free diamine curing systems. This entirely eliminates the risk of shaft corrosion.。
Because ACM has a slightly higher dynamic coefficient of friction compared to NBR, hardware surface finish is critical. For reciprocating dynamic applications, the metal mating surface must be ground and polished to a roughness of
Ra 0.2 to 0.4 µm (8 to 16 µin). If the surface is too rough (Ra > 0.4 µm), the ACM will abrade quickly. If it is too smooth (Ra < 0.1 µm), it cannot retain a microscopic lubrication film, leading to severe stick-slip and frictional heat buildup.
Yes. As the automotive industry shifts to Electric Vehicles (EVs), Hybrid Dedicated Transmissions (DHT) and e-Axles utilize ultra-low viscosity fluids that double as dielectric coolants. Standard NBR can sometimes leach conductive carbon black into the fluid, causing electrical shorts. Our custom ACM compounds can be formulated to maintain extremely high volume resistivity while resisting the specific chemical makeup of modern dielectric e-Axle fluids operating at 140°C.
