Custom Large Silicone O-Rings: Overcoming the Physics of Macro-Sealing

When sealing diameters exceed 500mm, it is never just a “scaled-up” O-ring. The physics change entirely. We engineer custom massive silicone O-rings designed to solve the four critical failure modes of large-scale flanges: brittle glued joints, high CS-to-ID ratio sagging, tolerance accumulation (buckling), and polymer kinking. Get zero-tooling, hot-vulcanized giant seals shipped in days.

Massive Diameters Demand Advanced Polymer Engineering

Scaling up a large silicone o ring introduces compounding variables. Generic suppliers simply cut a cheap extrusion cord and use Cyanoacrylate (Super Glue) to bond the ends. This creates a rigid, brittle stress point that instantly snaps under the 1-3% stretch required for installation. Furthermore, they ignore the complexities of gland volume overfill and vertical retention.

RiseUp engineers giant silicone rings (up to infinite diameters) using advanced extrusion and vulcanization protocols. We specifically mitigate the 4 biggest installation nightmares:

Molecular Cross-Linking vs. Brittle Adhesives: We eliminate the $10,000+ cost of massive steel molds. Instead of cold glue, we utilize high-pressure hot vulcanization. By applying raw, uncured silicone polymer and heat to the splice, we force a molecular cross-linking reaction. The result? A joint that retains up to 90% of the parent material’s tensile strength and flexes naturally in the groove.
CS-to-ID Ratio & Vertical Gland Retention (Anti-Sagging): A 2000mm ID ring with a thin 5mm Cross-Section (CS) acts like a wet noodle. During vertical installation, gravity causes it to sag out of the flange. We help engineers optimize the Shore A durometer (e.g., upgrading to 70A) and calculate the precise stretch-interference fit for dovetail or half-dovetail grooves, ensuring the ring stays taut and perfectly seated.
Tolerance Accumulation & Gland Overfill (Zero Buckling): On a 3-meter perimeter, standard extrusion tolerances compound dangerously. If the perimeter is just 1% too long, it causes >100% gland volume fill, forcing the silicone to buckle, bunch up, or extrude under pressure. We utilize tension-free Pi-tape (π-tape) measuring in temperature-controlled environments to guarantee exact inner diameters that lay perfectly flat.
Minimum Bend Radius Transit (Anti-Kink): Silicone has lower tear resistance than other polymers. Folding a massive ring sharply causes micro-tears in the polymer matrix and permanent deformation (kinks). We strictly calculate the minimum bend radius for shipping, utilizing “figure-eight” coiling and oversized corrugated drums to ensure zero stress concentration during transit.

The Engineering Dilemma: Custom Molding vs. Hot Vulcanization

When specifying a 1,500mm or larger silicone o ring, engineers face a critical cost-benefit analysis. A monolithic compression mold guarantees uniform properties but carries crippling NRE (Non-Recurring Engineering) tooling costs and 8-12 week lead times. RiseUp provides a transparent decision matrix:

When to Mold: High-volume production runs (1,000+ pieces) where the amortized tooling cost per unit becomes negligible, or for dynamic/rotary seals facing extreme multidirectional shear forces.
When to Hot-Vulcanize (Our Specialty): Low-to-medium volume MRO or OEM runs (1 to 500 pieces) requiring massive diameters (500mm to ∞). You achieve zero tooling fees, rapid 3-7 day prototyping, and static sealing performance identical to a molded ring.

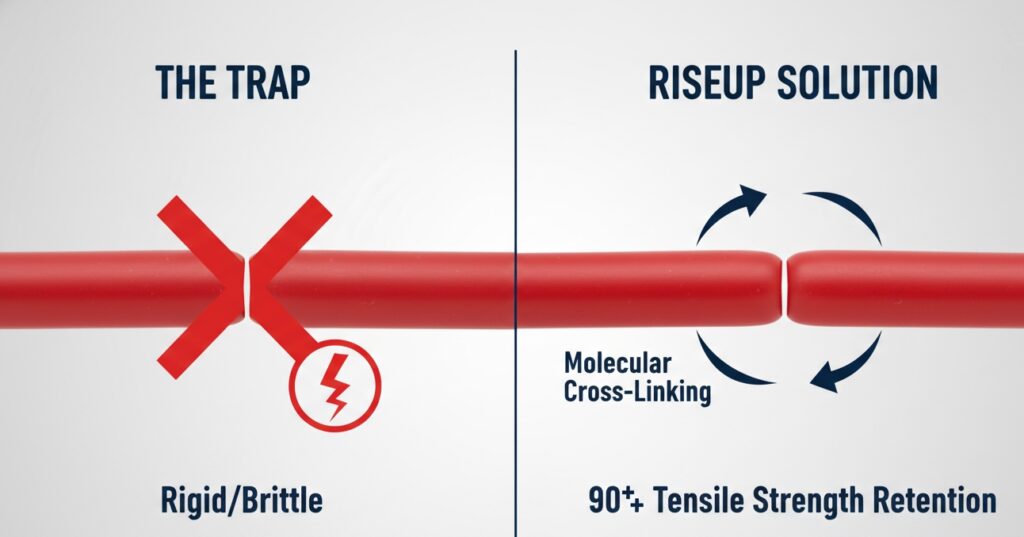

The Physics of Molecular Fusion (Why Our Joints Never Snap)

The industry’s dirty secret is “cold gluing.” Generic suppliers apply Cyanoacrylate (super glue) to the cord ends. Glue does not bond rubber; it simply sits on the surface, creating a brittle, rigid dead-zone that snaps instantly under the >100% Elongation at Break required to install a giant ring.

RiseUp utilizes High-Pressure Hot Vulcanization. We load the precisely cut ends into a heated die with uncured, raw silicone polymer of the exact same batch. Under high temperature and clamping pressure, a molecular cross-linking reaction occurs. The raw polymer chemically fuses the matrix together. The resulting joint is seamless, fully flexible, and retains 90%+ of the parent cord’s tensile strength. It stretches naturally into your dovetail groove without snapping.

MOQ 100 pcs, Accept Customization for Small Order. Design Products as Your Idea.

Advanced Polymer Matrix for Macro-Environments

Giant infrastructure faces extreme environments. Standard commercial rubber degrades rapidly. We stock premium, master-batched extrusion cords ready for immediate giant-ring vulcanization:

• Aerospace & Defense (Fluorosilicone / FVMQ): Need a 3-meter ring that stays flexible at -60°C but won’t swell when exposed to jet fuel and synthetic lubricants? Our [Blue FVMQ giant rings] are the ultimate macro-seal for aviation fuel tanks and heavy machinery fluid containment.
• Pharmaceutical & Bioreactors (FDA / Platinum-Cured): Fermentation tanks and giant food sterilizers demand absolute purity. We vulcanize giant translucent silicone rings in strict clean-room protocols to guarantee zero toxic outgassing and absolute USP Class VI / FDA compliance.
• Heavy Duty Industrial (Red VMQ 70A): The indestructible workhorse. Heat-stabilized to withstand continuous 230°C (446°F) baking without losing its compression set. Perfectly tailored Shore A hardness prevents vertical sagging on massive commercial doors and vacuum ovens.

Stop Guessing on Giant Flanges: Initiate Your Macro-Seal Engineering Review

Do not let a $10,000+ steel mold or the fear of a snapped cold-glued joint stall your critical infrastructure project. Sealing a 2-meter vacuum chamber or a massive pharmaceutical tank requires precise elastomeric math, not just “a bigger piece of rubber.”

Bring us your most challenging flange or dovetail groove dimensions. Our elastomer engineers will bypass the generic quoting process and provide a concrete, 3-step engineering solution tailored to your massive seal:

Step 1: Gland Geometry & Stretch Calculation: You provide the groove dimensions; we calculate the optimal inner diameter (ID) and tension ratio. This ensures strict negative interference, completely eliminating vertical sagging and perimeter buckling.

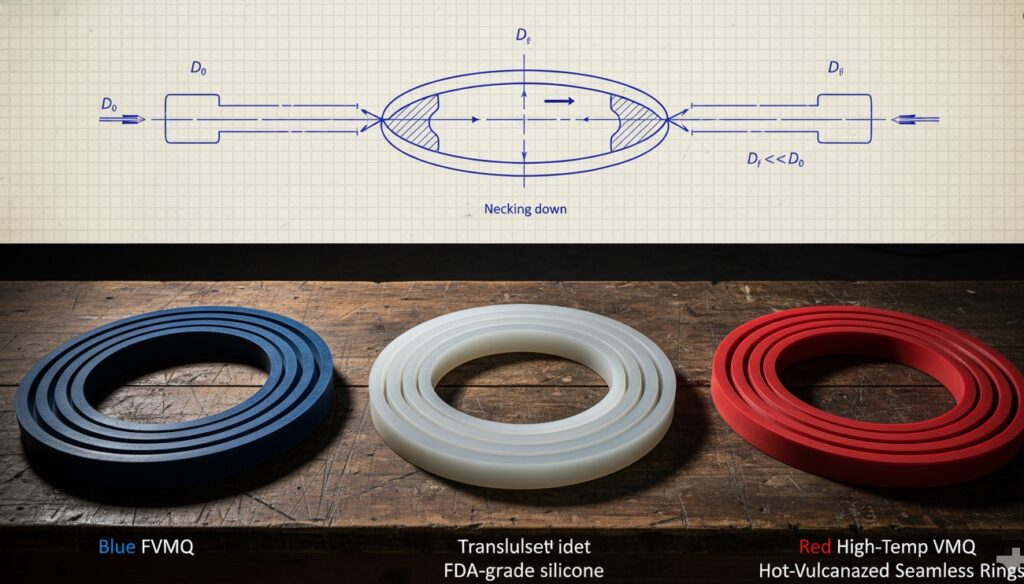

Step 2: CS Thinning (Necking) Compensation: We apply elastomeric volume calculations to factor in Poisson’s ratio. We guarantee your final cross-section will hit the perfect 15-25% radial squeeze after the ring is stretched onto the flange.
Step 3: Polymer Protocol & Molecular Fusion: Based on your media (vacuum, jet fuel, or sterile food-grade), we specify the exact compound (FVMQ, FDA, or VMQ 70A) and execute high-pressure hot vulcanization for an unbreakable, 90%+ strength joint.
