T-Profile Extrusions & Locking Seals: The Mechanical Anchor Solution
The End of Adhesive Failures.

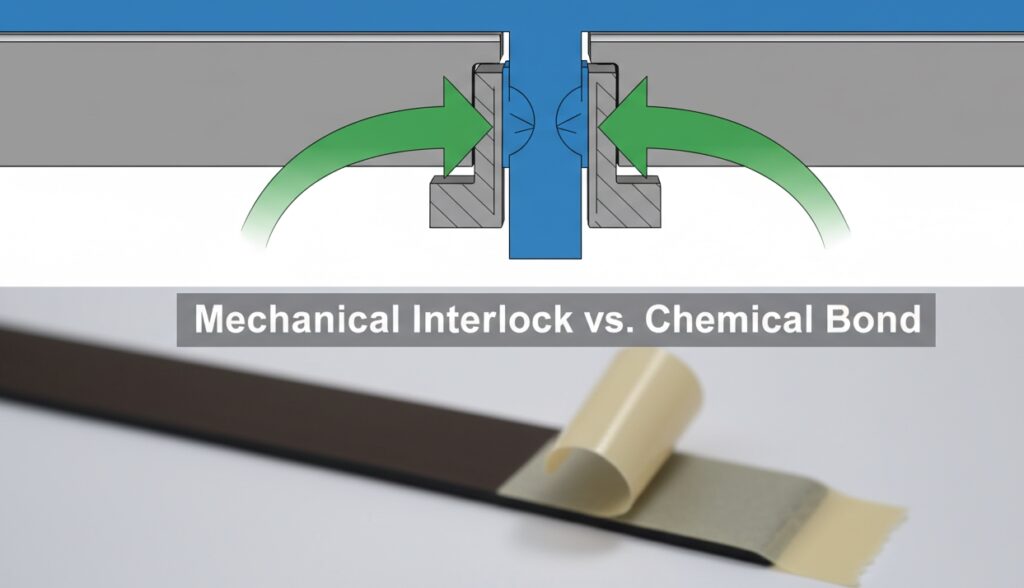

Adhesive tapes degrade over time. Glue gets messy. When you need a seal that stays in place under vibration, temperature shifts, and heavy washdowns, you need a Mechanical Lock.
At RISEUP, T-Profile extrusions that anchor themselves. By utilizing the geometry of your hardware’s T-slot, our seals provide a secure, removable, and chemical-free retention system. Whether you are sealing a commercial weigh scale, a cleanroom window, or an outdoor enclosure, our T-Seal bridge the gap between structure and sealing.
Why Switch to T Seals?
• Zero Adhesive Required: Eliminates the risk of glue failure due to heat or solvents.
• Serviceability: Seals can be easily pulled out and replaced during maintenance without scraping off old glue residue.
• Structural Integrity: The “Stem” anchors the seal, while the “Bulb” accommodates gap variations.

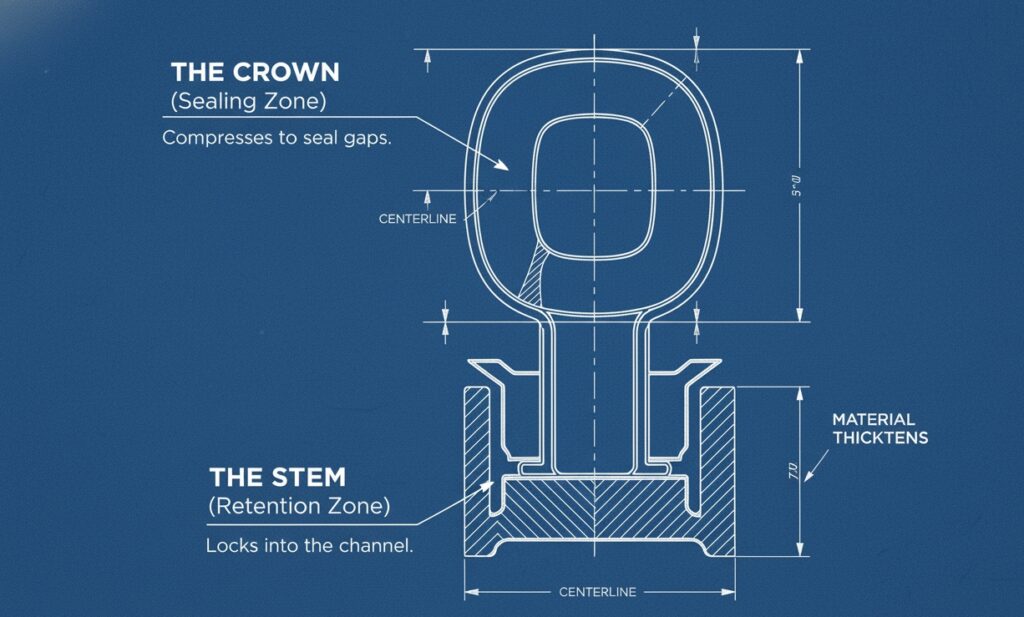

Anatomy of a T Gasket: Engineering the Perfect Fit
Two Functions, One Extrusion.
A T-Profile is not a single block of rubber; it is a two-part system performing distinct functions. We optimize each zone for your specific hardware.

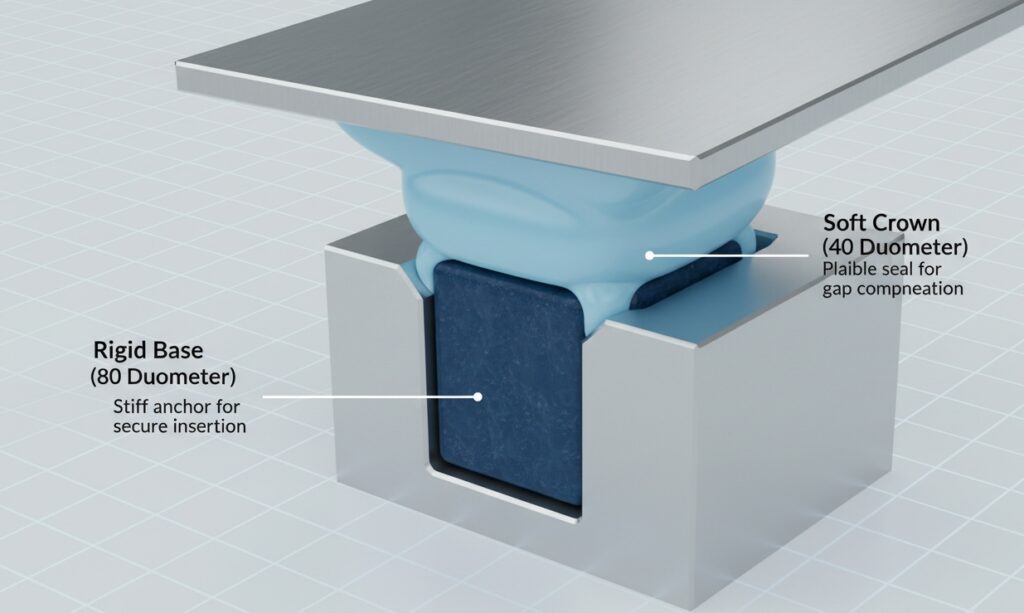

Dual Durometer Co-Extrusion: The Best of Both Worlds
Why Compromise? Get Rigid Anchoring AND Soft Sealing.
In traditional extrusion, you have to choose a single hardness (Durometer). If the rubber hardness is too soft, the stem falls out of the groove. If tthe hardness too hard, the top won’t seal against uneven gaps. We solve this by fusing two distinct materials into one seamless profile.
1. The Rigid Base (70-80 Shore A)
• Function: Acts as the “skeleton.”
• Benefit: The high-durometer stem provides sufficient stiffness to be pushed into the T-slot without buckling. Once inserted, it exerts strong outward pressure against the channel walls, ensuring the seal never pulls out during operation.
2. The Soft Crown (40-50 Shore A)
• Function: Acts as the “gasket.”
• Benefit: The low-durometer top is ultra-compliant. It compresses easily with minimal force, conforming to warped doors, rough surfaces, or variable gaps, ensuring a watertight/airtight seal even under light loads.
3. Chemical Bonding
• Reliability: These are not two pieces glued together. They are Co-Extruded and cross-linked at the molecular level during the curing process. They will never delaminate or separate.
Surface Engineering: Low-Friction Coatings
Eliminate Stick-Slip and Squeaking.
Rubber naturally has a high coefficient of friction, which causes “stick-slip” (stuttering movement), wear, and noise in dynamic applications like sliding doors or weigh scale surrounds. We apply advanced surface treatments to transform grippy rubber into a smooth-gliding interface.
1. The Friction Problem
• Issue: In wiper blades or sliding seal applications, untreated rubber drags against the mating surface. This increases motor load, generates heat, and causes the seal to tear or roll out of the groove.
2. Our Coating Solutions
• Spray-On PTFE / Silicone Resin: A thin, permanent layer applied inline during extrusion. It reduces the coefficient of friction by up to 70%.
• Parylene Coating: For medical and precision electronics. A vapor-deposited vacuum coating that creates a pinhole-free barrier, making the seal ultra-slick and chemical resistant.
3. Benefits Beyond Gliding
• Noise Reduction: Eliminates the annoying “squeak” of rubber rubbing against metal or glass.
• Cleanliness: Replaces messy talc or graphite powders. Perfect for food processing and optical environments where dust is unacceptable.
• Wear Resistance: The coating acts as a sacrificial shield, protecting the rubber substrate from abrasion.
Custom T Rubber Seal Fabrication: Spliced Frames & Corners
Don't Cut Corners. Vulcanize Them.
We have our own molding workshop,we can customize the t shape rubber molding,buying linear footage is fine for straight runs, but cutting and gluing corners by hand creates weak points where water and dust intrude. We transform linear T-shape weather strip into continuous, leak-proof Endless Gaskets and Picture Frames.

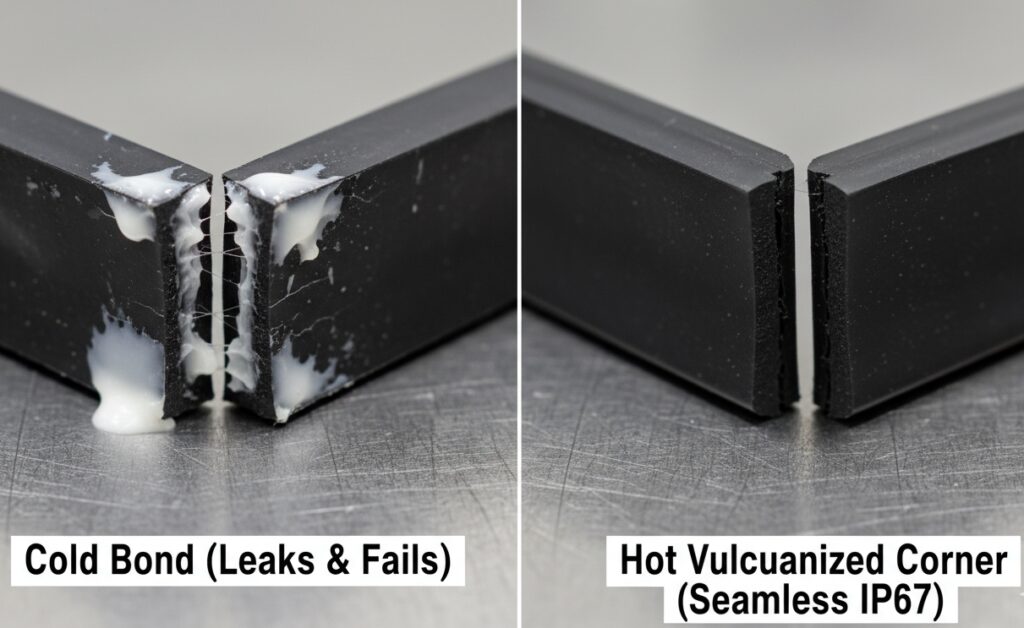

1. Hot Vulcanized Splicing
• The Process: We don’t use superglue. We place the cut ends into a heated mold and inject fresh uncured rubber. Heat and pressure fuse the ends together at the molecular level.
• The Result: The corner joint becomes as strong as the rest of the seal. It offers IP67/IP68waterproof protection, essential for outdoor control boxes and washdown environments.
2. “Picture Frame” Gaskets
• Ready-to-Install: Instead of measuring and cutting on the assembly line, your team receives a finished rectangular gasket that drops perfectly into your channel.
• Savings: Reduces installation time by 80% and eliminates scrap waste from cutting errors.
3. Custom Shapes
• Beyond 90 Degrees: We can fabricate T-Seals into circles (O-rings), irregular polygons, or U-shapes to match complex equipment housings.
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Fit Guide: Measuring for the Perfect Lock
The Difference Between "Fitting" and "Functioning".
For a t shape rubber seal strip to work effectively, it must have an Interference Fit with your hardware. If the stem is exactly the same size as the groove, it will slide out. Follow this guide to measure your channel before ordering.

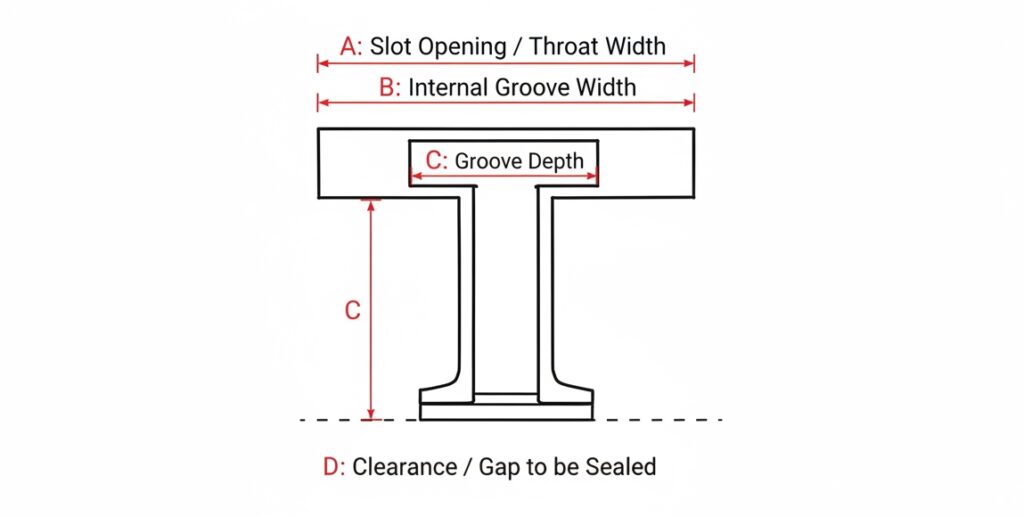

1. Critical Dimensions to Measure
• A – Throat Width: The narrow opening at the top of the channel.
• B – Groove Width: The internal width at the bottom of the channel.
• C – Groove Depth: How deep the channel is.
• D – Compression Gap: The distance between the metal surface and the mating part (e.g., the door or window).
2. The 10% Interference Rule (Engineering Tip)
• The Stem: To ensure a secure mechanical lock, the rubber stem width should be 5% to 10% wider than your Groove Width (Dimension B). The rubber will compress as it is inserted, creating the necessary friction to hold it in place.
• The Bulb: The seal height should be 25% to 50% taller than your Compression Gap (Dimension D) to ensure adequate deflection and a tight seal.
3. Standard vs. Custom Tooling
• We stock over 500 standard die shapes. Send us your measurements (A, B, C, D), and we will match you with an existing tool to avoid setup fees. If no match exists, we can cut a custom die in 3-5 days.
Technical FAQ: Expert Answers on Installation
Q: Can rubber t seal be bent around corners? A: Yes. The “stem” design allows for a certain bend radius. However, for sharp 90° corners, bending causes the profile to buckle or pull out. For tight corners, we recommend our Vulcanized Picture Frames (Section 5) for a guaranteed seal.
• Q: Which material is better: Silicone or EPDM? A: Choose EPDM for outdoor t shape weather stripping resistance (UV/Ozone) and water sealing. Choose Silicone for high temperatures (+200°C), food contact (FDA), or if you need vibrant colors.
• Q: How do I install the t seal gasket? Do I need tools? A: No adhesive is needed. For long runs, we recommend using a Roller Tool to press the seal evenly into the groove. We can supply these tools with your order.
• Q: My slot is non-standard. Can you make a custom stem? A: Absolutely. We can cut a custom extrusion die for a nominal fee (usually under $300) and have samples to you in roughly 1 week.
Don't Guess. Test the Fit First.
Drawings are great, but physical testing is better. Request our Universal T-Seal Fit Kit.such as t shaped door seal,t shaped weather strip, For example it contains 10 short samples with varying stem widths and bulb shapes. Find the one that snaps perfectly into your channel before you order a full spool.
