Custom Buna-N Rubber Grommets for Oil-Exposed Applications
Custom sizes for your cable, panel, and groove requirements
NBR material support for oil-exposed and industrial applications
Sample-to-production support for custom grommet project

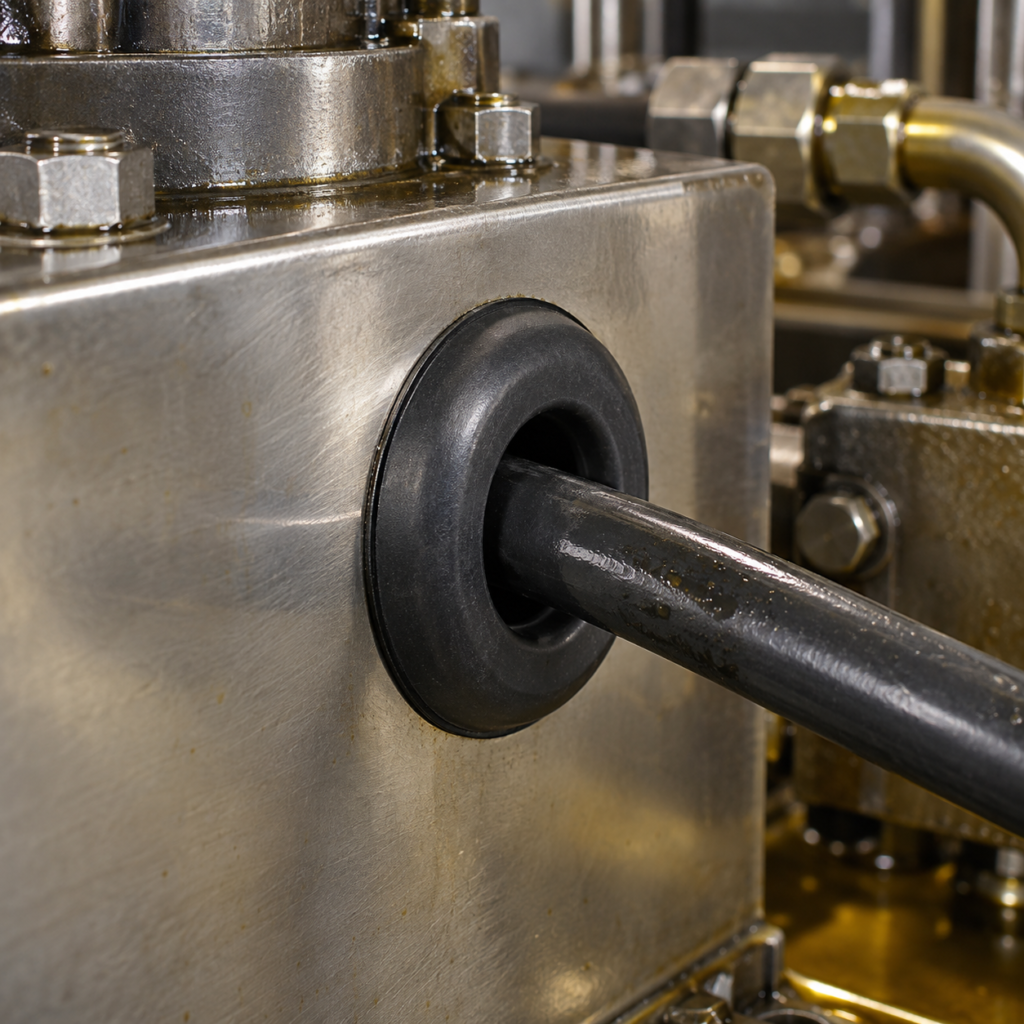

Why Buna N Rubber Grommet Perform Well in Oil-Contact Areas
Buna-N rubber grommet perform well in many oil-contact areas because the NBR material has better resistance to swelling and softening than general-purpose rubbers when exposed to petroleum-based fluids. In practical use, this helps the grommet keep its shape and stay seated more reliably when exposed to mineral oil, hydraulic oil, gear oil, machine oil, or grease.
The structure of the grommet is also important. The flange, body thickness, and compression fit help the part stay locked in the panel opening instead of moving or loosening over time. The smooth inner bore protects the cable, wire, hose, or tube from sharp panel edges. When the hardness and tolerance are controlled correctly, the part can maintain a stable fit in oily equipment without excessive deformation.
For custom projects, we can adjust the inner diameter, outer diameter, groove size, flange shape, wall thickness, and compression level according to your panel size, panel thickness, and installation clearance. This allows the grommet to match your assembly more accurately and gives you more control over the final fit.
What Can Be Customized in a Nitrile Rubber Grommets?
A Buna-N rubber grommet can be customized to match the exact panel opening, cable size, and installation condition of your project. We can adjust the inner diameter, outer diameter, groove size, flange shape, wall thickness, compression level, and hardness so the part fits your assembly more accurately.
This is especially important when the grommet is used in oil-contact equipment, because a loose fit can lead to movement, leakage paths, or poor cable protection. A properly matched design helps the part stay seated in the panel, protect the edge of the opening, and support more stable installation performance.
If you already have drawings, samples, or an existing part, we can evaluate the structure and recommend a more suitable Buna-N grommet design for your application.
Why You Choose Nitrile Grommet?
Buna-N rubber grommets are a practical choice because they offer a strong balance of oil-contact performance, shape stability, installation reliability, and overall cost. In many industrial and automotive projects, NBR provides the performance level needed for oil-exposed applications without driving the material cost too high.
That makes it a good option when you want dependable cable or hose protection, but also need to control total project cost. The grommet stays seated in the panel, helps protect the opening, and supports stable assembly performance, while still being a cost-efficient material choice compared with some higher-priced elastomers.
For custom projects, we can tune the hardness, structure, and dimensions to match your panel and installation requirements, helping you get the right performance without paying for unnecessary material over-specification.

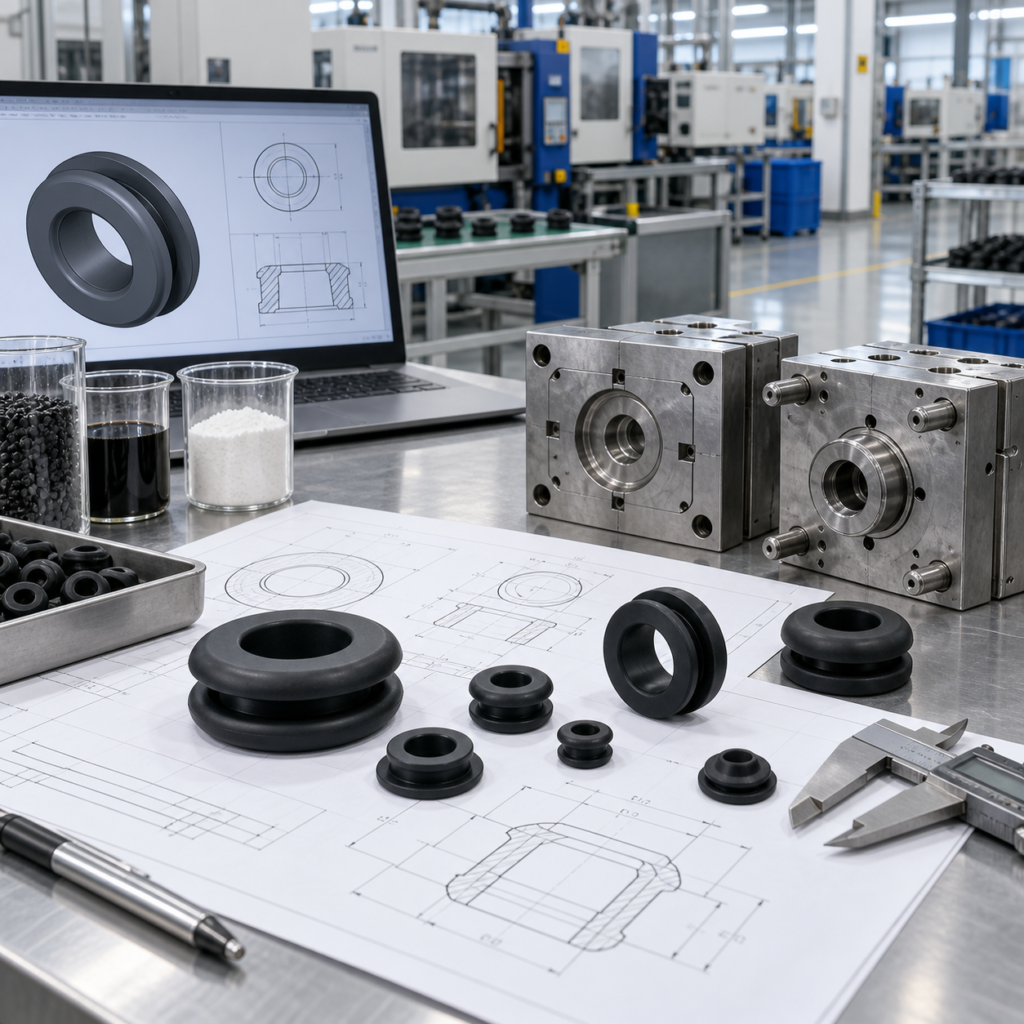

How We Support Custom Nitrile Rubber Grommet Development?
We support custom Buna-N rubber grommet projects in two different ways.
If you already have drawings or samples, we can review the dimensions, fit, material suitability, and installation conditions first. From there, we help confirm whether the structure is workable, suggest adjustments if needed, and move the project toward sample making and production with more confidence.
If you do not have drawings or samples, but you already know the application idea, installation space, or performance target, we can still help turn that concept into a real part. In that case, we work with your cable size, panel thickness, opening shape, compression needs, and working environment to define a practical grommet structure, then develop it step by step until it is ready for testing and production.
We also evaluate whether Buna-N is the right material for the application. If the working condition needs better oil resistance, heat resistance, compression recovery, or aging resistance, we can review whether a special compound adjustment is needed to improve the part’s performance. This helps ensure the final design is not only manufacturable, but also suitable for the actual service environment.

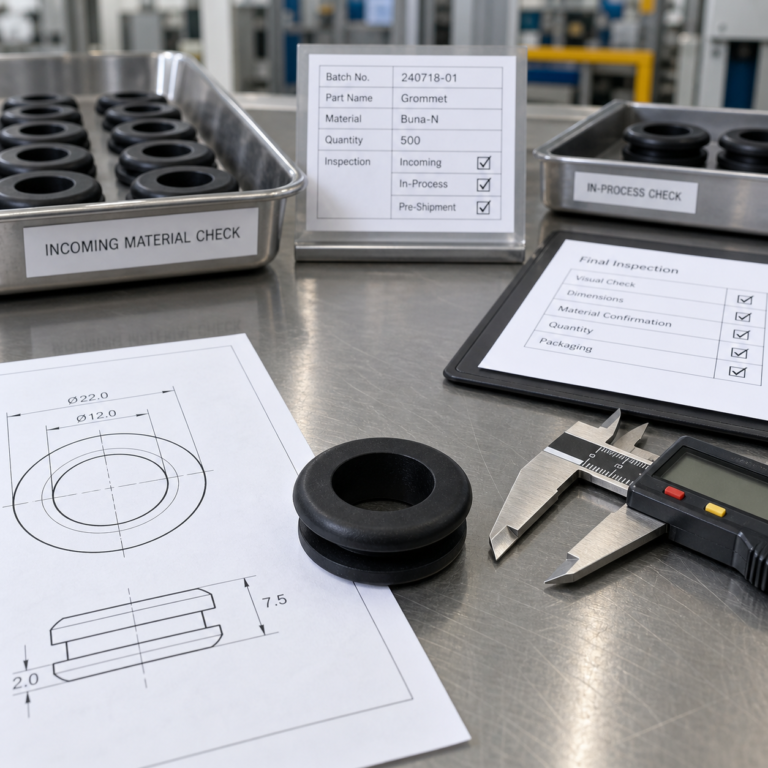

How We Ensure Quality Before Your Goods Shipment?
We use a standardized quality control system and a clear production process to help ensure Buna-N rubber grommet quality before shipment.
First, incoming raw materials are checked against the material report and internal inspection requirements before they are released into production. During production, we carry out in-process sampling checks to confirm that the parts stay within the approved dimensions and appearance standard. Before packaging, we also perform another sampling inspection to reduce the risk of nonconforming parts entering shipment.
For bulk production, we can prepare bulk samples for customer testing and confirmation when needed. This gives the customer a chance to verify fit, function, and application performance before the full order is shipped. We can also keep batch records and inspection reports for traceability, which helps customers review the production history and quality status of each order.
Why Choose Us Custom Buna-N Rubber Grommets For You?
Our team supports custom Buna-N rubber grommet projects with a practical, project-driven workflow.
First, our material engineers evaluate whether Buna-N is suitable for the current working condition and whether a special compound adjustment is needed to improve properties such as oil resistance, heat resistance, or aging resistance.
Second, our structure engineers and designers review the part design itself. They can suggest improvements to the geometry, support mold development, and help turn the concept into sample parts that are ready for testing.
Third, we are a custom rubber factory with 20 years of experience. That means we are used to converting material ideas and application concepts into stable, manufacturable, and production-ready parts.
Fourth, our sales team understands both the product and the business side of the project. This makes communication smoother, faster, and more focused on solving the actual problem.

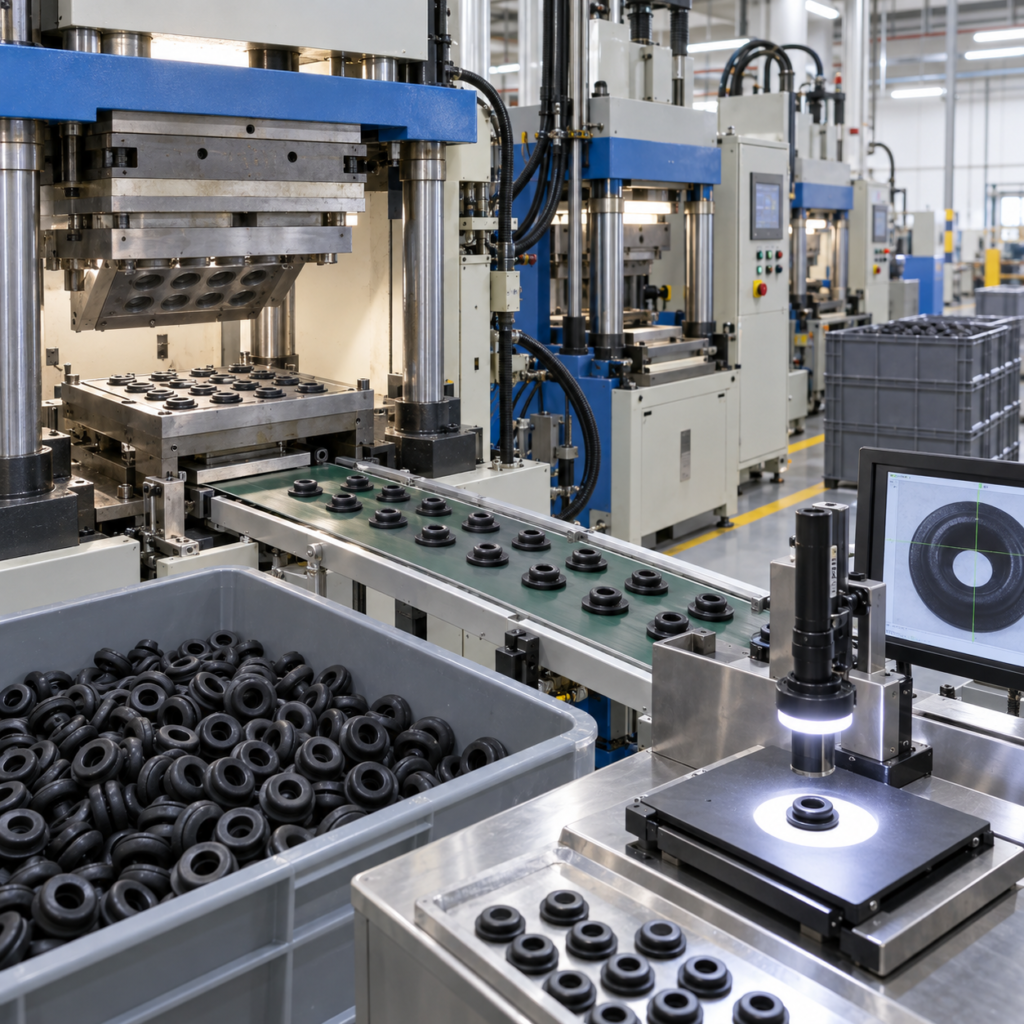

How We Keep Buna-N Grommet Production Stable?
Stable production depends on more than just a good sample. For custom Buna-N rubber grommets, we control several key points to make sure the final order stays consistent from trial to mass production.
First, the molding process must be stable. We define the process window for temperature, pressure, cycle time, and curing condition, so the part can be produced with repeatable shape and fit. If the process starts to drift, our team adjusts the parameters and checks the result before continuing production.
Second, raw material consistency matters. We control incoming material, compound preparation, and batch use so the formula stays stable across production. For special compound projects, the formulation must also remain consistent once the approved properties have been confirmed.
Third, personnel and workflow stability also matter. A clear production flow, trained operators, and coordinated order handling help reduce mistakes and keep each step aligned with the approved requirement.
In short, stable production comes from stable process control, stable material control, stable formula control, and stable internal coordination. That is what allows us to keep custom Buna-N grommet orders consistent from sample to shipment
Where Buna-N Rubber Grommets Are Used?
Buna-N rubber grommets are used across several industrial fields where a cable, wire, hose, or tube passes through a panel and needs stable edge protection, fit, and resistance to oil-contact working conditions. The final page should retain the three core application scenes below

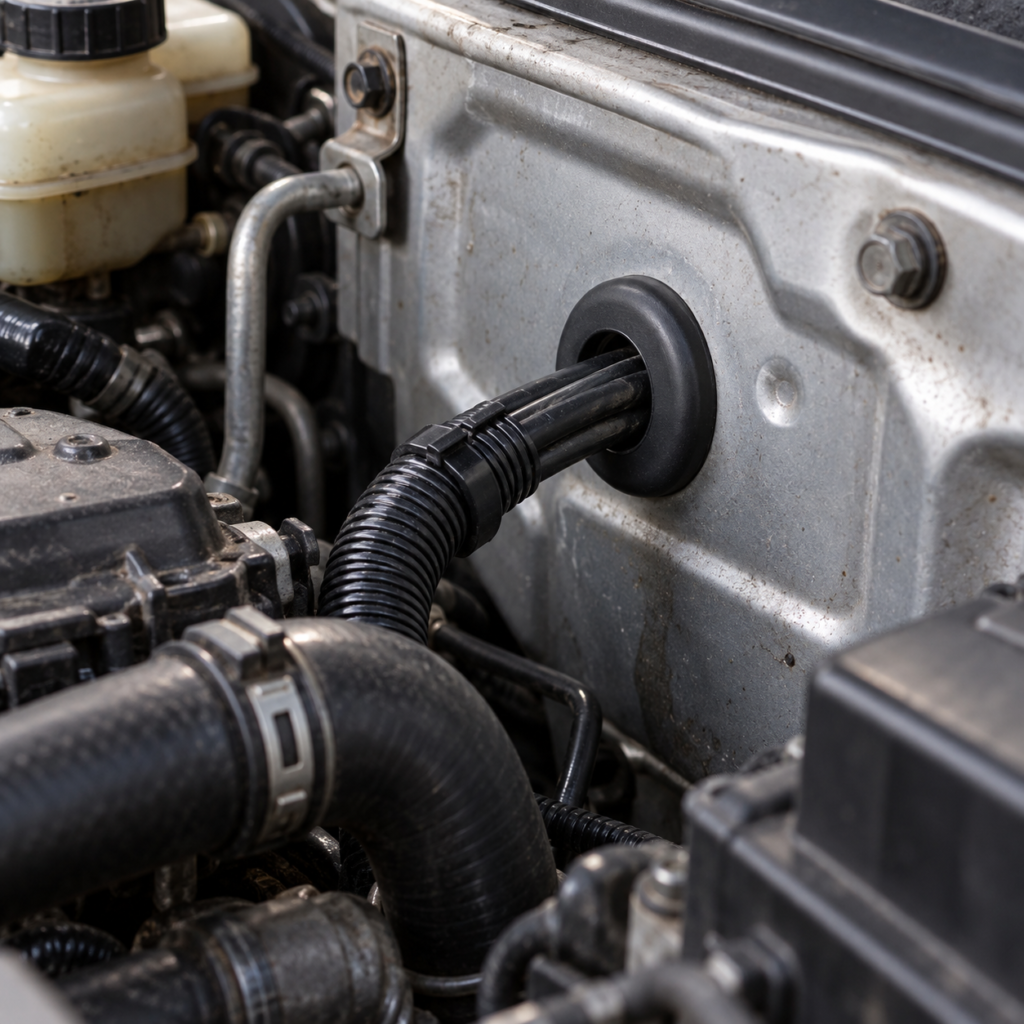

Automotive
In automotive assemblies, Buna-N rubber grommets are often used at cable pass-through points, engine-related openings, and body panel locations where the part may be exposed to oil, grease, heat, and vibration. The grommet helps protect the routed part from sharp edges while keeping the opening stable during service.

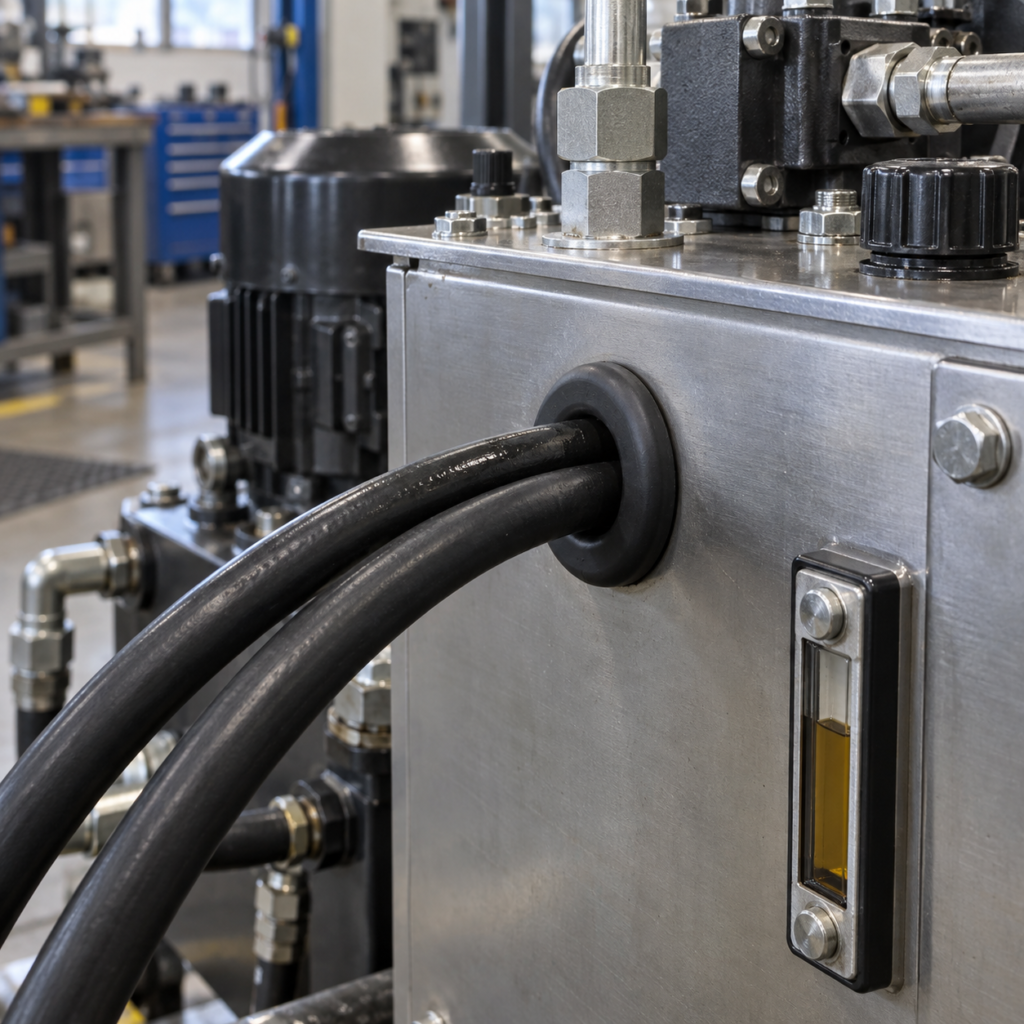

Hydraulic Equipment
In hydraulic equipment, the grommet is commonly used where hoses, tubes, or cables pass through metal panels or machine frames. Its role is to help maintain a stable fit while supporting edge protection in oil-contact environments.

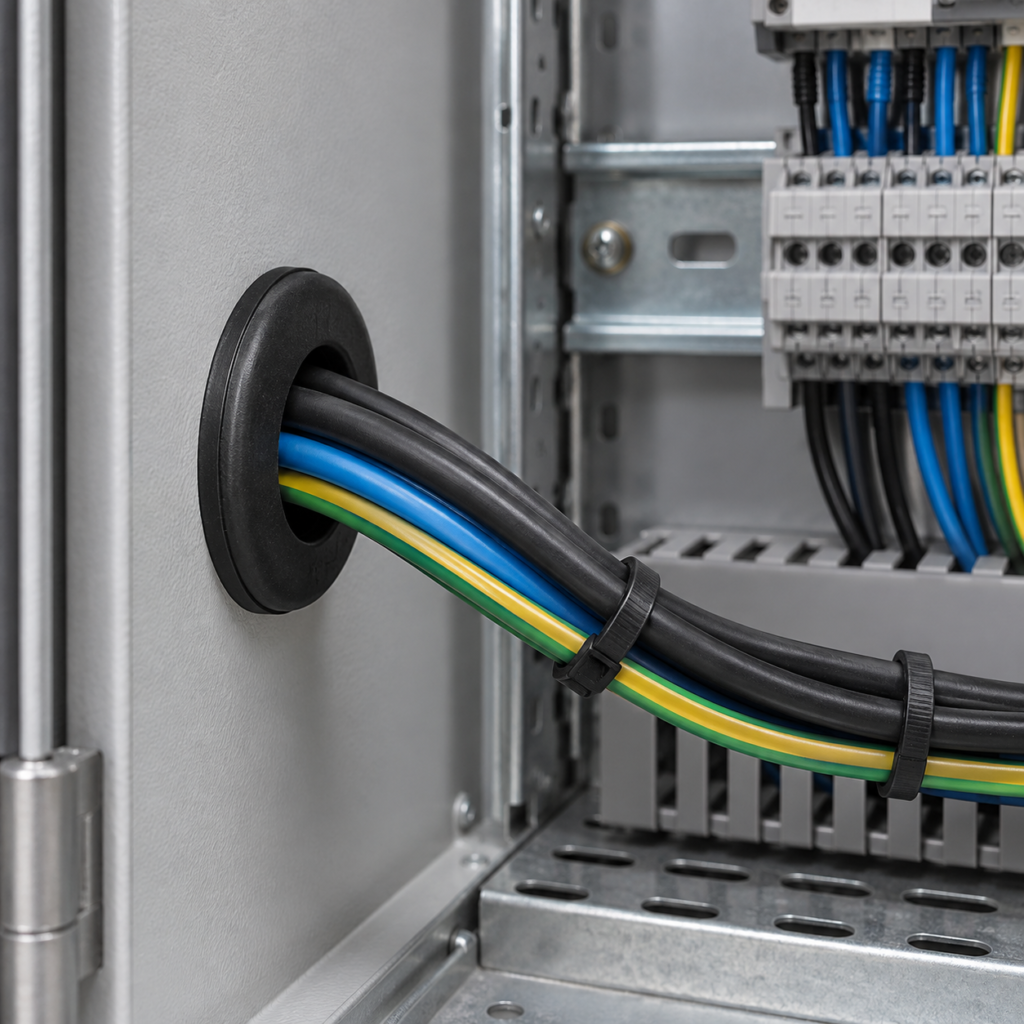

Control Cabinets
In control cabinets and electrical enclosures, Buna-N rubber grommets help protect wires and cables as they pass through metal or sheet panels. They help reduce abrasion at the entry point and keep the opening more stable in daily use.

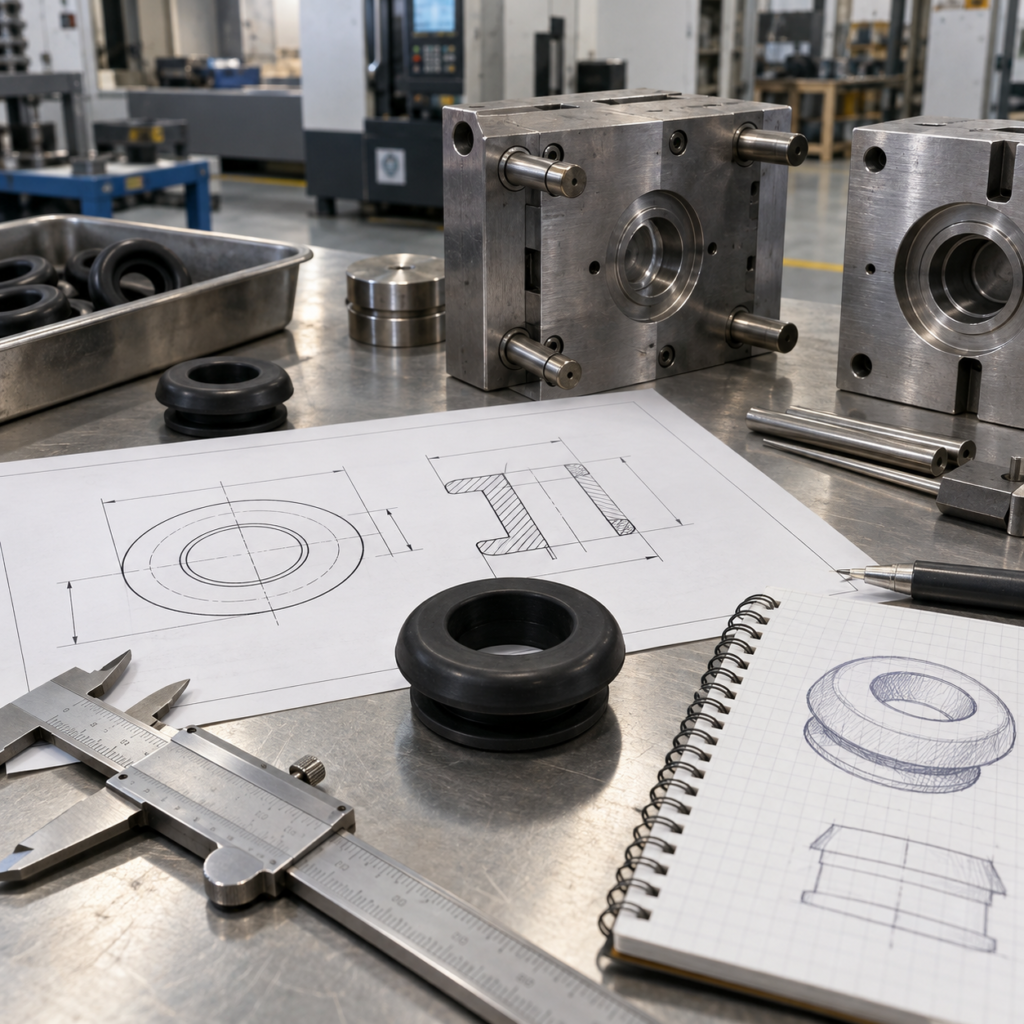

How to Start a Custom Buna-N Grommet Project?
A custom Buna-N rubber grommet project usually starts with your application needs, such as cable size, panel thickness, working condition, and target performance. If you already have a drawing or sample, we can review the structure, check the fit, and evaluate whether Buna-N is the right material for the job.
If you only have an idea, that is also enough to begin. Our team can help define the part step by step by reviewing the installation space, opening shape, compression molding requirement, and oil-contact condition. From there, we can suggest the structure, material direction, and any compound adjustment that may be needed before sample making.
After the structure is confirmed, we move to sample development, customer testing, and final production approval. This ma
Buna-N Rubber Grommet Production Process
We follow the standard production process for your Buna N Rubber Grommet, you can confirm it below details
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
Frequently Asked Questions
We usually need the drawing, sample, cable size, panel thickness, working condition, and target quantity. If you do not have a drawing, you can still send us your application idea
Yes. We can review your application idea, installation space, and performance target, then help define a workable Buna-N grommet structure step by step
Yes. Our engineers can review the working condition and material suitability, and advise whether a compound adjustment or structural change is needed.
Depending on the project, we can support FAI, COA, COC, PPAP, inspection records, and batch traceability documents
We will review your requirements, confirm the material and structure direction, and then move into sample development or production planning
