Epdm O Ring Manufacturers In China
Custom EPDM O Rings engineered for reliable sealing performance in water, steam, outdoor, and industrial applications.
EPDM rubber O Rings provide outstanding resistance to weathering, ozone, UV exposure, and aging for long-term durability.
Certified Standards For Epdm O Ring
We offer EPDM O-Ring with material approval,customizable for diverse industry application
EPDM O Rings Specifications
| Item | Value |
|---|---|
| Material | EPDM |
| Hardness | 40-90 Shore A |
| Temperature | -50°C to 150°C |
| Color | Black, White, Custom |
| Standard | AS568, Metric, JIS |
| Certification | FDA, NSF61, WRAS |
Custom EPDM O-Ring
As a epdm rubber manufacturer in China, we can customize it base on your technical data sheet ,please see the below details:
Hardness:
We can custom the hardness from 30 shore A to 80 shore A,the tolence is -5 to +5, most of customers choosen the 60 shore A, because neither too hard nor too soft, it is suitable for matching a wide range of industrial products

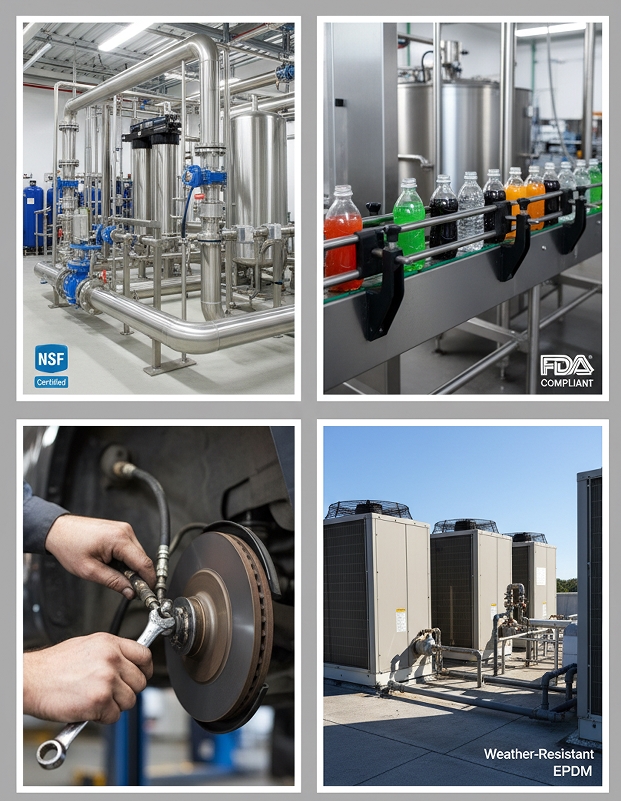

Applications of EPDM O-Rings
EPDM O-Rings for Water Systems
The Challenge:
Water treatment equipment, pumps, valves, and plumbing systems require sealing materials that can withstand continuous exposure to water, moisture, and disinfectants without degradation.
Why Choose EPDM:
EPDM O-rings offer excellent resistance to water, steam, chloramines, and aging. They maintain elasticity and sealing performance even in long-term wet environments.
Typical Applications:
- Water pumps
- Filtration systems
- Drinking water equipment
- Pipe fittings
- Irrigation systems
EPDM O-Rings for HVAC Equipment
The Challenge:
HVAC systems are exposed to temperature fluctuations, moisture, ozone, and outdoor weather conditions that can cause premature seal failure.
Why Choose EPDM:
EPDM provides outstanding resistance to ozone, UV radiation, and weathering while maintaining flexibility across a wide temperature range.
Typical Applications:
- Air conditioning units
- Heat pumps
- Cooling towers
- Ventilation equipment
- Refrigeration systems
EPDM O-Rings for Electrical Enclosures
The Challenge:
Outdoor electrical cabinets and control boxes require effective sealing against dust, moisture, rainwater, and environmental exposure.
Why Choose EPDM:
The excellent weather resistance and compression set properties of EPDM make it ideal for maintaining long-term environmental sealing performance.
Typical Applications:
- Electrical cabinets
- Junction boxes
- Outdoor control panels
- Telecommunications equipment
- Solar energy systems
EPDM O-Rings for Food & Beverage Processing
The Challenge:
Food processing systems require sealing materials that can withstand hot water, steam cleaning, and frequent washdown procedures while meeting food-contact regulation
Why Choose EPDM:
FDA-compliant EPDM compounds offer excellent resistance to steam, cleaning chemicals, and high-temperature sanitation processe
Typical Applications:
- Beverage filling equipment
- Dairy processing systems
- Food production lines
- CIP cleaning systems
- Packaging machinery
EPDM O RIngs for Brake Fluid
The Challenge:
Brake systems operate under high temperatures and continuous exposure to glycol-based brake fluids that can damage many rubber materials
Why Choose EPDM:
EPDM is the industry-standard elastomer for DOT 3, DOT 4, and DOT 5.1 brake fluids, providing excellent chemical compatibility and long-term reliability.
Typical Applications:
- Brake master cylinders
- Brake calipers
- Brake fluid reservoirs
- Hydraulic brake systems
- Clutch hydraulic systems
EPDM O-Ring Standard Size Chart
| Standard | Available |
|---|---|
| AS568 | Yes |
| Metric O Rings | Yes |
| JIS B2401 | Yes |
| Custom | Yes |
EPDM Rubber O-Rings: The Water, Steam & Weather Defender
When Nitrile cracks under UV light and Silicone fails in hot water, Ethylene Propylene Diene Monomer (EPDM) is your ultimate solution. Engineered for unparalleled resistance to environmental ozone, high-temperature steam, and automotive brake fluids. Stop paying excessive markups to Western distributors. Source FDA, NSF-61, and industrial-grade EPDM O-rings directly from China’s premier elastomeric manufacturing floor.
Premium EPDM Sourcing: Cut the Middleman, Keep the Quality
For HVAC engineers, plumbing system designers, and automotive OEM procurement, finding reliable EPDM seals at scale is critical. Sourcing from catalog distributors drastically inflates your Bill of Materials (BOM). RiseUp operates as your direct manufacturing partner in China, delivering flawless EPDM Rubber O-Rings with uncompromising precision:
The All-Weather Champion: EPDM features a fully saturated polymer backbone. This means it is virtually immune to ozone attack, UV radiation, and severe weather weathering. An EPDM O-ring left outdoors for a decade will not crack, making it the apex choice for HVAC, roofing, and exterior enclosures.
The Master of Water & Steam: Unlike polyurethanes or standard rubbers that degrade in moisture, EPDM thrives in wet environments. Our Peroxide-cured EPDM grades handle continuous hot water and high-pressure steam up to 150°C (300°F) without swelling or losing compressive memory.
The “Factory-Direct” Advantage: Whether you need 100,000 standard AS568 water-pump seals or custom-extruded FDA-grade O-rings for beverage processing, we eliminate the distributor markup. Get transparent factory pricing, rapid global shipping, and massive volume discounts from a trusted Chinese manufacturer.
The EPDM Kryptonite: What You Must Absolutely Avoid
At RiseUp, we believe in radical engineering honesty. EPDM is an absolute champion in water and weather, but it has one catastrophic weakness: Petroleum and Hydrocarbons.
Due to its polymer structure, EPDM acts like a sponge when exposed to mineral oils. If you install an EPDM O-ring in a system containing:
Motor Oil or Engine Lubricants
Gasoline, Diesel, or Aviation Fuel
Standard Hydrocarbon Greases
Di-ester based Synthetic Lubricants

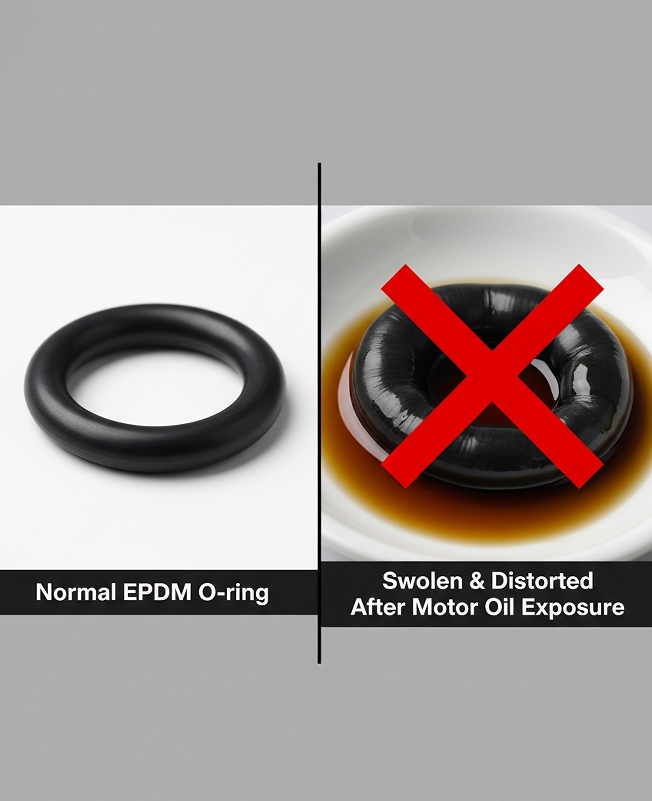

…the O-ring will rapidly absorb the fluid, swelling up to 200% of its original size. It will extrude out of the hardware groove and cause an immediate, catastrophic blow-out.
Engineering Tip: If your system involves any petroleum-based fluids or oils, do not use EPDM. You must switch to our [Premium Nitrile (NBR) O-Rings] for standard oil resistance, or our [Chemical Resistant Viton™ O-Rings] for high-temperature fuels.
Engineering Deep Dive: Sulfur vs. Peroxide Cured EPDM
Not all EPDM O-rings are manufactured equally. When catalog distributors sell cheap “Generic EPDM,” they are almost certainly supplying Sulfur-cured rubber. Understanding the cross-linking chemistry is critical for the survival of your application. Here is how we custom-compound your seals:
Sulfur-Cured EPDM (Standard & Cost-Effective): * The Pros: Easier to manufacture, highly flexible, excellent tear resistance, and highly resistant to outdoor UV/Ozone. Perfect for standard weather sealing, HVAC, and low-temperature plumbing.
The Limits: It maxes out around 120°C (250°F). If exposed to high-temperature steam or drinking water heavily treated with chloramines, sulfur-cured EPDM will harden, crack, and fail.
Peroxide-Cured EPDM (Premium & High-Heat): * The Pros: Creates a much stronger, heat-resistant chemical bond. Peroxide-cured EPDM boasts a superior compression set (it remembers its shape better) and survives continuous temperatures up to 150°C (300°F).
The Ultimate Choice For: This is the mandatory choice for aggressive high-temperature steam valves, automotive brake fluid (DOT 3/4/5) systems, and medical/drinking water systems requiring rigorous chloramine resistance.
- When should you choose Peroxide-Cured EPDM?
- Steam systems
- Drinking water systems
- Food equipment
- High-temperature seals
The Sourcing Economics: Defeat the Distributor Premium
When you buy standard AS568 EPDM O-rings from Western catalogs, you are paying up to a 1000% middleman markup. At RiseUp, we redefine global B2B sourcing by connecting you directly to our advanced manufacturing floor in China. Get premium polymer quality at true factory-direct wholesale pricing:
Zero Tooling Fees for Standard Sizes: Thousands of in-house molds covering AS568, JIS B2401, and Metric. You pay for rubber, not steel.
Rapid Custom Splicing: Need a massive 2-meter diameter ring? We use advanced extrusion and hot-vulcanized splicing to create [Custom Spliced O-Rings] with zero tooling costs.
Scalable Production: From 5,000 pieces to 5,000,000 pieces, our automated facilities ensure consistent ±0.05mm precision at any volume.
Source Smart: The Ultimate EPDM Engineering Masterclass (13 FAQs)
NEVER use Vaseline or hydrocarbon greases! Petroleum will cause EPDM to swell up to 200% and fail. You must strictly use Silicone Grease, Castor oil, or soap and water.
EPDM is highly elastic, but over-stretching during assembly causes microscopic tears. As a rule of thumb, do not stretch an EPDM O-ring more than 50% of its inner diameter during installation, and ensure it immediately returns to its resting state.
Bare EPDM has a high friction coefficient. For high-speed assembly, we apply a PTFE (Teflon) surface coating or a microscopic MoS2 treatment, making the O-rings slick and assembly-ready without altering their chemical properties.
This is a huge engineering trap. While [Silicone O-Rings] handle dry heat well, they suffer from hydrolysis (break down and turn mushy) in high-pressure steam. Peroxide-cured EPDM is vastly superior to Silicone in continuous hot water and steam applications.
Both are good, but EPDM is the absolute winner for pure weather/UV resistance. [Neoprene O-Rings] are chosen only if there is a risk of light oil exposure or if flame retardancy is required. For pure UV, ozone, and water, always choose EPDM.
Peroxide-cured EPDM strongly resists Chloramine (city drinking water). However, high concentrations of pure Chlorine or Bromine in pools will aggressively degrade EPDM. For pools, use [Viton™ (FKM) O-Rings].
Yes. In modern food & beverage plants, a shredded O-ring must not end up in the final product. We custom-compound Metal/X-Ray Detectable EPDM, allowing your automated quality control scanners to instantly reject any contaminated batch.
Yes. A standard 70 Shore A O-ring might crack thin plastic filter housings. We can custom-mold softer EPDM down to 40 or 50 Shore A, providing a watertight seal with minimal clamping force.
Yes. We manufacture White EPDM for FDA compliance, and can custom-compound Red, Blue, or Green EPDM for “Poka-Yoke” (error-proofing) to prevent assembly line mix-ups.
Standard EPDM remains flexible down to -45°C (-49°F). For extreme Arctic applications, our specialized low-temp EPDM survives down to -55°C (-67°F) without becoming brittle.
EPDM is naturally a highly effective electrical insulator. It is the global standard for high-voltage cable jacketing and outdoor electrical enclosures to prevent arcing.
Yes. For enclosure doors requiring extremely low compression force, we offer Closed-Cell EPDM Sponge Cord spliced into continuous rings. It provides the same UV resistance but acts like a highly compressible weather-strip.
Yes. For regulated industries, we provide comprehensive Certificates of Conformance (CoC) and batch-traceable Material Test Reports, ensuring smooth compliance audits.
