Neoprene (Chloroprene/CR) O-Rings: The Ultimate Multi-Purpose Seal
When standard NBR cracks under the sun and EPDM fails against minor oil leaks, Neoprene (CR) is your ultimate “bridge elastomer.” Engineered to survive harsh refrigerants, 10-year UV exposure, physical tearing, and saltwater corrosion. Stop paying massive premiums to western distributors—source your heavy-duty CR seals directly from our manufacturing floor.
Engineered for Your Toughest Environmental Challenges
Neoprene is the industry’s ultimate “All-Rounder.” RiseUp custom-molds and extrudes premium
Chloroprene (CR) O-Rings to directly solve the engineering bottlenecks across four demanding sectors:
• For HVAC & Refrigeration Engineers (Refrigerant Mastery): Designing AC compressors or cooling lines? Neoprene provides legendary resistance to Freon (fluorinated refrigerants) and ammonia. It maintains strict elastomeric flexibility in sub-zero temperatures, ensuring long-lasting, leak-proof performance in commercial thermal management systems.
• For Outdoor Electrical Designers (Ozone & UV Immunity): Sealing outdoor distribution boxes, telecom enclosures, or transformers? Direct sunlight and high-voltage ozone will destroy standard rubber in months. Our CR compounds are engineered to withstand extreme weathering, promising over a decade of crack-free protection against the elements.
• For Marine & Diving Equipment Developers (Saltwater Defense): Developing underwater camera housings, subsea lighting, or marine propulsion systems? Chloroprene’s absolute stability in harsh seawater environments is globally recognized, preventing salt crystallization damage and premature aging in deep-water applications.
• For MRO & Mechanical Supervisors (Physical Toughness): Maintaining heavy conveyor belts, pump housings, or couplings? Beyond chemical resistance, Neoprene boasts exceptional physical toughness, delivering supreme tear resistance and abrasion durability to survive continuous mechanical shock and vibration.

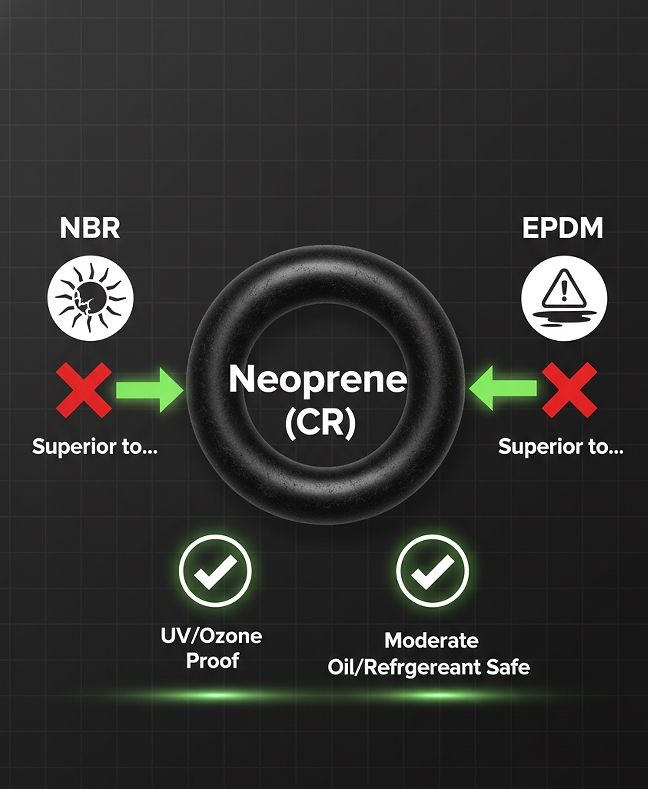

Demystifying Neoprene: The Ultimate “Bridge” Elastomer
Many engineers turn to Neoprene only after standard rubbers (like NBR or SBR) suffer premature, catastrophic failures in complex environments. RiseUp engineers our Neoprene compounds to bridge the gap between oil resistance and extreme weatherability, directly resolving the four most common field-failure anxieties:
• 1. Terminology Clarity (Neoprene vs. Chloroprene vs. CR): Let’s clear the confusion. “Neoprene” is simply the legacy DuPont trade name for the polymer officially known as Polychloroprene. Its engineering abbreviation is CR. Whether your blueprint specifies “Chloroprene”, “Neoprene O-Rings”, or even if a technician searches for a typo like “neprene”, rest assured—you are sourcing the exact same, 100% compliant premium material from our factory.
• 2. Stopping the “Ozone Cracking” Nightmare: Standard NBR O-rings are notoriously vulnerable to “sun-rot.” When exposed to outdoor UV rays or the ozone generated by electrical enclosures, NBR develops microscopic cracks within months, leading to sudden water or air leaks. Our CR polymer chain inherently resists ozone degradation, guaranteeing years of crack-free sealing in direct sunlight and harsh outdoor weathering.
• 3. HVAC Refrigerant Mastery & Compression Set: In refrigeration systems, the wrong rubber will rapidly swell or leach contaminants that clog capillary tubes. Our specially formulated CR O-rings are highly compatible with legacy Freons, modern refrigerants (like R134a), and Ammonia. More importantly, they boast an exceptional low-temperature compression set, meaning the seal won’t harden and leak when the HVAC system experiences deep-chill cycling.
• 4. Halting “Tear Propagation” in Dynamic Machinery: In applications with heavy vibration or friction (like couplings and pumps), physical damage is inevitable. When a cheap rubber O-ring gets a micro-nick during installation, the stress causes that nick to rapidly split the entire ring (tear propagation). Chloroprene possesses unique physical toughness—it aggressively resists tear propagation, meaning a minor scratch won’t result in a catastrophic blowout.

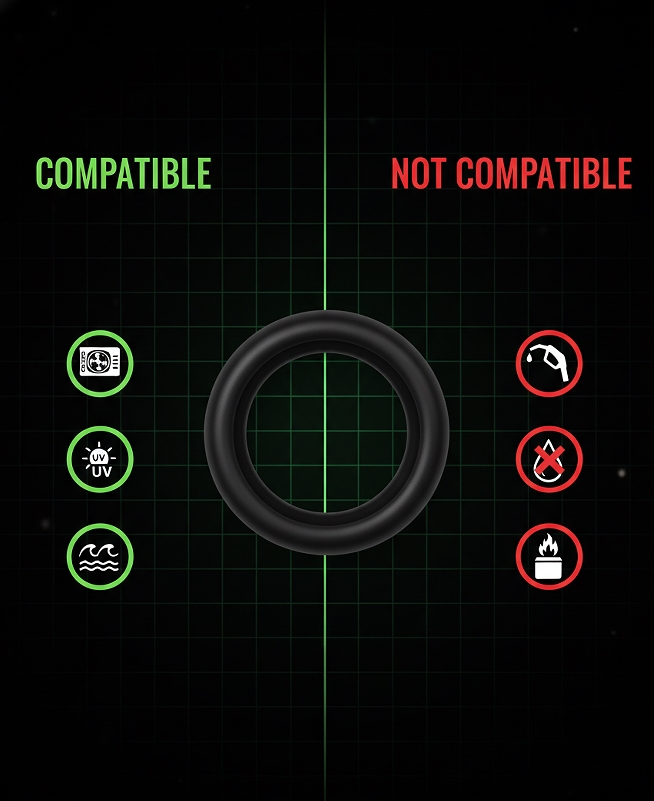

Precision Compatibility Matrix: Where Neoprene Excels (and Fails)
🟢 The Green Zone (Excellent Compatibility)
• HVAC Refrigerants & Ammonia: Exceptional resistance to legacy Freons (R-12, R-22), modern hydrofluorocarbons (HFCs like R134a), and anhydrous ammonia used in commercial cooling.
• Extreme Outdoor Elements: Total immunity to ozone, UV radiation, and direct sunlight weathering.
• Marine & Saltwater: Will not degrade or swell when exposed to ocean water or salt spray environments.
• Mild Oils & Silicone Greases: Handles intermittent exposure to high-aniline-point mineral oils, silicone lubricants, and standard water-glycol mixtures perfectly.
🔴 The Danger Zone (Upgrade Required)
• ❌ Aromatic Fuels (Gasoline/Diesel): While CR handles mild oil, it will aggressively swell in direct contact with gasoline or heavy diesel fuels. The Fix: Switch to our [Fuel-Resistant Nitrile (Buna-N) O-Rings].
• ❌ Strong Oxidizing Acids: Nitric or concentrated sulfuric acids will destroy the polymer structure. The Fix: Upgrade to our [FKM / Viton® O-Rings].
• ❌ Phosphate Ester Brake Fluids: Will cause immediate swelling and rupture. The Fix: You must use our [EPDM O-Rings].

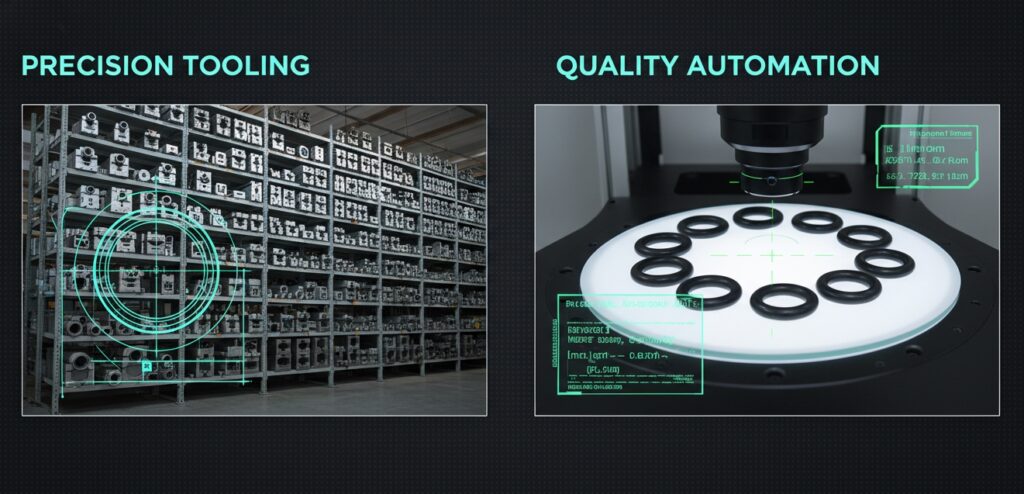

Stop Paying Distributor Markups: Direct China Factory Sourcing
When you buy Neoprene O-rings from massive Western catalogs, you are paying a staggering premium for their warehousing overhead and brand name—not for better rubber. RiseUp is a true source manufacturer. By cutting out the middleman, we empower global supply chain managers to drastically reduce BOM (Bill of Materials) costs without sacrificing a single drop of quality.
• Zero Tooling Fees (Full AS568 Coverage): We own the complete set of standard AS568 and metric precision molds. You will never pay setup, tooling, or engineering fees for standard sizing.
• Parker-Grade Quality Control: We don’t cut corners on polymer purity. Our Chloroprene compounds are mixed and compression-molded under strict ISO 9001 quality management standards, delivering the exact same batch-to-batch consistency as the expensive Western brands.
• Custom Durometers (50 to 90 Shore A): While 70 Shore A is the universal industry standard, we routinely custom-mold softer 50A seals for fragile plastic housings or rock-solid 90A seals for high-pressure industrial applications.
• Unbeatable Wholesale ROI: From rapid prototype batches to multi-million-piece blanket orders, our fully integrated China supply chain guarantees lightning-fast lead times and direct-from-factory pricing that your local distributor simply cannot match.
Source Smart: Neoprene / CR Engineering Knowledge Base
Yes, it is inherently flame retardant. Because Chloroprene contains chlorine in its polymer backbone, it possesses a unique “self-extinguishing” property. If a fire breaks out in an outdoor electrical transformer, standard rubber will burn and spread the flame. Neoprene will stop burning as soon as the external flame source is removed, making it a critical safety requirement for electrical applications.
Unlike other rubbers that simply reach a brittle glass-transition state in extreme cold, Neoprene can “crystallize” and stiffen at moderately cold temperatures (around 0°C to -10°C) over prolonged periods. This stiffness is completely reversible once warmed. For our HVAC clients, we specifically compound our CR O-rings using
crystallization-resistant grades to ensure they maintain reliable elasticity during deep cooling cycles.
Because of incidental oil exposure. EPDM is fantastic for weather, but it has absolutely
zero oil resistance. If your outdoor equipment has lubricated hinges, motor grease, or experiences minor oil splashes, EPDM seals will quickly turn to mush. Neoprene gives you the same 10-year UV/ozone protection while safely repelling incidental oils and greases.
Our standard Neoprene compounds operate reliably between
-40°C and +100°C (-40°F to 212°F), with intermittent exposure up to 120°C (248°F). It is perfectly suited for the “cold side” of industrial equipment but should not be specified for high-heat engine blocks or exhaust manifolds (where Viton is required).
Absolutely NOT. Automotive brake fluids (DOT 3 / DOT 4) are glycol-ether based. They will violently attack Chloroprene, causing immediate and massive swelling, leading to total brake failure. For brake systems, you must exclusively use our [EPDM O-Rings].
Generally, no. While CR has excellent water resistance, standard industrial black Neoprene is compounded with carbon black and curatives that are not FDA or NSF-61 approved for human consumption. If you are designing drinking water valves, you must specifically request our [NSF-61 Certified EPDM O-Rings].
Exceptionally well. Unlike Silicone, which tears easily under friction, Chloroprene possesses a high tensile strength and excellent abrasion resistance. It is highly suitable for moderate dynamic applications, such as oscillating shafts, reciprocating pistons in pneumatic cylinders, and heavy-duty mechanical couplings.
Neoprene has outstanding compatibility with
silicone-based greases and standard petroleum-based assembly lubes. Using a high-quality silicone O-ring grease during installation will significantly reduce friction, prevent micro-tearing (nibbling), and guarantee a proper seat in tight hardware grooves.
Yes. Mixing up an EPDM ring with a CR ring on an assembly line is a costly mistake. While carbon-black reinforced Neoprene is the standard, we routinely manufacture CR seals in custom colors (such as Red, Green, or Blue) to implement foolproof visual identification (Poka-Yoke) for OEM manufacturing lines.
According to the strict
ISO 2230 guidelines, Neoprene O-rings boast an exceptional shelf life of 15 years from the date of cure. To maximize this lifespan, the bulk bags must be stored in airtight, UV-blocking packaging in a cool environment (below 25°C / 77°F), safely away from direct sunlight and ozone-generating electric motors.
