Custom Neoprene Gaskets Built for Your Application

We are a custom neoprene gasket manufacturer supplying OEMs, equipment builders and industrial buyers with neoprene rubber gaskets made to drawings, samples and application specifications

Custom neoprene gasket manufacturing
Drawing, sample or specification-based development
Die-cut, molded, flange, ring and full-face profiles
Custom hardness, thickness and compound options
Prototype sample before production tooling
Support for OEM and industrial sealing application

What Is a Neoprene Gasket?

A neoprene gasket is a sealing component made from chloroprene rubber, also identified as CR. It is installed between two mating surfaces to close small gaps and help prevent the passage of water, air, dust, oil, vibration and other contaminants.

The gasket works by compressing between the surfaces. When the material is correctly selected and compressed, it conforms to minor surface irregularities and maintains contact during equipment operation. This helps improve sealing reliability without requiring a rigid metal-to-metal connection.

Neoprene is widely used because it offers a balanced combination of flexibility, abrasion resistance, weather resistance, ozone resistance and mechanical durability. It can be produced as a die-cut sheet gasket, molded gasket, ring gasket, flange gasket, full-face gasket or other custom sealing profile.

The correct neoprene gasket cannot be selected by material name alone. The design should be reviewed according to the sealing surface, groove or flange geometry, required thickness, hardness, compression level, operating temperature, contact media and expected movement.

For applications involving continuous high temperature, strong solvents, fuels or aggressive chemicals, the neoprene compound should be reviewed before production. Depending on the environment, EPDM, NBR, silicone, SBR or another elastomer may be more suitable

Neoprene Gasket Material and Construction Options

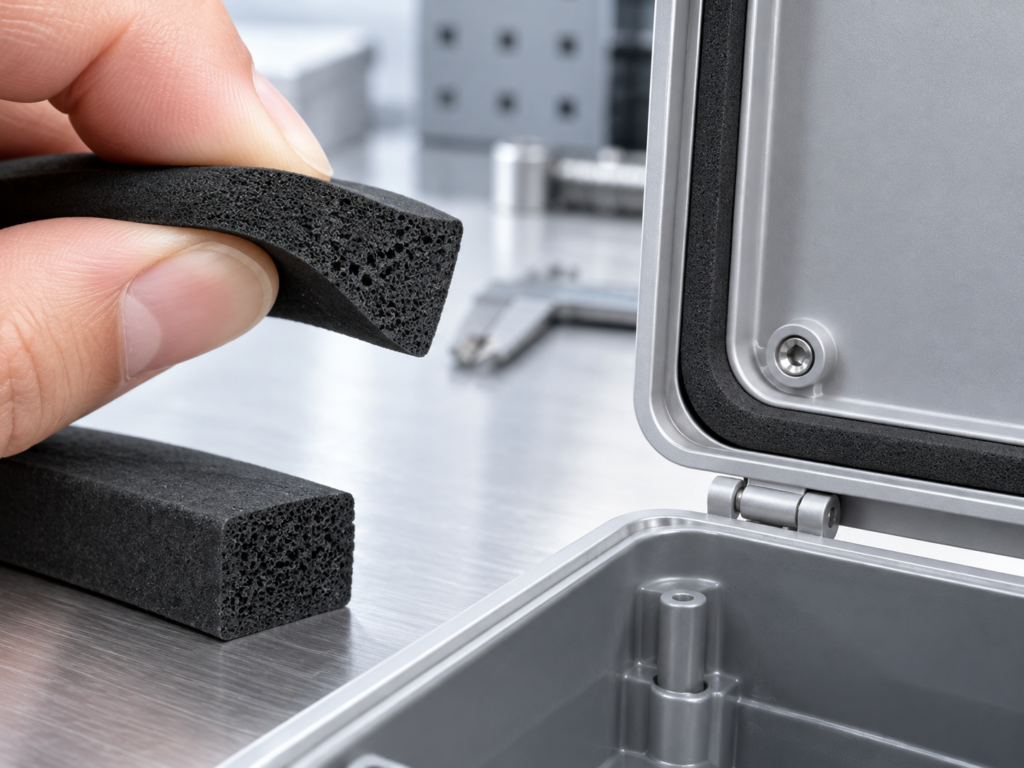

Neoprene Foam Gasket

A neoprene foam gasket is a lightweight and compressible sealing material used to fill small gaps between mating surfaces.

Key Features

Lightweight foam structure
Good flexibility and compressibility
Helps absorb vibration and surface irregularities
Suitable for low to moderate sealing pressure

Typical Function

Neoprene foam gaskets are commonly used for equipment covers, panels, housings, doors and general cushioning applications where a soft sealing interface is required

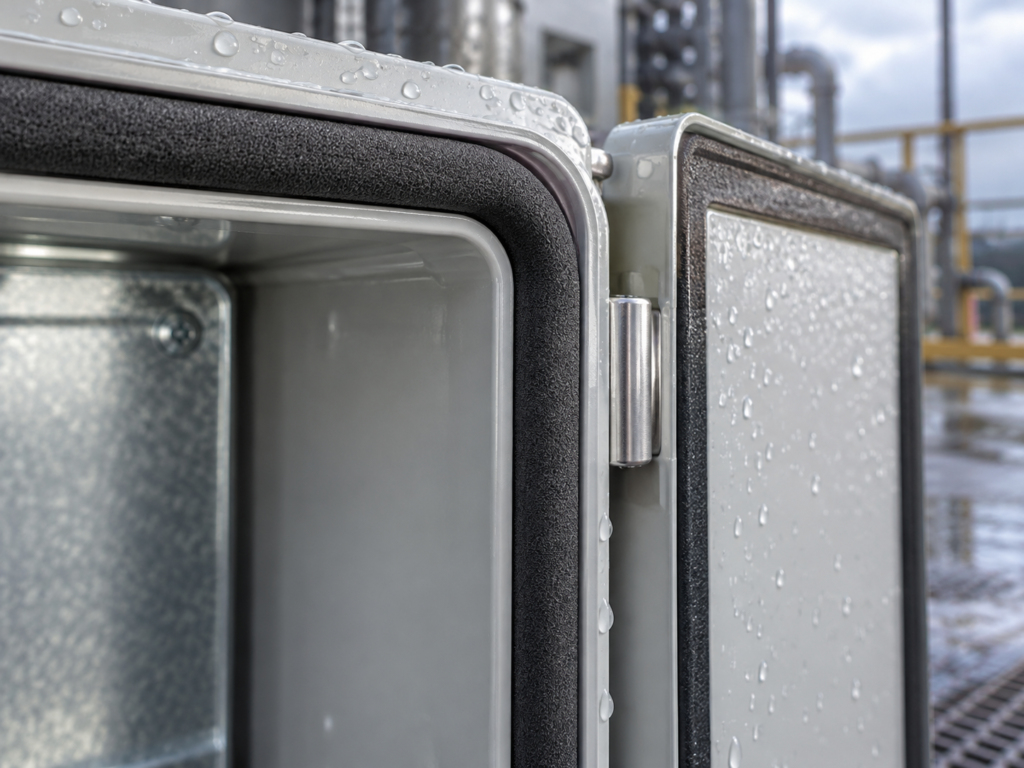

Closed Cell Neoprene Gasket

A closed cell neoprene gasket contains sealed internal cells that help reduce water, air and moisture penetration.

Key Features

Lower liquid and air absorption
Good environmental sealing performance
Lightweight and compressible
Suitable for outdoor and enclosure applications

Typical Function

Closed cell neoprene gaskets are used in electrical enclosures, access panels, equipment housings and outdoor assemblies that require protection from moisture, dust and weather exposure

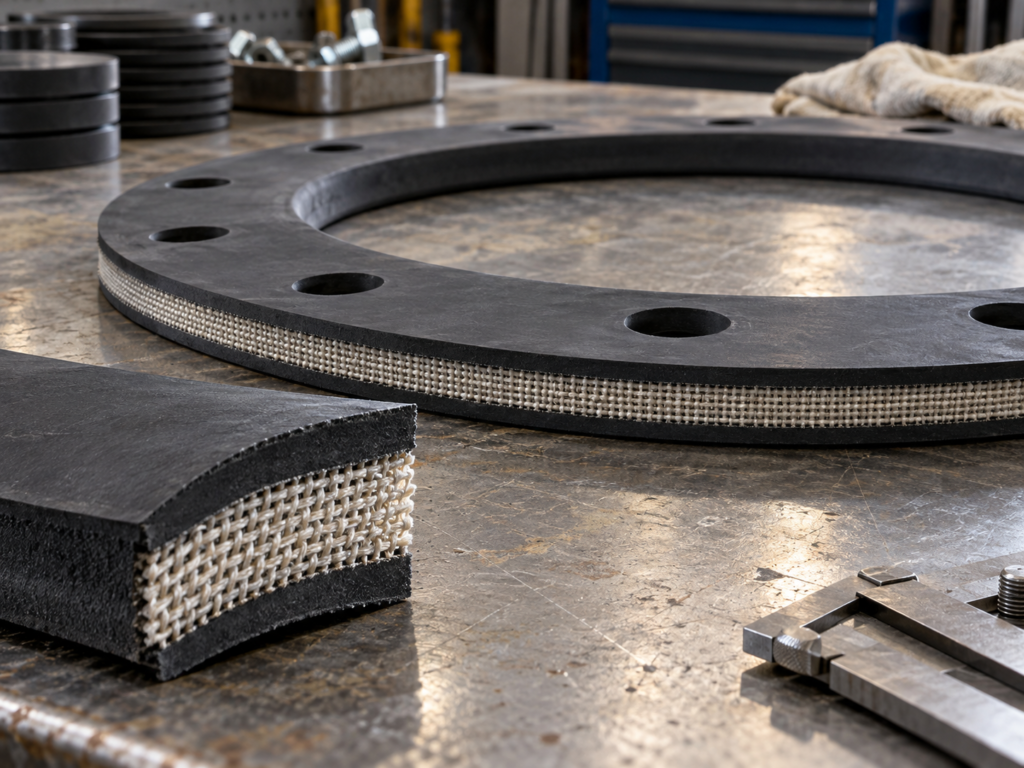

Cloth-Inserted Neoprene Gasket

Cloth-inserted neoprene gaskets contain one or more fabric reinforcement layers to improve dimensional stability and reduce stretching.

Key Features

Higher dimensional stability
Reduced stretching and creep
Improved tear resistance
Suitable for larger or moving gasket designs

Typical Function

Cloth-inserted neoprene gaskets are used for large covers, diaphragms, flexible joints, high-movement areas and applications requiring additional mechanical strength

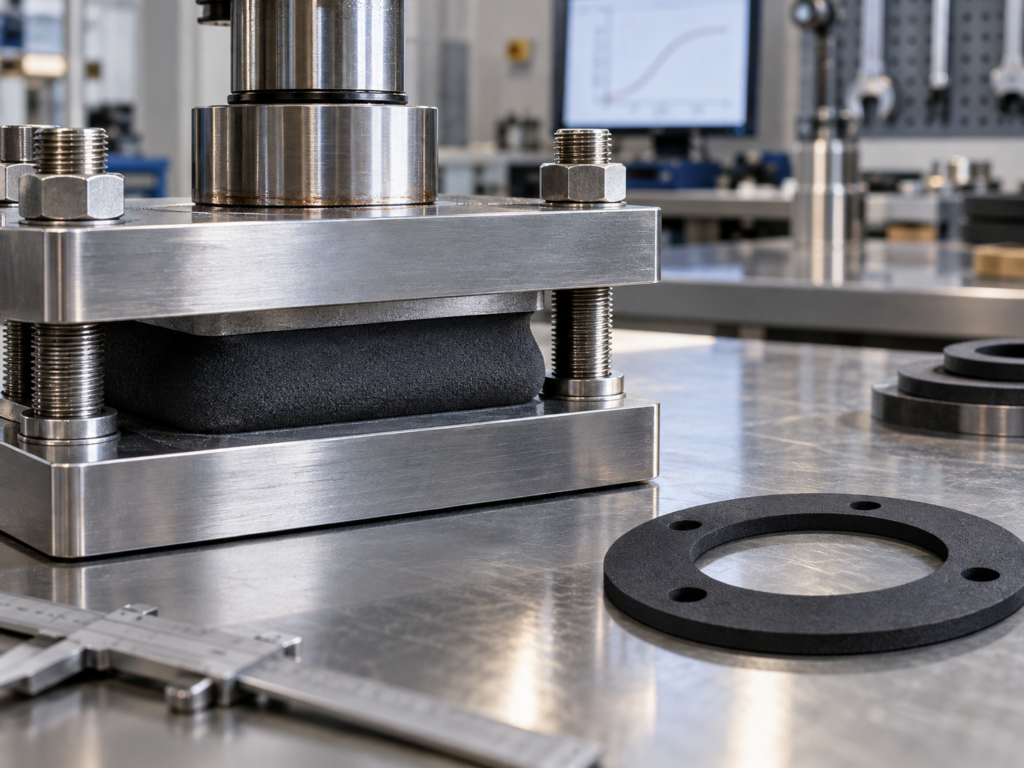

Compressible Neoprene Gasket

A compressible neoprene gasket is designed to deform under assembly pressure and fill the gap between two mating surfaces.

Key Features

Controlled compression
Flexible contact with uneven surfaces
Helps maintain sealing pressure
Available in different thicknesses and hardnesses

Typical Function

Compressible neoprene gaskets are used where the equipment has surface variation, limited closing force or a need for cushioning and vibration isolation

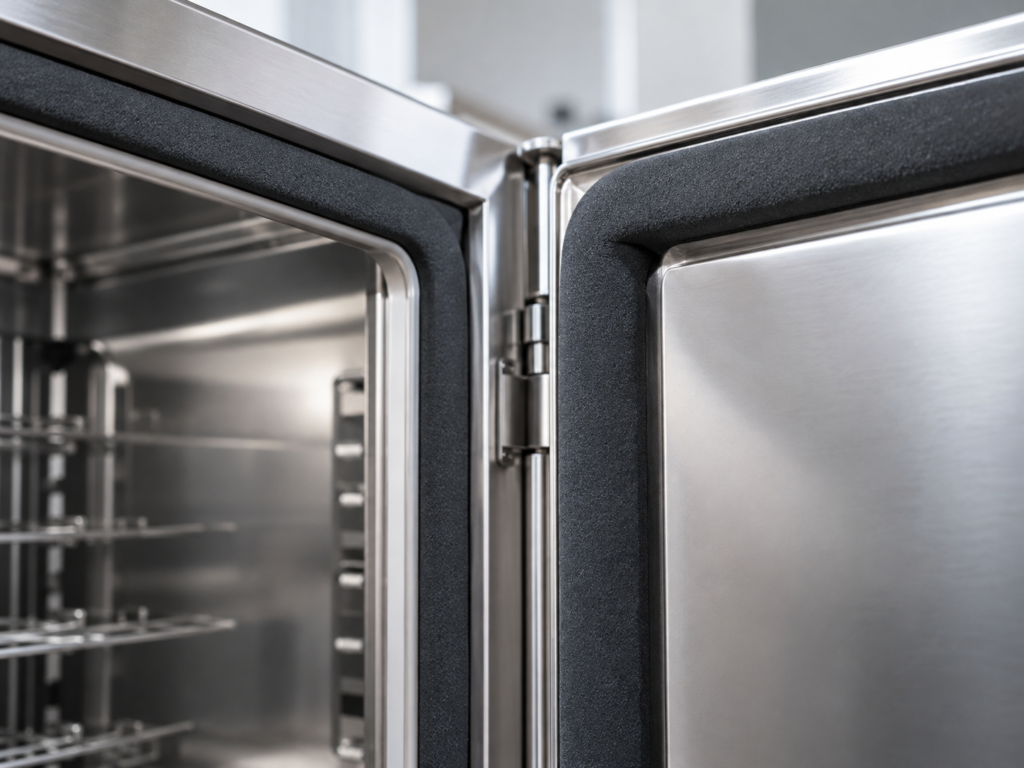

Neoprene Sponge Gasket

A neoprene sponge gasket is a soft, resilient gasket material used for low-pressure sealing, cushioning and vibration control.

Key Features

Soft and flexible structure
Good recovery after compression
Helps reduce vibration and noise
Suitable for irregular surfaces

Typical Function

Neoprene sponge gaskets are commonly used in doors, panels, covers, appliances, equipment housings and general cushioning application

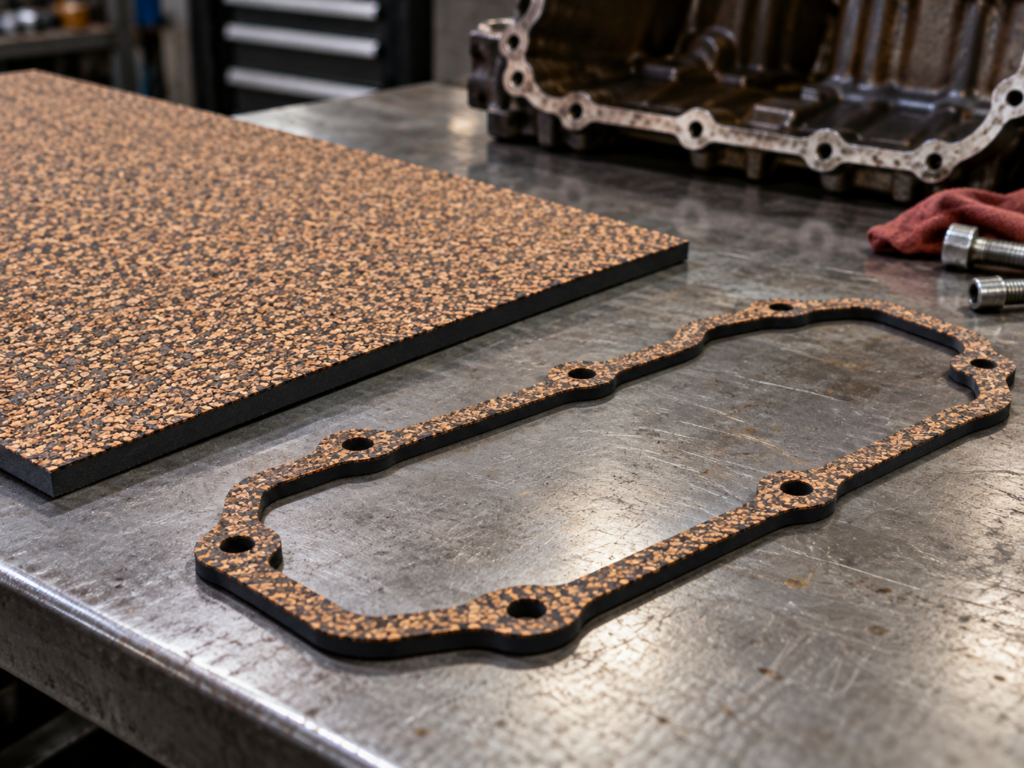

Cork Neoprene Gasket

A cork neoprene gasket combines cork compressibility with neoprene rubber for improved flexibility and sealing performance.

Key Features

Compressible cork structure
Flexible neoprene binder
Suitable for moderate sealing pressure
Useful for selected oil and equipment applications

Typical Function

Cork neoprene gaskets are used in covers, housings, engine-related components and equipment where controlled compression and conformability are require

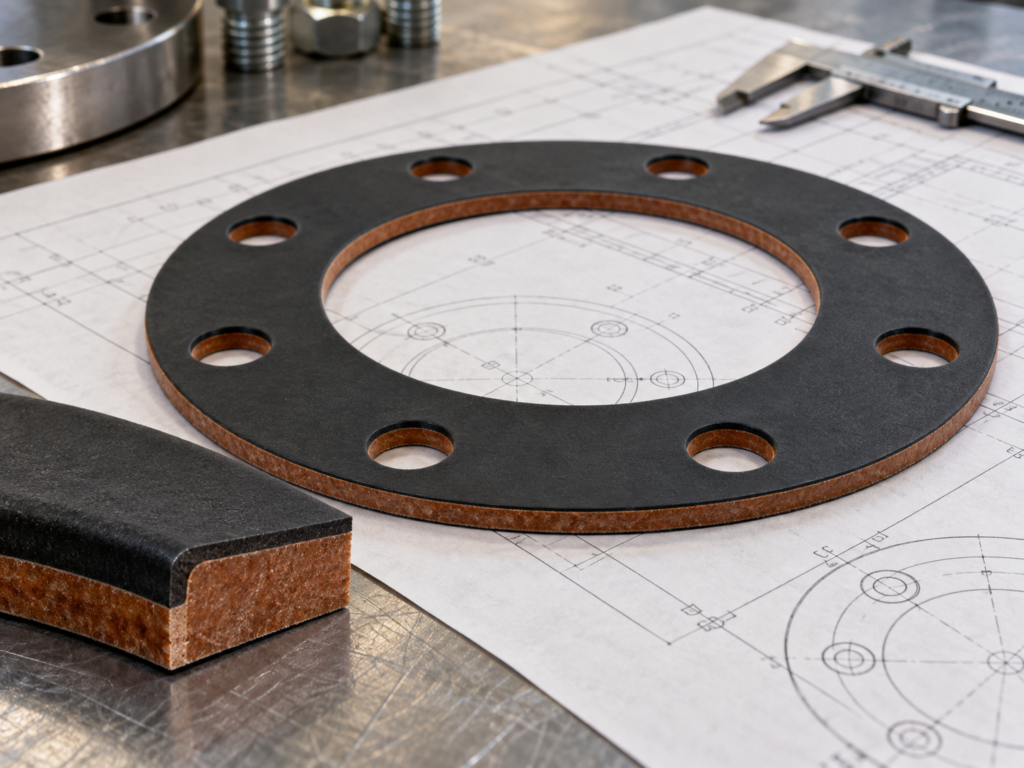

Neoprene Faced Phenolic Gaske

A neoprene faced phenolic gasket combines a phenolic core with a neoprene sealing surface. The structure is designed for applications requiring added rigidity with a resilient sealing face.

Key Features

Rigid phenolic support layer
Flexible neoprene sealing surface
Improved dimensional stability
Suitable for selected flange and equipment applications

Typical Function

Neoprene faced phenolic gaskets can be used where the gasket must maintain its shape while still providing a compliant sealing surface

Custom Neoprene Gaskets for Weathering, Movement and Equipment Fit

Neoprene gasket customization is not limited to changing the length or width of a rubber part. The gasket must be designed around the way neoprene behaves in the customer’s equipment.
Neoprene is often selected when the application requires a balanced combination of flexibility, weather resistance, ozone resistance, abrasion resistance and resistance to repeated movement. Our customization process adjusts the gasket design so these properties work effectively within the customer’s assembly

Neoprene-Specific Customization Areas

Customization Area	Neoprene-Focused Design Consideration
Compound formulation	Adjusted for weather exposure, ozone, abrasion and contact conditions
Hardness	Selected to balance sealing force with the flexibility of chloroprene rubber
Compression	Designed to maintain contact without over-compressing the neoprene
Profile	Developed to follow covers, flanges, panels, housings and irregular surfaces
Edge design	Reviewed to reduce tearing and edge damage during installation
Movement	Considered for repeated flexing, vibration and assembly movement
Color	Black is common, while custom colors can be developed when required
Sample approval	Confirms that the neoprene compound and design work in the actual assembly

A generic rubber gasket may only be selected by size and thickness. A custom neoprene gasket must also consider outdoor exposure, ozone, repeated flexing, abrasion and the balance between compression and recovery.
This is why we review the customer’s actual sealing environment before finalizing the neoprene formulation and gasket geometry

Neoprene-Specific Development Process

1. Review the Working Environment

We first check whether the gasket will be exposed to sunlight, ozone, moisture, outdoor weather, vibration, repeated flexing, abrasion, oils or other contact media. This helps determine whether a standard neoprene compound is suitable or whether the formulation should be adjusted

2. Match the Compound and Hardnes

The neoprene compound and hardness are selected according to compression, sealing force, flexibility and movement. A gasket that is too hard may not conform to the sealing surface, while a gasket that is too soft may lose shape under repeated compression

3. Design the Profile for Installation

The gasket profile is reviewed for edge tearing, corner stress, stretching, sliding friction and assembly pressure. This is important for thin edges, irregular shapes, moving covers and parts installed by stretching or sliding.

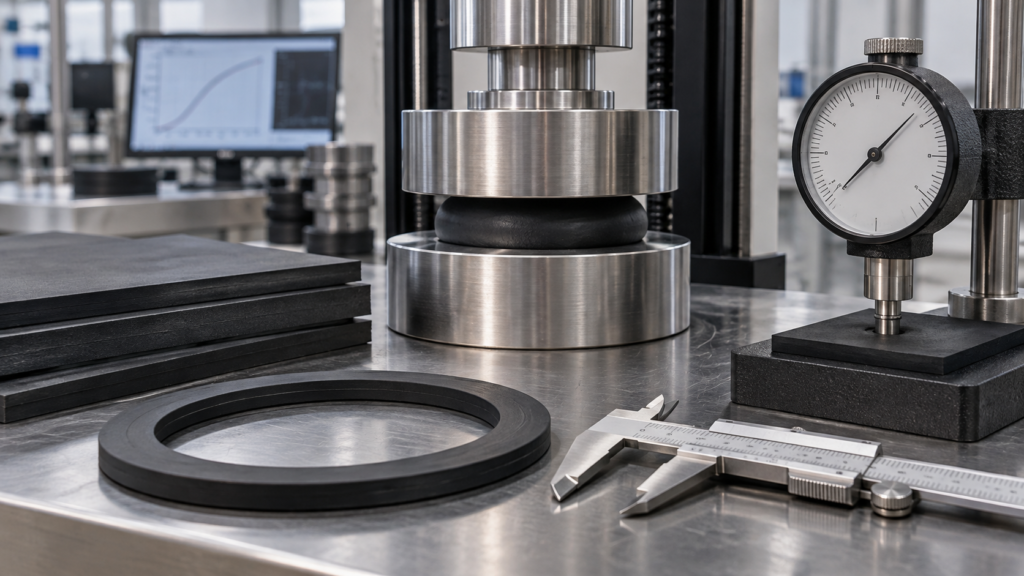

4. Develop and Test a Prototype

For new or complex parts, we develop a prototype sample before production tooling. The sample is checked for:

Dimensional accuracy
Surface contact
Compression and rebound
Flexibility during installation
Edge strength
Fit with the mating component

For outdoor or moving equipment, the sample can also be reviewed for likely weathering, ozone and abrasion exposure

5. Confirm the Sample Before Production Tooling

After the customer approves the prototype, we confirm the compound direction, hardness, profile, compression behavior and installation fit. Only after this confirmation do we proceed with production tooling and batch manufacturing

Controlled Manufacturing for Consistent Neoprene Gaskets

Producing a reliable neoprene gasket requires more than cutting rubber to a drawing. The neoprene compound, sheet or molded blank, gasket profile and finishing process must remain consistent throughout production.
We select the production method according to the gasket geometry, thickness, tolerance, compression requirement and order quantity. Die-cutting is suitable for many flat neoprene gasket designs, while molding is used for three-dimensional profiles, raised sealing features and more complex shapes.

Neoprene Gasket Production Methods

Production Method	Suitable Neoprene Gasket Designs
Die cutting	Flat, sheet-based, ring, flange and full-face gaskets
Profile cutting	Strip, gasket tape and continuous sealing profiles
Compression molding	Molded and three-dimensional neoprene gaskets
Transfer molding or injection molding	Complex molded rubber parts and repeat production
Prototype processing	New designs requiring early fit verification
Adhesive lamination	Neoprene gaskets requiring positioning support

Production Control Point

Compound Consistency

The neoprene compound must remain consistent in hardness, flexibility and appearance from batch to batch. This is especially important when the gasket is exposed to outdoor conditions or repeated movement.

Dimensional Accuracy

Critical dimensions include outside profile, inside openings, thickness, bolt-hole position and sealing edges. These dimensions affect compression, fit and contact pressure.

Edge and Surface Quality

Cut edges and molded surfaces are checked for tearing, flash, unevenness and other defects that could affect installation or sealing.

Sample-to-Production Consistency

The approved prototype is used as the reference for production. The mass-produced neoprene gasket should maintain the confirmed profile, hardness, thickness and assembly fit.

Customer Benefit

This production approach helps reduce variation between batches and lowers the risk of receiving a gasket that fits during sampling but performs differently during repeat productio

Where Are Neoprene Gaskets Used?

Neoprene gaskets are used in equipment and building assemblies where a flexible sealing layer is required between two mating surfaces. The correct gasket profile depends on the joint design, compression space, movement and environmental exposure

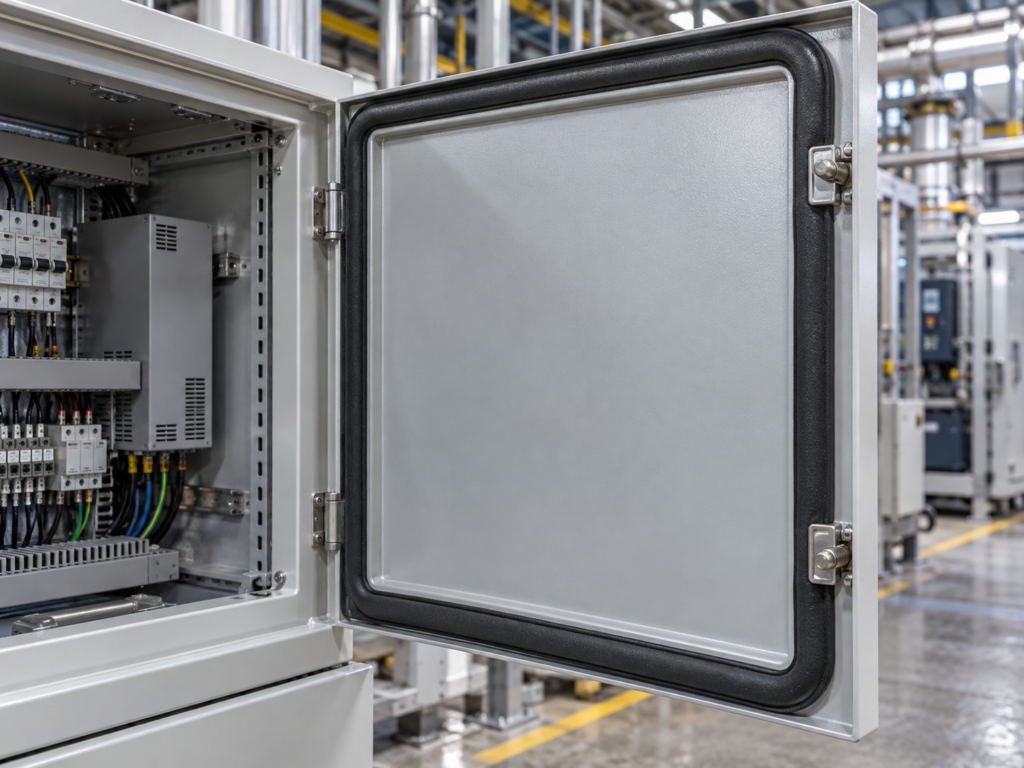

Neoprene Gaskets for Panels and Access Panels

Neoprene gaskets for panels are used around electrical enclosures, equipment covers and access openings. They help reduce the entry of dust, moisture and air while allowing the panel to be removed for inspection or maintenance

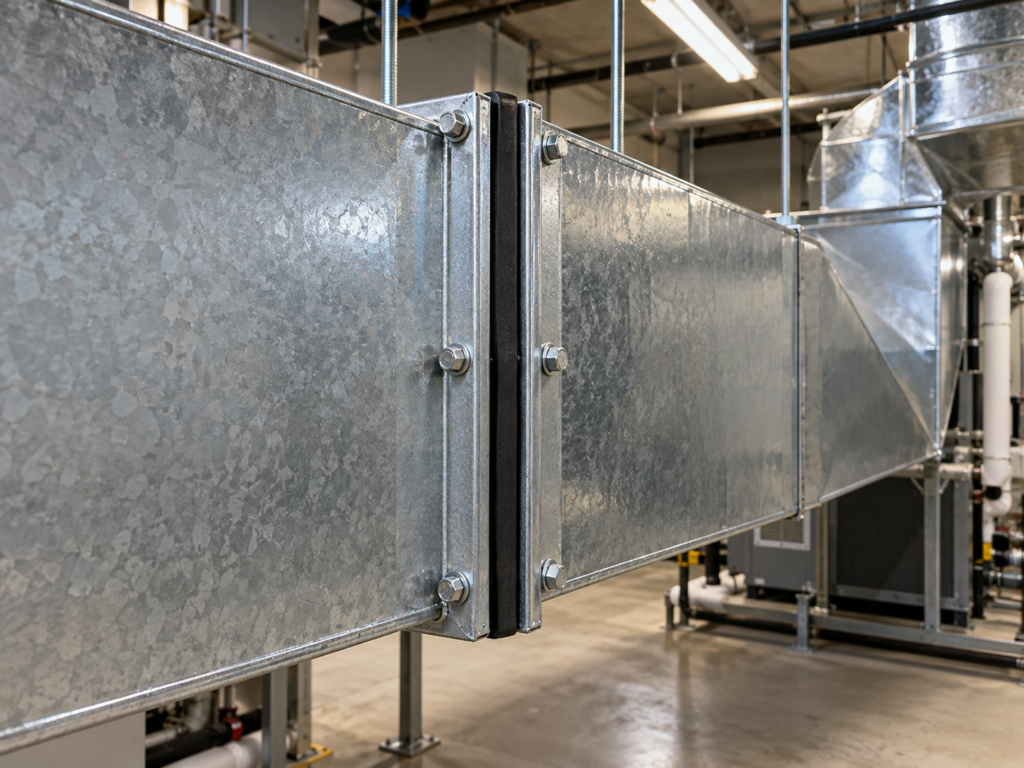

Neoprene Gaskets for Ductwork

Neoprene gaskets for ductwork are installed between duct flanges, HVAC sections and service openings. The gasket must match the flange shape and compression space to help reduce air leakage and maintain a stable connection

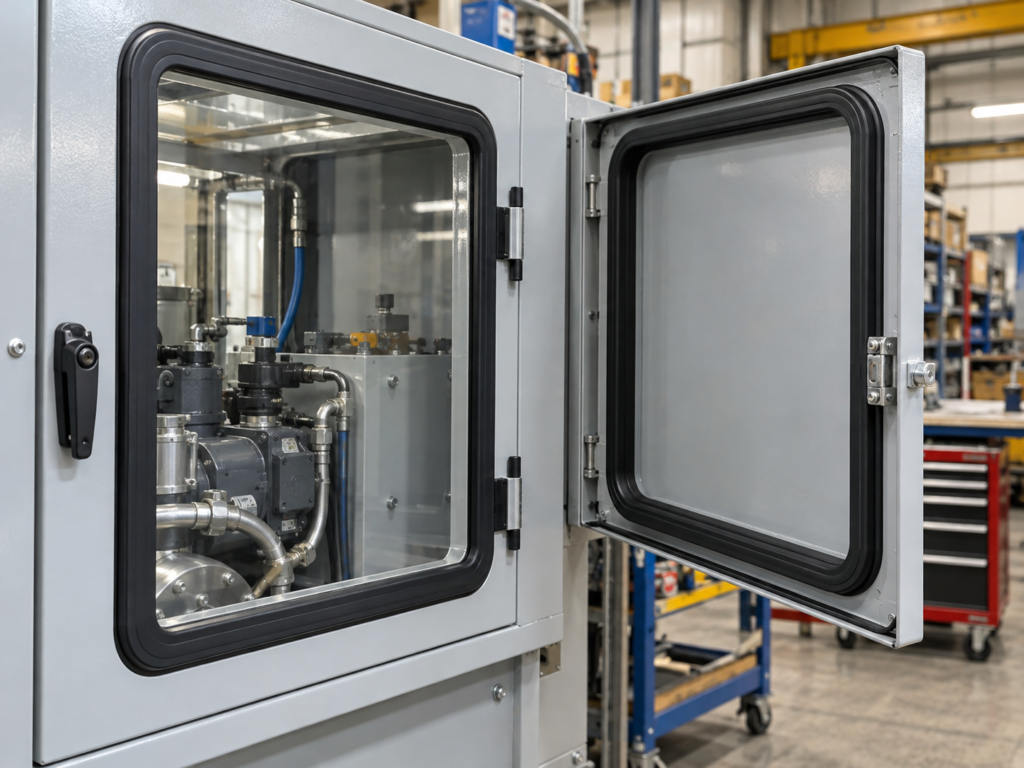

Neoprene Door and Window Gaskets

Neoprene door gaskets and window gaskets create a flexible barrier around doors, windows, framed panels and equipment openings. They help reduce air, dust and moisture passage while accommodating minor movement during operation

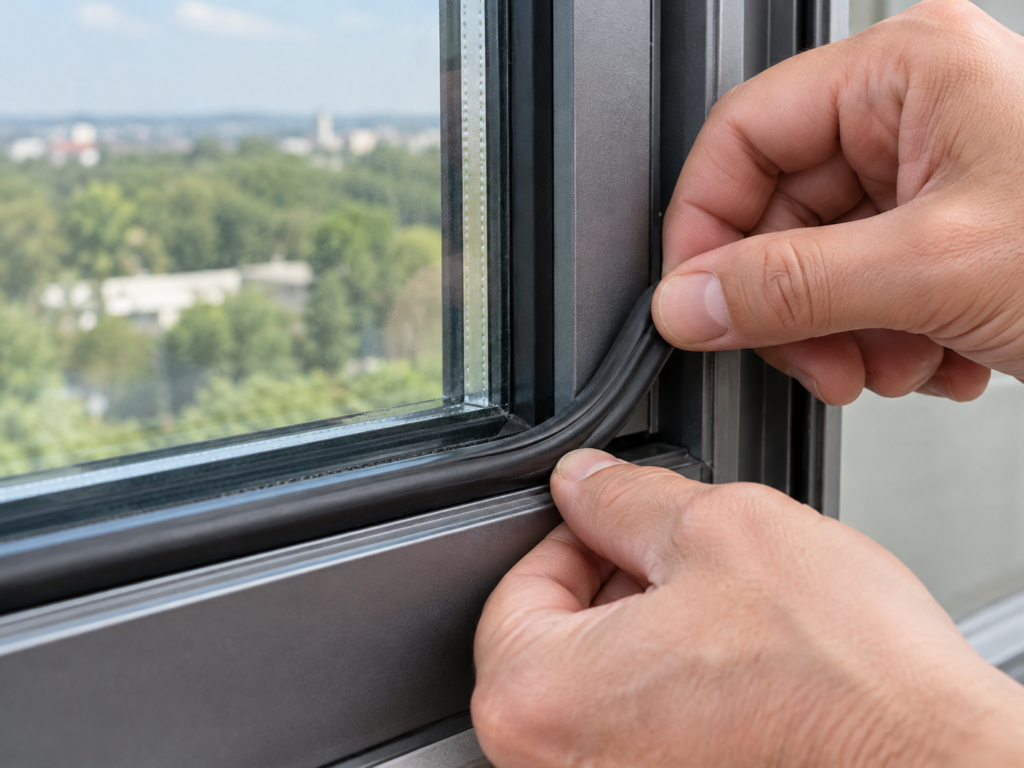

Neoprene Glazing Gaskets

Neoprene glazing gaskets are used around glass, framed panels and glazing assemblies. The gasket provides a compliant interface between the glass and frame while helping protect the edges from direct contact and movement.

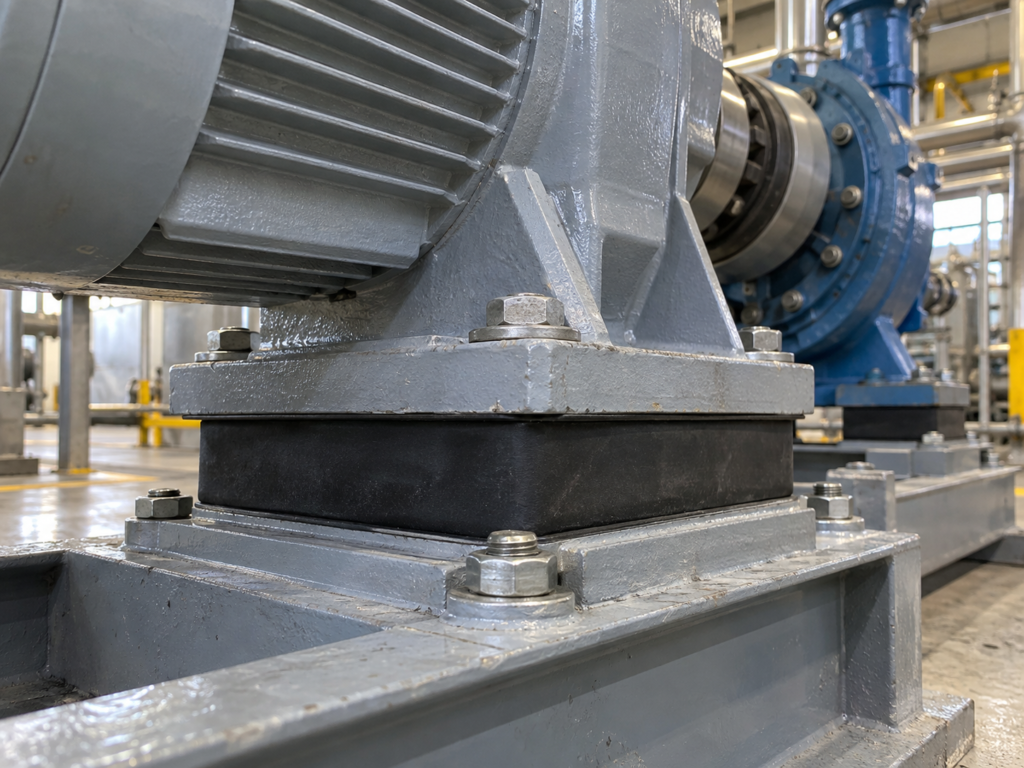

Neoprene Valve Cover Gaskets

Neoprene valve cover gaskets are used around valve covers, pump covers and selected equipment service interfaces. The material, hardness and compression should be reviewed according to the temperature, pressure and contact media

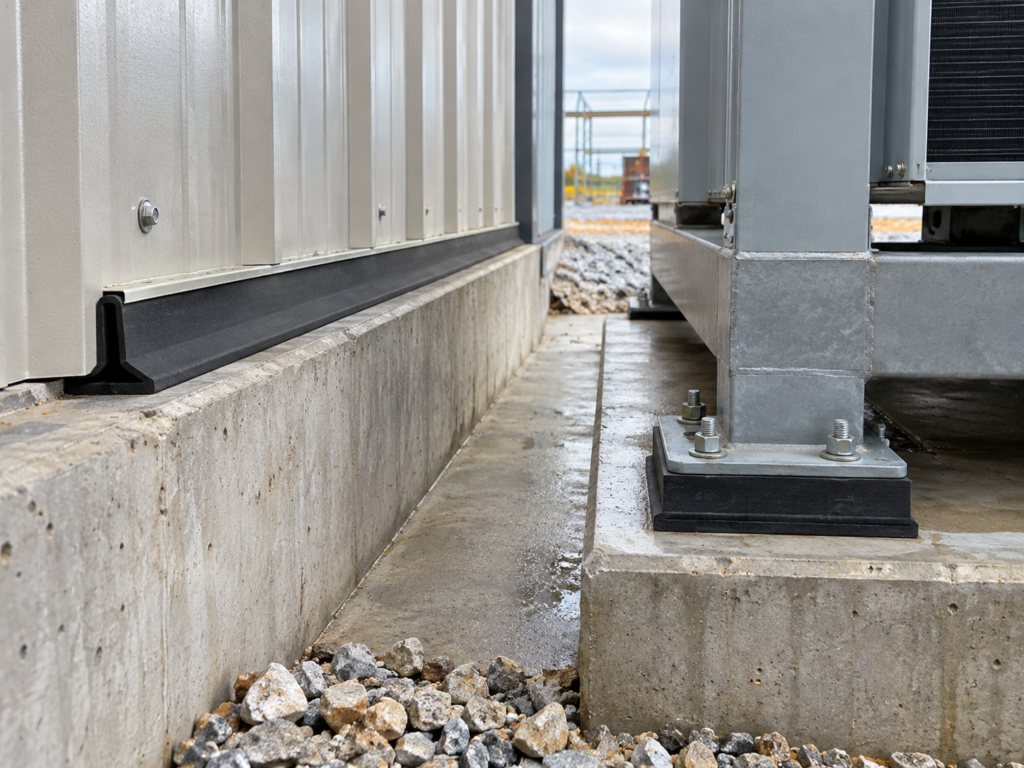

Neoprene Isolation Gaskets

Neoprene isolation gaskets are used where the gasket must provide sealing together with vibration cushioning or component separation. They can help reduce direct contact between parts and accommodate minor movement

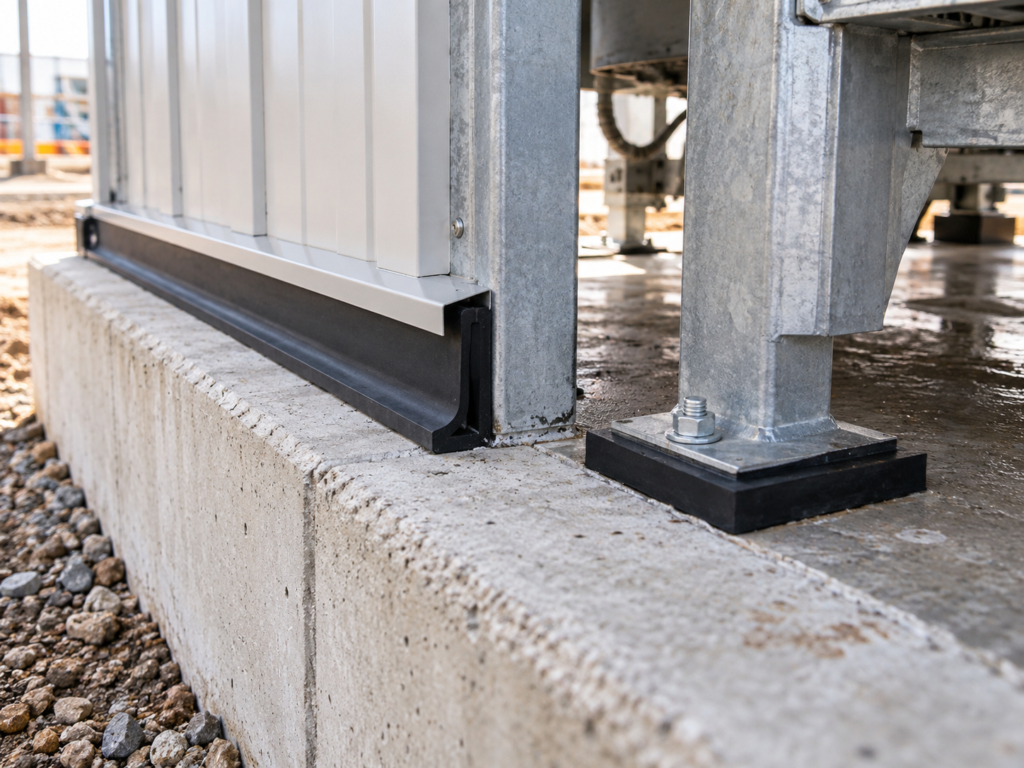

Neoprene Sill and Floor Gaskets

Neoprene sill and floor gaskets are used at building interfaces, base connections, floor joints and equipment support areas. The gasket helps fill surface irregularities and provides a flexible sealing layer between connected materials

Neoprene Compared with EPDM, NBR, Silicone and SBR

Neoprene is not the best material for every sealing application. It is usually selected when the project needs a balanced combination of flexibility, weather resistance, ozone resistance, abrasion resistance and general mechanical durability.
The correct material should be selected according to the actual contact media, temperature, outdoor exposure, movement and compression requirements

Material	Main Characteristics	When It May Be Preferred
Neoprene	Balanced weathering, flexibility, ozone resistance and abrasion resistance	General industrial sealing and outdoor equipment
EPDM	Strong resistance to ozone, weathering, water and hot water	Outdoor, water and weather-exposed applications
NBR	Better resistance to oils, grease and many petroleum-based fluids	Oil, fuel and hydraulic-related environments
Silicone	Wide temperature capability and stable flexibility	High- and low-temperature applications
SBR	Cost-effective general-purpose rubber performance	Moderate-duty applications where cost is important

Neoprene vs EPDM

Neoprene and EPDM are both considered for outdoor sealing. Neoprene may be preferred when the design also requires abrasion resistance, mechanical durability and resistance to repeated movement. EPDM may be more suitable where water, hot water, ozone and long-term weather exposure are the main concerns.

Neoprene vs NBR

NBR is commonly considered for oil and fuel contact. Neoprene may be preferred when weathering, ozone, flexibility and abrasion resistance are more important than maximum oil resistance.

Neoprene vs Silicone

Silicone is generally selected for wider temperature requirements. Neoprene may be a more practical choice when the application requires mechanical strength, abrasion resistance and balanced outdoor performance.

Neoprene vs SBR

SBR can be suitable for cost-sensitive, moderate-duty sealing. Neoprene is often considered when improved weathering, ozone resistance and repeated movement performance are required.

Selection Guidance

Material selection should not be based only on price, color or appearance. The customer should review the operating environment, contact media, temperature, compression, movement and expected service life before choosing the gasket material.
