Custom Silicone Grommet Manufacturer In China
High-Precision Silicone Grommets, Built for Your Project
Custom silicone grommets protect cables, probes, tubes, and panel openings in demanding industrial applications. Riseup Rubber develops silicone rubber grommets around your dimensions, installation conditions, and performance requirements
Custom Certified Silicone Grommet For Your Industry, You Can Confirm The Below Details
Why Silicone Grommets Perform Reliably in Demanding Applications
A silicone grommet works well in demanding environments because its material flexibility and part geometry work together. The silicone rubber compound provides elastic recovery, while the grommet profile distributes pressure around the opening. This helps protect cables, wires, tubes, and hoses from sharp edges, abrasion, vibration, and repeated movement
For applications exposed to heat, sunlight, ozone, or long-term aging, we can evaluate a high-temperature silicone grommet compound according to the actual operating conditions. The final compound and performance limits are confirmed through project review and sample validation
Heat and Aging Stability
Silicone rubber grommets can be developed for applications where temperature changes, sunlight, ozone, or long service periods may affect conventional rubber parts. We select the compound and post-curing conditions according to the working environmen
Flexible Protection for Cables and Tubes
The flexible inner wall of a silicone cable grommet cushions the cable or tube as it passes through a panel. It reduces edge contact, distributes local stress, and allows controlled movement without cutting into the jacket or surface
Sealing and Retention Through Geometr
The inner diameter, outer diameter, groove width, flange thickness, and wall profile determine how the part fits the panel and retains the cable or tube. Sealing performance is evaluated together with the mating panel, compression level, and installation method
Vibration and Repeated-Movement Resistanc
At a panel opening, a silicone grommet cushions vibration and repeated cable or tube movement. Its flexible inner wall reduces rubbing and concentrated stress, while the groove and flange help keep the grommet seated during equipment operatio
Engineering a Silicone Grommet That Installs Correctly
A custom silicone grommet must do more than fit a hole. It must install smoothly, stay securely in position, protect the cable or tube, and maintain reliable performance during vibration and repeated movement
1: Panel and Groove Fit
We evaluate panel thickness, hole diameter, edge condition, groove width, and flange geometry together. This helps the silicone grommet seat correctly without excessive looseness, deformation, or rotation.
2: Controlled Insertion and Retention
Insertion force and retention force are influenced by hardness, wall thickness, groove dimensions, and flange structure. These features can be adjusted to balance installation practicality and pull-out resistance.
3: Cable and Tube Protection
The inner opening, contact length, wall profile, and strain-relief area are designed around the cable or tube. This helps reduce concentrated pressure, rubbing, bending stress, and damage from sharp panel edges.
4: Design Review Before Tooling
You can provide a drawing, sample, photographs, dimensions, or an existing part for reverse engineering. We review the structure, identify assembly risks, and recommend adjustments before tooling is finalized
Silicone Grommet Types for Different Project Requirement

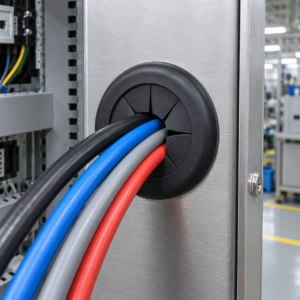

Silicone Cable Grommet
A silicone cable grommet protects wires and cables where they pass through panels, cabinets, housings, and equipment frames. The opening, wall thickness, and retention profile can match the cable diameter and panel thickness.

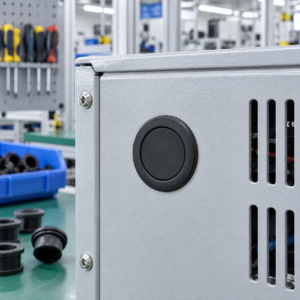

Silicone Grommet Plug
A silicone grommet plug closes or protects unused openings in panels and equipment housings. Its flange and retention structure can be adjusted for a secure fit.

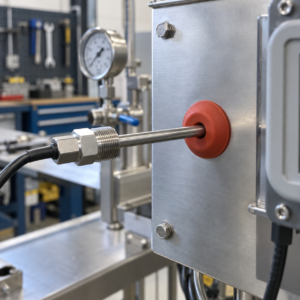

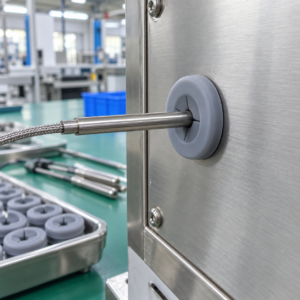

Silicone Probe Grommet
A silicone probe grommet is designed for probes, sensors, and small tubes passing through an enclosure or panel. The inner opening and contact area can hold the probe while allowing required adjustment.

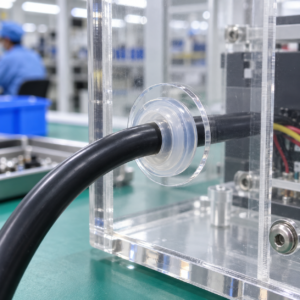

Clear Silicone Grommet
Clear silicone grommets can be considered when visual inspection, component identification, or a less noticeable appearance is required

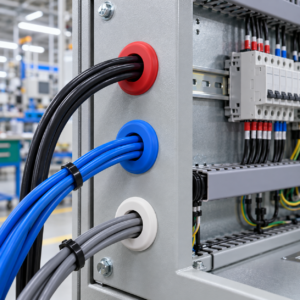

Colored Silicone Grommets
Colored silicone grommets support product identification, assembly orientation, and visual differentiation between cable groups or equipment version.

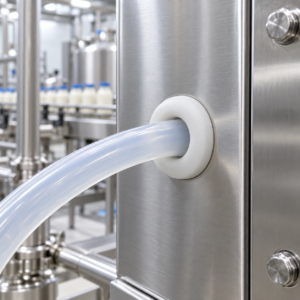

Food Safe Silicone Grommet
For food-processing or food-contact equipment, we first confirm the required material grade, operating conditions, and documentation requirements before production

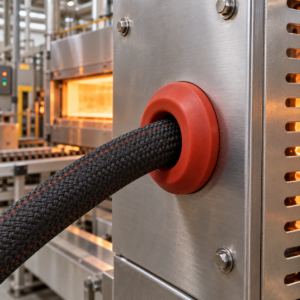

High Temperature Silicone Grommet
High temperature silicone grommets, also described as heat resistant silicone grommets, can be developed for elevated heat or repeated temperature changes. The compound and structure are confirmed through project evaluation.
Silicone Grommet Specifications
| Item | Specification |
|---|---|
| Material | Silicone rubber |
| Hardness | 30–70 Shore A |
| Manufacturing Process | Compression molding |
| Post-Curing | Available when required |
| Temperature | Project-specific; high-temperature grade available after evaluation |
| Colors | Black, clear, translucent, colored |
| Custom Dimensions | Inner diameter, outer diameter, groove width, flange, wall thickness |
| Tolerance | Typically ±0.05 mm after design confirmation |
| Product Forms | Cable grommet, grommet plug, probe grommet, food-safe and high-temperature versions |
Silicone Grommets for Different Industrial Applications
A silicone grommet is selected according to equipment structure, cable or tube path, temperature conditions, and installation requirements

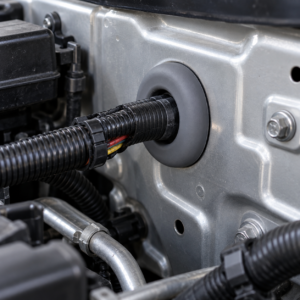

Automotive Wiring and Component
Silicone cable grommets protect wires passing through body panels, engine-compartment brackets, and electronic housings. They help reduce abrasion and movement-related damag

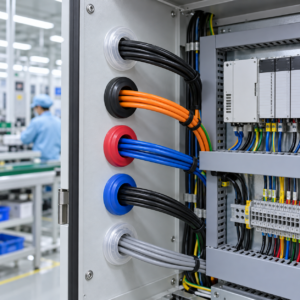

Electronic and Control Equipment
In control cabinets, sensors, power supplies, and electronic enclosures, silicone grommets protect cables at panel openings and help keep cable paths organized.

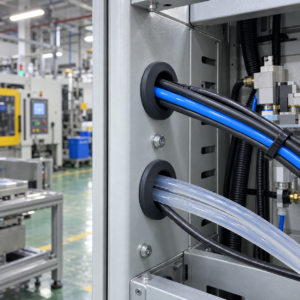

Industrial Machinery
Custom silicone grommets can be designed around panel thickness, line diameter, and expected movement to reduce rubbing and edge damage around cables, tubes, and small hydraulic or pneumatic lines
Probes and Sensors
A silicone probe grommet supports probes, sensors, and small tubes installed through equipment panels or protective covers. The inner opening and contact area can be customized for the required adjustment.

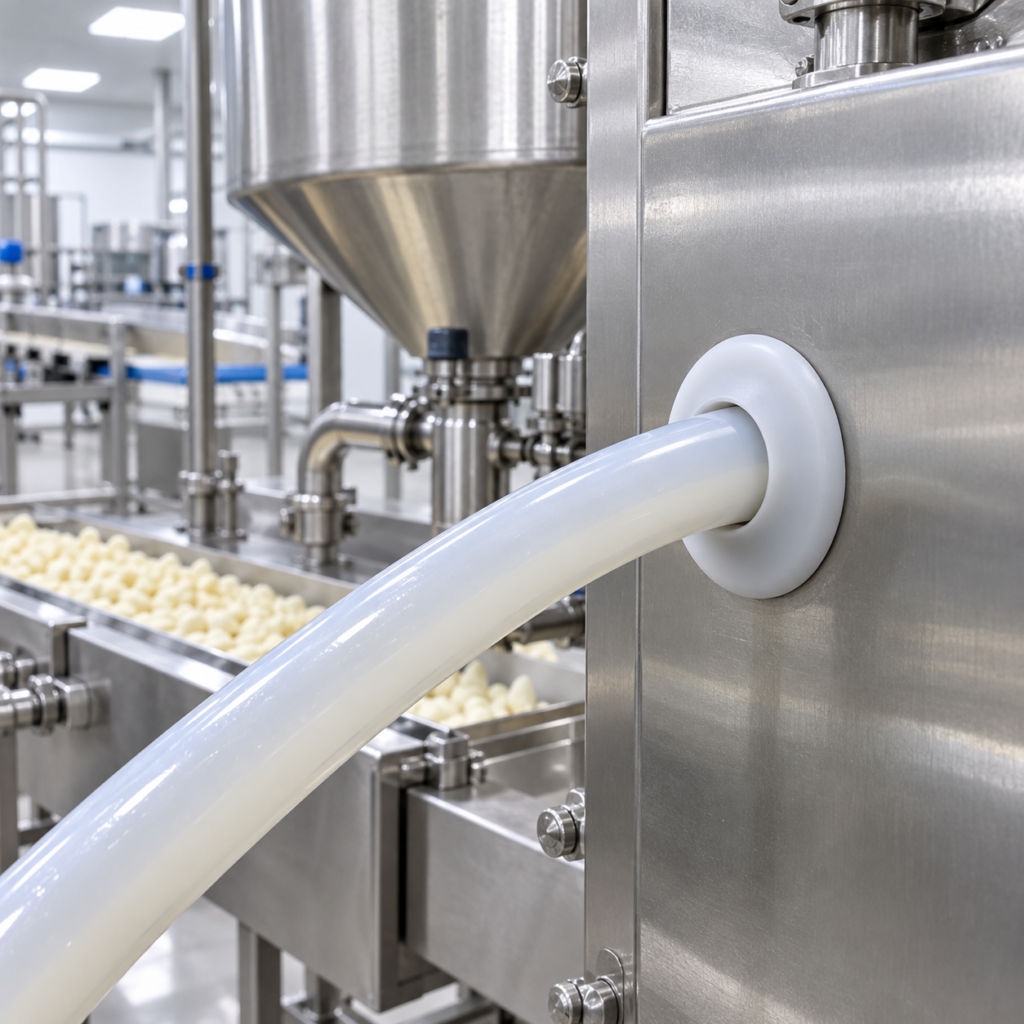

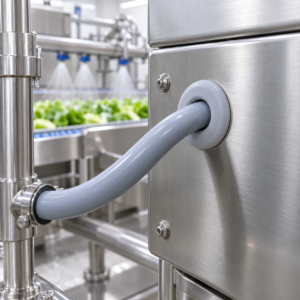

Food-Processing Equipment
A food safe silicone grommet can be evaluated for food-processing equipment where smooth surfaces, cleanability, and controlled material selection are important
How Custom Silicone Grommets Solve Real Assembly Problem
Every silicone grommet project involves more than selecting a material. The structure must match the customer’s panel, cable, probe, or equipment assemble

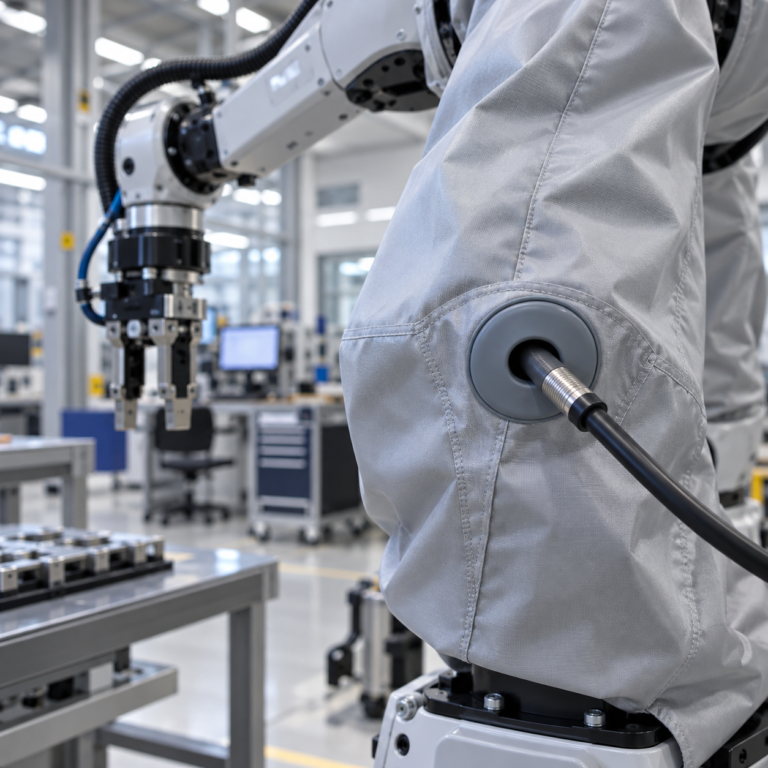

U.S. Robotics Equipment Customer — 2025
The customer used sensors and control cables that moved repeatedly through protective covers and equipment panels. The existing rubber grommet caused rubbing around the cable.
We reviewed cable diameter, movement direction, contact area, cover thickness, and installation method. We developed a custom silicone probe grommet with a revised inner opening and flexible contact profile.
The new design reduced cable rubbing during repeated movement and helped the customer complete installation and motion testing
European Food-Processing Equipment Customer — 2026.5
The customer needed a grommet for a stainless-steel food-processing machine. The previous supplier could not clearly match the required material and cleaning conditions.
We reviewed the installation area, cable path, panel thickness, cleaning environment, and documentation requirements. We developed a food safe silicone grommet with a smooth external profile and customized groove structure.
The customer completed installation testing and approved the part for the next production stage.
Frequently Asked Questions About Silicone Grommets
Silicone is not usually the first choice for continuous contact with petroleum oil, fuel, or certain hydrocarbon fluids. We can evaluate NBR grommet or another project-approved compound according to the actual fluid, temperature, exposure time, and compression conditions
We review operating temperature, temperature cycling, exposure time, compression, and surrounding components before confirming the compound and structure
Yes. Clear and colored silicone grommets can be developed according to the application. Transparency, color, hardness, wall thickness, and surface finish must be confirmed before production
Yes. We accept samples, photographs, dimensions, and installation information for reverse engineering and design review
Yes. The inner opening, contact length, wall profile, and retention structure can be designed around the expected movement
Useful information includes panel thickness, hole diameter, cable or probe diameter, installation direction, working temperature, contact media, movement conditions, color, hardness, and estimated quantity
We can evaluate food safe silicone grommet requirements. The material grade, operating environment, cleaning conditions, and required documentation must be confirmed before production.
Rubber Grommet Standard Production Process For Your Custom Product
MOQ 500 pcs, Accept Customization for Small Order. Design Products as Your Idea.
